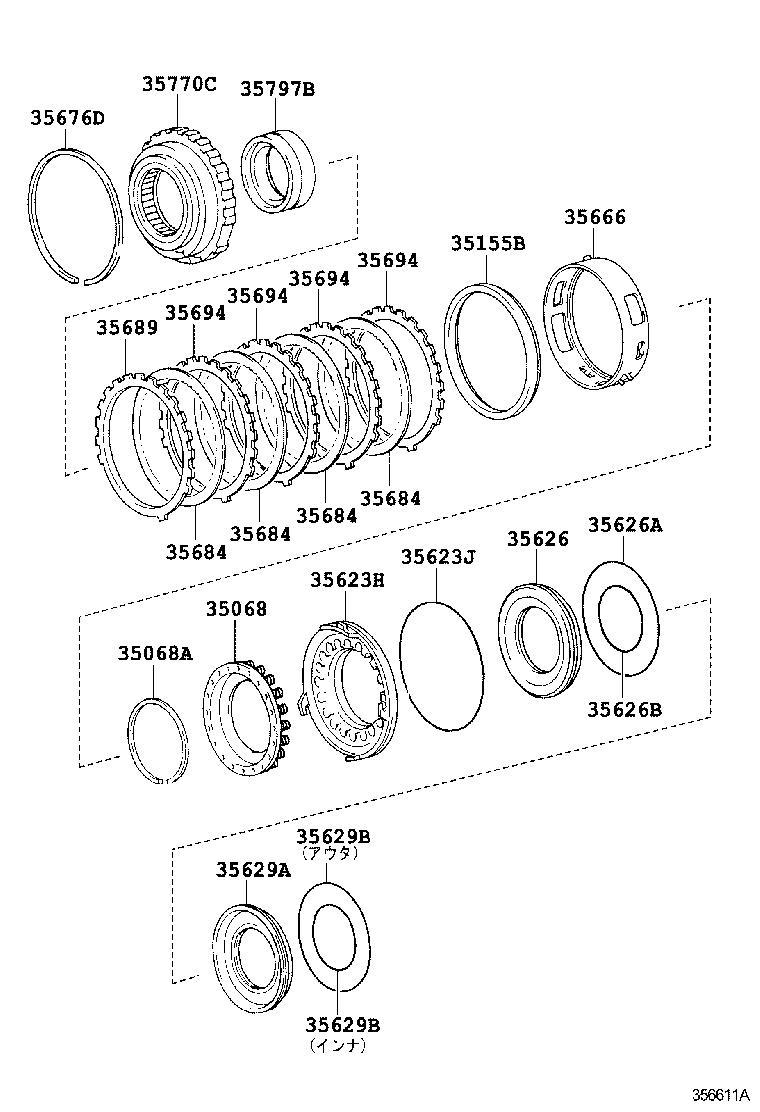

Toyota Crown/hybrid GRS211 BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

Part #	Description	Period	Qty
35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
35068-60010	GRS211	12/2012 - 09/2015	1
35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING
90520-61001	GRS211	12/2012 - 09/2015	1
35155B - SLEEVE, REAR COVER
35155-50010	GRS211	12/2012 - 09/2015	1
35623H - PISTON, 1ST & REVERSE BRAKE
35623-50030	GRS211	12/2012 - 09/2015	1
35623J - RING, O (FOR 1ST & REVERSE BRAKE)
90301-99087	GRS211	12/2012 - 09/2015	1
35626 - SLEEVE, BRAKE REACTION
35626-50010	GRS211	12/2012 - 09/2015	1
35626A - RING (FOR BRAKE REACTION SLEEVE OUTER)
90301-99144	GRS211	12/2012 - 09/2015	1
35626B - RING (FOR BRAKE REACTION SLEEVE INNER)
90301-79003	GRS211	12/2012 - 09/2015	1
35629A - PISTON, BRAKE, NO.4
35629-50020	GRS211	12/2012 - 09/2015	1
35629B - RING, O (FOR BRAKE PISTON NO.4)
90301-67006	GRS211 内側	12/2012 - 09/2015	1
90301-99084	GRS211 外側	12/2012 - 09/2015	1
35629B - RING, O (FOR BRAKE PISTON NO.4)
90301-67006	GRS211 内側	12/2012 - 09/2015	1
90301-99084	GRS211 外側	12/2012 - 09/2015	1
35666 - TUBE, BRAKE APPLY
35666-50010	GRS211	12/2012 - 09/2015	1
35676D - RING, HOLE SNAP (FOR 1ST & REVERSE BRAKE FLANGE)
90521-99131	GRS211	12/2012 - 09/2015	1
35684 - DISC, BRAKE, NO.4
35684-50010	GRS211	12/2012 - 03/2014	4
35684-60030	GRS211	04/2014 - 09/2015	4
35684 - DISC, BRAKE, NO.4
35684-50010	GRS211	12/2012 - 03/2014	4
35684-60030	GRS211	04/2014 - 09/2015	4
35684 - DISC, BRAKE, NO.4
35684-50010	GRS211	12/2012 - 03/2014	4
35684-60030	GRS211	04/2014 - 09/2015	4
35684 - DISC, BRAKE, NO.4
35684-50010	GRS211	12/2012 - 03/2014	4
35684-60030	GRS211	04/2014 - 09/2015	4
35689 - FLANGE, BRAKE, NO.4
35689-60270	GRS211 厚さ=1.8,ﾏｰｸ 0	12/2012 - 09/2015	1
35689-60290	GRS211 厚さ=2.11,ﾏｰｸ 3	12/2012 - 09/2015	1
35689-60330	GRS211 厚さ=2.67,ﾏｰｸ 8	12/2012 - 09/2015	1
35689-60280	GRS211 厚さ=1.97,ﾏｰｸ 1	12/2012 - 09/2015	1
35689-60360	GRS211 厚さ=3.09,ﾏｰｸ 12	12/2012 - 09/2015	1
35689-60300	GRS211 厚さ=2.25,ﾏｰｸ 4	12/2012 - 09/2015	1
35689-60320	GRS211 厚さ=2.53,ﾏｰｸ 7	12/2012 - 09/2015	1
35689-60370	GRS211 厚さ=3.23,ﾏｰｸ 14	12/2012 - 09/2015	1
35689-60310	GRS211 厚さ=2.39,ﾏｰｸ 5	12/2012 - 09/2015	1
35689-60340	GRS211 厚さ=2.81,ﾏｰｸ 10	12/2012 - 09/2015	1
35689-60350	GRS211 厚さ=2.95,ﾏｰｸ 11	12/2012 - 09/2015	1
35694 - PLATE, BRAKE, NO.4
35694-60011	GRS211	12/2012 - 09/2015	4
35694 - PLATE, BRAKE, NO.4
35694-60011	GRS211	12/2012 - 09/2015	4
35694 - PLATE, BRAKE, NO.4
35694-60011	GRS211	12/2012 - 09/2015	4
35694 - PLATE, BRAKE, NO.4
35694-60011	GRS211	12/2012 - 09/2015	4
35770C - CLUTCH ASSY, 1WAY NO.3
35770-50010	GRS211	12/2012 - 04/2014	1
35770-60030	GRS211	04/2014 - 09/2015	1
35797B - RACE, 1 WAY CLUTCH, INNER
35797-50031	GRS211	12/2012 - 09/2015	1

GRS211-AETWH (2012)

(1212- )GRS211
