Toyota Crown/hybrid GRS211 BRAKE TUBE & CLAMP

GRS211-AETQH (2015)

Toyota Crown/Hybrid

Production Sep 2015 - Apr 2018

Engine 4GRFSE

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

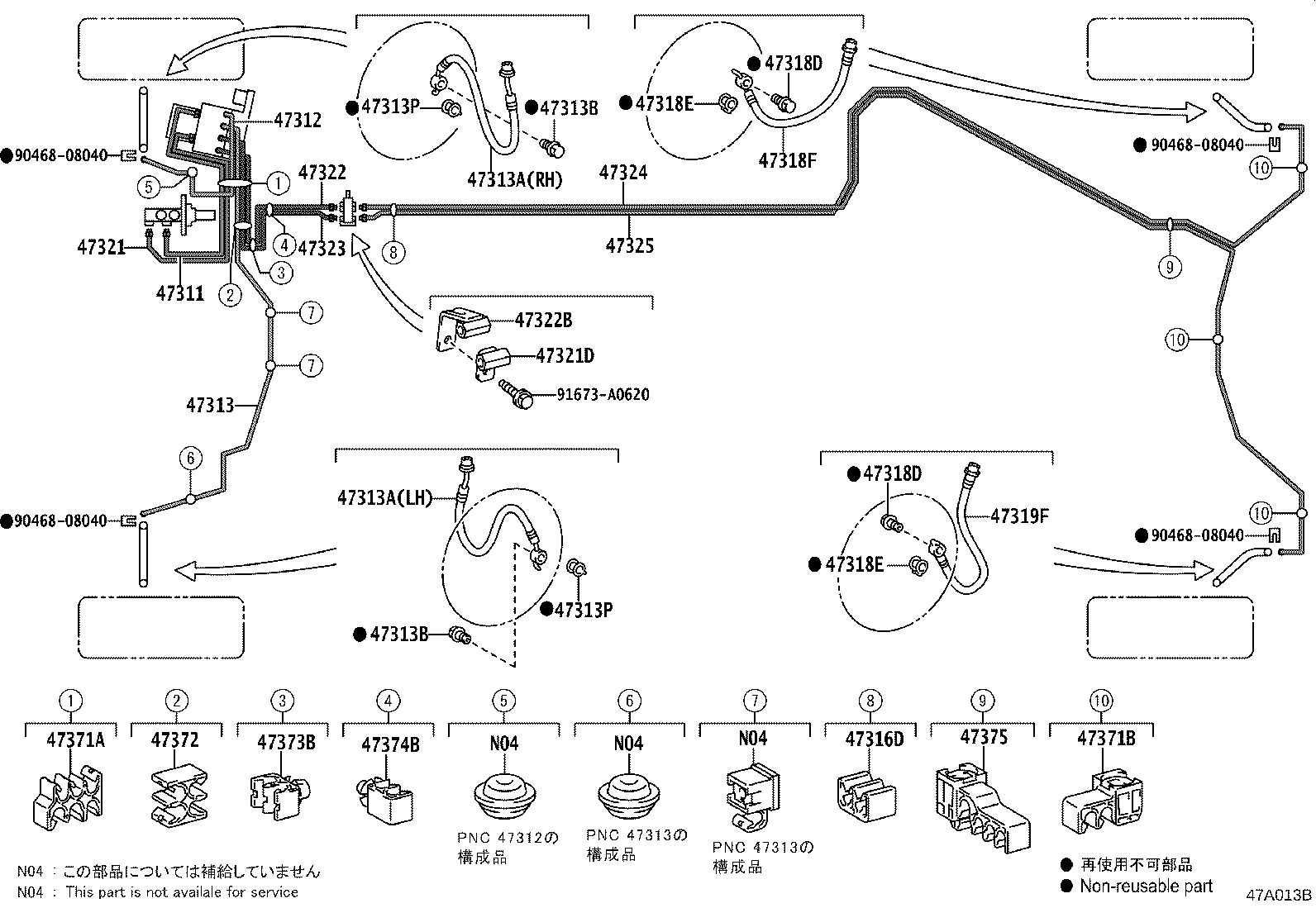

ILLUST NO. 1 OF 2(1509- )GRS211

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-30720	GRS21#	12/2012 - 09/2015	1
47311-30740	ARS210,GRS21#	09/2015 - 04/2018	1
47311 - TUBE, FRONT BRAKE, NO.1
47311-30720	GRS21#	12/2012 - 09/2015	1
47311-30740	ARS210,GRS21#	09/2015 - 04/2018	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-30790	GRS211	12/2012 - 07/2013	1
47312-30880	GRS211	09/2015 - 04/2018	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-30790	GRS211	12/2012 - 07/2013	1
47312-30880	GRS211	09/2015 - 04/2018	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-30A50	GRS211	09/2015 - 04/2018	1
47313-30770	GRS211	12/2012 - 07/2013	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-30A50	GRS211	09/2015 - 04/2018	1
47313-30770	GRS211	12/2012 - 07/2013	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E02	GRS211 右側	12/2012 - 07/2013	1
90947-02H22	AWS211,215,GRS211 左側	09/2015 - 04/2018	1
90947-02G43	AWS211,215,GRS211 右側	09/2015 - 04/2018	1
90947-02E03	GRS211 左側	12/2012 - 07/2013	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E02	GRS211 右側	12/2012 - 07/2013	1
90947-02H22	AWS211,215,GRS211 左側	09/2015 - 04/2018	1
90947-02G43	AWS211,215,GRS211 右側	09/2015 - 04/2018	1
90947-02E03	GRS211 左側	12/2012 - 07/2013	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E02	GRS211 右側	12/2012 - 07/2013	1
90947-02H22	AWS211,215,GRS211 左側	09/2015 - 04/2018	1
90947-02G43	AWS211,215,GRS211 右側	09/2015 - 04/2018	1
90947-02E03	GRS211 左側	12/2012 - 07/2013	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E02	GRS211 右側	12/2012 - 07/2013	1
90947-02H22	AWS211,215,GRS211 左側	09/2015 - 04/2018	1
90947-02G43	AWS211,215,GRS211 右側	09/2015 - 04/2018	1
90947-02E03	GRS211 左側	12/2012 - 07/2013	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	2
90401-10058	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	2
90401-10058	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	2
90401-10058	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	2
47389-50020	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	2
47389-50020	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	2
47389-50020	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	2
47389-50020	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	2
47316D - GROMMET(FOR REAR BRAKE TUBE)
90480-01621	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
90480-01621	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
47316D - GROMMET(FOR REAR BRAKE TUBE)
90480-01621	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
90480-01621	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	2
90401-10058	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	2
90401-10058	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	2
90401-10058	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	2
90401-10058	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	2
47389-50020	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	2
47389-50020	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	2
47389-50020	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	2
47389-50020	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02G89	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
90947-02G89	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02G89	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
90947-02G89	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02G89	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
90947-02G89	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02G89	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
90947-02G89	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
47321 - TUBE, REAR BRAKE, NO.1
47321-30440	ARS210,GRS21#	09/2015 - 04/2018	1
47321-30430	GRS21#	12/2012 - 09/2015	1
47321 - TUBE, REAR BRAKE, NO.1
47321-30440	ARS210,GRS21#	09/2015 - 04/2018	1
47321-30430	GRS21#	12/2012 - 09/2015	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10292	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
90412-10292	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10292	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
90412-10292	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
47322 - TUBE, REAR BRAKE, NO.2
47322-30580	GRS210,211	09/2015 - 04/2018	1
47322-30490	GRS210,211	12/2012 - 09/2015	1
47322 - TUBE, REAR BRAKE, NO.2
47322-30580	GRS210,211	09/2015 - 04/2018	1
47322-30490	GRS210,211	12/2012 - 09/2015	1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90412-10297	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
90412-10297	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90412-10297	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
90412-10297	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
47323 - TUBE, REAR BRAKE, NO.3
47323-30430	GRS21#	12/2012 - 09/2015	1
47323-30520	GRS210,211	09/2015 - 04/2018	1
47323 - TUBE, REAR BRAKE, NO.3
47323-30430	GRS21#	12/2012 - 09/2015	1
47323-30520	GRS210,211	09/2015 - 04/2018	1
47324 - TUBE, REAR BRAKE, NO.4
47324-30340	AWS210,211,GRS21#	12/2012 - 09/2015	1
47324-30340	ARS210,AWS210,211,GRS21#	09/2015 - 04/2018	1
47324 - TUBE, REAR BRAKE, NO.4
47324-30340	AWS210,211,GRS21#	12/2012 - 09/2015	1
47324-30340	ARS210,AWS210,211,GRS21#	09/2015 - 04/2018	1
47325 - TUBE, REAR BRAKE, NO.5
47325-30120	AWS210,211,GRS21#	12/2012 - 09/2015	1
47325-30120	ARS210,AWS210,211,GRS21#	09/2015 - 04/2018	1
47325 - TUBE, REAR BRAKE, NO.5
47325-30120	AWS210,211,GRS21#	12/2012 - 09/2015	1
47325-30120	ARS210,AWS210,211,GRS21#	09/2015 - 04/2018	1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-01D52	ARS210,GRS21#	09/2015 - 04/2018	1
90464-00880	GRS21#	12/2012 - 09/2015	1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-01D52	ARS210,GRS21#	09/2015 - 04/2018	1
90464-00880	GRS21#	12/2012 - 09/2015	1
47371B - CLAMP, BRAKE TUBE, NO.6
90949-01D11	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	3
90949-01D11	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	3
47371B - CLAMP, BRAKE TUBE, NO.6
90949-01D11	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	3
90949-01D11	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	3
47372 - CLAMP, BRAKE TUBE, NO.2
90464-00876	GRS21#	12/2012 - 09/2015	1
90464-00876	ARS210,GRS21#	09/2015 - 04/2018	1
47372 - CLAMP, BRAKE TUBE, NO.2
90464-00876	GRS21#	12/2012 - 09/2015	1
90464-00876	ARS210,GRS21#	09/2015 - 04/2018	1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D12	GRS21#	12/2012 - 09/2015	1
90949-01D12	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D12	GRS21#	12/2012 - 09/2015	1
90949-01D12	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01D13	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
90949-01D13	GRS21#	12/2012 - 09/2015	1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01D13	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
90949-01D13	GRS21#	12/2012 - 09/2015	1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-01D09	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
90949-01D09	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-01D09	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
90949-01D09	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
Common parts
90468-08040
91673-A0620

ILLUST NO. 2 OF 2(1509- )ARS210,GRS21#

Click highlighted areas on diagram

Part #	Description	Period	Qty
44510 - ACTUATOR ASSY, BRAKE
44050-30A80	GRS210..ROYG;GRS211..ROY,ROYAL,ROYG	09/2015 - 08/2016	1
44050-30710	GRS210..ROYG;GRS211..ROY,ROYAL,ROYG	12/2012 - 09/2015	1
44050-30C10	GRS210..ROY,ROYG;GRS211..ROY,ROYAL,ROYG	08/2016 - 05/2017	1
44050-30B10	GRS210,211..ROY,ROYG ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ	09/2015 - 08/2016	1
44050-30L90	GRS210..ROY,ROYG;GRS211..ROY,ROYAL,ROYG	05/2017 - 04/2018	1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110	ARS210,GRS21#	09/2015 - 04/2018	3
44546-12120	GRS21#	12/2012 - 09/2015	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110	ARS210,GRS21#	09/2015 - 04/2018	3
44546-12120	GRS21#	12/2012 - 09/2015	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110	ARS210,GRS21#	09/2015 - 04/2018	3
44546-12120	GRS21#	12/2012 - 09/2015	3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-30210	ARS210,GRS21#	09/2015 - 04/2018	1
44590-30120	GRS21#	12/2012 - 09/2015	1
44595 - BRACKET, BRAKE ACTUATOR, NO.5
44595-30020	GRS21#	12/2012 - 09/2015	1
44595-30050	GRS21#	09/2015 - 04/2018	1
Common parts
44521-12050
90109-08292
90119-06844
90179-08249
91673-80616
