GRS211-AETQH (2012)
Toyota Crown/Hybrid

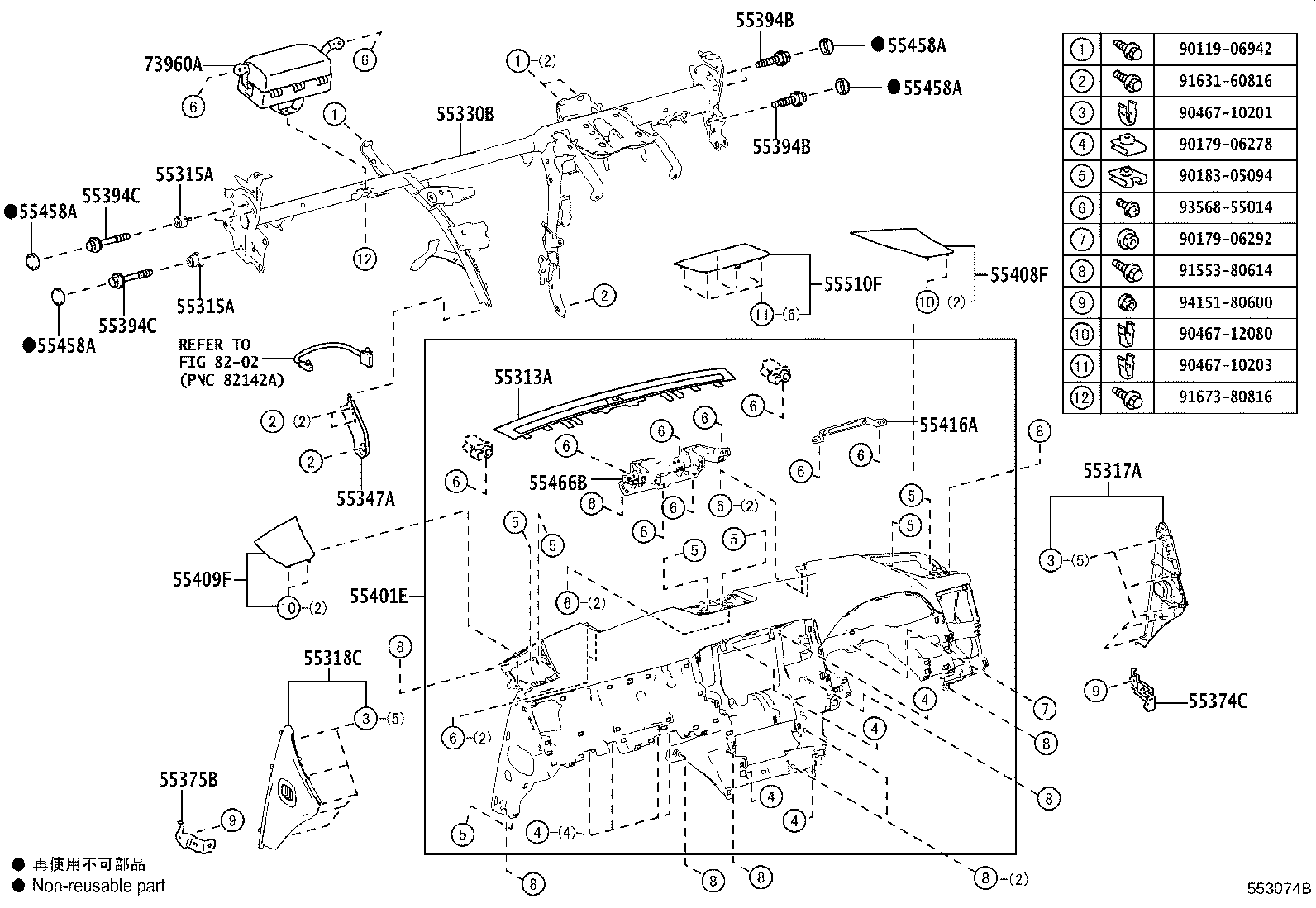

ILLUST NO. 1 OF 2(1212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55313A - PANEL, INSTRUMENT MAIN | ||||
| 55313-30100C0 |
AWS210,211..ROY BLACK,TRIM0#,2#,4# |
1 | ||
| 55313-30100C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-53040 |
AWS21#,GRS21#,GWS214 |
3 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-53040 |
AWS21#,GRS21#,GWS214 |
3 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-30190C0 |
AWS210,211..ROY BLACK,TRIM0#,2#,4# |
1 | ||
| 55317-30190C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-30190C0 |
AWS210,211..ROY BLACK,TRIM0#,2#,4# |
1 | ||
| 55318-30190C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-30430 |
GRS210,211..ATHS,ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 55330-30440 |
AWS210,211..ATH,ROYAL;GRS210,211..ATH,ATHS,ROY,ROYAL |
1 | ||
| 55330-30440 |
AWS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1 | ||||
| 55348-30130 |
AWS211,215,GRS211 |
1 | ||
| 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 | ||||
| 55374-30310 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 | ||||
| 55375-30200 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-22030 |
AWS21#,GRS21#,GWS214 |
3 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-22030 |
AWS21#,GRS21#,GWS214 |
3 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-22040 |
AWS21#,GRS21#,GWS214 |
3 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-22040 |
AWS21#,GRS21#,GWS214 |
3 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55400-30160C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 55400-30160C0 |
AWS210,211..ROY BLACK,TRIM0#,2#,4# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-30310C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,BLACK,TRIM0#,4# |
1 | ||
| 55408-30300C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 55408-30300C0 |
AWS210,211..ROY BLACK,TRIM0#,2#,4# |
1 | ||
| 55408-30310C0 |
AWS210,211..ROY ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,4# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-30320C0 |
AWS210,211..ROY ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,4# |
1 | ||
| 55409-30320C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,BLACK,TRIM0#,4# |
1 | ||
| 55409-30310C0 |
AWS210,211..ROY BLACK,TRIM0#,2#,4# |
1 | ||
| 55409-30310C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-30200 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-22110 |
AWS21#,GRS21#,GWS214 |
6 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-22110 |
AWS21#,GRS21#,GWS214 |
6 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-22110 |
AWS21#,GRS21#,GWS214 |
6 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-22110 |
AWS21#,GRS21#,GWS214 |
6 | ||
| 55466B - RETAINER, INSTRUMENT PANEL SAFETY PAD, NO.1 | ||||
| 55466-30090 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 55510F - COVER ASSY, SPEAKER OPENING, NO.1 | ||||
| 55510-30210C0 |
AWS210,211,GRS210,211..ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し,BLACK,TRIM0#,4# |
1 | ||
| 55510-30220C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM0#,4# |
1 | ||
| 55510-30220C0 |
AWS210,211..ROY BLACK,TRIM0#,2#,4# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-30110 |
AWS21#,GRS21#,GWS214 |
1 | ||
| Common parts | ||||
| 90119-06942 | ||||
| 90179-06278 | ||||
| 90179-06292 | ||||
| 90183-05094 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 91553-80614 | ||||
| 91631-60816 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||

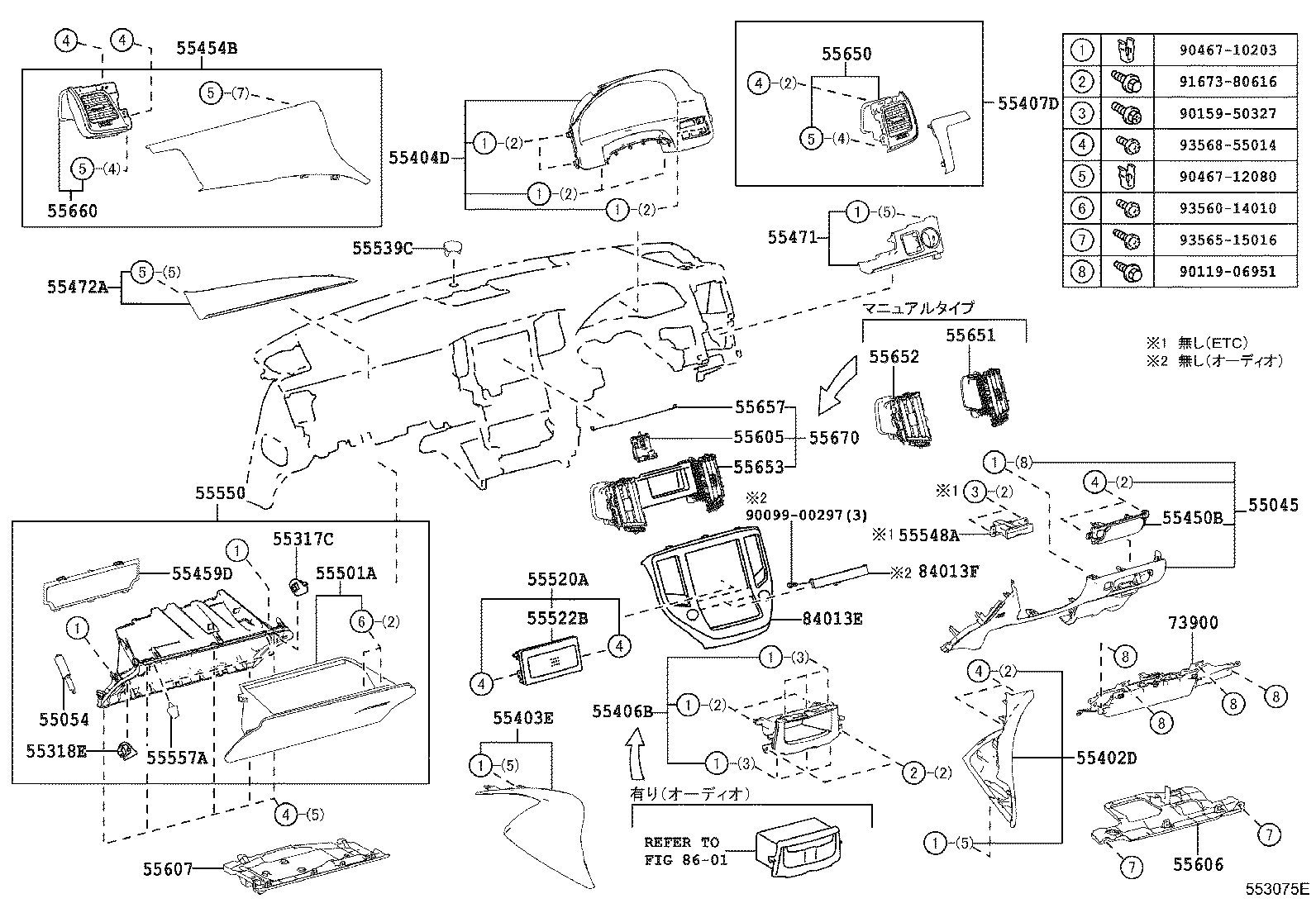

ILLUST NO. 2 OF 2(1212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-30240C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 55045-30240C0 |
AWS210,211..ROY BLACK,TRIM0#,2#,4# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-75020 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 55317C - PATCH, INSTRUMENT SIDE, LOWER RH | ||||
| 55317-30201 |
AWS210,GRS21#,GWS214 |
1 | ||
| 55317-30202 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 55318E - PATCH, INSTRUMENT SIDE, LOWER LH | ||||
| 55318-30202 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 55318-30201 |
AWS210,GRS21#,GWS214 |
1 | ||
| 55402D - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55402-30240A2 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG WHITE/BLACK,TRIM0#&062 ,1F7 ,1J6 ,202 ,3Q3 ,8S6 |
1 | ||
| 55402-30240C2 |
AWS210,211..ROY BLACK/IVORY,TRIM2#&062 ,1F7 ,1J6 ,219 |
1 | ||
| 55402-30240E2 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG CHESTNUT/BLACK,TRIM4#&062 ,1F7 ,1J6 ,202 ,3Q3 ,8S6 |
1 | ||
| 55403E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.2 | ||||
| 55403-30040A1 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG WHITE/IVORY,TRIM0#&062 ,1F7 ,1J6 ,202 ,3Q3 ,8S6 |
1 | ||
| 55403-30040C1 |
AWS210,211..ROY BLACK/BROWN,TRIM2#&062 ,1F7 ,1J6 ,219 |
1 | ||
| 55403-30040E1 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG CHESTNUT,TRIM4#&062 ,1F7 ,1J6 ,202 ,3Q3 ,8S6 |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-30B30C0 |
AWS210,211..ROYAL;GRS210,211..ROY,ROYAL BLACK,TRIM0#,4# |
1 | ||
| 55404-30B30C0 |
AWS210,211..ROY BLACK,TRIM0#,2#,4# |
1 | ||
| 55404-30B50C0 |
AWS210,211..ROY ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM),BLACK,TRIM0#,2#,4# |
1 | ||
| 55404-30B50C0 |
GRS210,211..ROY ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM),BLACK,TRIM0#,4# |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-30240E0 |
AWS210,211,GRS210,211..ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し,BROWN,TRIM0#,4# |
1 | ||
| 55407D - PAD SUB-ASSY, INSTRUMENT PANEL, END | ||||
| 55407-30090C8 |
AWS210,211..ROY BLACK,TRIM0#,2#,4# |
1 | ||
| 55407-30090C8 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-30090C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 55450-30090C0 |
AWS210,211..ROY BLACK,TRIM0#,2#,4# |
1 | ||
| 55454B - PAD, INSTRUMENT PANEL SAFETY, NO.2 | ||||
| 55480-30050C7 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG BLACK/IVORY,TRIM0#,4# |
1 | ||
| 55459D - COVER, INSTRUMENT, LOWER LH | ||||
| 55459-30070 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 55471 - MOULDING, INSTRUMENT CLUSTER, NO.1 | ||||
| 55471-30150E0 |
AWS210,211..ROY BROWN,TRIM0#,2#,4# |
1 | ||
| 55471-30150E0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BROWN,TRIM0#,4# |
1 | ||
| 55472A - MOULDING, INSTRUMENT CLUSTER, NO.2 | ||||
| 55472-30400E0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BROWN,TRIM0#,4# |
1 | ||
| 55472-30400E0 |
AWS210,211..ROY BROWN,TRIM0#,2#,4# |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-30251C0 |
AWS210,211..ROY BLACK,TRIM0#,2#,4# |
1 | ||
| 55501-30250C0 |
AWS210,GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 55501-30251C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 55520A - COVER ASSY, STEREO OPENING | ||||
| 55520-47020 |
AWS210,211,GRS210,211..ATH,ATHS,ROY,ROYAL ｵｰﾃﾞｨｵ ｶﾊﾞｰ−有り(2DIN) |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
AWS210,211,GRS210,211..ATH,ATHS,ROY,ROYAL ｵｰﾃﾞｨｵ ｶﾊﾞｰ−有り(2DIN) |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-30350C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 55539-30350C0 |
AWS210,211..ROY ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,4# |
1 | ||
| 55539-30350C0 |
AWS210,211..ROY BLACK,TRIM0#,2#,4# |
1 | ||
| 55539-30350C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,BLACK,TRIM0#,4# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-47020C0 |
AWS210,211,GRS210,211..ATHS,ROY ETC−無し,BLACK |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-30500C0 |
AWS210,GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 55550-30501C0 |
AWS210,211..ROY BLACK,TRIM0#,2#,4# |
1 | ||
| 55550-30501C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 55605 - MOTOR SUB-ASSY, SWING REGISTER | ||||
| 55605-30020 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-30270 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-30360 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-30450C0 |
AWS210,211..ROY BLACK,TRIM0#,2#,4# |
1 | ||
| 55650-30450C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 55651 - REGISTER, INSTRUMENT PANEL, NO.1 | ||||
| 55651-30140 |
AWS210,211,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 55652 - REGISTER, INSTRUMENT PANEL, NO.2 | ||||
| 55652-30130 |
AWS210,211,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 55653 - REGISTER, INSTRUMENT PANEL, NO.3 | ||||
| 55653-30140 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 55657 - ROD, REGISTER BLADE CONNECTING | ||||
| 55657-30100 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-30490C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 55660-30490C0 |
AWS210,211..ROY BLACK,TRIM0#,2#,4# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-30540 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-30070C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 73900-30070C0 |
AWS210,211..ROY BLACK,TRIM0#,2#,4# |
1 | ||
| 84013E - PANEL SUB-ASSY, INTEGRATION | ||||
| 84013-30240B0 |
AWS210,GRS210,211..ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し,DK.SILVER,TRIM0#,4# |
1 | ||
| 84013-30230B0 |
AWS210,GRS210,211..ROY,ROYG DK.SILVER,TRIM0#,4# |
1 | ||
| 84013-30230B0 |
AWS210,GRS210,211..ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し,DK.SILVER,TRIM0#,4# |
1 | ||
| 84013-30231B0 |
AWS210,211..ROY DK.SILVER,TRIM0#,2#,4# |
1 | ||
| 84013-30231B0 |
AWS210,211..ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し,DK.SILVER,TRIM0#,2#,4# |
1 | ||
| 84013-30231B0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG DK.SILVER,TRIM0#,4# |
1 | ||
| 84013-30231B0 |
GRS210,211..ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し,DK.SILVER,TRIM0#,4# |
1 | ||
| 84013-30241B0 |
AWS210,211,GRS210,211..ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し,DK.SILVER,TRIM0#,4# |
1 | ||
| 84013F - PANEL SUB-ASSY, INTEGRATION, NO.2 | ||||
| 84013-30250 |
AWS210,211,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| Common parts | ||||
| 90099-00297 | ||||
| 90119-06951 | ||||
| 90159-50327 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 91673-80616 | ||||
| 93560-14010 | ||||
| 93565-15016 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
