GRS211-AETQH (2012)

Toyota Crown/Hybrid

Production Dec 2012 - Sep 2015
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )GRS211

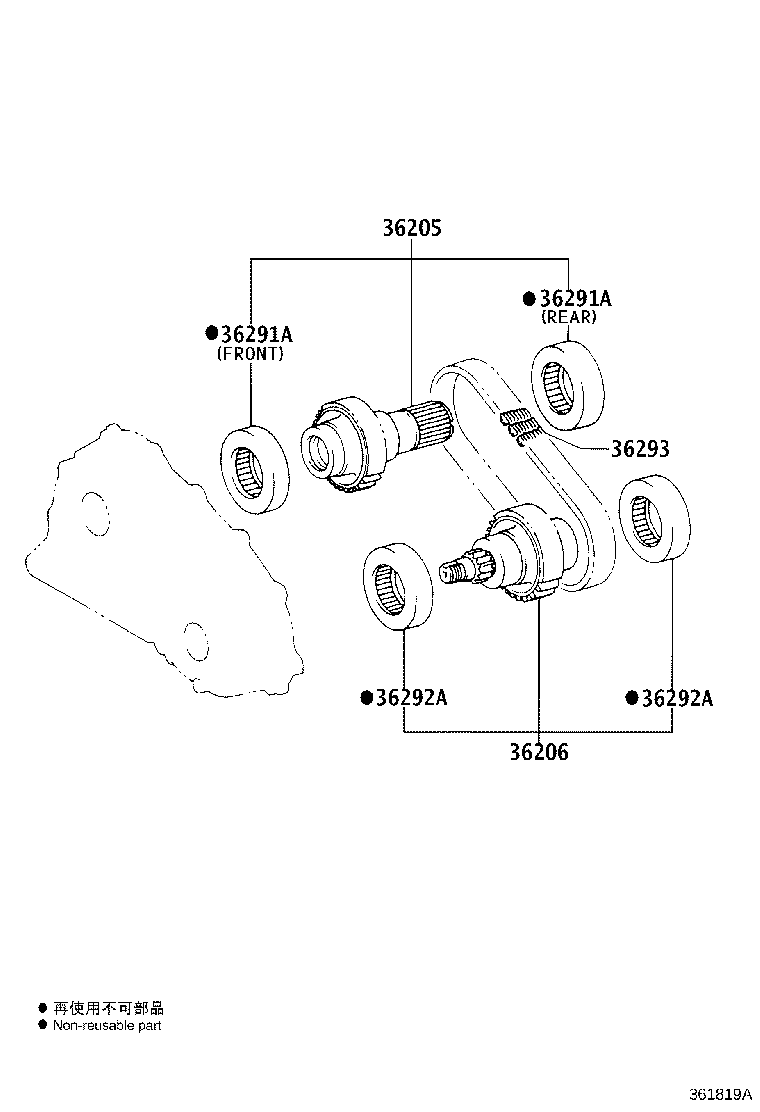

Click highlighted areas on diagram

UF1AE

diagram 36205 36206 36291A 36291A 36292A 36292A 36293
Part # Description Qty Price
36205 - SPROCKET SUB-ASSY, TRANSFER DRIVE
36205-30030

GRS211

 1
36206 - SLEEVE SUB-ASSY, TRNSFR FR DRIVE CLUTCH
36206-30030

GRS211

 1
36291A - BEARING (FOR TRANSFER DRIVE SPROCKET)
90363-55002

GRS211

ﾘﾔ

 1
90363-55004

GRS211

ﾌﾛﾝﾄ

 1
36291A - BEARING (FOR TRANSFER DRIVE SPROCKET)
90363-55002

GRS211

ﾘﾔ

 1
90363-55004

GRS211

ﾌﾛﾝﾄ

 1
36292A - BEARING (FOR TRANSFER DRIVEN SPROCKET)
90363-55004

GRS211

 2
36292A - BEARING (FOR TRANSFER DRIVEN SPROCKET)
90363-55004

GRS211

 2
36293 - CHAIN, TRANSFER FRONT DRIVE
36293-30020

GRS211

 1
