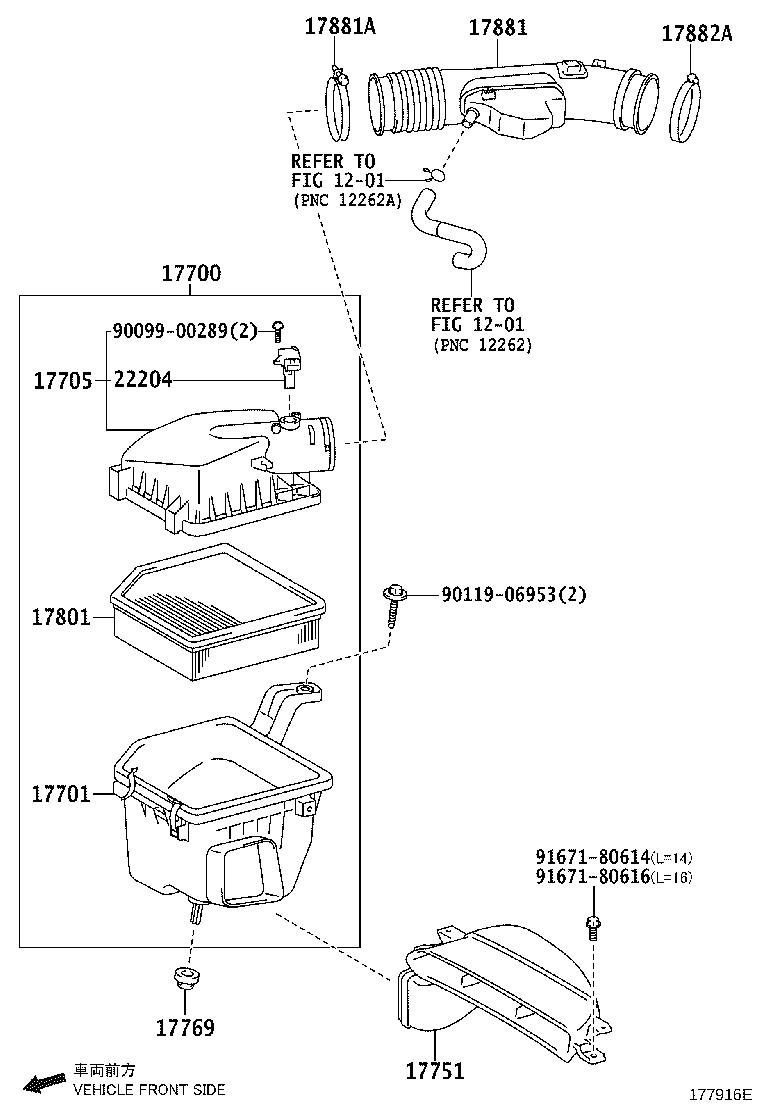

Toyota Crown/hybrid GRS211 AIR CLEANER

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-31A20	2GR#,4GRFSE..GRS21#,GWS214	12/2012 - 09/2015	1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-31690	2GR#,4GRFSE..GRS21#,GWS214	12/2012 - 09/2015	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-31300	2GR#,4GRFSE..GRS21#,GWS214	12/2012 - 09/2015	1
17751 - INLET, AIR CLEANER, NO.1
17751-31360	2GR#,4GRFSE..GRS21#,GWS214	12/2012 - 09/2015	1
17769 - SUPPORT, AIR CLEANER
17769-31030	2GR#,4GRFSE..GRS21#,GWS214	12/2012 - 09/2015	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-31170	2GR#,4GRFSE..GRS21#,GWS214	12/2012 - 09/2015	1
17881 - HOSE, AIR CLEANER, NO.1
17881-31380	4GRFSE..GRS210,211	12/2012 - 09/2015	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10850	2GR#,4GRFSE..GRS21#,GWS214	12/2012 - 09/2015	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
17891-31010	4GRFSE..GRS210,211	12/2012 - 09/2015	1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-0T040	2GR#,4GRFSE..GRS21#,GWS214 ﾏｰｸ 22204−0T040	12/2012 - 09/2015	1
22204-0V010	2GR#,4GRFSE..GRS21#,GWS214 ﾏｰｸ 22204−0V010	12/2012 - 09/2015	1
22204-0V020	2GR#,4GRFSE..GRS21#,GWS214 ﾏｰｸ 22204−0V020	12/2012 - 09/2015	1
22204-28010	2GR#,4GRFSE..GRS21#,GWS214 ﾏｰｸ 22204−28010	12/2012 - 09/2015	1
Common parts
90099-00289
90119-06953
91671-80614
91671-80616
Linked diagrams
1201

GRS211-AETQH (2012)
