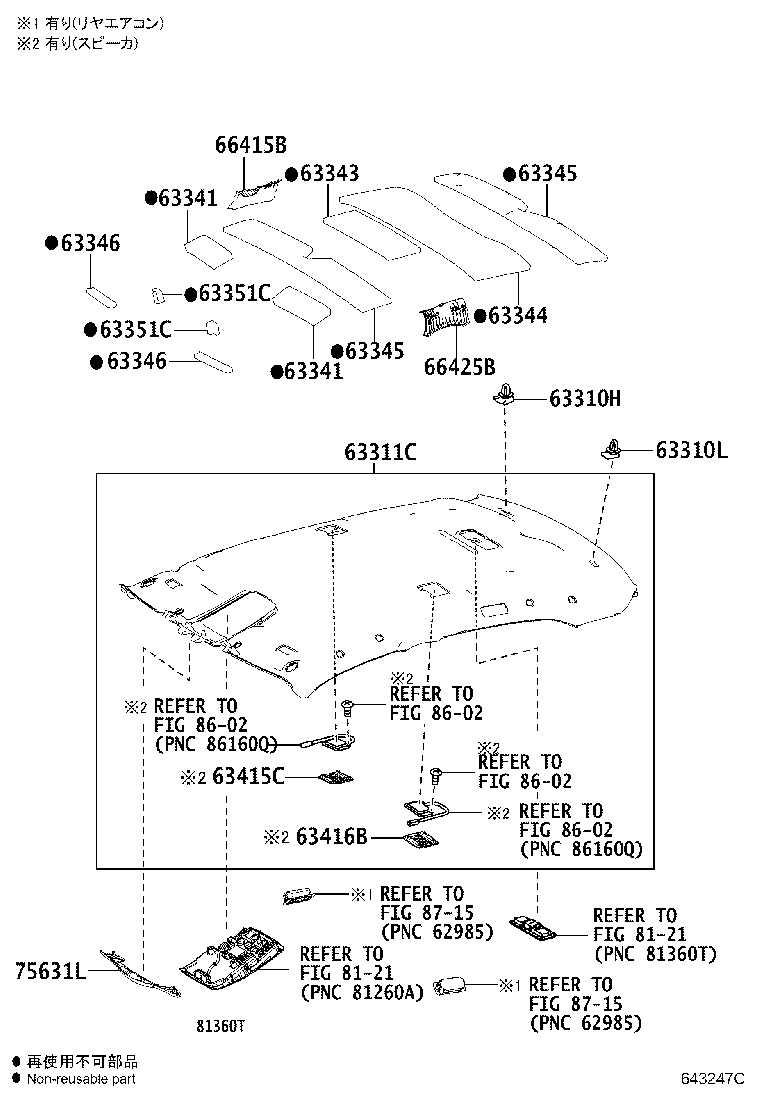

GRS211-AETLH (2012)
Toyota Crown/Hybrid
(1212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-09126 |
GRS210,211..ROY;AWS210,211,GRS214..ATHS,ROY ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ |
1 | ||
| 90467-10181 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 63310L - CAP(FOR ROOF HEADLINING) | ||||
| 90467-10181 |
GRS210,211..ROY;AWS210,211,GRS214..ATHS,ROY ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ |
1 | ||
| 90467-09126 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 63311C - HEADLINING, ROOF | ||||
| 63311-30760A0 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
1 | ||
| 63311-30760B0 |
GRS210,211..ATHG;AWS210,211,GRS214..ATHG,ROY GRAY,TRIM2# |
1 | ||
| 63311-30780A0 |
GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り,FLAXEN,TRIM0#,4# |
1 | ||
| 63311-30780A0 |
GRS210,211..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り,FLAXEN,TRIM0#,4# |
1 | ||
| 63311-30770A0 |
AWS210,211,GRS210,211..ROY,ROYG ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63311-30770A0 |
AWS210,211,GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63311-30770B0 |
AWS210,211,GRS214..ATHG,ROY ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 63311-30810A0 |
AWS210,211,GRS210,211..ROY,ROYG ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63311-30810B0 |
AWS210,211,GRS214..ATHG,ROY ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 63311-30790A0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63311-30770B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 63311-30790A0 |
GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63311-30780A0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り,FLAXEN,TRIM0#,4# |
1 | ||
| 63311-30790A0 |
GRS210,211..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63311-30780A0 |
AWS210,211..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り,FLAXEN,TRIM0#,4# |
1 | ||
| 63311-30800B0 |
GRS210,211..ATHG;AWS210,211,GRS214..ATHG,ROY ﾑｰﾝﾙｰﾌ−有り,GRAY,TRIM2# |
1 | ||
| 63311-30800A0 |
AWS210,211,GRS210,211..ROY,ROYG ﾑｰﾝﾙｰﾌ−有り,FLAXEN,TRIM0#,4# |
1 | ||
| 63311-30790A0 |
AWS210,211..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63311-30810B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 63311-30810A0 |
AWS210,211,GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63311-30800B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り,GRAY,TRIM2# |
1 | ||
| 63311-30800A0 |
AWS210,211,GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り,FLAXEN,TRIM0#,4# |
1 | ||
| 63311-30780B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り,GRAY,TRIM2# |
1 | ||
| 63311-30790B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-30430 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-30430 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-30380 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 63344 - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-30260 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 63345 - PAD, ROOF SILENCER, NO.5 | ||||
| 63345-30200 |
GRS210,211..ROY;AWS210,211,GRS214..ATHS,ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ |
1 | ||
| 63345-30200 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 63345-30200 |
GRS210,211..ROY,ROYG;AWS210,211,GRS214..ATHG,ATHS,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ |
1 | ||
| 63345-30200 |
AWS210,211,GRS21#..ATHS,ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63345-30200 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63345 - PAD, ROOF SILENCER, NO.5 | ||||
| 63345-30200 |
GRS210,211..ROY;AWS210,211,GRS214..ATHS,ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ |
1 | ||
| 63345-30200 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 63345-30200 |
GRS210,211..ROY,ROYG;AWS210,211,GRS214..ATHG,ATHS,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ |
1 | ||
| 63345-30200 |
AWS210,211,GRS21#..ATHS,ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63345-30200 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63346 - PAD, ROOF SILENCER, NO.6 | ||||
| 63346-30120 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 63346 - PAD, ROOF SILENCER, NO.6 | ||||
| 63346-30120 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 63351C - PAD, ROOF HEADLINING | ||||
| 63351-30130 |
AWS210,211,GRS21#..ATHS,ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30130 |
GRS210,211..ROY,ROYG;AWS210,211,GRS214..ATHG,ATHS,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ |
2 | ||
| 63351-30130 |
GRS210,211..ROY;AWS210,211,GRS214..ATHS,ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ |
2 | ||
| 63351-30130 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30120 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 63351C - PAD, ROOF HEADLINING | ||||
| 63351-30130 |
AWS210,211,GRS21#..ATHS,ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30130 |
GRS210,211..ROY,ROYG;AWS210,211,GRS214..ATHG,ATHS,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ |
2 | ||
| 63351-30130 |
GRS210,211..ROY;AWS210,211,GRS214..ATHS,ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ |
2 | ||
| 63351-30130 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30120 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 63415C - GRILLE, ROOF SPEAKER, RH | ||||
| 63415-30010A1 |
AWS210,211,GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63415-30010A1 |
GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63415-30010A1 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63415-30010A1 |
GRS210,211..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63415-30010A1 |
AWS210,211,GRS210,211..ROY,ROYG ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63415-30010A1 |
AWS210,211,GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63415-30010B0 |
AWS210,211,GRS214..ATHG,ROY ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 63415-30010A1 |
AWS210,211,GRS210,211..ROY,ROYG ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63415-30010B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 63415-30010B0 |
AWS210,211,GRS214..ATHG,ROY ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 63415-30010A1 |
AWS210,211..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63415-30010B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 63415-30010B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 63416B - GRILLE, ROOF SPEAKER, LH | ||||
| 63416-30010A1 |
AWS210,211,GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63416-30010A1 |
GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63416-30010A1 |
GRS210,211..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63416-30010A1 |
AWS210,211,GRS210,211..ROY,ROYG ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63416-30010B0 |
AWS210,211,GRS214..ATHG,ROY ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 63416-30010A1 |
AWS210,211,GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63416-30010B0 |
AWS210,211,GRS214..ATHG,ROY ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 63416-30010A1 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63416-30010A1 |
AWS210,211,GRS210,211..ROY,ROYG ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63416-30010A1 |
AWS210,211..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63416-30010B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 63416-30010B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 63416-30010B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 66415B - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-30010 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 66425B - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-30010 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 75631L - GARNISH, ROOF TOP, FRONT | ||||
| 75631-30220A0 |
AWS210,211,GRS210,211..ROY,ROYAL FLAXEN,TRIM0#,4# |
1 | ||
| 75631-30230A0 |
AWS210,211,GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り,FLAXEN,TRIM0#,4# |
1 | ||
| 75631-30230A0 |
AWS210,211,GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0#,4# |
1 | ||
| 75631-30230A0 |
AWS210,211,GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 75631-30230A0 |
AWS210,211,GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 75631-30230A0 |
GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 75631-30230A0 |
GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り,FLAXEN,TRIM0#,4# |
1 | ||
| 75631-30220B0 |
AWS210,211..ROY GRAY,TRIM2# |
1 | ||
| 75631-30230A0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り,FLAXEN,TRIM0#,4# |
1 | ||
| 75631-30230B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 75631-30230B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 75631-30230B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ,GRAY,TRIM2# |
1 | ||
| 75631-30230B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り,GRAY,TRIM2# |
1 | ||
| 75631-30230A0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 75631-30230B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り,GRAY,TRIM2# |
1 | ||
| 75631-30230B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| Linked diagrams | ||||
| 8121 | ||||
| 8602 | ||||
| 8715 | ||||

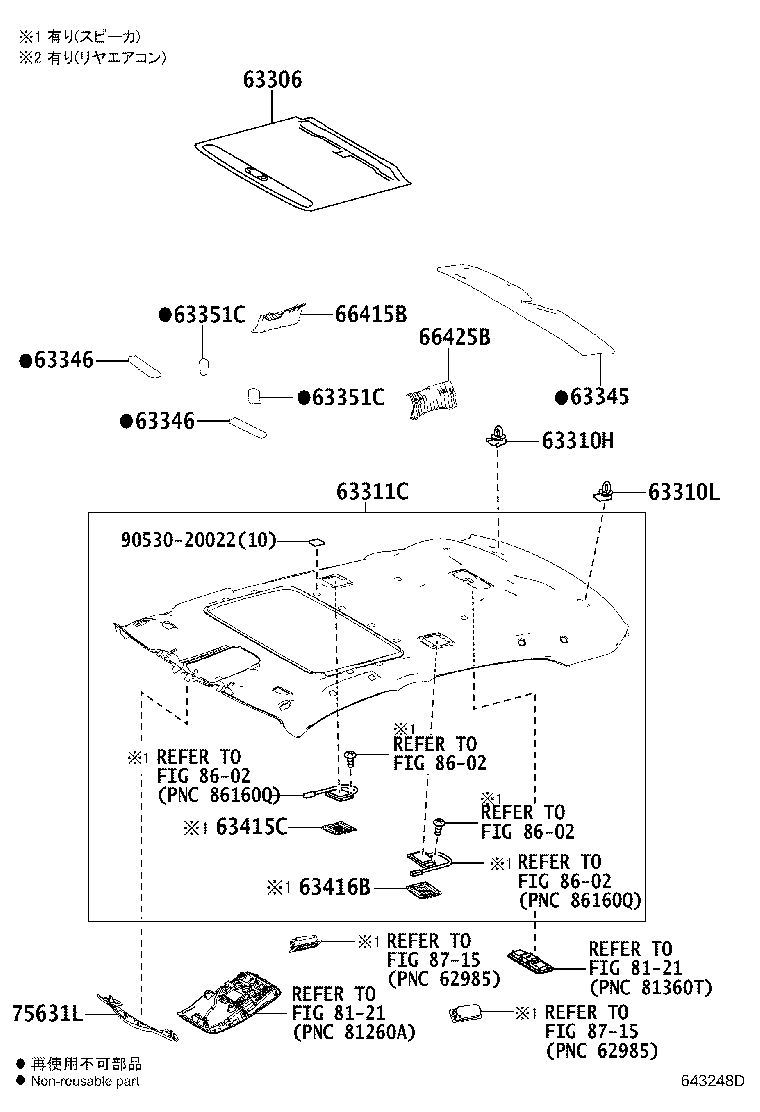

(1212- )ATHG,ATHS,MJ,ROY,ROYG
ｱﾘ(ﾑｰﾝ ﾙｰﾌ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-30190A0 |
AWS210,211,GRS210,211..ROY,ROYG ﾑｰﾝﾙｰﾌ−有り,FLAXEN,TRIM0#,4# |
1 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-09126 |
GRS210,211..ROY;AWS210,211,GRS214..ATHS,ROY ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ |
1 | ||
| 90467-10181 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 63310L - CAP(FOR ROOF HEADLINING) | ||||
| 90467-10181 |
GRS210,211..ROY;AWS210,211,GRS214..ATHS,ROY ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ |
1 | ||
| 90467-09126 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 63311C - HEADLINING, ROOF | ||||
| 63311-30760A0 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
1 | ||
| 63311-30760B0 |
GRS210,211..ATHG;AWS210,211,GRS214..ATHG,ROY GRAY,TRIM2# |
1 | ||
| 63311-30780A0 |
GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り,FLAXEN,TRIM0#,4# |
1 | ||
| 63311-30780A0 |
GRS210,211..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り,FLAXEN,TRIM0#,4# |
1 | ||
| 63311-30770A0 |
AWS210,211,GRS210,211..ROY,ROYG ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63311-30770A0 |
AWS210,211,GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63311-30770B0 |
AWS210,211,GRS214..ATHG,ROY ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 63311-30810A0 |
AWS210,211,GRS210,211..ROY,ROYG ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63311-30810B0 |
AWS210,211,GRS214..ATHG,ROY ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 63311-30790A0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63311-30770B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 63311-30790A0 |
GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63311-30780A0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り,FLAXEN,TRIM0#,4# |
1 | ||
| 63311-30790A0 |
GRS210,211..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63311-30780A0 |
AWS210,211..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り,FLAXEN,TRIM0#,4# |
1 | ||
| 63311-30800B0 |
GRS210,211..ATHG;AWS210,211,GRS214..ATHG,ROY ﾑｰﾝﾙｰﾌ−有り,GRAY,TRIM2# |
1 | ||
| 63311-30800A0 |
AWS210,211,GRS210,211..ROY,ROYG ﾑｰﾝﾙｰﾌ−有り,FLAXEN,TRIM0#,4# |
1 | ||
| 63311-30790A0 |
AWS210,211..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63311-30810B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 63311-30810A0 |
AWS210,211,GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63311-30800B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り,GRAY,TRIM2# |
1 | ||
| 63311-30800A0 |
AWS210,211,GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り,FLAXEN,TRIM0#,4# |
1 | ||
| 63311-30780B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り,GRAY,TRIM2# |
1 | ||
| 63311-30790B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 63345 - PAD, ROOF SILENCER, NO.5 | ||||
| 63345-30200 |
GRS210,211..ROY;AWS210,211,GRS214..ATHS,ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ |
1 | ||
| 63345-30200 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 63345-30200 |
GRS210,211..ROY,ROYG;AWS210,211,GRS214..ATHG,ATHS,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ |
1 | ||
| 63345-30200 |
AWS210,211,GRS21#..ATHS,ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63345-30200 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63346 - PAD, ROOF SILENCER, NO.6 | ||||
| 63346-30120 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 63346 - PAD, ROOF SILENCER, NO.6 | ||||
| 63346-30120 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 63351C - PAD, ROOF HEADLINING | ||||
| 63351-30130 |
AWS210,211,GRS21#..ATHS,ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30130 |
GRS210,211..ROY,ROYG;AWS210,211,GRS214..ATHG,ATHS,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ |
2 | ||
| 63351-30130 |
GRS210,211..ROY;AWS210,211,GRS214..ATHS,ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ |
2 | ||
| 63351-30130 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30120 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 63351C - PAD, ROOF HEADLINING | ||||
| 63351-30130 |
AWS210,211,GRS21#..ATHS,ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30130 |
GRS210,211..ROY,ROYG;AWS210,211,GRS214..ATHG,ATHS,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ |
2 | ||
| 63351-30130 |
GRS210,211..ROY;AWS210,211,GRS214..ATHS,ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ |
2 | ||
| 63351-30130 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30120 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 63415C - GRILLE, ROOF SPEAKER, RH | ||||
| 63415-30010A1 |
AWS210,211,GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63415-30010A1 |
GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63415-30010A1 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63415-30010A1 |
GRS210,211..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63415-30010A1 |
AWS210,211,GRS210,211..ROY,ROYG ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63415-30010A1 |
AWS210,211,GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63415-30010B0 |
AWS210,211,GRS214..ATHG,ROY ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 63415-30010A1 |
AWS210,211,GRS210,211..ROY,ROYG ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63415-30010B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 63415-30010B0 |
AWS210,211,GRS214..ATHG,ROY ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 63415-30010A1 |
AWS210,211..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63415-30010B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 63415-30010B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 63416B - GRILLE, ROOF SPEAKER, LH | ||||
| 63416-30010A1 |
AWS210,211,GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63416-30010A1 |
GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63416-30010A1 |
GRS210,211..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63416-30010A1 |
AWS210,211,GRS210,211..ROY,ROYG ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63416-30010B0 |
AWS210,211,GRS214..ATHG,ROY ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 63416-30010A1 |
AWS210,211,GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63416-30010B0 |
AWS210,211,GRS214..ATHG,ROY ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 63416-30010A1 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63416-30010A1 |
AWS210,211,GRS210,211..ROY,ROYG ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63416-30010A1 |
AWS210,211..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 63416-30010B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 63416-30010B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 63416-30010B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 66415B - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-30010 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 66425B - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-30010 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 75631L - GARNISH, ROOF TOP, FRONT | ||||
| 75631-30220A0 |
AWS210,211,GRS210,211..ROY,ROYAL FLAXEN,TRIM0#,4# |
1 | ||
| 75631-30230A0 |
AWS210,211,GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り,FLAXEN,TRIM0#,4# |
1 | ||
| 75631-30230A0 |
AWS210,211,GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0#,4# |
1 | ||
| 75631-30230A0 |
AWS210,211,GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 75631-30230A0 |
AWS210,211,GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 75631-30230A0 |
GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 75631-30230A0 |
GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り,FLAXEN,TRIM0#,4# |
1 | ||
| 75631-30220B0 |
AWS210,211..ROY GRAY,TRIM2# |
1 | ||
| 75631-30230A0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り,FLAXEN,TRIM0#,4# |
1 | ||
| 75631-30230B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 75631-30230B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| 75631-30230B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ,GRAY,TRIM2# |
1 | ||
| 75631-30230B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り,GRAY,TRIM2# |
1 | ||
| 75631-30230A0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
1 | ||
| 75631-30230B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り,GRAY,TRIM2# |
1 | ||
| 75631-30230B0 |
AWS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,GRAY,TRIM2# |
1 | ||
| Common parts | ||||
| 90530-20022 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8602 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
