GRS211-AETLH (2012)
Toyota Crown/Hybrid

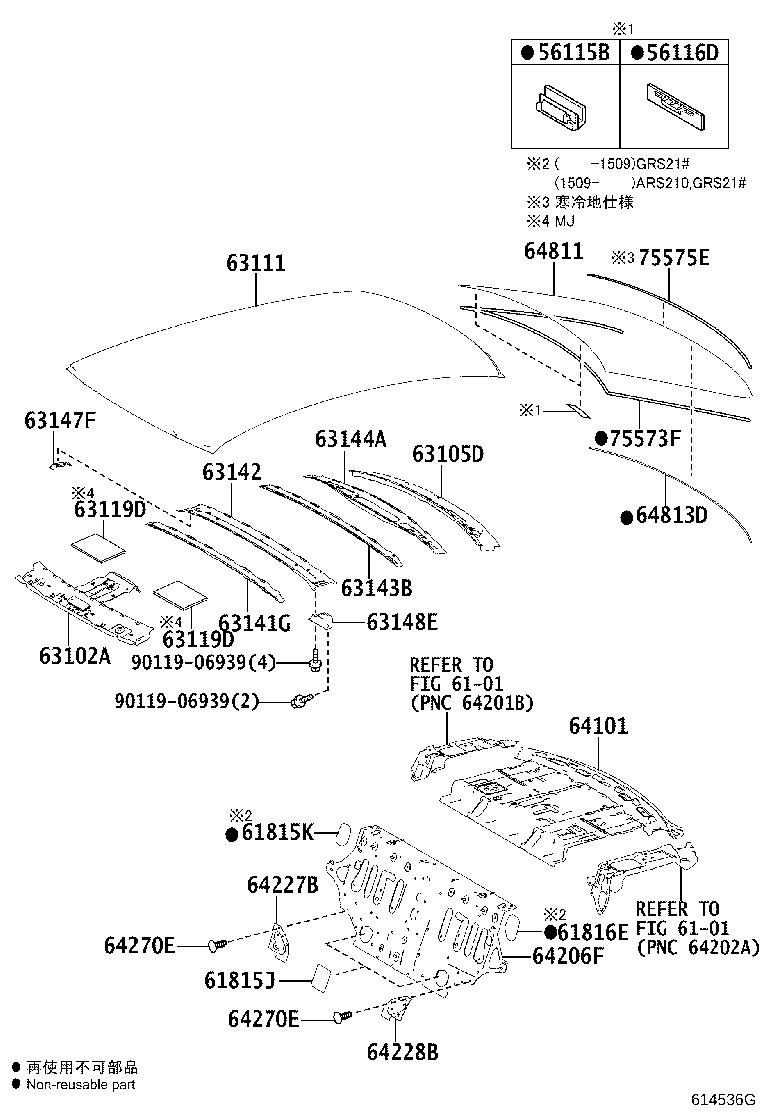

ILLUST NO. 1 OF 2(1212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-30110 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 56116D - STOPPER, BACK WINDOW GLASS, NO.2 | ||||
| 56116-22050 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 61815J - COVER, ROOF SIDE, INNER UPPER | ||||
| 61815-30120 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 61815K - COVER, ROOF SIDE, INNER UPPER RH | ||||
| 61815-30130 |
GRS21# |
1 | ||
| 61816E - COVER, ROOF SIDE, INNER UPPER LH | ||||
| 61816-30120 |
GRS21# |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-30906 |
AWS210,211,GRS21#..ATHS,ROY ﾑｰﾝﾙｰﾌ−有り&ﾃﾚﾏﾃｨｸｽ−有り(DCM) |
1 | ||
| 63102-30906 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63102-30905 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63105-30100 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-30880 |
AWS210,211,GRS21#..ATHS,ROY ﾃﾚﾏﾃｨｸｽ−有り(DCM) |
1 | ||
| 63111-30890 |
AWS210,211,GRS21#..ATHS,ROY ﾑｰﾝﾙｰﾌ−有り&ﾃﾚﾏﾃｨｸｽ−有り(DCM) |
1 | ||
| 63111-30870 |
AWS210,211,GRS21#..ATHS,ROY ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63111-30860 |
AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63143-30310 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-30200 |
AWS210,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63141-30240 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 63142-30200 |
AWS210,GRS21#..ATHS,ROY ﾑｰﾝﾙｰﾌ−有り&ﾃﾚﾏﾃｨｸｽ−有り(DCM) |
1 | ||
| 63142-30201 |
AWS210,211,GRS21#..ATHS,ROY ﾑｰﾝﾙｰﾌ−有り&ﾃﾚﾏﾃｨｸｽ−有り(DCM) |
1 | ||
| 63142-30201 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63148-30210 |
AWS210,211,GRS21#..ATHS,ROY ﾑｰﾝﾙｰﾌ−有り&ﾃﾚﾏﾃｨｸｽ−有り(DCM) |
1 | ||
| 63144-30230 |
AWS210,211,GRS21# |
1 | ||
| 63148-30210 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63128-30110 |
AWS210,211,GRS21# |
1 | ||
| 63147F - BRACKET, ROOF PANEL REINFORCEMENT, RH | ||||
| 63146-30120 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 63148E - BRACKET, ROOF PANEL REINFORCEMENT, LH | ||||
| 63147-30050 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-30A70 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 64206F - PANEL SUB-ASSY, ROOM PARTITION | ||||
| 64206-30110 |
AWS210,211,GRS21#,GWS214..ATH,ATHG,ATHS,MJ,ROY,ROYAL |
1 | ||
| 64206-30150 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 64227B - EXTENSION, CENTER FLOOR TO BLACE, NO.1 | ||||
| 64227-30130 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 64228B - EXTENSION, CENTER FLOOR TO BRACE, NO.2 | ||||
| 64228-30110 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 64270E - CLIP | ||||
| 90467-08186C0 |
AWS21#,GRS21#,GWS214 BLACK |
6 | ||
| 64270E - CLIP | ||||
| 90467-08186C0 |
AWS21#,GRS21#,GWS214 BLACK |
6 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64801-30929 |
AWS210,211,GRS210,211..ATHS,ROY *UVCEHT,厚さ=3.5,ｸﾞﾘｰﾝ,寒冷地仕様&ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ&ｵ[ﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 64801-30930 |
AWS210,211,GRS210,211..ATHS,ROY *UVCEHT,厚さ=3.5,ｸﾞﾘｰﾝ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ |
1 | ||
| 64801-30931 |
AWS210,211,GRS210,211..ATHS,ROY *EHT,厚さ=3.5,ﾀﾞｰｸｸﾞﾘｰﾝ,ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶoｰ無し |
1 | ||
| 64801-30929 |
AWS210,211,GRS210,211..ATHS,ROY *UVCEHT,厚さ=3.5,ｸﾞﾘｰﾝ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ&ｵｰﾃﾞｨｵ−ｵ[ﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 64801-30929 |
AWS210,211,GRS210,211..ATH,ROYAL *UVCEHT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 64801-30932 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG *EHT,厚さ=3.5,ﾀﾞｰｸｸﾞﾘｰﾝ |
1 | ||
| 64801-30930 |
AWS210,211,GRS210,211..ATHS,ROY *UVCEHT,厚さ=3.5,ｸﾞﾘｰﾝ,寒冷地仕様&ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ |
1 | ||
| 64801-30931 |
AWS210,211,GRS210,211..ATHS,ROY *EHT,厚さ=3.5,ﾀﾞｰｸｸﾞﾘｰﾝ,寒冷地仕様&ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6Xﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 56117-50140 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 75573F - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-30410 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 75575E - MOULDING, BACK WINDOW, OUTSIDE LOWER | ||||
| 75575-30320 |
AWS210,211,GRS210,211..ATHS,ROY 寒冷地仕様&ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ&ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 75575-30320 |
AWS210,211,GRS210,211..ATHS,ROY 寒冷地仕様&ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ |
1 | ||
| 75575-30320 |
AWS21#,GRS21#,GWS214 寒冷地仕様 |
1 | ||
| 75575-30320 |
AWS210,211,GRS210,211..ATHS,ROY 寒冷地仕様&ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| Common parts | ||||
| 90119-06939 | ||||
| Linked diagrams | ||||
| 6101 | ||||

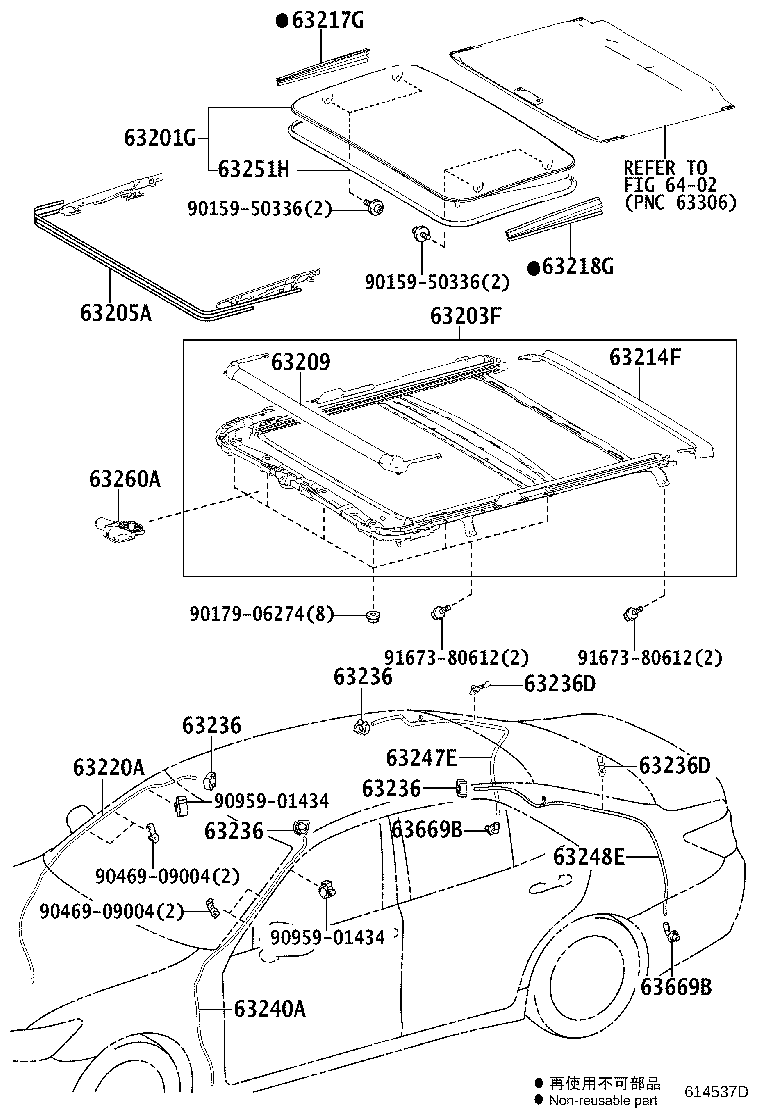

ILLUST NO. 2 OF 2(1212- )ATHG,ATHS,ROY,ROYG
ｱﾘ(ﾑｰﾝ ﾙｰﾌ) ｽﾗｲﾃﾞｨﾝｸﾞ ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-30180 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG *TEM,厚さ=4.0,ﾀﾞｰｸ ｸﾞﾚｰ,ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-30200 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63205-30070 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-30140 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-33070 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-33080 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63217-33110 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63217-33080 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63217-33110 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63220A - HOSE ASSY, SLIDING ROOF DRAIN, RH | ||||
| 63220-30130 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-33030 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
4 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-33030 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
4 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-33030 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
4 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-33030 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-30010 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-30010 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63240A - HOSE ASSY, SLIDING ROOF DRAIN, LH | ||||
| 63220-30130 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63247E - HOSE, SLIDING ROOF DRAIN, REAR RH | ||||
| 63247-30140 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63248E - HOSE, SLIDING ROOF DRAIN, REAR LH | ||||
| 63248-30080 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-30100 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-30200 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-50010 |
AWS210,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63669-30040 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-50010 |
AWS210,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63669-30040 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| Common parts | ||||
| 90159-50336 | ||||
| 90179-06274 | ||||
| 90469-09004 | ||||
| 90959-01434 | ||||
| 91673-80612 | ||||
| Linked diagrams | ||||
| 6402 | ||||

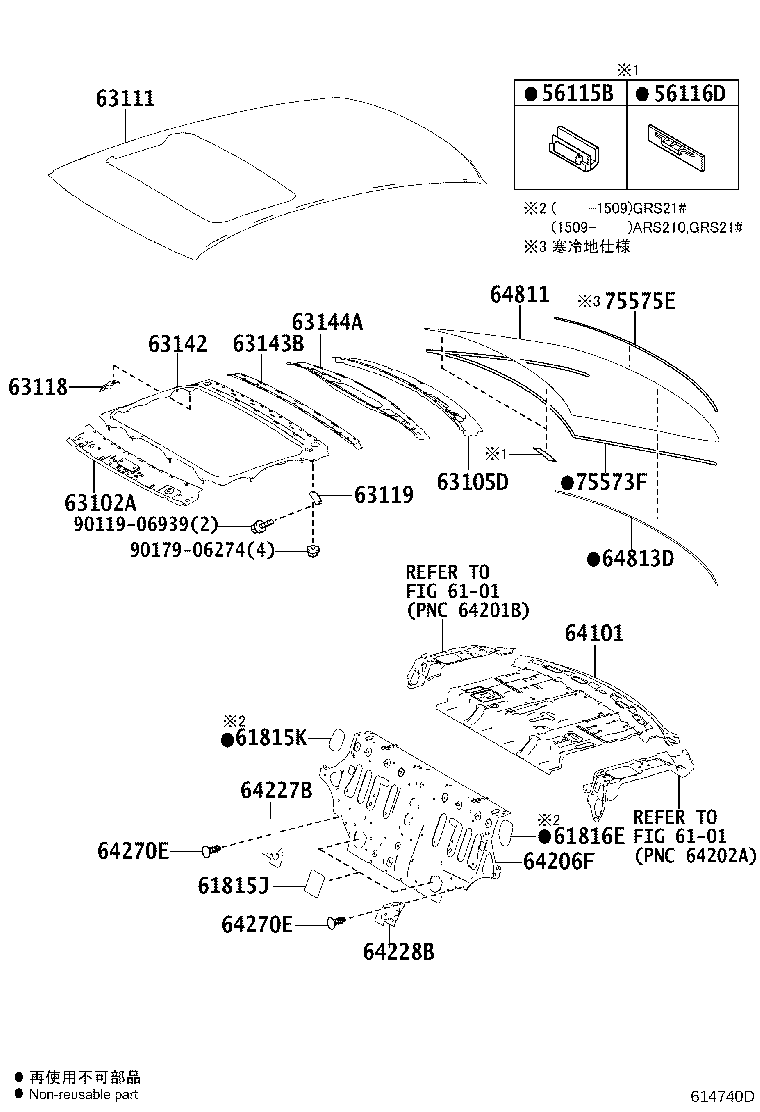

ILLUST NO. 1 OF 2(1212- )ATHG,ATHS,MJ,ROY,ROYG
ｱﾘ(ﾑｰﾝ ﾙｰﾌ) ﾙｰﾌ ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-30110 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 56116D - STOPPER, BACK WINDOW GLASS, NO.2 | ||||
| 56116-22050 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 61815J - COVER, ROOF SIDE, INNER UPPER | ||||
| 61815-30120 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 61815K - COVER, ROOF SIDE, INNER UPPER RH | ||||
| 61815-30130 |
GRS21# |
1 | ||
| 61816E - COVER, ROOF SIDE, INNER UPPER LH | ||||
| 61816-30120 |
GRS21# |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-30906 |
AWS210,211,GRS21#..ATHS,ROY ﾑｰﾝﾙｰﾌ−有り&ﾃﾚﾏﾃｨｸｽ−有り(DCM) |
1 | ||
| 63102-30906 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63102-30905 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63105-30100 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-30880 |
AWS210,211,GRS21#..ATHS,ROY ﾃﾚﾏﾃｨｸｽ−有り(DCM) |
1 | ||
| 63111-30890 |
AWS210,211,GRS21#..ATHS,ROY ﾑｰﾝﾙｰﾌ−有り&ﾃﾚﾏﾃｨｸｽ−有り(DCM) |
1 | ||
| 63111-30870 |
AWS210,211,GRS21#..ATHS,ROY ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63111-30860 |
AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-30140 |
AWS210,211,GRS21#..ATHS,ROY ﾑｰﾝﾙｰﾌ−有り&ﾃﾚﾏﾃｨｸｽ−有り(DCM) |
1 | ||
| 63118-30140 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63118-30140 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63118-30140 |
AWS210,211,GRS21#..ATHS,ROY ﾑｰﾝﾙｰﾌ−有り&ﾃﾚﾏﾃｨｸｽ−有り(DCM) |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-30200 |
AWS210,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63141-30240 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 63142-30200 |
AWS210,GRS21#..ATHS,ROY ﾑｰﾝﾙｰﾌ−有り&ﾃﾚﾏﾃｨｸｽ−有り(DCM) |
1 | ||
| 63142-30201 |
AWS210,211,GRS21#..ATHS,ROY ﾑｰﾝﾙｰﾌ−有り&ﾃﾚﾏﾃｨｸｽ−有り(DCM) |
1 | ||
| 63142-30201 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63148-30210 |
AWS210,211,GRS21#..ATHS,ROY ﾑｰﾝﾙｰﾌ−有り&ﾃﾚﾏﾃｨｸｽ−有り(DCM) |
1 | ||
| 63144-30230 |
AWS210,211,GRS21# |
1 | ||
| 63148-30210 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63128-30110 |
AWS210,211,GRS21# |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-30A70 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 64206F - PANEL SUB-ASSY, ROOM PARTITION | ||||
| 64206-30110 |
AWS210,211,GRS21#,GWS214..ATH,ATHG,ATHS,MJ,ROY,ROYAL |
1 | ||
| 64206-30150 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 64227B - EXTENSION, CENTER FLOOR TO BLACE, NO.1 | ||||
| 64227-30130 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 64228B - EXTENSION, CENTER FLOOR TO BRACE, NO.2 | ||||
| 64228-30110 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 64270E - CLIP | ||||
| 90467-08186C0 |
AWS21#,GRS21#,GWS214 BLACK |
6 | ||
| 64270E - CLIP | ||||
| 90467-08186C0 |
AWS21#,GRS21#,GWS214 BLACK |
6 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64801-30929 |
AWS210,211,GRS210,211..ATHS,ROY *UVCEHT,厚さ=3.5,ｸﾞﾘｰﾝ,寒冷地仕様&ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ&ｵ[ﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 64801-30930 |
AWS210,211,GRS210,211..ATHS,ROY *UVCEHT,厚さ=3.5,ｸﾞﾘｰﾝ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ |
1 | ||
| 64801-30931 |
AWS210,211,GRS210,211..ATHS,ROY *EHT,厚さ=3.5,ﾀﾞｰｸｸﾞﾘｰﾝ,ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶoｰ無し |
1 | ||
| 64801-30929 |
AWS210,211,GRS210,211..ATHS,ROY *UVCEHT,厚さ=3.5,ｸﾞﾘｰﾝ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ&ｵｰﾃﾞｨｵ−ｵ[ﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 64801-30929 |
AWS210,211,GRS210,211..ATH,ROYAL *UVCEHT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 64801-30932 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG *EHT,厚さ=3.5,ﾀﾞｰｸｸﾞﾘｰﾝ |
1 | ||
| 64801-30930 |
AWS210,211,GRS210,211..ATHS,ROY *UVCEHT,厚さ=3.5,ｸﾞﾘｰﾝ,寒冷地仕様&ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ |
1 | ||
| 64801-30931 |
AWS210,211,GRS210,211..ATHS,ROY *EHT,厚さ=3.5,ﾀﾞｰｸｸﾞﾘｰﾝ,寒冷地仕様&ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6Xﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 56117-50140 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 75573F - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-30410 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 75575E - MOULDING, BACK WINDOW, OUTSIDE LOWER | ||||
| 75575-30320 |
AWS210,211,GRS210,211..ATHS,ROY 寒冷地仕様&ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ&ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 75575-30320 |
AWS210,211,GRS210,211..ATHS,ROY 寒冷地仕様&ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ |
1 | ||
| 75575-30320 |
AWS21#,GRS21#,GWS214 寒冷地仕様 |
1 | ||
| 75575-30320 |
AWS210,211,GRS210,211..ATHS,ROY 寒冷地仕様&ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| Common parts | ||||
| 90119-06939 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 6101 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
