GRS211-AETLH (2012)

Toyota Crown/Hybrid

Production Dec 2012 - Sep 2015
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )GRS211

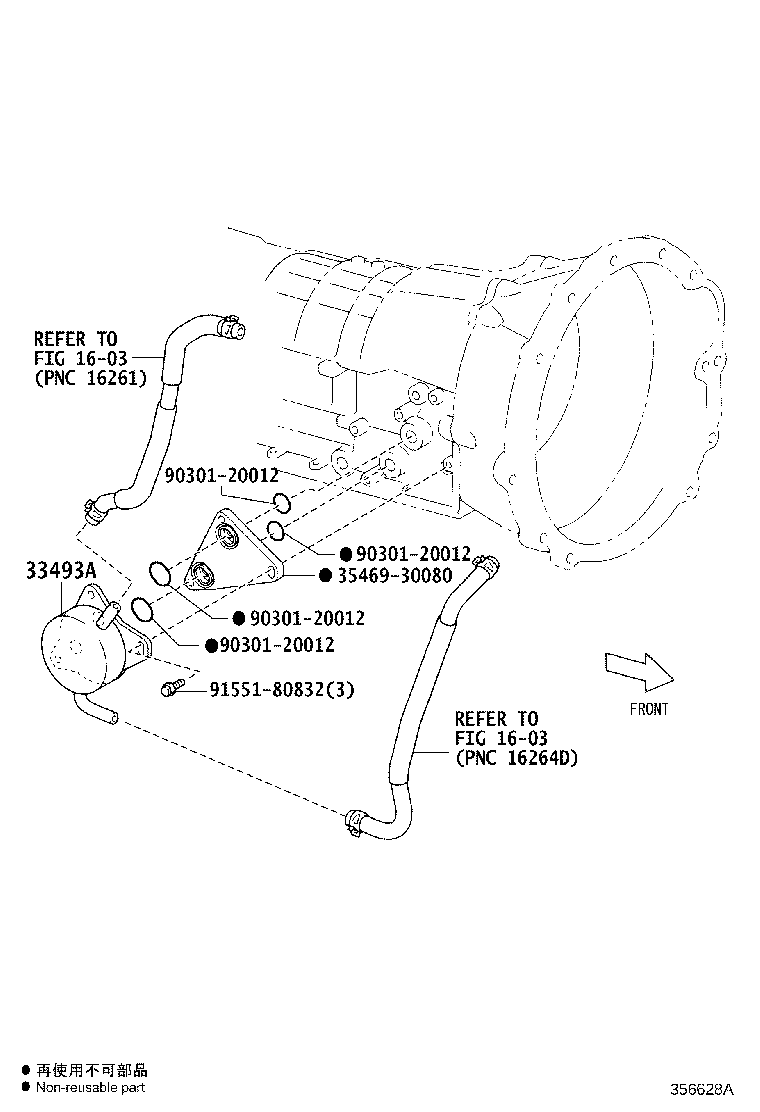

Click highlighted areas on diagram

A760H

diagram 1603 1603 33493A 3546930080 9030120012 9030120012 9030120012 9030120012 9155180832
Part # Description Qty Price
33493A - COOLER, TRANSMISSION OIL
33493-30020

GRS210,211

 1
Common parts
35469-30080
90301-20012
91551-80832
Linked diagrams
1603
