GRS210-AETYH (2012)
Toyota Crown/Hybrid

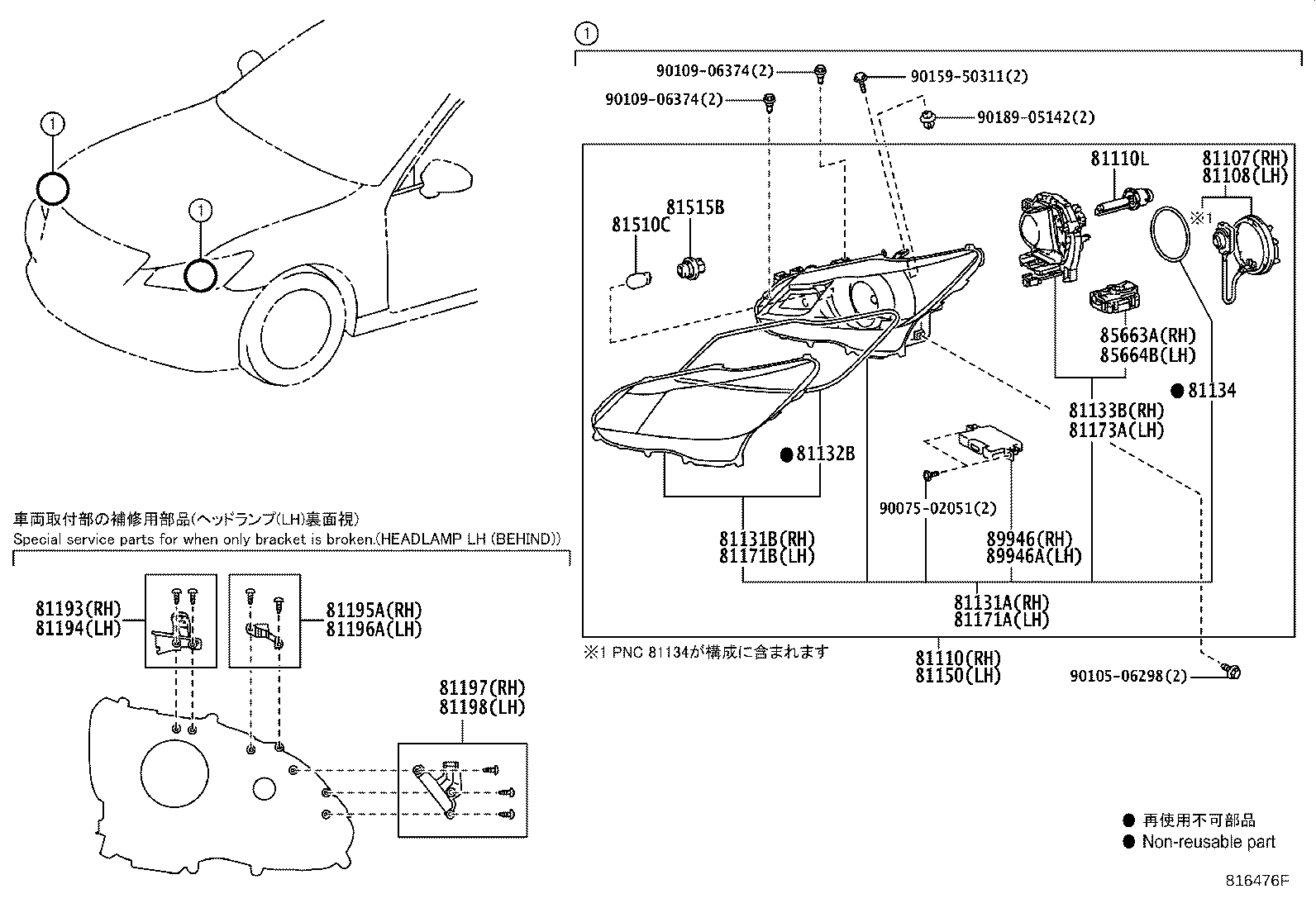

(1212-1509)ATHG,ROYG
ﾃﾞｨｽﾁｬｰｼﾞﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-60F10 |
AWS210,211,GRS21# |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-60F10 |
AWS210,211,GRS21# |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-30K00 |
AWS210,211,GRS21#..ATHG |
1 | ||
| 81110-30E60 |
AWS210,211,GRS21#..ATH,ATHS |
1 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20024 |
AWS210,211,GRS21# 42V 35W |
1 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81145-30E60 |
AWS210,211,GRS21#..ATH,ATHS |
1 | ||
| 81145-30K00 |
AWS210,211,GRS21#..ATHG |
1 | ||
| 81131B - HEAD LAMP LENS, RH | ||||
| 81131-30E60 |
AWS210,211,GRS21#..ATH,ATHS |
1 | ||
| 81131-30K00 |
AWS210,211,GRS21#..ATHG |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-30E40 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 81133B - BODY & REFLECTOR, HEADLAMP, RH | ||||
| 81133-30E50 |
AWS210,211,GRS21#..ATHG,ROYG |
1 | ||
| 81133-30M70 |
AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-23002 |
AWS210,211,GRS21# |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-30E60 |
AWS210,211,GRS21#..ATH,ATHS |
1 | ||
| 81150-30K00 |
AWS210,211,GRS21#..ATHG |
1 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81185-30E60 |
AWS210,211,GRS21#..ATH,ATHS |
1 | ||
| 81185-30K00 |
AWS210,211,GRS21#..ATHG |
1 | ||
| 81171B - HEAD LAMP LENS, LH | ||||
| 81171-30E60 |
AWS210,211,GRS21#..ATH,ATHS |
1 | ||
| 81171-30K00 |
AWS210,211,GRS21#..ATHG |
1 | ||
| 81173A - BODY & REFLECTOR, HEADLAMP, LH | ||||
| 81173-30E50 |
AWS210,211,GRS21#..ATHG,ROYG |
1 | ||
| 81173-30M70 |
AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-30100 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-30100 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-30060 |
AWS210,211,GRS21# |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-30060 |
AWS210,211,GRS21# |
1 | ||
| 81197 - BRACKET, HEADLAMP, LOWER RH | ||||
| 81197-30060 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 81198 - BRACKET, HEADLAMP, LWR LH | ||||
| 81198-30060 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
AWS21#,GRS21#,GWS214 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 85663A - MOTOR, HEADLAMP SWIVEL, RH | ||||
| 85663-30030 |
AWS210,211,GRS21#..ATHG,ROYG |
1 | ||
| 85664B - MOTOR, HEADLAMP SWIVEL, LH | ||||
| 85664-30030 |
AWS210,211,GRS21#..ATHG,ROYG |
1 | ||
| 89946 - COMPUTER, HEADLAMP SHADE | ||||
| 89946-50010 |
AWS210,211,GRS21#..ATHG,ROYG |
1 | ||
| 89946A - COMPUTER, HEADLAMP SHADE | ||||
| 89946-50020 |
AWS210,211,GRS21#..ATHG,ROYG |
1 | ||
| Common parts | ||||
| 90075-02051 | ||||
| 90105-06298 | ||||
| 90109-06374 | ||||
| 90159-50311 | ||||
| 90189-05142 | ||||

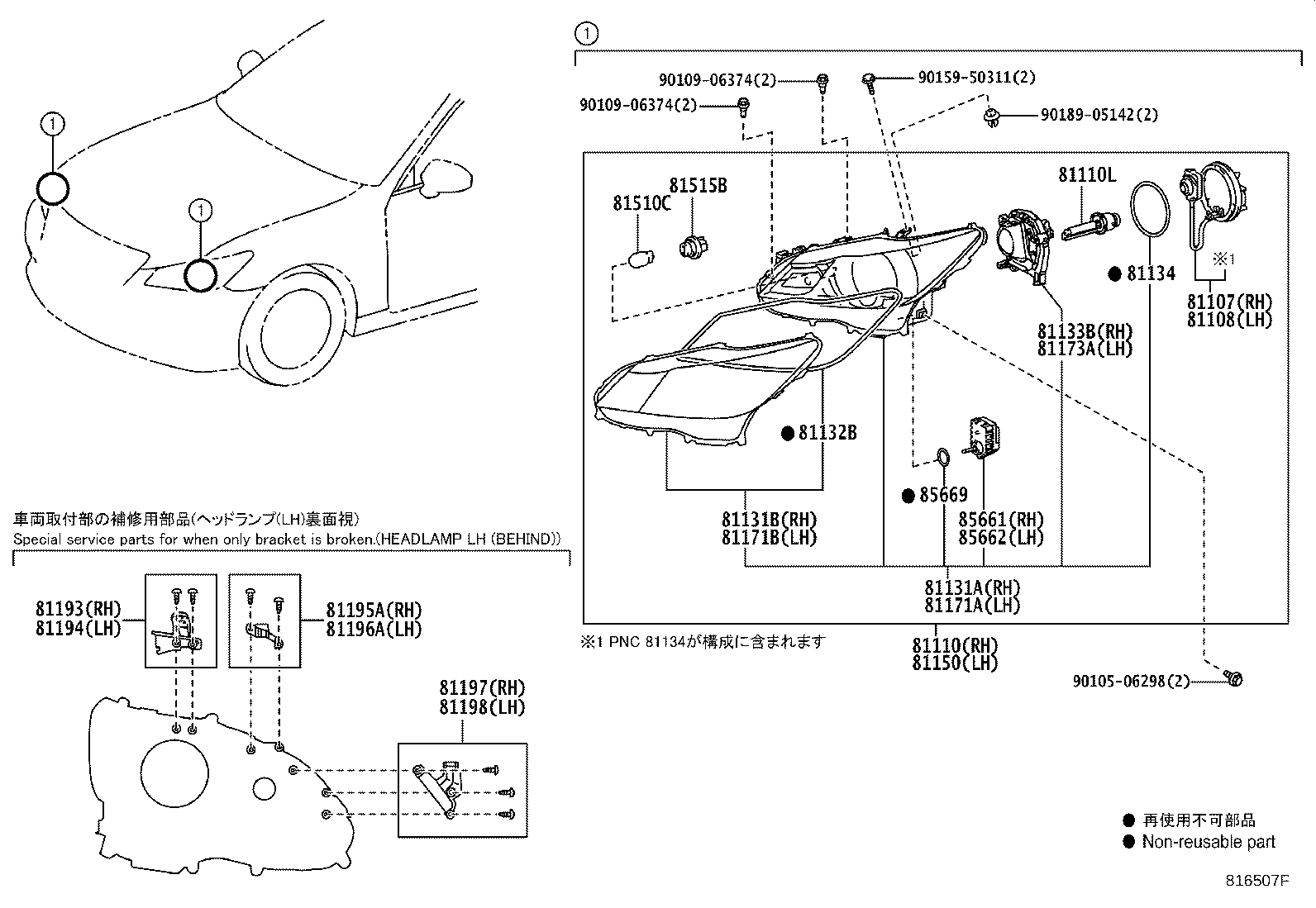

(1212-1509)ATH,ATHS,ROY,ROYAL
ﾃﾞｨｽﾁｬｰｼﾞﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-60F10 |
AWS210,211,GRS21# |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-60F10 |
AWS210,211,GRS21# |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-30K00 |
AWS210,211,GRS21#..ATHG |
1 | ||
| 81110-30E60 |
AWS210,211,GRS21#..ATH,ATHS |
1 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20024 |
AWS210,211,GRS21# 42V 35W |
1 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81145-30E60 |
AWS210,211,GRS21#..ATH,ATHS |
1 | ||
| 81145-30K00 |
AWS210,211,GRS21#..ATHG |
1 | ||
| 81131B - HEAD LAMP LENS, RH | ||||
| 81131-30E60 |
AWS210,211,GRS21#..ATH,ATHS |
1 | ||
| 81131-30K00 |
AWS210,211,GRS21#..ATHG |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-30E40 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 81133B - BODY & REFLECTOR, HEADLAMP, RH | ||||
| 81133-30E50 |
AWS210,211,GRS21#..ATHG,ROYG |
1 | ||
| 81133-30M70 |
AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-23002 |
AWS210,211,GRS21# |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-30E60 |
AWS210,211,GRS21#..ATH,ATHS |
1 | ||
| 81150-30K00 |
AWS210,211,GRS21#..ATHG |
1 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81185-30E60 |
AWS210,211,GRS21#..ATH,ATHS |
1 | ||
| 81185-30K00 |
AWS210,211,GRS21#..ATHG |
1 | ||
| 81171B - HEAD LAMP LENS, LH | ||||
| 81171-30E60 |
AWS210,211,GRS21#..ATH,ATHS |
1 | ||
| 81171-30K00 |
AWS210,211,GRS21#..ATHG |
1 | ||
| 81173A - BODY & REFLECTOR, HEADLAMP, LH | ||||
| 81173-30E50 |
AWS210,211,GRS21#..ATHG,ROYG |
1 | ||
| 81173-30M70 |
AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-30100 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-30100 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-30060 |
AWS210,211,GRS21# |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-30060 |
AWS210,211,GRS21# |
1 | ||
| 81197 - BRACKET, HEADLAMP, LOWER RH | ||||
| 81197-30060 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 81198 - BRACKET, HEADLAMP, LWR LH | ||||
| 81198-30060 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
AWS21#,GRS21#,GWS214 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12020 |
AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12020 |
AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL |
2 | ||
| Common parts | ||||
| 90105-06298 | ||||
| 90109-06374 | ||||
| 90159-50311 | ||||
| 90189-05142 | ||||
