GRS210-AETYH (2012)
Toyota Crown/Hybrid

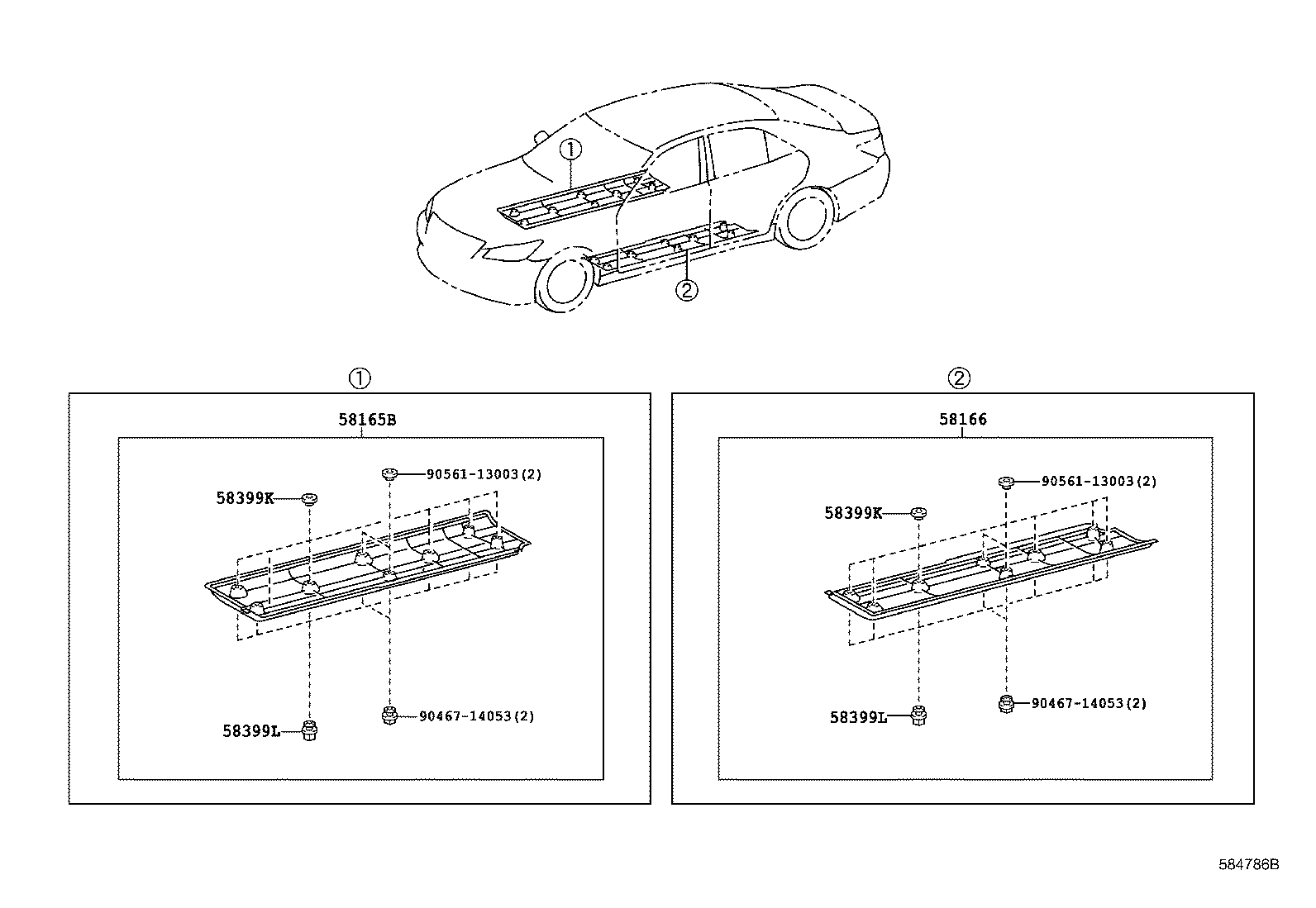

ILLUST NO. 3 OF 3(1212- )AWS210,211,GRS21# ; (1509- )ARS210
ﾌﾛｱ ｱﾝﾀﾞ ｶﾊﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58165B - COVER, FRONT FLOOR, RH | ||||
| 58165-30061 |
AWS210,211,GRS21# |
1 | ||
| 58166 - COVER, FRONT FLOOR, LH | ||||
| 58166-30031 |
AWS210,211,GRS21# |
1 | ||
| 58399K - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90561-11011 |
AWS210,211,GRS21# |
12 | ||
| 58399K - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90561-11011 |
AWS210,211,GRS21# |
12 | ||
| 58399L - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90480-10024 |
AWS210,211,GRS21# |
12 | ||
| 58399L - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90480-10024 |
AWS210,211,GRS21# |
12 | ||
| Common parts | ||||
| 90467-14053 | ||||
| 90561-13003 | ||||

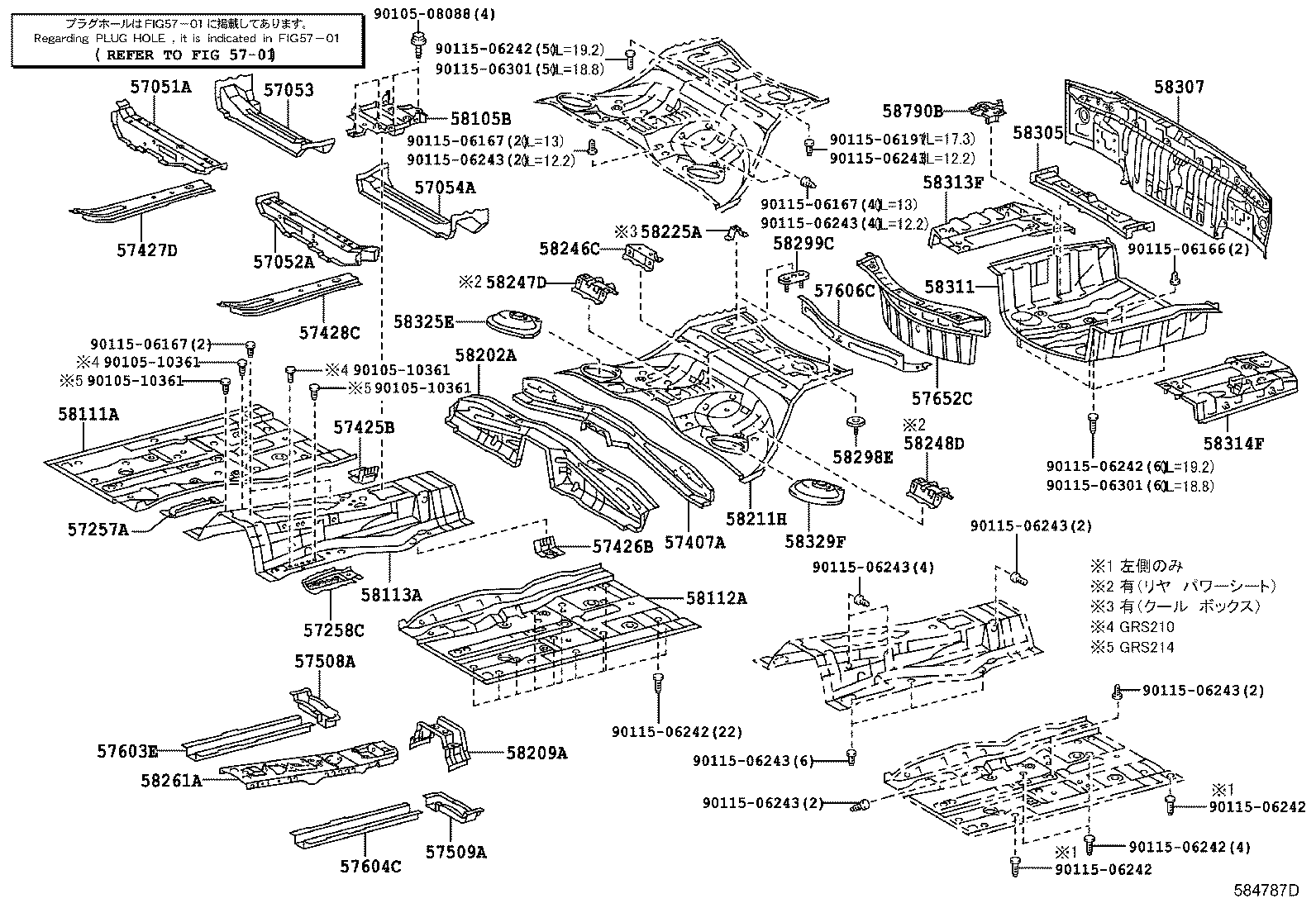

ILLUST NO. 1 OF 3(1212- )GRS210,214
ﾌﾛｱ ﾊﾟﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-30100 |
AWS210,GRS210,214,GWS214 |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-30071 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57054-30071 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 57257A - BRACKET, ENGINE REAR MOUNTING MEMBER, RH | ||||
| 57257-30042 |
AWS210,GRS210,214 |
1 | ||
| 57257-30041 |
AWS210,GRS210,214 |
1 | ||
| 57258C - BRACKET, ENGINE REAR MOUNTING MEMBER, LH | ||||
| 57258-30091 |
AWS210,GRS210,214,GWS214 |
1 | ||
| 57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57407-30151 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 57425B - REINFORCEMENT, FRONT FLOOR, NO.2 RH | ||||
| 57425-30020 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 57426B - REINFORCEMENT, FRONT FLOOR, NO.2 LH | ||||
| 57426-30020 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 57427D - REINFORCEMENT, FRONT FLOOR, NO.3 RH | ||||
| 57427-30041 |
AWS210,GRS21# |
1 | ||
| 57427-30040 |
AWS210,GRS21# |
1 | ||
| 57428C - REINFORCEMENT, FRONT FLOOR, NO.3 LH | ||||
| 57427-30040 |
AWS210,GRS21# |
1 | ||
| 57427-30041 |
AWS210,GRS21# |
1 | ||
| 57508A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH | ||||
| 57508-30030 |
AWS210,GRS21# |
1 | ||
| 57508-30031 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 57509A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH | ||||
| 57509-30031 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 57509-30030 |
AWS210,GRS21# |
1 | ||
| 57603E - EXTENSION SUB-ASSY, REAR SIDE MEMBER, RH | ||||
| 57603-30070 |
AWS210,211,GRS21# |
1 | ||
| 57604C - EXTENSION SUB-ASSY, REAR SIDE MEMBER, LH | ||||
| 57603-30070 |
AWS210,211,GRS21# |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-30060 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 57652C - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-30120 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 58105B - PANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB | ||||
| 58105-30040 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-30451 |
AWS210,GRS21# |
1 | ||
| 58111-30520 |
AWS210,211,GRS21# |
1 | ||
| 58111-30450 |
AWS210,GRS21# |
1 | ||
| 58111-30460 |
AWS210,211,GRS21# |
1 | ||
| 58112A - PANEL, FRONT FLOOR, LH | ||||
| 58112-30200 |
AWS210,GRS210,214 |
1 | ||
| 58112-30162 |
AWS210,GRS210,214 |
1 | ||
| 58112-30161 |
AWS210,GRS210,214 |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-30190 |
AWS210,GRS210,214 |
1 | ||
| 58202A - PAN SUB-ASSY, CENTER FLOOR, FRONT | ||||
| 58202-30091 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 58209A - REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT | ||||
| 58209-30050 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-30350 |
GRS21# |
1 | ||
| 58246C - BRACKET, REAR SEAT HINGE, CENTER NO.2 | ||||
| 58246-22020 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 58261A - COVER, TRANSMISSION | ||||
| 58261-30231 |
AWS210,GRS210,214,GWS214 |
1 | ||
| 58298E - BRACKET, HOT AIR INTAKE, NO.1 | ||||
| 58298-30030 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 58299C - BRACKET, HOT AIR INTAKE, NO.2 | ||||
| 58299-30010 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-30240 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-30810 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-30410 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58313-30180 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58314-30230 |
GRS21# |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-30020 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2 | ||||
| 58329-30030 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 58790B - CARRIER ASSY, JACK | ||||
| 58790-30050 |
AWS21#,GRS21#,GWS214 |
1 | ||
| Common parts | ||||
| 90105-08088 | ||||
| 90105-10361 | ||||
| 90115-06166 | ||||
| 90115-06167 | ||||
| 90115-06197 | ||||
| 90115-06242 | ||||
| 90115-06243 | ||||
| 90115-06301 | ||||
| Linked diagrams | ||||
| 5701 | ||||

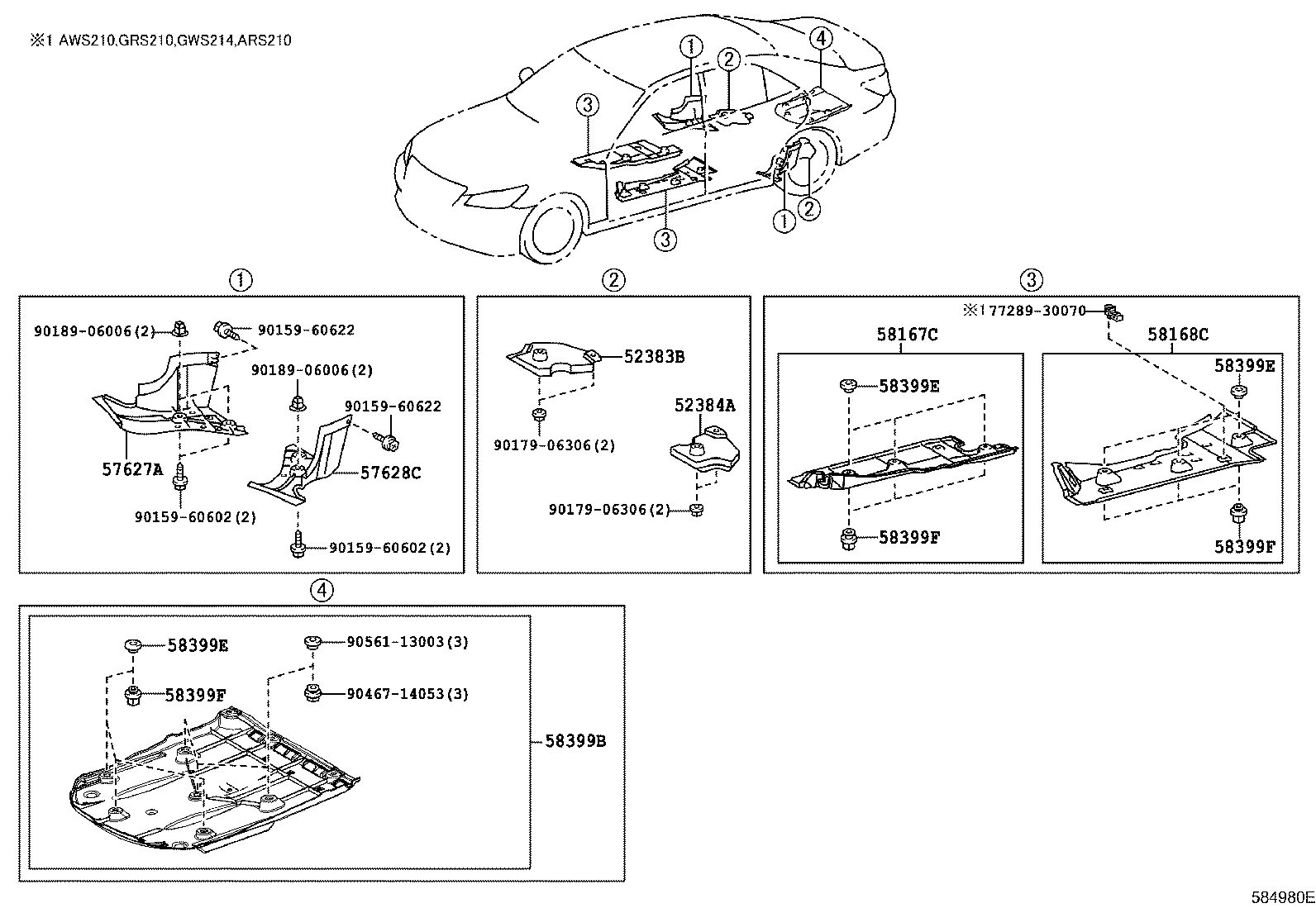

ILLUST NO. 2 OF 3(1212- )AWS210,GRS210,214,GWS214 ; (1509-)ARS210
ﾌﾛｱ ｱﾝﾀﾞｰｶﾊﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52383B - PROTECTOR, DIFFERENTIAL SUPPORT, NO.1 | ||||
| 52383-30011 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 52384A - PROTECTOR, DIFFERENTIAL SUPPORT, NO.2 | ||||
| 52384-30011 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 57627A - COVER, REAR FLOOR SIDE MEMBER, RH | ||||
| 57627-30040 |
GRS210,214 |
1 | ||
| 57628C - COVER, REAR FLOOR SIDE MEMBER, LH | ||||
| 57628-30040 |
GRS210,214 |
1 | ||
| 58167C - COVER, FRONT FLOOR, CENTER RH | ||||
| 58167-30052 |
AWS21#,GRS21# |
1 | ||
| 58168C - COVER, FRONT FLOOR, CENTER LH | ||||
| 58168-30052 |
AWS210,GRS210,214,GWS214 |
1 | ||
| 58399B - COVER, FLOOR UNDER, NO.2 | ||||
| 58398-30090 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 58399E - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90561-11011 |
AWS210,GRS210,214,GWS214 |
9 | ||
| 58399E - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90561-11011 |
AWS210,GRS210,214,GWS214 |
9 | ||
| 58399E - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90561-11011 |
AWS210,GRS210,214,GWS214 |
9 | ||
| 58399F - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90480-10024 |
AWS210,GRS210,214,GWS214 |
9 | ||
| 58399F - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90480-10024 |
AWS210,GRS210,214,GWS214 |
9 | ||
| 58399F - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90480-10024 |
AWS210,GRS210,214,GWS214 |
9 | ||
| Common parts | ||||
| 77289-30070 | ||||
| 90159-60602 | ||||
| 90159-60622 | ||||
| 90179-06306 | ||||
| 90189-06006 | ||||
| 90467-14053 | ||||
| 90561-13003 | ||||
