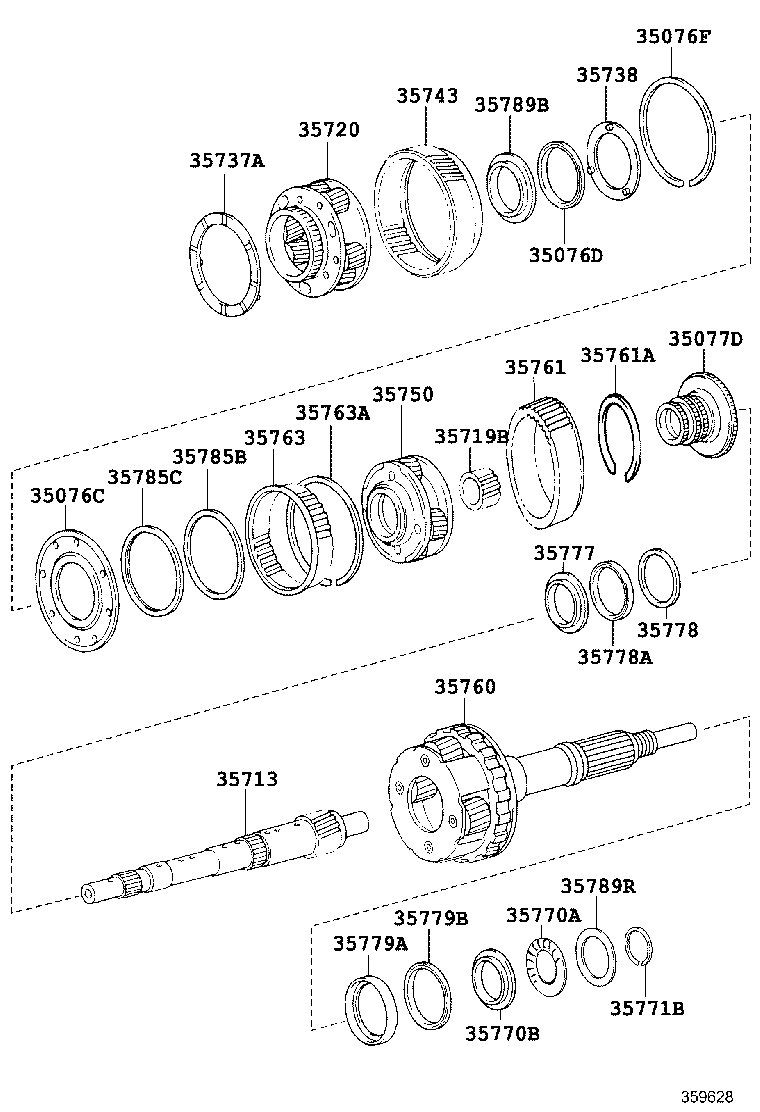

Toyota Crown/hybrid GRS210 PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

Part #	Description	Period	Qty
35076C - FLANGE SUB-ASSY, FRONT PLANETARY RING GEAR
35078-22010	GRS210	12/2012 - 09/2015	1
35076D - BEARING, THRUST NEEDLE ROLLER(FOR FRONT PLANETARY FLANG
90374-40005	GRS210	12/2012 - 09/2015	1
35076F - RING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR FLANGE)
90520-87005	GRS210	12/2012 - 09/2015	1
35077D - FLANGE SUB-ASSY, RR PLANETARY RING GEAR
35077-22010	GRS210	12/2012 - 09/2015	1
35713 - SHAFT, INTERMEDIATE
35713-22020	GRS210	12/2012 - 09/2015	1
35719B - GEAR, PLANETARY SUN
35719-22030	GRS210	12/2012 - 09/2015	1
35720 - GEAR ASSY, FRONT PLANETARY
35720-22040	GRS210	12/2012 - 09/2015	1
35737A - WASHER, PLANETARY CARRIER THRUST, NO.1
35737-22020	GRS210	12/2012 - 09/2015	1
35738 - WASHER, PLANETARY CARRIER THRUST, NO.2
35738-22020	GRS210	12/2012 - 09/2015	1
35743 - GEAR, FRONT PLANETARY RING
35743-22020	GRS210	12/2012 - 09/2015	1
35750 - GEAR ASSY, CENTER PLANETARY
35750-22010	GRS210	12/2012 - 09/2015	1
35760 - GEAR ASSY, REAR PLANETARY
35760-22070	GRS210	12/2012 - 09/2015	1
35761 - GEAR, REAR PLANETARY RING
35761-22020	GRS210	12/2012 - 09/2015	1
35761A - RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)
90520-93001	GRS210	12/2012 - 09/2015	1
35763 - GEAR, CENTER PLANETARY RING
35763-22020	GRS210	12/2012 - 09/2015	1
35763A - RING, SNAP(FOR CENTER PLANETARY RING GEAR)
90520-99100	GRS210	12/2012 - 09/2015	1
35770A - BEARING, THRUST (FOR OUTPUT SHAFT)
90374-36001	GRS210	12/2012 - 09/2015	1
35770B - RACE, THRUST BEARING (FOR OUTPUT SHAFT)
35789-22190	GRS210	12/2012 - 09/2015	1
35771B - RING, HOLE SNAP (FOR OUTPUT SHAFT, NO.1)
90520-34012	GRS210	12/2012 - 09/2015	1
35777 - RACE, THRUST BEARING, NO.7
35777-22010	GRS210	12/2012 - 09/2015	1
35778 - RACE, THRUST BEARING, NO.8
35778-22010	GRS210	12/2012 - 09/2015	1
35778A - BEARING, THRUST NEEDLE ROLLER
90374-27015	GRS210	12/2012 - 09/2015	1
35779A - RACE, THRUST BEARING, NO.9
35779-22020	GRS210	12/2012 - 09/2015	1
35779B - BEARING, THRUST NEEDLE ROLLER
90374-43006	GRS210	12/2012 - 09/2015	1
35785B - RACE, THRUST BEARING, NO.4
35785-22010	GRS210	12/2012 - 09/2015	1
35785C - BEARING, THRUST NEEDLE ROLLER
90374-58001	GRS210	12/2012 - 09/2015	1
35789B - RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE REAR)
35788-22010	GRS210	12/2012 - 09/2015	1
35789R - RACE, THRUST BEARING (FOR REAR OUTPUT SHAFT)
35789-35070	GRS210 厚さ=3.90,厚さ=3.9	12/2012 - 09/2015	1
35789-35080	GRS210 厚さ=4.00,厚さ=4.0	12/2012 - 09/2015	1
35789-35060	GRS210 厚さ=3.80,厚さ=3.8	12/2012 - 09/2015	1
35789-35090	GRS210 厚さ=4.10,厚さ=4.1	12/2012 - 09/2015	1
35789-50110	GRS210 厚さ=4.25,厚さ=4.25	12/2012 - 09/2015	1
35789-35100	GRS210 厚さ=4.20,厚さ=4.2	12/2012 - 09/2015	1
35789-50100	GRS210 厚さ=4.15,厚さ=4.15	12/2012 - 09/2015	1
35789-50090	GRS210 厚さ=4.05,厚さ=4.05	12/2012 - 09/2015	1
35789-50080	GRS210 厚さ=3.95,厚さ=3.95	12/2012 - 09/2015	1
35789-50130	GRS210 厚さ=4.35,厚さ=4.35	12/2012 - 09/2015	1
35789-50120	GRS210 厚さ=4.30,厚さ=4.30	12/2012 - 09/2015	1
35789-50070	GRS210 厚さ=3.85,厚さ=3.85	12/2012 - 09/2015	1

GRS210-AETWH (2012)

(1212- )GRS210
