GRS210-AETUH (2012)
Toyota Crown/Hybrid
(1212- )AWS21#,GRS21#,GWS214 ; (1509- )ARS210

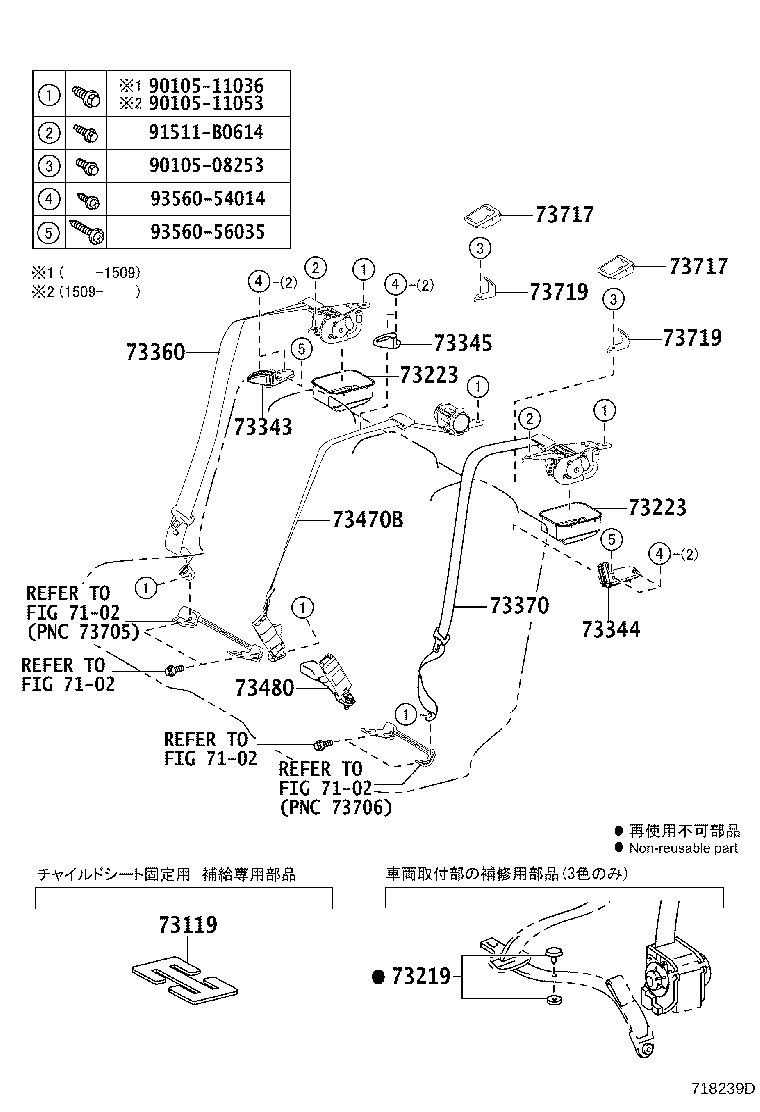

ﾘﾔｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-50010 |
AWS21#,GRS21#,GWS214 ﾒﾛｳ ﾎﾜｲﾄ |
1 | ||
| 73219-33010 |
AWS21#,GRS21#,GWS214 ﾌﾞﾗｯｸ |
1 | ||
| 73219-33030 |
AWS21#,GRS21#,GWS214 ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33020 |
AWS21#,GRS21#,GWS214 ｸﾞﾚｰ |
1 | ||
| 73223 - COVER, SEAT BELT RETRACTOR | ||||
| 73223-30170 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 73223 - COVER, SEAT BELT RETRACTOR | ||||
| 73223-30170 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 73343 - GUIDE, REAR SEAT SHOULDER BELT, RH | ||||
| 73330-33010C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM4# |
1 | ||
| 73330-33010A8 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
1 | ||
| 73344 - GUIDE, REAR SEAT SHOULDER BELT, LH | ||||
| 73340-3301001 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
1 | ||
| 73340-33010C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM4# |
1 | ||
| 73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER | ||||
| 73343-30060A6 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
1 | ||
| 73343-30060C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM4# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-30560C1 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM4# |
1 | ||
| 73360-30560A2 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG IVORY,TRIM0# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-30370A2 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG IVORY,TRIM0# |
1 | ||
| 73370-30370C1 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM4# |
1 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-30080A2 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG IVORY,TRIM0# |
1 | ||
| 73470-30080C1 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM4# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-30320A3 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
1 | ||
| 73480-30320A0 |
AWS210,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
1 | ||
| 73480-30320C0 |
AWS210,GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM4# |
1 | ||
| 73480-30320C1 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM4# |
1 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-50020C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
2 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-50020C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-30040 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-30040 |
AWS21#,GRS21#,GWS214 |
2 | ||
| Common parts | ||||
| 90105-08253 | ||||
| 90105-11036 | ||||
| 90105-11053 | ||||
| 91511-B0614 | ||||
| 93560-54014 | ||||
| 93560-56035 | ||||
| Linked diagrams | ||||
| 7102 | ||||
(1212- )AWS21#,GRS21#,GWS214 ; (1509- )ARS210

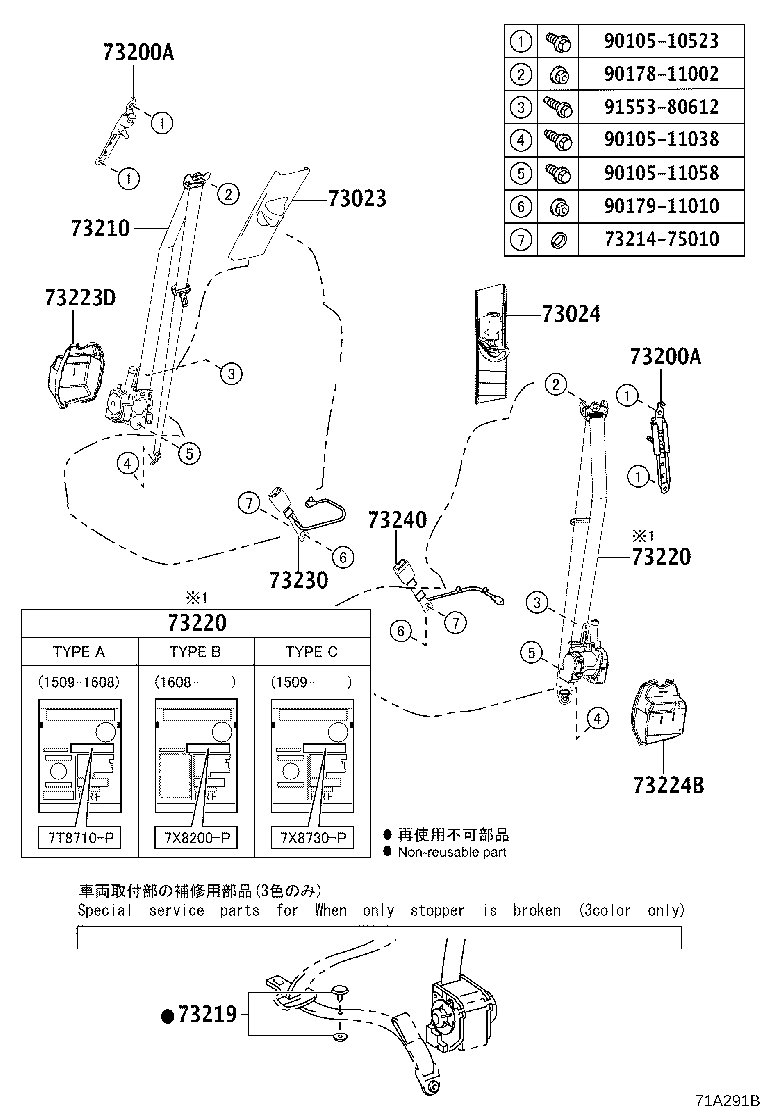

ﾌﾛﾝﾄｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-33030A3 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-33030A3 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 73200-12070 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 73200-12070 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-30A30A2 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG IVORY/FLAXEN,TRIM0# |
1 | ||
| 73210-30A30C1 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG BLACK/FLAXEN,TRIM4# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-50010 |
AWS21#,GRS21#,GWS214 ﾒﾛｳ ﾎﾜｲﾄ |
1 | ||
| 73219-33010 |
AWS21#,GRS21#,GWS214 ﾌﾞﾗｯｸ |
1 | ||
| 73219-33030 |
AWS21#,GRS21#,GWS214 ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33020 |
AWS21#,GRS21#,GWS214 ｸﾞﾚｰ |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-30E30A2 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG IVORY/FLAXEN,TRIM0# |
1 | ||
| 73220-30E30C1 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG BLACK/FLAXEN,TRIM4# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-30E30A2 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG IVORY/FLAXEN,TRIM0# |
1 | ||
| 73220-30E30C1 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG BLACK/FLAXEN,TRIM4# |
1 | ||
| 73223D - COVER, FRONT SEAT BELT RETRACTOR, RH | ||||
| 73223-30180 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 73224B - COVER, FRONT SEAT BELT RETRACTOR, LH | ||||
| 73224-30120 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-30A80A0 |
AWS210,211,GRS210,211..ROY FLAXEN,TRIM0# |
1 | ||
| 73230-30C10A0 |
AWS21#,GRS210,211,GWS214..MJ,ROYG FLAXEN,TRIM0# |
1 | ||
| 73230-30A80C0 |
GRS210,211..ROY BLACK,TRIM4# |
1 | ||
| 73230-30C10C0 |
AWS210,211,GRS210,211..ROYG BLACK,TRIM4# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-30B80A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 73230-30B80C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-10523 | ||||
| 90105-11038 | ||||
| 90105-11058 | ||||
| 90178-11002 | ||||
| 90179-11010 | ||||
| 91553-80612 | ||||
