GRS210-AETQH (2012)
Toyota Crown/Hybrid

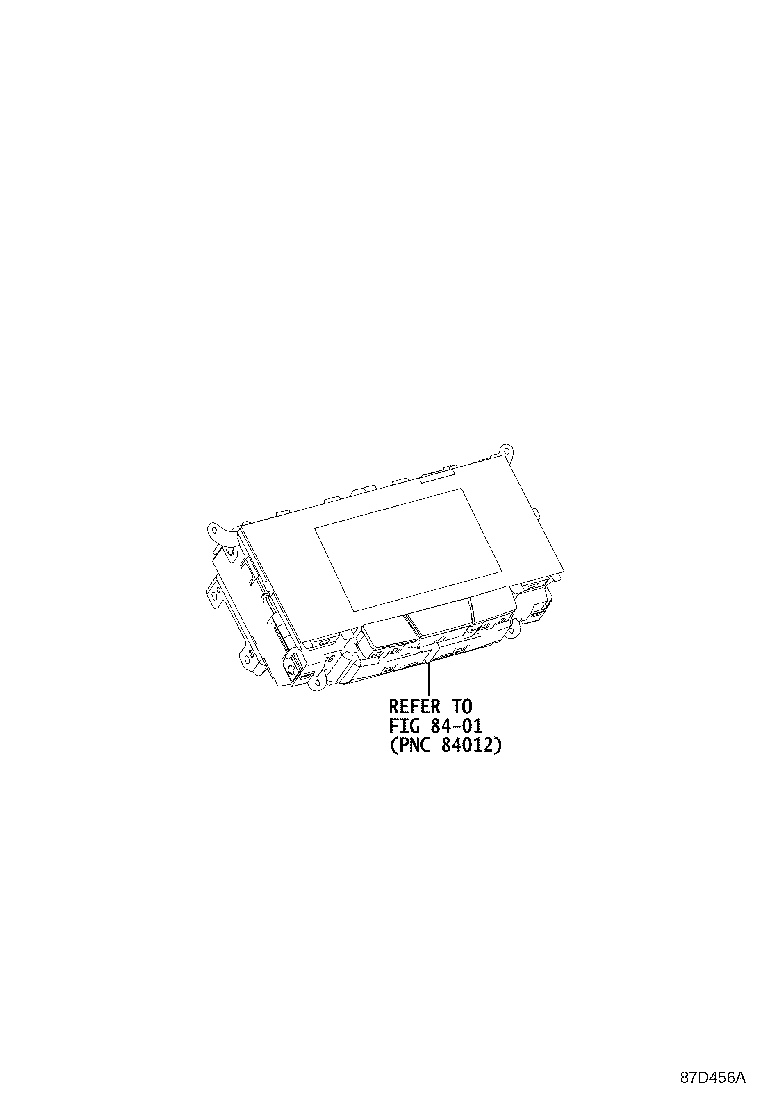

ILLUST NO. 1 OF 4(1212- )
ｺﾝﾄﾛｰﾙ ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8401 | ||||

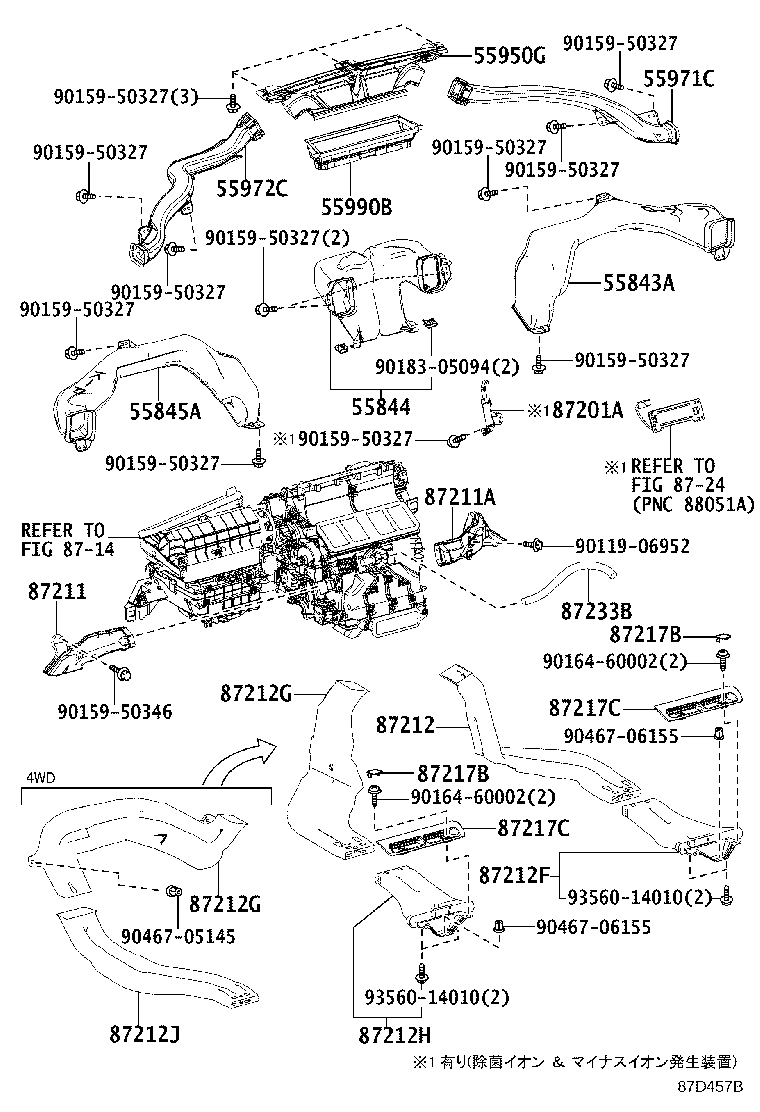

ILLUST NO. 2 OF 4(1212- )
ﾌﾛﾝﾄ ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-30310 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-30320 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-30280 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-30200 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-30250 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-30220 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-30100 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87201A - DUCT SUB-ASSY, AIR | ||||
| 87201-30660 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-30610 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-30600 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-30430 |
AWS210,GRS21# |
1 | ||
| 87212-30431 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87205-30220 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87213-30370 |
AWS210,GRS210,214 |
1 | ||
| 87213-30371 |
AWS210,GRS210,214,GWS214 |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87213-30370 |
AWS210,GRS210,214 |
1 | ||
| 87213-30371 |
AWS210,GRS210,214,GWS214 |
1 | ||
| 87212H - DUCT, AIR, REAR NO.4 | ||||
| 87206-30010 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87217B - PLUG, AIR DUCT | ||||
| 90950-0169322 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
4 | ||
| 87217B - PLUG, AIR DUCT | ||||
| 90950-0169322 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
4 | ||
| 87217C - DUCT, AIR, REAR NO.5 | ||||
| 87217-30240C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
2 | ||
| 87217C - DUCT, AIR, REAR NO.5 | ||||
| 87217-30240C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
2 | ||
| 87233B - HOSE, AIR | ||||
| 87233-30010 |
AWS21#,GRS21#,GWS214 |
1 | ||
| Common parts | ||||
| 90119-06952 | ||||
| 90159-50327 | ||||
| 90159-50346 | ||||
| 90164-60002 | ||||
| 90183-05094 | ||||
| 90467-05145 | ||||
| 90467-06155 | ||||
| 93560-14010 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8724 | ||||

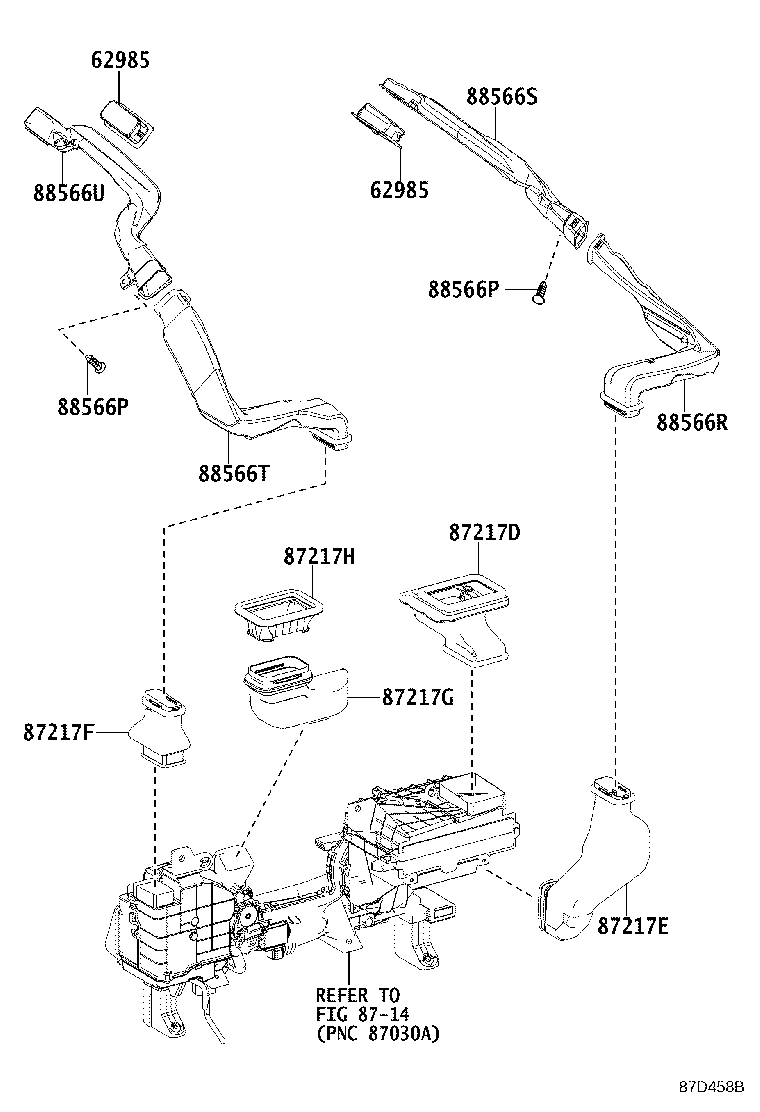

ILLUST NO. 3 OF 4(1212- )GRS21#
ﾘﾔ ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62985 - REGISTER, ROOF SIDE AIR OUTLET | ||||
| 62985-30080A1 |
GRS210,211..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
2 | ||
| 62985-30080A1 |
GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り,FLAXEN,TRIM0#,4# |
2 | ||
| 62985-30080A1 |
GRS210,211..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り,FLAXEN,TRIM0#,4# |
2 | ||
| 62985-30080A1 |
GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
2 | ||
| 62985 - REGISTER, ROOF SIDE AIR OUTLET | ||||
| 62985-30080A1 |
GRS210,211..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
2 | ||
| 62985-30080A1 |
GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り,FLAXEN,TRIM0#,4# |
2 | ||
| 62985-30080A1 |
GRS210,211..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り,FLAXEN,TRIM0#,4# |
2 | ||
| 62985-30080A1 |
GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り&ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ,FLAXEN,TRIM0#,4# |
2 | ||
| 87217D - DUCT, AIR, REAR SIDE NO.1 | ||||
| 87211-30620 |
GRS210,211..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り |
1 | ||
| 87217E - DUCT, AIR, REAR SIDE NO.2 | ||||
| 87211-30630 |
GRS210,211..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り |
1 | ||
| 87217F - DUCT, AIR, REAR SIDE NO.3 | ||||
| 87211-30640 |
GRS210,211..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り |
1 | ||
| 87217G - DUCT, AIR, REAR SIDE NO.4 | ||||
| 87211-30650 |
GRS210,211..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り |
1 | ||
| 87217H - DUCT, AIR, REAR SIDE NO.5 | ||||
| 87211-30660 |
GRS210,211..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り |
1 | ||
| 88566R - DUCT, AIR, REAR ROOF NO.1 | ||||
| 62973-30140 |
GRS210,211..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り |
1 | ||
| 88566S - DUCT, AIR, REAR ROOF NO.2 | ||||
| 62971-30200 |
GRS210,211..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り |
1 | ||
| 88566T - DUCT, AIR, REAR ROOF NO.3 | ||||
| 62974-30140 |
GRS210,211..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り |
1 | ||
| 88566U - DUCT, AIR, REAR ROOF NO.4 | ||||
| 62972-30200 |
GRS210,211..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り |
1 | ||
| Linked diagrams | ||||
| 8714 | ||||

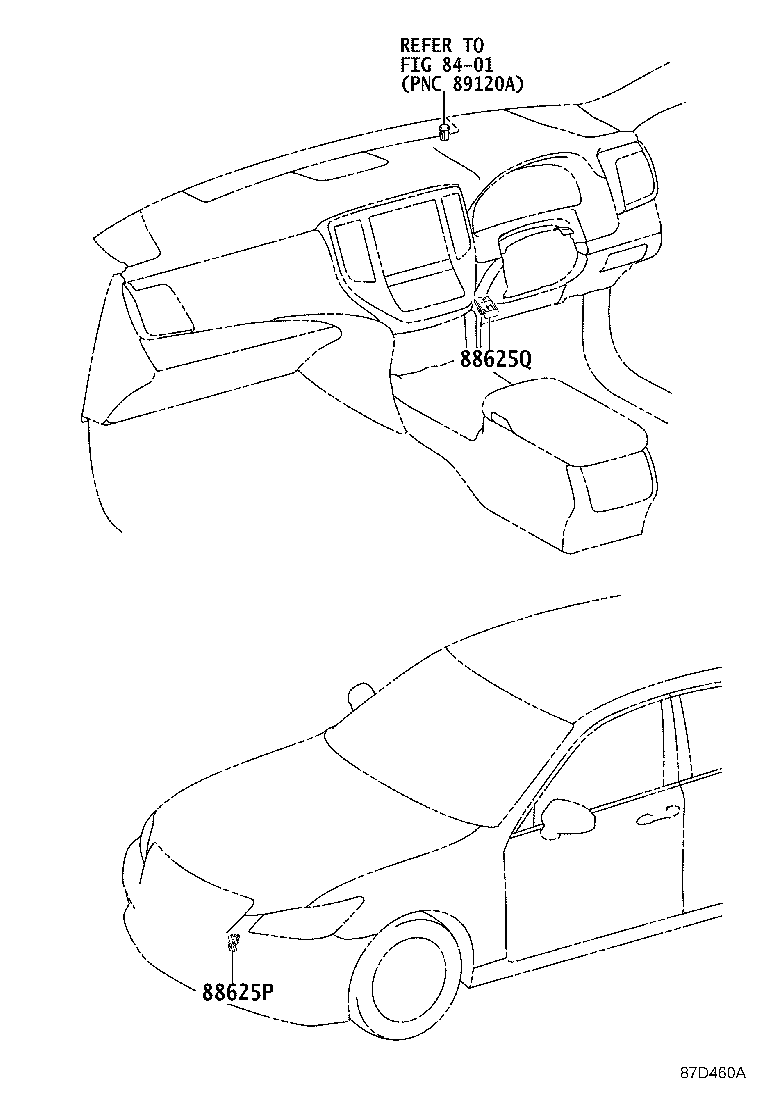

ILLUST NO. 4 OF 4(1212- )
ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) | ||||
| 88790-22131 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-48070 |
AWS21#,GRS21#,GWS214 |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
