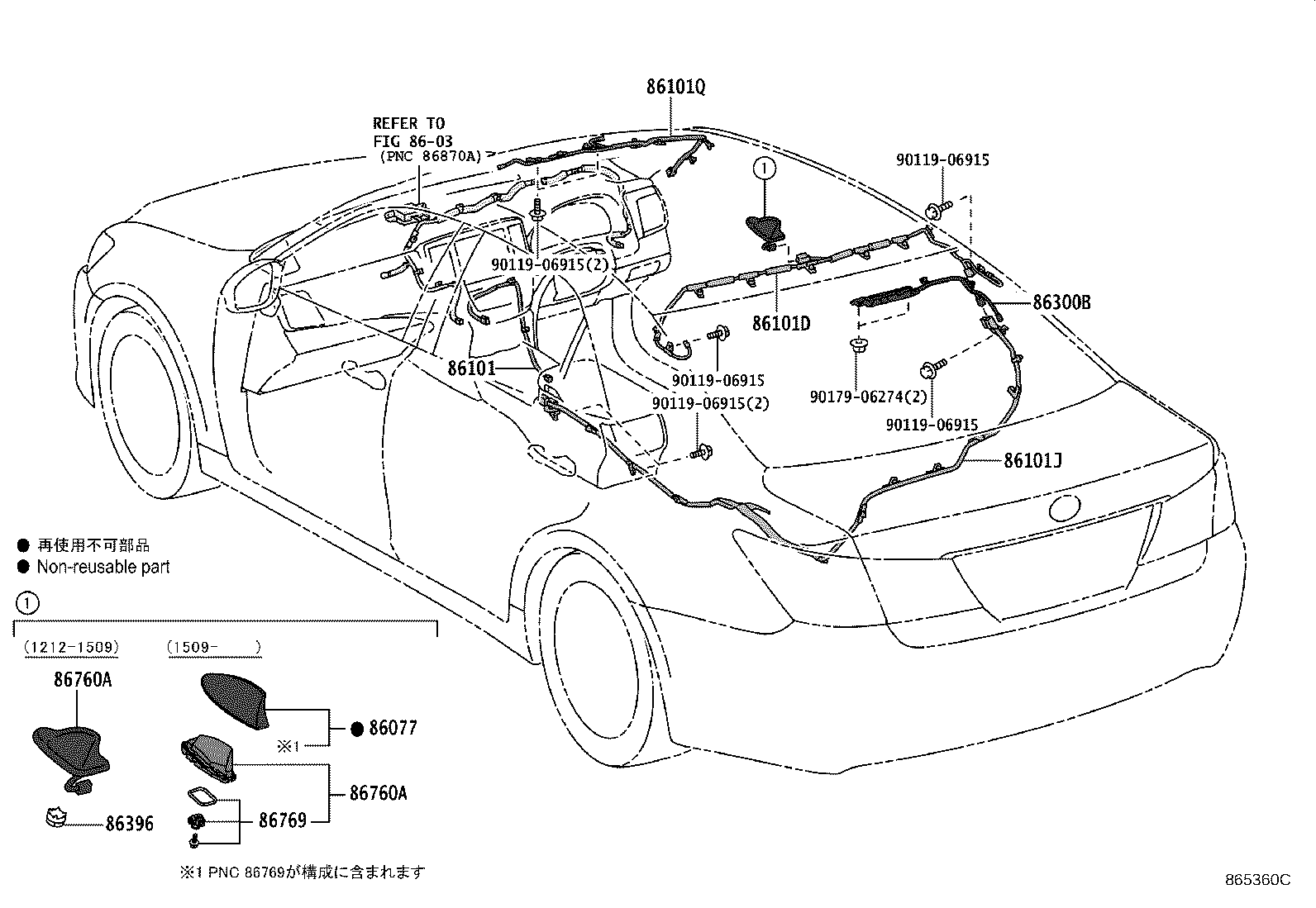

Toyota Crown/hybrid GRS210 ANTENNA

Part #	Description	Period	Qty
86101 - CORD SUB-ASSY, ANTENNA
86101-30M10	AWS210,211,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し	12/2012 - 09/2015	1
86101-30M60	AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG	12/2012 - 09/2015	1
86101D - CORD SUB-ASSY, ANTENNA, NO.3
86101-30M40	AWS210,211,GRS21#..ATHS,ROY	12/2012 - 09/2015	1
86101-30M50	AWS210,211,GRS21#..ATHS,ROY ﾃﾚﾏﾃｨｸｽ−有り(DCM)	12/2012 - 09/2015	1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-30L80	AWS210,211,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し	12/2012 - 09/2015	1
86101-30L90	AWS210,211,GRS21#..ATHS,ROY	12/2012 - 09/2015	1
86101-30M00	AWS210,211,GRS21#..ATHS,ROY ﾃﾚﾏﾃｨｸｽ−有り(DCM)	12/2012 - 09/2015	1
86101Q - CORD SUB-ASSY, ANTENNA, NO.4
86101-30M30	AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG	12/2012 - 09/2015	1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-30D40	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
86396 - NUT, ANTENNA
86396-47010	AWS210,211,GRS21#..ATHS,ROY ﾃﾚﾏﾃｨｸｽ−有り(DCM)	12/2012 - 09/2015	1
86760A - ANTENNA ASSY, TELEPHONE
86760-30310C0	AWS210,211,GRS21#..ATHS,ROY ﾃﾚﾏﾃｨｸｽ−有り(DCM),BLACK,202	12/2012 - 09/2015	1
86760-30310B0	AWS210,211,GRS21#..ATHS,ROY ﾃﾚﾏﾃｨｸｽ−有り(DCM),SILVER ME.,1F7	12/2012 - 09/2015	1
86760-30310B1	AWS210,211,GRS21#..ATHS,ROY ﾃﾚﾏﾃｨｸｽ−有り(DCM),PRECIOUS SILVER,1J6	12/2012 - 09/2015	1
86760-30310A0	AWS210,211,GRS21#..ATHS,ROY ﾃﾚﾏﾃｨｸｽ−有り(DCM),WHITE PEARL CS.,062	12/2012 - 09/2015	1
86760-30310D0	AWS210,211,GRS21#..ATHS,ROY ﾃﾚﾏﾃｨｸｽ−有り(DCM),DK. RED M.M.,3Q3	12/2012 - 09/2015	1
86760-30310J0	AWS210,211,GRS210,211..ROY ﾃﾚﾏﾃｨｸｽ−有り(DCM),DK.BLUE MC.,8S6	12/2012 - 09/2015	1
86760A - ANTENNA ASSY, TELEPHONE
86760-30310C0	AWS210,211,GRS21#..ATHS,ROY ﾃﾚﾏﾃｨｸｽ−有り(DCM),BLACK,202	12/2012 - 09/2015	1
86760-30310B0	AWS210,211,GRS21#..ATHS,ROY ﾃﾚﾏﾃｨｸｽ−有り(DCM),SILVER ME.,1F7	12/2012 - 09/2015	1
86760-30310B1	AWS210,211,GRS21#..ATHS,ROY ﾃﾚﾏﾃｨｸｽ−有り(DCM),PRECIOUS SILVER,1J6	12/2012 - 09/2015	1
86760-30310A0	AWS210,211,GRS21#..ATHS,ROY ﾃﾚﾏﾃｨｸｽ−有り(DCM),WHITE PEARL CS.,062	12/2012 - 09/2015	1
86760-30310D0	AWS210,211,GRS21#..ATHS,ROY ﾃﾚﾏﾃｨｸｽ−有り(DCM),DK. RED M.M.,3Q3	12/2012 - 09/2015	1
86760-30310J0	AWS210,211,GRS210,211..ROY ﾃﾚﾏﾃｨｸｽ−有り(DCM),DK.BLUE MC.,8S6	12/2012 - 09/2015	1
Common parts
90119-06915
90179-06274
Linked diagrams
8603

GRS210-AETQH (2012)

(1212- )
