GRS210-AETQH (2012)

Toyota Crown/Hybrid

Production Dec 2012 - Sep 2015
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )

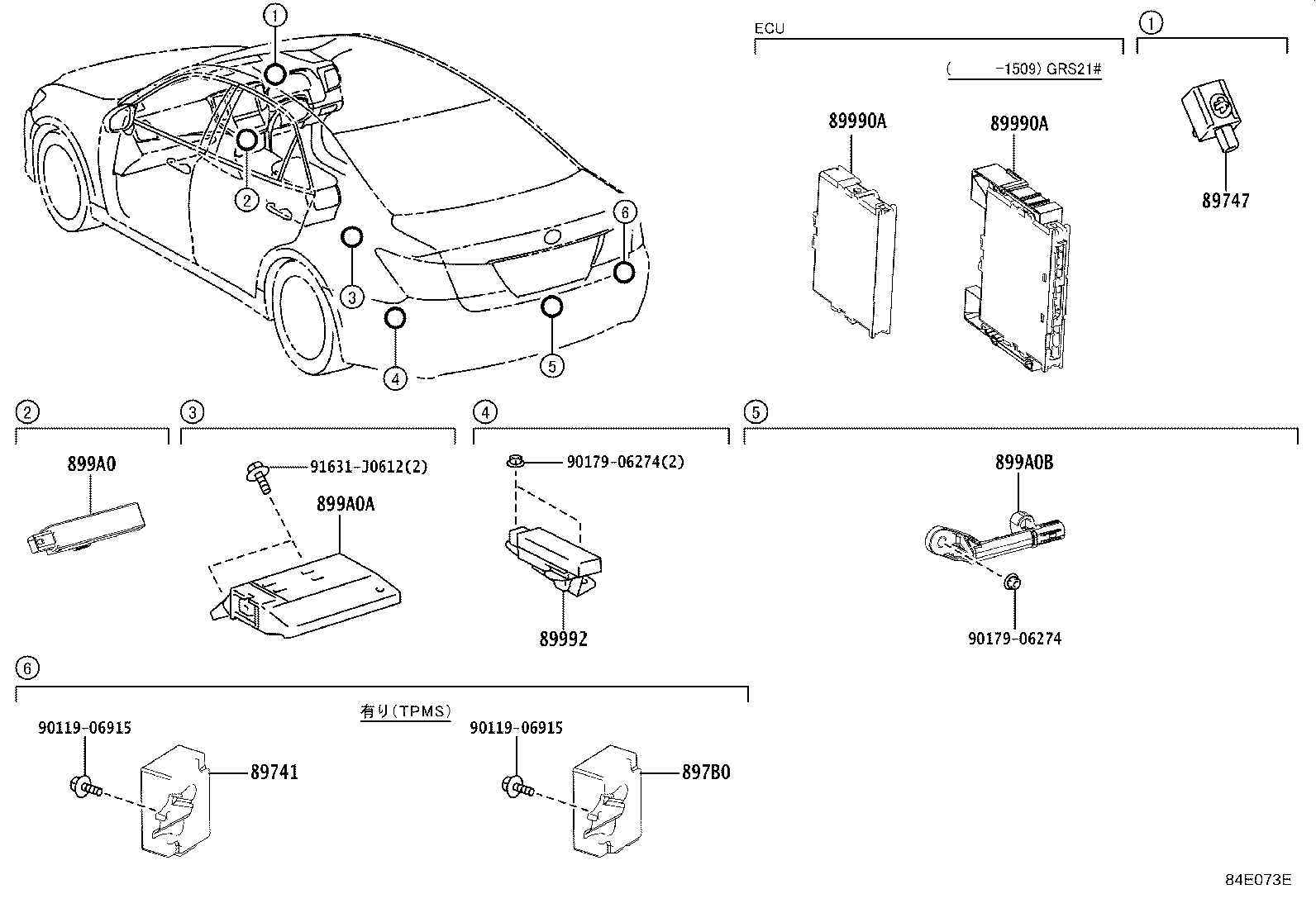

Click highlighted areas on diagram

diagram 89741 89747 897B0 89990A 89990A 89992 899A0 899A0A 899A0B 9011906915 9011906915 9017906274 9017906274 91631J0612
Part # Description Qty Price
89741 - RECEIVER, DOOR CONTROL
89740-30400

AWS210,211,GRS21#

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

AWS21#,GRS21#,GWS214

 1
89990A - COMPUTER ASSY, SMART KEY
89990-30350

GRS21#..ATHG,ATHS,ROY,ROYG

 1
89990A - COMPUTER ASSY, SMART KEY
89990-30350

GRS21#..ATHG,ATHS,ROY,ROYG

 1
89992 - OSCILLATOR, INDOOR ELECTRICAL KEY
89992-30070

AWS21#,GRS21#,GWS214

 1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-60010

AWS21#,GRS21#,GWS214

 1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-22010

AWS21#,GRS21#,GWS214

 1
899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
89997-30100

AWS21#,GRS21#,GWS214

 1
Common parts
90119-06915
90179-06274
91631-J0612
