GRS210-AETQH (2012)

Toyota Crown/Hybrid

Production Dec 2012 - Sep 2015
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )

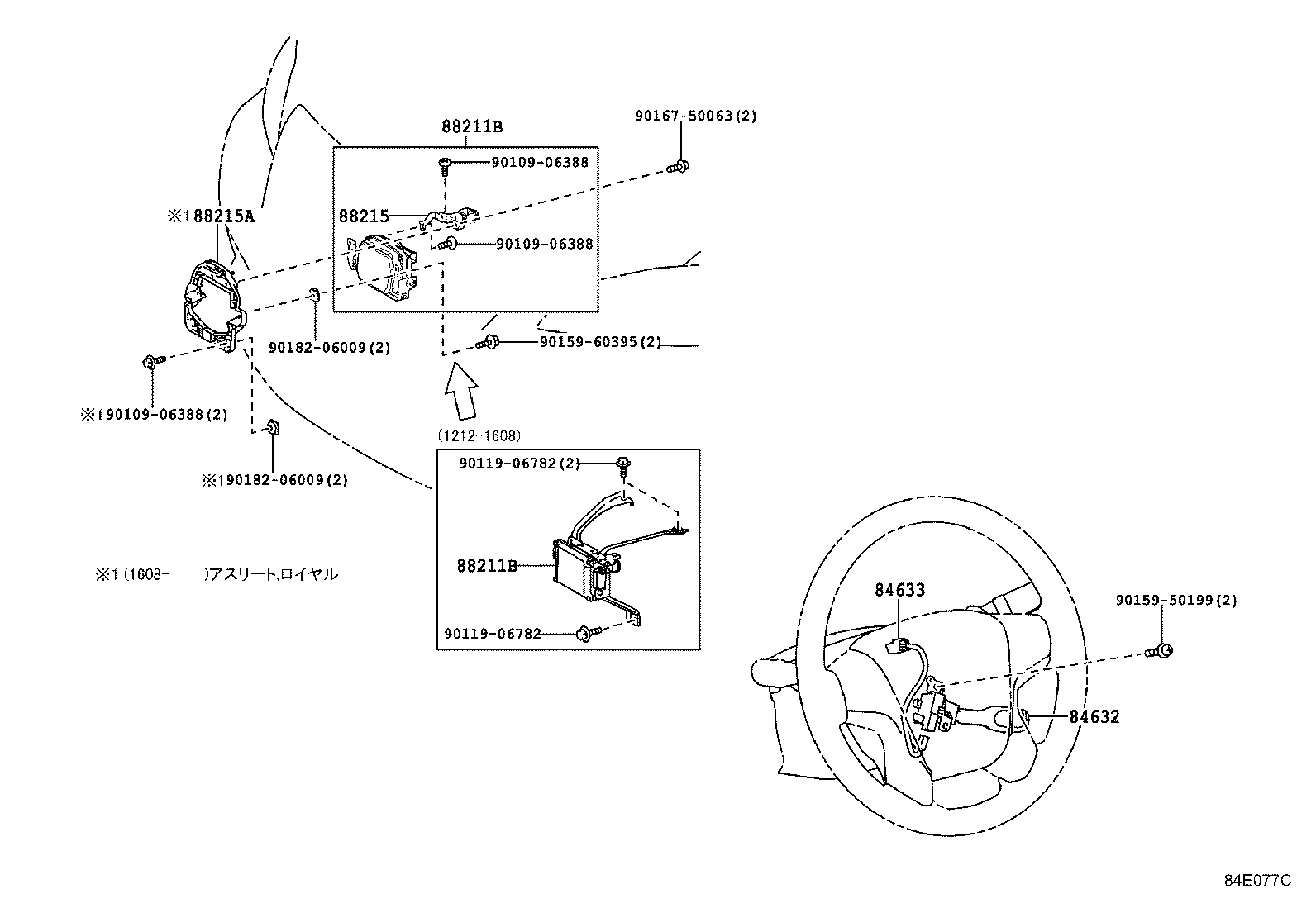

Click highlighted areas on diagram

diagram 84632 84633 88211B 88211B 88215 88215A 9010906388 9010906388 9010906388 9011906782 9011906782 9015950199 9015960395 9016750063 9018206009 9018206009
Part # Description Qty Price
84632 - SWITCH, CRUISE CONTROL MAIN
84632-58011

AWS210,211,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG

ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ

 1
84632-34011

AWS210,211,GRS21#,GWS214

 1
84633 - WIRE, CRUISE CONTROL SWITCH
84633-76020

AWS210,211,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG

ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ

 1
84633-76010

AWS210,211,GRS21#,GWS214

 1
88211B - SENSOR ASSY, MILLIMETER WAVE RADAR
88210-30320

AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG

ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ

 1
88211B - SENSOR ASSY, MILLIMETER WAVE RADAR
88210-30320

AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG

ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ

 1
Common parts
90109-06388
90119-06782
90159-50199
90159-60395
90167-50063
90182-06009
