GRS210-AETQH (2012)
Toyota Crown/Hybrid

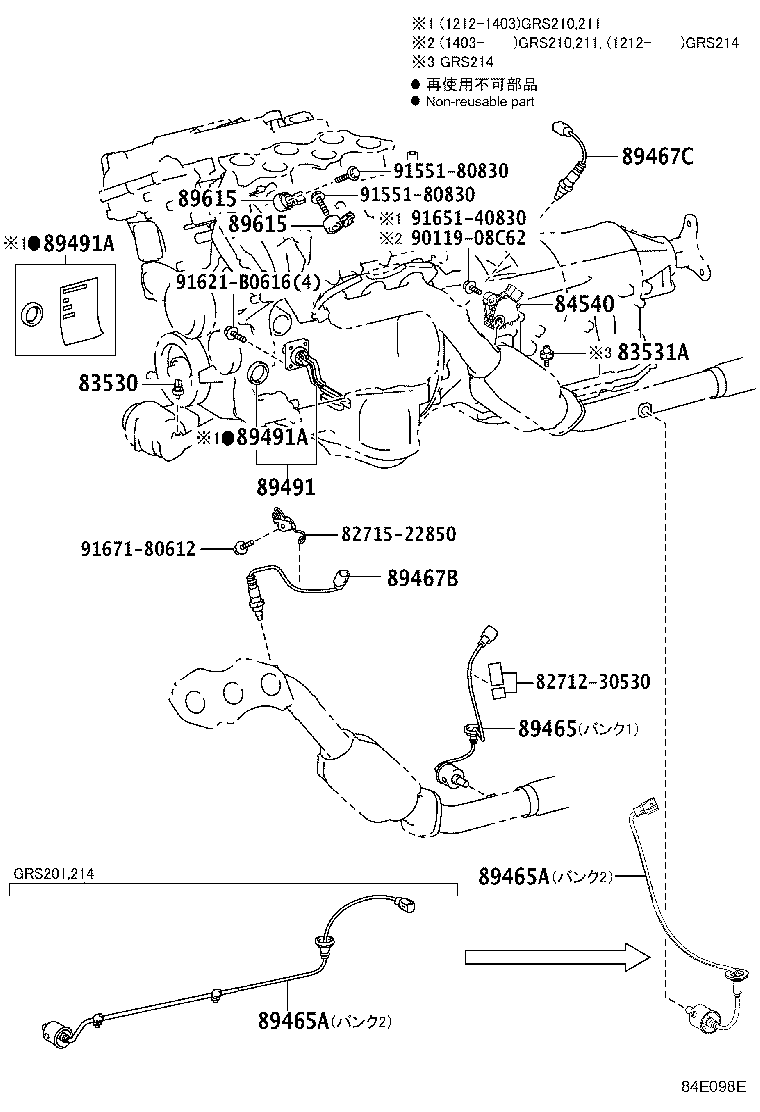

ILLUST NO. 1 OF 8(1212- )GRS21#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-71010 |
GRS210,211 |
1 | ||
| 84540-04010 |
GRS210,211 (L) |
1 | ||
| 84540-71010 |
GRS210,211 (J) |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-30730 |
GRS21# |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-30730 |
GRS210,214 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-30730 |
GRS210,214 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-22050 |
GRS21# |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-22030 |
GRS210,214 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-30061 |
GRS210,214,GWS214 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GRS21#,GWS214 |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GRS21#,GWS214 |
2 | ||
| Common parts | ||||
| 82712-30530 | ||||
| 82715-22850 | ||||
| 90119-08C62 | ||||
| 91551-80830 | ||||
| 91621-B0616 | ||||
| 91651-40830 | ||||
| 91671-80612 | ||||

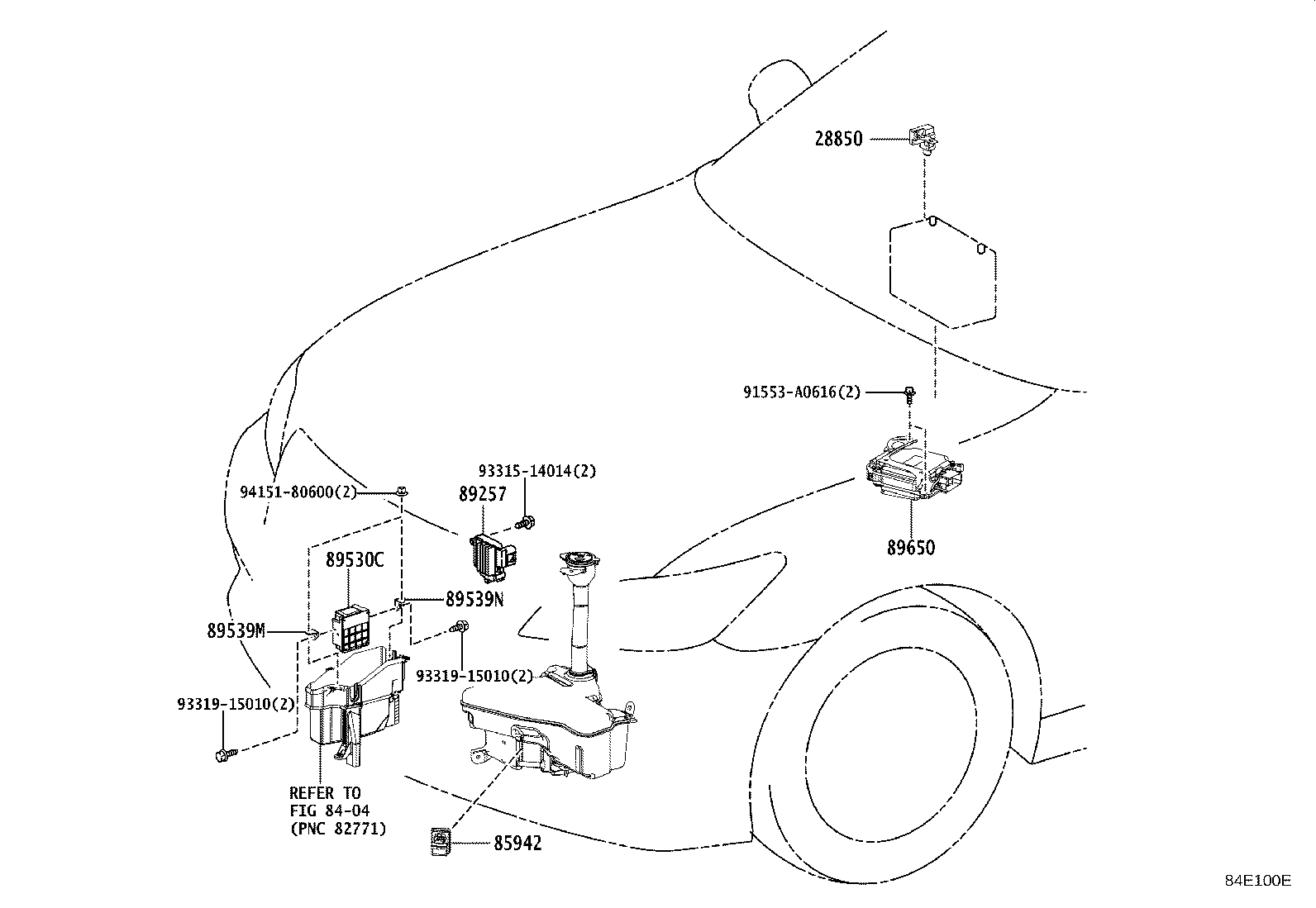

ILLUST NO. 2 OF 8(1212-1509)GRS21#
ｴﾝｼﾞﾝﾙｰﾑ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-31020 |
2GRFSE,4GRFSE..GRS21# |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-30090 |
GRS21# |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-30A71 |
GRS210,211 JTEKT/DENSO,品番ﾗﾍﾞﾙ=89650−30A71 |
1 | ||
| 89650-30A70 |
GRS210,211 JTEKT/DENSO,品番ﾗﾍﾞﾙ=89650−30A70 |
1 | ||
| Common parts | ||||
| 91553-A0616 | ||||
| 93315-14014 | ||||
| 93319-15010 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8404 | ||||

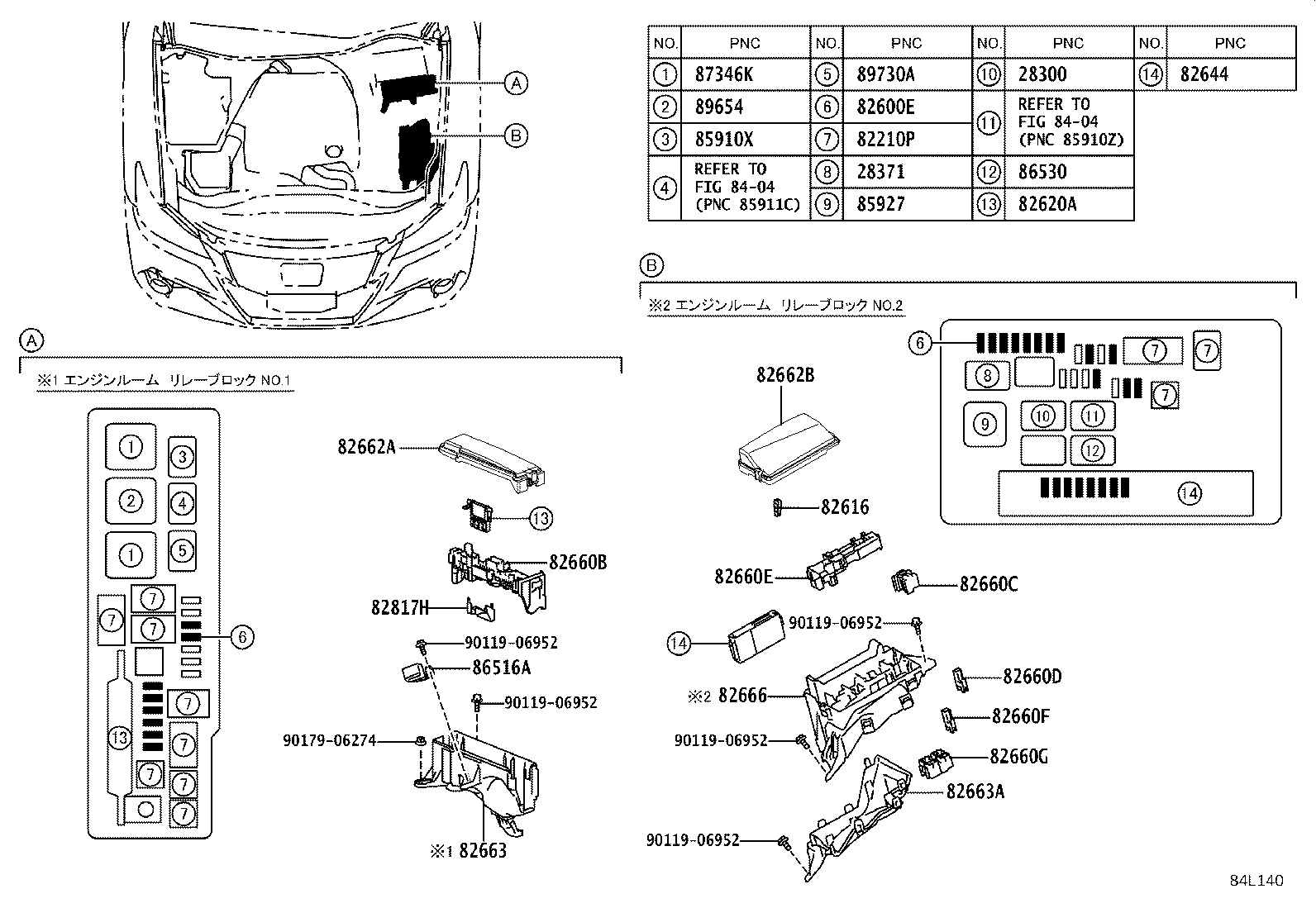

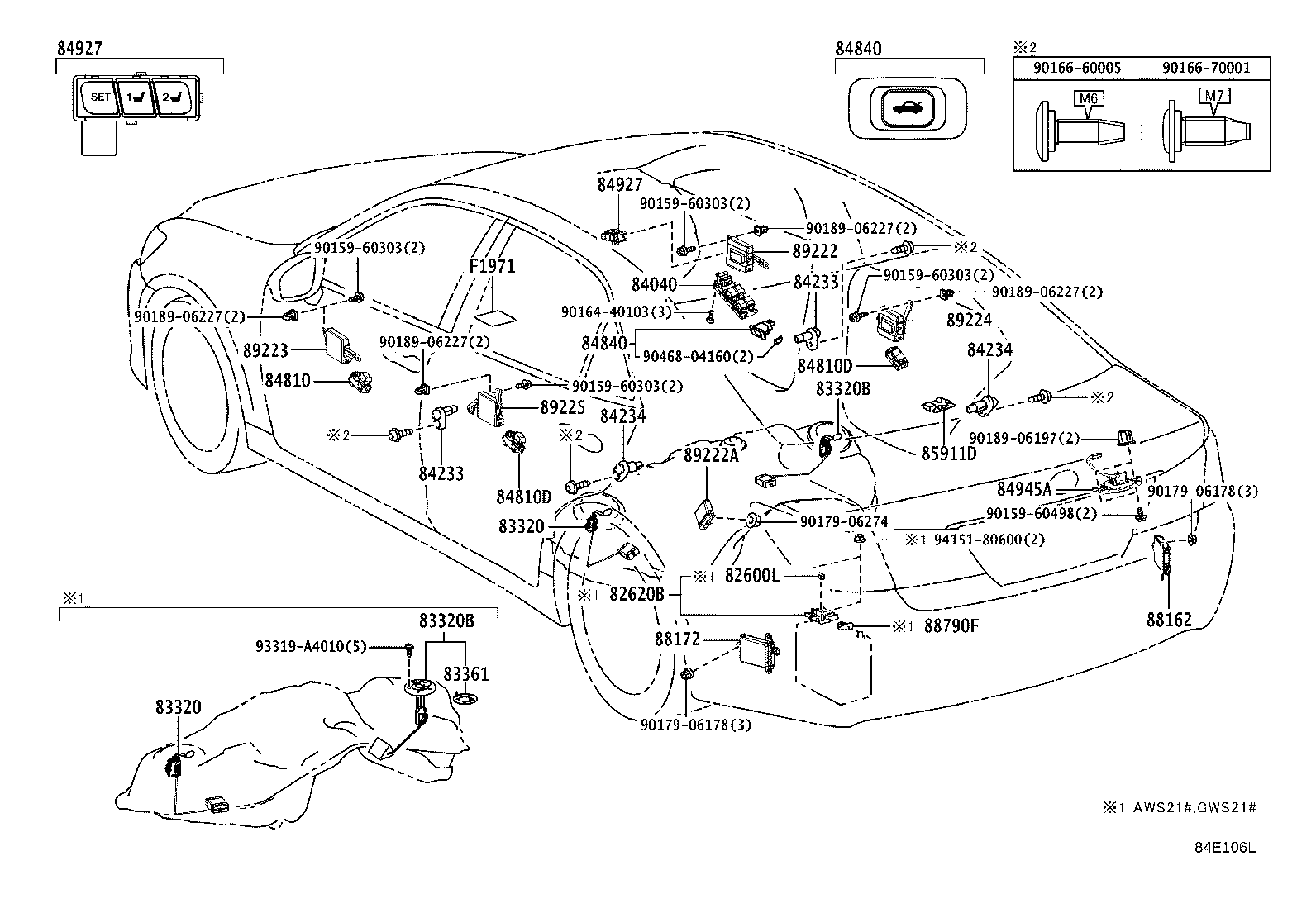

ILLUST NO. 4 OF 8(1212-1509)
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
AWS21#,GRS21#,GWS214 30A,ﾒｽ端子,桃 |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
AWS21#,GRS21#,GWS214 30A,ﾒｽ端子,桃 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
AWS21#,GRS21#,GWS214 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09020 |
AWS21#,GRS21#,GWS214 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
AWS21#,GRS21#,GWS214 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09025 |
AWS21#,GRS21#,GWS214 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
AWS21#,GRS21#,GWS214 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09019 |
AWS21#,GRS21#,GWS214 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
AWS21#,GRS21#,GWS214 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09020 |
AWS21#,GRS21#,GWS214 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
AWS21#,GRS21#,GWS214 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09025 |
AWS21#,GRS21#,GWS214 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
AWS21#,GRS21#,GWS214 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09019 |
AWS21#,GRS21#,GWS214 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
AWS21#,GRS21#,GWS214 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09020 |
AWS21#,GRS21#,GWS214 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
AWS21#,GRS21#,GWS214 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09025 |
AWS21#,GRS21#,GWS214 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
AWS21#,GRS21#,GWS214 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09019 |
AWS21#,GRS21#,GWS214 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-30420 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-30430 |
AWS210,211,GRS21# |
1 | ||
| 82730E - BLOCK ASSY, JUNCTION, RH | ||||
| 82730-30J00 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 82730F - BLOCK ASSY, JUNCTION, LH | ||||
| 82730-30J10 |
AWS210,211,GRS21#..ATHS,ROY |
1 | ||
| 82730-30J20 |
AWS210,211,GRS21#..ATHS,ROY ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 82878 - BOX, COMPUTER INTEGRATION, LH | ||||
| 82878-30020 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30130 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 85915E - RELAY | ||||
| 90987-02027 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-30150 |
AWS210,211,GRS21#..ATHS,ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 88150A - COMPUTER ASSY, DRIVING SUPPORT | ||||
| 88150-30131 |
GRS210,211..ROY ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,品番ﾗﾍﾞﾙ=88150−301R1 |
1 | ||
| 88150-30132 |
GRS21#..ATHG,ATHS,ROY,ROYG ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ,品番ﾗﾍﾞﾙ=88150−30132 |
1 | ||
| 88150-30133 |
GRS210,211..ROY ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,品番ﾗﾍﾞﾙ=88150−301R3 |
1 | ||
| 88150-30131 |
GRS21#..ATHG,ATHS,ROY,ROYG ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ,品番ﾗﾍﾞﾙ=88150−30131 |
1 | ||
| 88150-30132 |
GRS210,211..ROY ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,品番ﾗﾍﾞﾙ=88150−301R2 |
1 | ||
| 88150-30133 |
GRS21#..ATHG,ATHS,ROY,ROYG ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ,品番ﾗﾍﾞﾙ=88150−30133 |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89100-30151 |
AWS210,GRS210..ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ) |
1 | ||
| 89100-30160 |
AWS210,211,GRS210..ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ) |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-30D00 |
AWS210,211,GRS21#..ATHS,ROY |
1 | ||
| 89220-30D01 |
AWS210,211,GRS21#..ATHS,ROY |
1 | ||
| 89220-30D11 |
AWS210,211,GRS21#..ATHS,ROY ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 89220-30D10 |
AWS210,211,GRS21#..ATHS,ROY ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC | ||||
| 89227-30070 |
GRS210,211..ATHS,ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-30170 |
AWS210,GRS210,211..ROY,ROYAL |
1 | ||
| 89960-30220 |
AWS210,211,GRS210,211..ROY,ROYAL |
1 | ||
| Common parts | ||||
| 82715-30Q90 | ||||
| 82715-30R00 | ||||
| 82817-30W50 | ||||
| 82817-30W60 | ||||
| 90153-50010 | ||||
| 90159-50327 | ||||
| 90159-60383 | ||||
| 90179-06110 | ||||
| 90179-06274 | ||||
| 91553-80610 | ||||
| 91673-80616 | ||||
| 93249-55010 | ||||
| 93313-14010 | ||||
| 94151-80600 | ||||

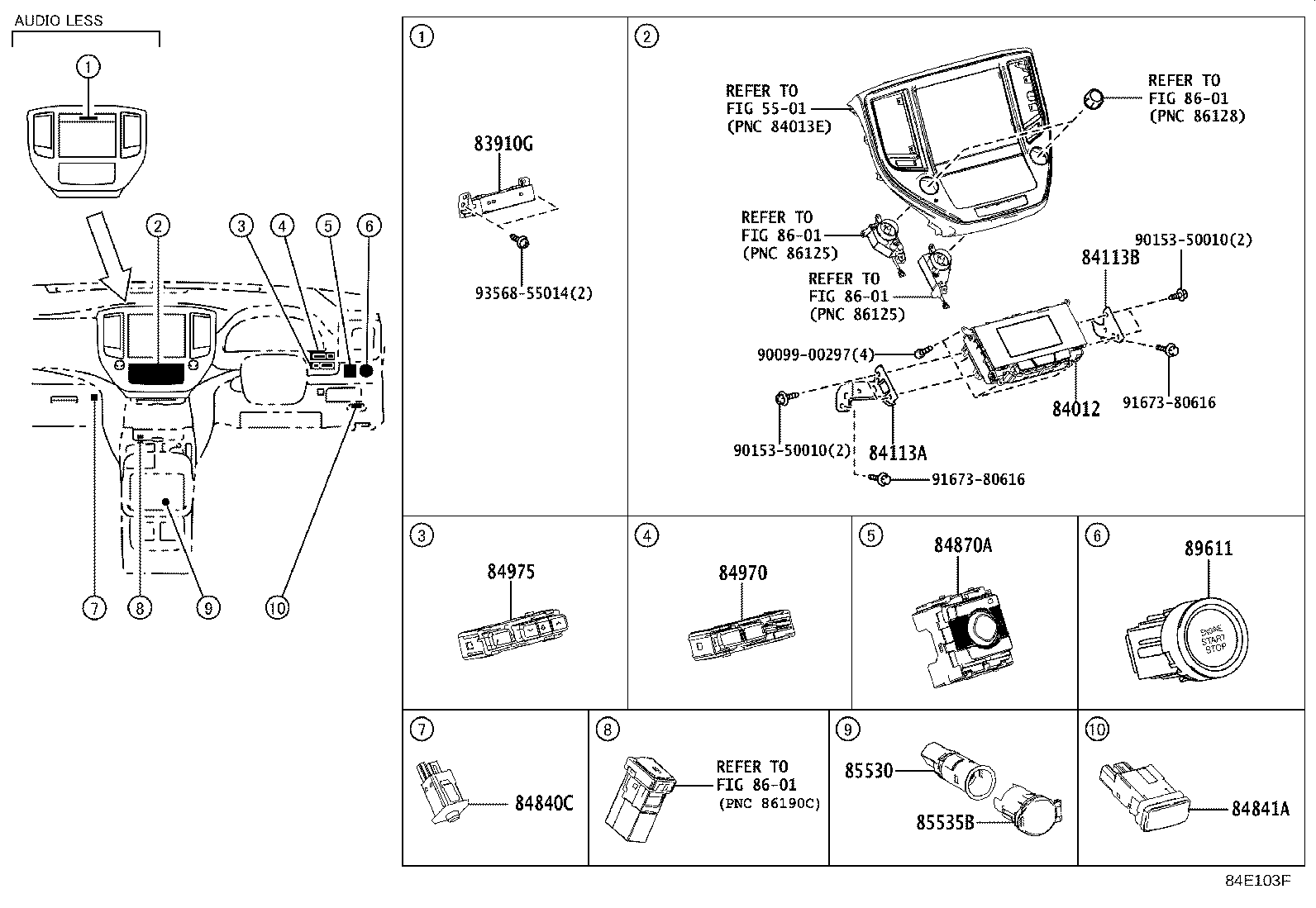

ILLUST NO. 5 OF 8(1212- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910G - CLOCK ASSY | ||||
| 83910-30640 |
AWS210,211,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 84012 - CONTROL & PANEL SUB-ASSY, INTEGRATION | ||||
| 84012-30280B0 |
GRS210,211..ROY,ROYG DK.SILVER,TRIM0#,4# |
1 | ||
| 84012-30300B0 |
GRS210,211..ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し,DK.SILVER,TRIM0#,4# |
1 | ||
| 84012-30301B0 |
GRS210,211..ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し,DK.SILVER,TRIM0#,4# |
1 | ||
| 84012-30281B0 |
GRS210,211..ROY,ROYG DK.SILVER,TRIM0#,4# |
1 | ||
| 84012-30282B0 |
GRS210,211..ROY,ROYG DK.SILVER,TRIM0#,4# |
1 | ||
| 84012-30302B0 |
GRS210,211..ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し,DK.SILVER,TRIM0#,4# |
1 | ||
| 84113A - BRACKET, SWITCH, NO.1 | ||||
| 84113-30090 |
AWS210,211,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 84113B - BRACKET, SWITCH, NO.2 | ||||
| 84113-30100 |
AWS210,211,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 84840C - SWITCH ASSY, LUGGAGE DOOR OPENING, CANCEL | ||||
| 84840-24020 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-48010 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-30070 |
AWS210,211,GRS21#..ATHS,ROY |
1 | ||
| 84872-30080 |
AWS210,211,GRS21#..ATHS,ROY ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-30210 |
AWS210,211,GRS21#..ATHS,ROY ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-30090 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-30020 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-42011 |
GRS21# |
1 | ||
| 89611-42010 |
GRS21# |
1 | ||
| Common parts | ||||
| 90099-00297 | ||||
| 90153-50010 | ||||
| 91673-80616 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 8601 | ||||
ILLUST NO. 6 OF 8(1212-1509)
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-33230 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 84140-33220 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-30280C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM0#,4# |
1 | ||
| 84250-30550C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM0#,4# |
1 | ||
| 84250-30290C0 |
AWS210,211,GRS210,211..ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し,BLACK,TRIM0#,4# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-12010 |
GRS21# |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-33090 |
GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−無し |
1 | ||
| 84307-30160 |
GRS210,211..ATHG,ATHS,ROY,ROYG |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-33500 |
AWS210,211,GRS21#..ATHS,ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 84652-30700 |
AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-33010 |
GRS210,211..ATHS,ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-39055 |
AWS21#,GRS210,211..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 8924B-33010 |
AWS210,211,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||

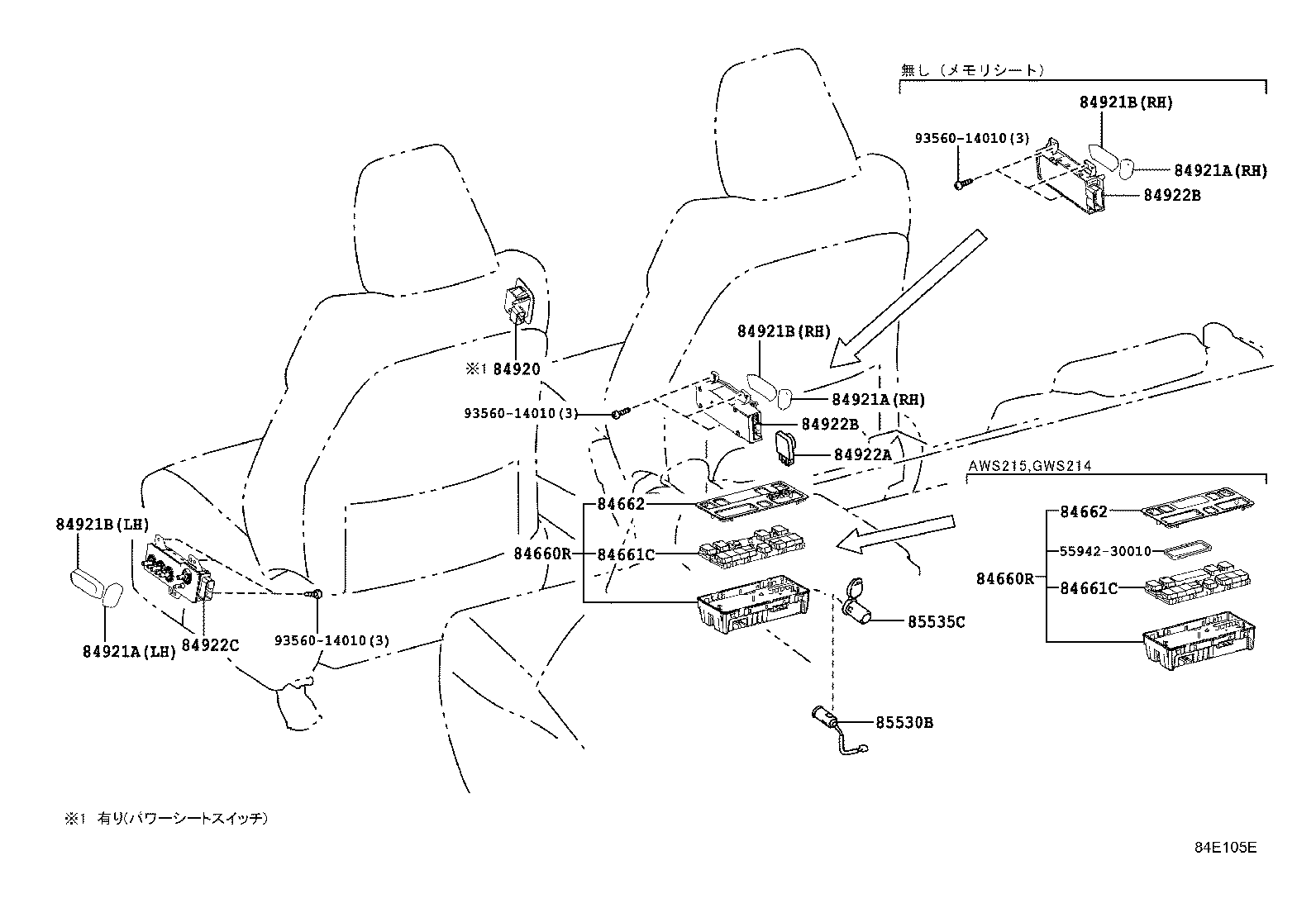

ILLUST NO. 7 OF 8(1212- )

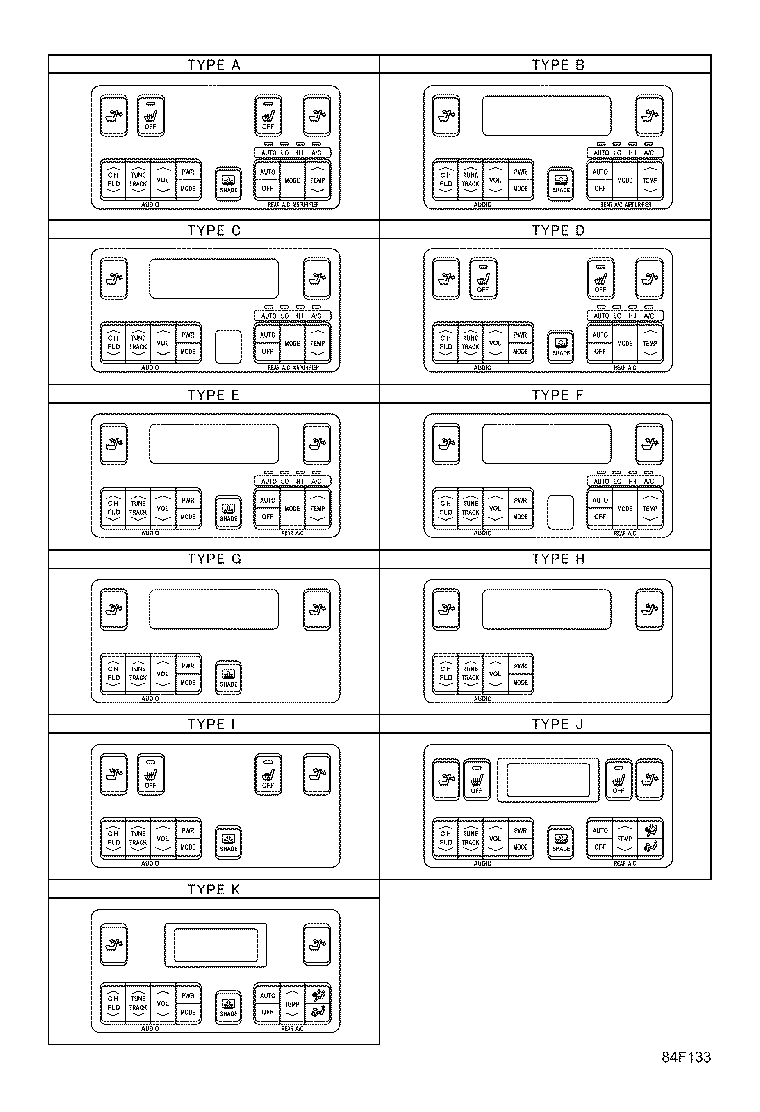

ｼｰﾄ & ﾘｱ ｱｰﾑﾚｽﾄ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84660R - SWITCH, COOLER(REAR) | ||||
| 84660-30550 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ&ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ),TYPE G:ｲﾗｽﾄ参照 |
1 | ||
| 84660-30560 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,TYPE H:ｲﾗｽﾄ参照 |
1 | ||
| 84660-30500 |
GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ&ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 84660-30510 |
GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 84660R - SWITCH, COOLER(REAR) | ||||
| 84660-30550 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ&ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ),TYPE G:ｲﾗｽﾄ参照 |
1 | ||
| 84660-30560 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,TYPE H:ｲﾗｽﾄ参照 |
1 | ||
| 84660-30500 |
GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ&ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 84660-30510 |
GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 84661C - KNOB, COOLER CONTROL SWITCH | ||||
| 84661-30180 |
GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ&ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 84661-30200 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ&ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ),TYPE G:ｲﾗｽﾄ参照 |
1 | ||
| 84661-30190 |
GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 84661-30210 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,TYPE H:ｲﾗｽﾄ参照 |
1 | ||
| 84661C - KNOB, COOLER CONTROL SWITCH | ||||
| 84661-30180 |
GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ&ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 84661-30200 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ&ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ),TYPE G:ｲﾗｽﾄ参照 |
1 | ||
| 84661-30190 |
GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 84661-30210 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,TYPE H:ｲﾗｽﾄ参照 |
1 | ||
| 84662 - PANEL, COOLER CONTROL SWITCH | ||||
| 84662-30250 |
GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 84662-30290 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,TYPE H:ｲﾗｽﾄ参照 |
1 | ||
| 84662-30250 |
GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ&ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 84662-30280 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ&ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ),TYPE G:ｲﾗｽﾄ参照 |
1 | ||
| 84662 - PANEL, COOLER CONTROL SWITCH | ||||
| 84662-30250 |
GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 84662-30290 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,TYPE H:ｲﾗｽﾄ参照 |
1 | ||
| 84662-30250 |
GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ&ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 84662-30280 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ&ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ),TYPE G:ｲﾗｽﾄ参照 |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-30221A4 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 84920-30221C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4# |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-22080A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0#,右側 |
1 | ||
| 84921-22090A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0#,左側 |
1 | ||
| 84921-22090C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4#,左側 |
1 | ||
| 84921-22080C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4#,右側 |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-22090A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0#,左側 |
1 | ||
| 84921-22080A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0#,右側 |
1 | ||
| 84921-22090C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4#,左側 |
1 | ||
| 84921-22080C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4#,右側 |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-22080A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0#,右側 |
1 | ||
| 84921-22090A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0#,左側 |
1 | ||
| 84921-22090C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4#,左側 |
1 | ||
| 84921-22080C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4#,右側 |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-22070A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0#,右側 |
1 | ||
| 84921-22070C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4#,右側 |
1 | ||
| 84921-22100C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4#,左側 |
1 | ||
| 84921-22100A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0#,左側 |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-22070A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0#,右側 |
1 | ||
| 84921-22070C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4#,右側 |
1 | ||
| 84921-22100C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4#,左側 |
1 | ||
| 84921-22100A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0#,左側 |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-22070A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0#,右側 |
1 | ||
| 84921-22070C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4#,右側 |
1 | ||
| 84921-22100C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4#,左側 |
1 | ||
| 84921-22100A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0#,左側 |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-60090C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4# |
1 | ||
| 84920-60090A3 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-60190 |
AWS210,211,GRS21#..ATHS,ROY |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-60190 |
AWS210,211,GRS21#..ATHS,ROY |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-60170 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-30040 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-30020 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| Common parts | ||||
| 55942-30010 | ||||
| 93560-14010 | ||||
ILLUST NO. 8 OF 8(1212- )
ﾄﾞｱ, ﾙｰﾌ, ﾌﾛｱ & ﾗｯｹﾞｰｼﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-30530 |
GRS21# |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-30530 |
GRS21# |
1 | ||
| 83320B - GAGE ASSY, FUEL SENDER, NO.2 | ||||
| 83320-30540 |
GRS21# |
1 | ||
| 83320B - GAGE ASSY, FUEL SENDER, NO.2 | ||||
| 83320-30540 |
GRS21# |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-30250 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-30380 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-30380 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-30380 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-30380 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-30220 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-30220 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-30220 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-30140C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 84945A - SWITCH, LUGGAGE ELECTRICAL KEY | ||||
| 84945-30060 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 85911D - RELAY, REAR SUNSHADE | ||||
| 85911-30040 |
AWS210,211,GRS21#..ATHS,ROY ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ) |
1 | ||
| 89222 - COMPUTER, MULTIPLEX NETWORK DOOR, FRONT RH | ||||
| 89222-30280 |
AWS210,211,GRS21#..ATHS,ROY ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 89222A - COMPUTER, MULTIPLEX NETWORK DOOR | ||||
| 89222-30262 |
GRS214..ATHG;AWS210,GRS210,211,GWS214..MJ,ROY,ROYG |
1 | ||
| 89222-30263 |
AWS211,GRS214..ATHG,ROY,ROYG;AWS210,215,GRS210,211,GWS214..MJ,ROY,ROYG |
1 | ||
| 89222-30261 |
GRS214..ATHG;AWS210,GRS210,211..ROY,ROYG |
1 | ||
| 89222-30260 |
GRS214..ATHG;AWS210,GRS210,211..ROY,ROYG |
1 | ||
| 89223 - COMPUTER, MULTIPLEX NETWORK DOOR, FRONT LH | ||||
| 89223-30140 |
AWS210,211,GRS21#..ATHS,ROY ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| F1971 - COVER, ECU WATER PROOF | ||||
| F1971-30040 |
AWS21#,GRS21#,GWS214 |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90159-60498 | ||||
| 90164-40103 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||
| 90179-06178 | ||||
| 90179-06274 | ||||
| 90189-06197 | ||||
| 90189-06227 | ||||
| 90468-04160 | ||||
| 93319-A4010 | ||||
| 94151-80600 | ||||
ILLUST NO. 7 OF 8(1212- )
ｼｰﾄ & ﾘｱ ｱｰﾑﾚｽﾄ 2/2
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 3 OF 8(1212-1509)GRS21#
ｴﾝｼﾞﾝﾙｰﾑ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
2GRFSE,4GRFSE..GRS21# |
1 | ||
| 28300-21020 |
2GRFSE,4GRFSE..GRS21# |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02027 |
2ARFSE,2GR#,4GRFSE..AWS21#,GRS21#,GWS214 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08296 |
GRS21# 50A,ﾒｽ端子,赤,識別符号:58V |
1 | ||
| 90982-08305 |
AWS21#,GRS21# 80A,ﾒｽ端子,黒 |
1 | ||
| 90982-08302 |
AWS21#,GRS21# 50A−30A−50A,ﾒｽ端子,黒 |
1 | ||
| 90982-08307 |
GRS21# 50A,ﾒｽ端子,赤,識別符号:32V |
1 | ||
| 90982-08294 |
AWS21#,GRS21# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08304 |
GRS21# 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08303 |
GRS21# 50A−50A−50A,ﾒｽ端子,赤茶 |
1 | ||
| 90982-08295 |
GRS21# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08301 |
AWS21#,GRS21# 50A−30A−40A,ﾒｽ端子,青 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
AWS21#,GRS21# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09020 |
AWS21#,GRS21# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09022 |
AWS21#,GRS21#,GWS214 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
AWS21#,GRS21#,GWS214 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
AWS21#,GRS21#,GWS214 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09023 |
AWS21#,GRS21#,GWS214 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-30260 |
GRS21# |
1 | ||
| 82644 - COMPUTER, SEMICONDUCTOR POWER INTEGRATION | ||||
| 82644-30021 |
GRS21#,GWS214 |
1 | ||
| 82644-30020 |
GRS21# |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-30C60 |
GRS21# |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-30C00 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-30C70 |
GRS21# |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-30D50 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-75010 |
GRS21# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-30B80 |
GRS21# |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-30C40 |
GRS21# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-30310 |
GRS21# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-30320 |
GRS21# |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-30C30 |
GRS21# |
1 | ||
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-30W30 |
GRS21# |
1 | ||
| 85910X - RELAY, HEATER MIRROR | ||||
| 90987-02027 |
AWS210,GRS210,211..ROY ｵｰﾄ&ｲｰｼﾞｰｸﾛｰｻﾞｰﾄﾞｱ−有り(ﾗｹﾞｰｼﾞｸﾛｰｻﾞｰ) |
1 | ||
| 90987-02027 |
AWS210,211,GRS21#..ATHS,ROY ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 90987-02027 |
AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL |
1 | ||
| 90987-02027 |
AWS210,GRS210,211..ROY ｵｰﾄ&ｲｰｼﾞｰｸﾛｰｻﾞｰﾄﾞｱ−有り(ﾗｹﾞｰｼﾞｸﾛｰｻﾞｰ)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02025 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 86516A - CONDENSER | ||||
| 82930-30040 |
GRS21# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02025 |
GRS21#,GWS214 寒冷地仕様 |
2 | ||
| 89654 - RELAY, POWER STEERING | ||||
| 90987-02025 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90987-02027 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| Common parts | ||||
| 90119-06952 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
