GRS210-AETQH (2012)

Toyota Crown/Hybrid

Production Dec 2012 - Sep 2015
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

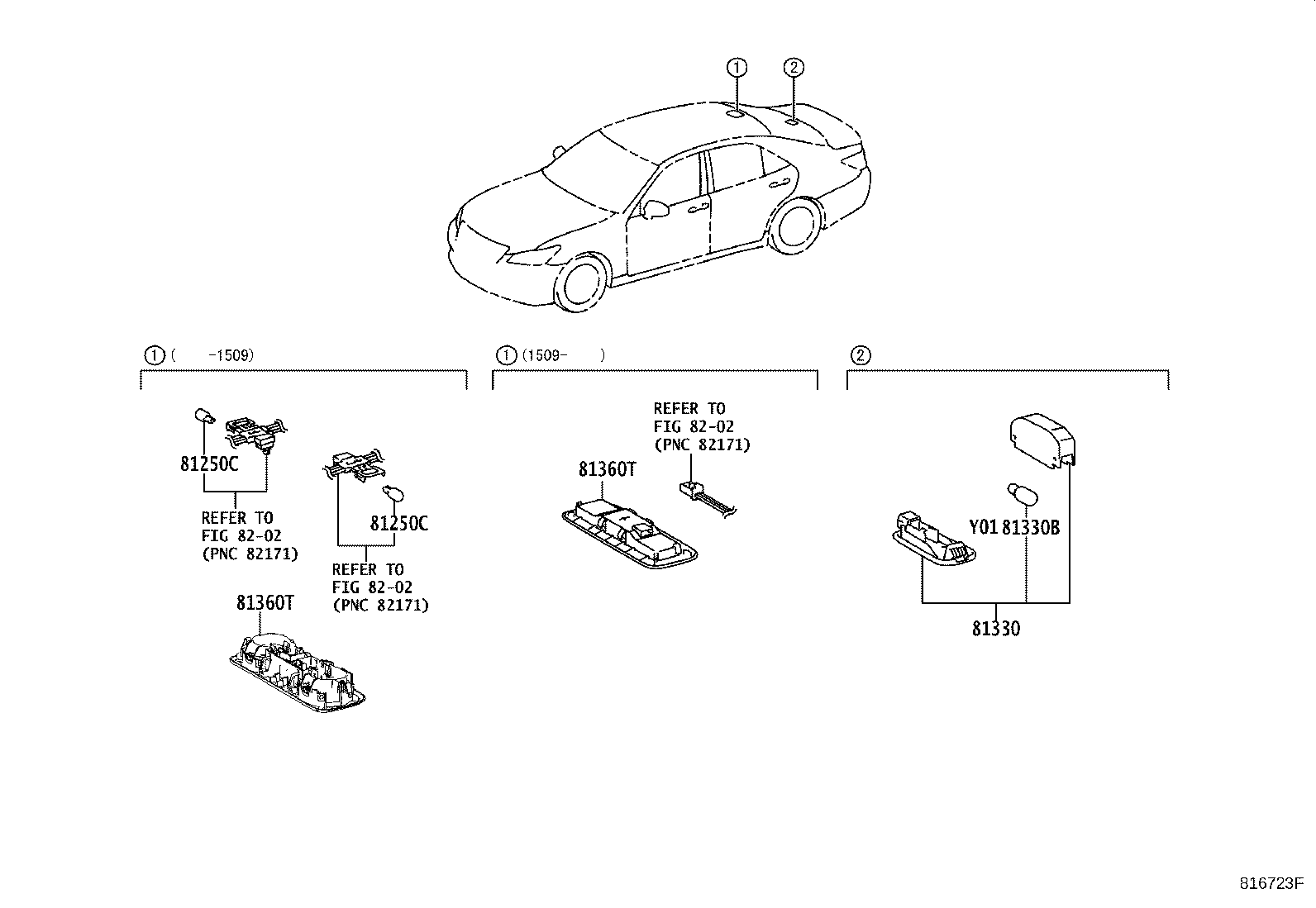

(1212- )AWS21#,GRS21#,GWS214 ; (1509- )ARS210

Click highlighted areas on diagram

diagram 81250C 81250C 81330 81330B 81360T 81360T 8202 8202 8202
Part # Description Qty Price
81250C - BULB, SPOT LAMP
90981-11062

AWS21#,GRS21#,GWS214

12V 8W

 2
81250C - BULB, SPOT LAMP
90981-11062

AWS21#,GRS21#,GWS214

12V 8W

 2
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81250-30210

AWS21#,GRS21#,GWS214

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
99132-12050

AWS21#,GRS21#,GWS214

12V 5W

 1
81360T - LAMP ASSY, SPOT
81360-30050A3

AWS210,211,GRS210,211..ROY,ROYAL,ROYG

FLAXEN,TRIM0#,4#

 1
81360T - LAMP ASSY, SPOT
81360-30050A3

AWS210,211,GRS210,211..ROY,ROYAL,ROYG

FLAXEN,TRIM0#,4#

 1
Linked diagrams
8202

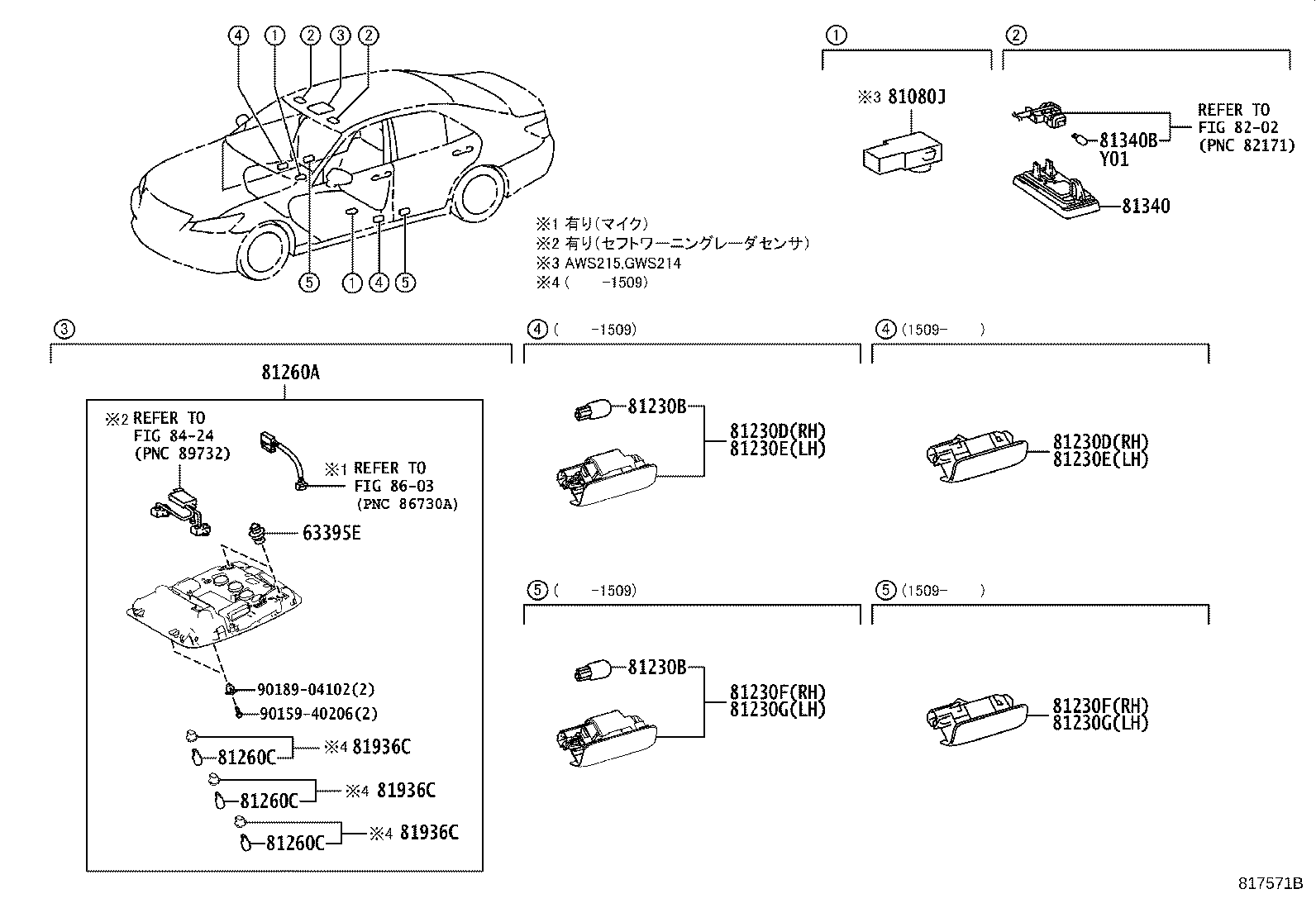

(1212- )AWS21#,GRS21#,GWS214 ; (1509- )ARS210

Click highlighted areas on diagram

diagram 63395E 81080J 81230B 81230B 81230D 81230D 81230E 81230E 81230F 81230F 81230G 81230G 81260A 81260C 81260C 81260C 81340 81340B 81936C 81936C 81936C 8202 8424 9015940206 9018904102
Part # Description Qty Price
63395E - CLIP(FOR MAP LAMP)
90467-09240

AWS21#,GRS21#,GWS214

 2
81230B - BULB(FOR COURTESY LAMP)
90981-12010

AWS21#,GRS21#,GWS214

12V 5W

 4
81230B - BULB(FOR COURTESY LAMP)
90981-12010

AWS21#,GRS21#,GWS214

12V 5W

 4
81230D - LAMP ASSY, FRONT DOOR COURTESY, RH
81230-30200

AWS21#,GRS21#,GWS214

 1
81230D - LAMP ASSY, FRONT DOOR COURTESY, RH
81230-30200

AWS21#,GRS21#,GWS214

 1
81230E - LAMP ASSY, FRONT DOOR COURTESY, LH
81230-30200

AWS21#,GRS21#,GWS214

 1
81230E - LAMP ASSY, FRONT DOOR COURTESY, LH
81230-30200

AWS21#,GRS21#,GWS214

 1
81230F - LAMP ASSY, REAR DOOR COURTESY, RH
81230-30200

AWS21#,GRS21#,GWS214

 1
81230F - LAMP ASSY, REAR DOOR COURTESY, RH
81230-30200

AWS21#,GRS21#,GWS214

 1
81230G - LAMP ASSY, REAR DOOR COURTESY, LH
81230-30200

AWS21#,GRS21#,GWS214

 1
81230G - LAMP ASSY, REAR DOOR COURTESY, LH
81230-30200

AWS21#,GRS21#,GWS214

 1
81260A - LAMP ASSY, MAP
81260-30G10A0

AWS210,211,GRS210,211..ROY

FLAXEN,TRIM0#,4#

 1
81260-30G20A0

AWS210,211,GRS210,211..ROY

ﾃﾚﾏﾃｨｸｽ−有り(DCM),FLAXEN,TRIM0#,4#

 1
81260-30G30A0

AWS210,211,GRS210,211..ROY

ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し,FLAXEN,TRIM0#,4#

 1
81260-30G00A0

AWS210,211,GRS210,211..ROY

ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し,FLAXEN,TRIM0#,4#

 1
81260-30G50A0

AWS210,211,GRS210,211..ROY

ﾑｰﾝﾙｰﾌ−有り&ﾃﾚﾏﾃｨｸｽ−有り(DCM),FLAXEN,TRIM0#,4#

 1
81260-30G40A0

AWS210,211,GRS210,211..ROY

ﾑｰﾝﾙｰﾌ−有り,FLAXEN,TRIM0#,4#

 1
81260C - BULB(FOR MAP LAMP)
90981-11062

AWS21#,GRS21#,GWS214

12V 8W

 3
81260C - BULB(FOR MAP LAMP)
90981-11062

AWS21#,GRS21#,GWS214

12V 8W

 3
81260C - BULB(FOR MAP LAMP)
90981-11062

AWS21#,GRS21#,GWS214

12V 8W

 3
81340 - LAMP ASSY, VANITY
81340-30110

AWS21#,GRS21#,GWS214

 2
81340B - BULB (FOR VANITY LAMP)
90981-11062

AWS21#,GRS21#,GWS214

12V 8W

 2
81936C - BULB ASSY
81936-12150

AWS21#,GRS21#,GWS214

 3
81936C - BULB ASSY
81936-12150

AWS21#,GRS21#,GWS214

 3
81936C - BULB ASSY
81936-12150

AWS21#,GRS21#,GWS214

 3
Common parts
90159-40206
90189-04102
Linked diagrams
8202
8424
