GRS210-AETQH (2012)

Toyota Crown/Hybrid

Production Dec 2012 - Sep 2015
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )AWS21#,GRS21#,GWS214 ; (1509- )ARS210

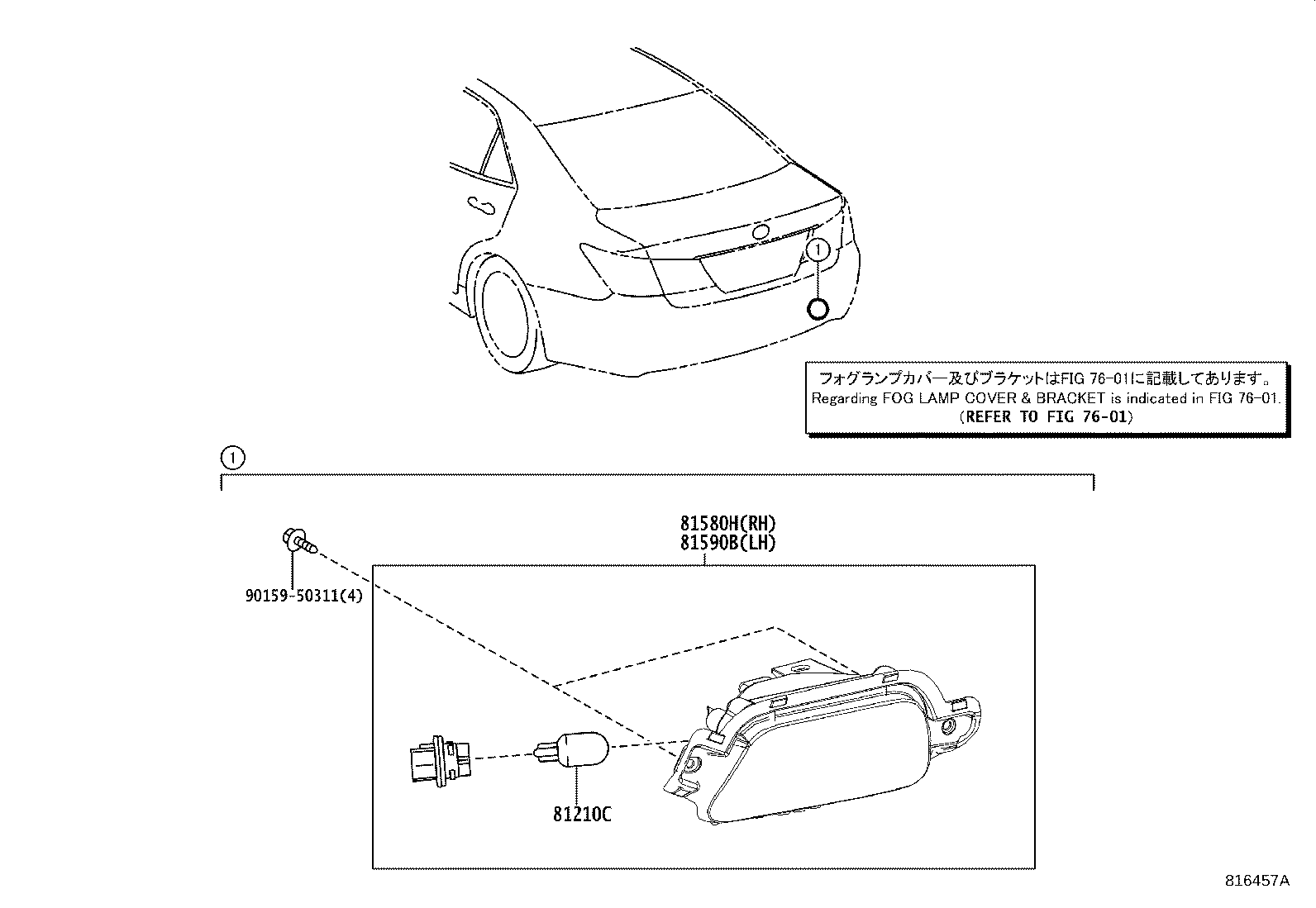

Click highlighted areas on diagram

diagram 7601 81210C 81580H 81590B 9015950311
Part # Description Qty Price
81210C - BULB, REAR FOG LAMP
90981-13043

AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG

12V 21W,ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り

 2
81580H - LAMP ASSY, REAR FOG, RH
81480-30040

AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG

ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
81590B - LAMP ASSY, REAR FOG, LH
81490-30040

AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG

ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
Common parts
90159-50311
Linked diagrams
7601
