GRS210-AETQH (2012)
Toyota Crown/Hybrid

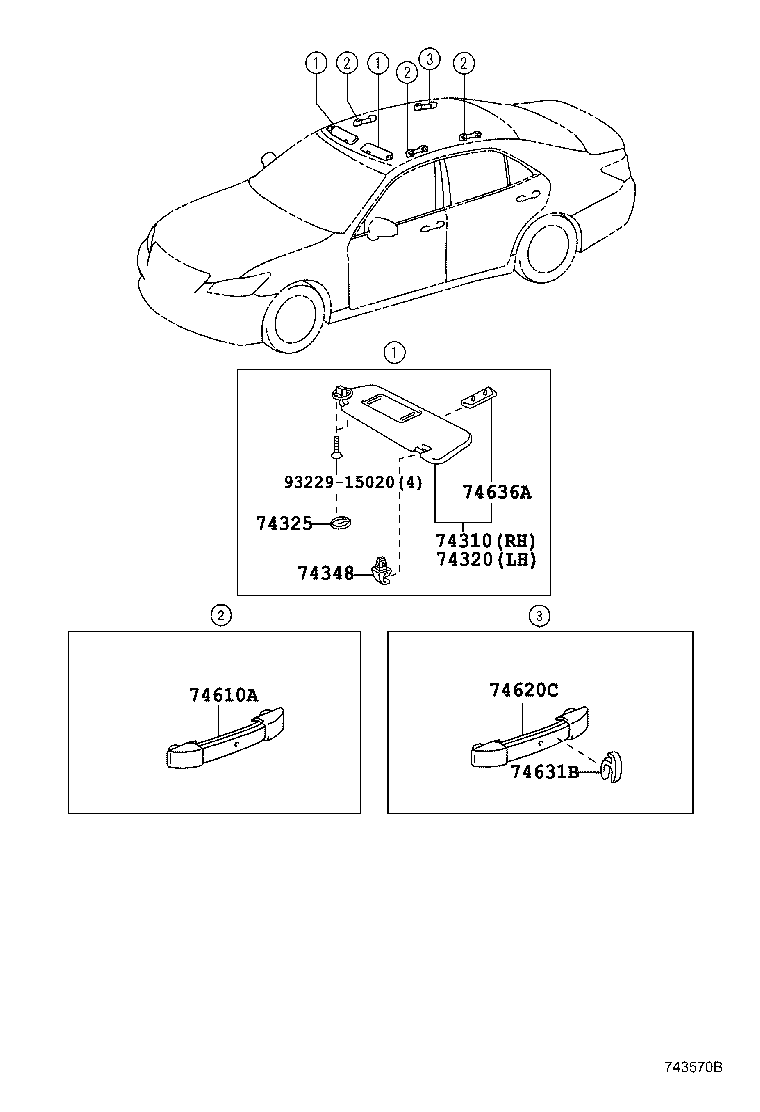

ILLUST NO. 2 OF 2(1212- )
ﾊﾞｲｻﾞ & ｱｼｽﾄｸﾞﾘｯﾌﾟ:ｱﾘ(ﾑｰﾝﾙｰﾌ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-30B20A3 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-30B30A1 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
1 | ||
| 74325 - COVER, VISOR BRACKET | ||||
| 74317-60020A7 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
2 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-33040A7 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-30270A7 |
AWS210,211,GRS210,211..ROY,ROYG ﾑｰﾝﾙｰﾌ−有り,FLAXEN,TRIM0#,4# |
3 | ||
| 74610-33160A2 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
3 | ||
| 74620C - GRIP ASSY, ASSIST, REAR RH | ||||
| 74610-33180A2 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
1 | ||
| 74610-30270A7 |
AWS210,211,GRS210,211..ROY,ROYG ﾑｰﾝﾙｰﾌ−有り,FLAXEN,TRIM0#,4# |
1 | ||
| 74631B - HOOK, COAT | ||||
| 74631-30080A7 |
AWS210,211,GRS210,211..ROY,ROYG ﾑｰﾝﾙｰﾌ−有り,FLAXEN,TRIM0#,4# |
1 | ||
| 74636A - BEZEL, CARD HOLDER | ||||
| 74636-30010A7 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
1 | ||
| Common parts | ||||
| 93229-15020 | ||||

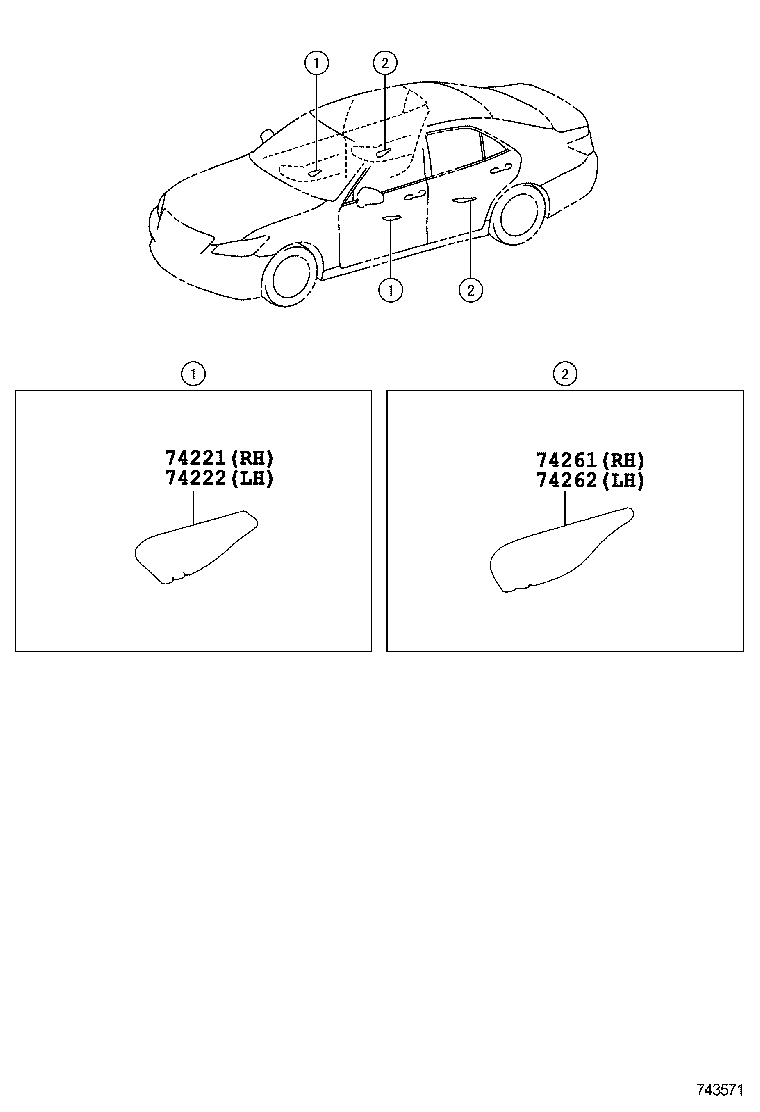

ILLUST NO. 1 OF 2(1212- )
ｱｰﾑﾚｽﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74221 - COVER, DOOR ARMREST, RH | ||||
| 74221-30150 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 74221 - COVER, DOOR ARMREST, RH | ||||
| 74221-30150 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 74222 - COVER, DOOR ARMREST, LH | ||||
| 74222-30120 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 74222 - COVER, DOOR ARMREST, LH | ||||
| 74222-30120 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 74261 - COVER, REAR DOOR ARMREST, RH | ||||
| 74261-30100 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 74261 - COVER, REAR DOOR ARMREST, RH | ||||
| 74261-30100 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 74262 - COVER, REAR DOOR ARMREST, LH | ||||
| 74262-30100 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 74262 - COVER, REAR DOOR ARMREST, LH | ||||
| 74262-30100 |
AWS21#,GRS21#,GWS214 |
1 | ||

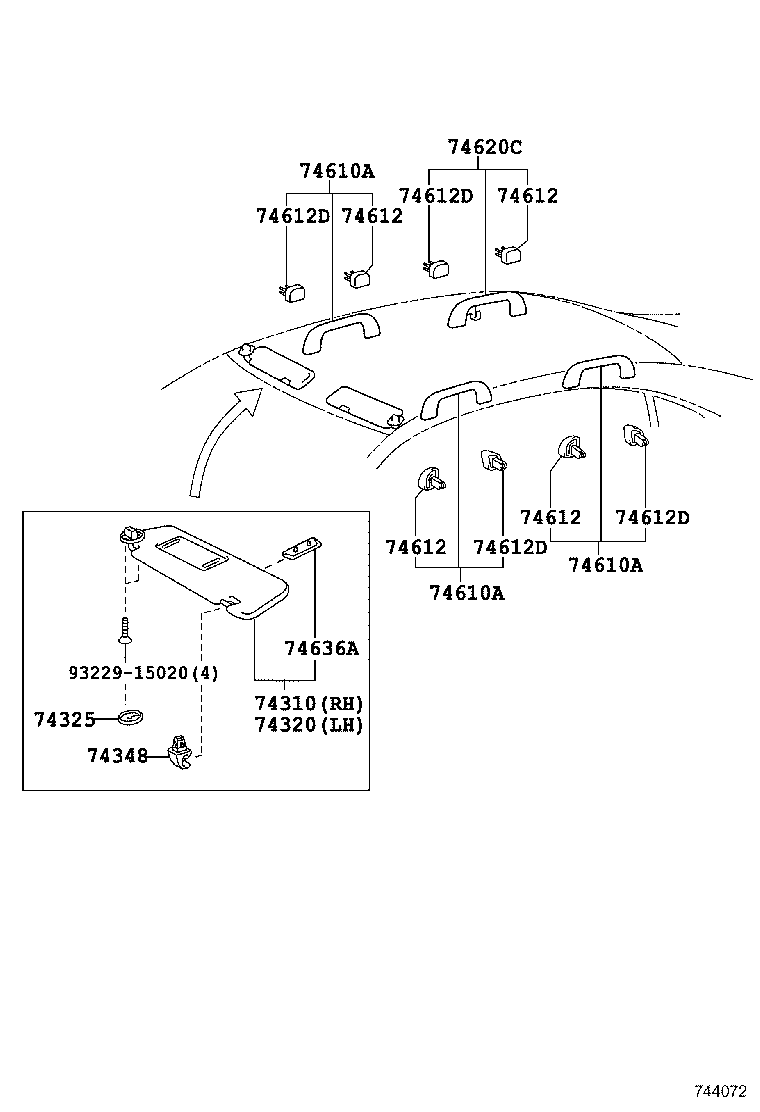

ILLUST NO. 2 OF 2(1212- )
ﾊﾞｲｻﾞ & ｱｼｽﾄｸﾞﾘｯﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-30B20A3 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-30B30A1 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
1 | ||
| 74325 - COVER, VISOR BRACKET | ||||
| 74317-60020A7 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
2 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-33040A7 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-30270A7 |
AWS210,211,GRS210,211..ROY,ROYG ﾑｰﾝﾙｰﾌ−有り,FLAXEN,TRIM0#,4# |
3 | ||
| 74610-33160A2 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
3 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-30270A7 |
AWS210,211,GRS210,211..ROY,ROYG ﾑｰﾝﾙｰﾌ−有り,FLAXEN,TRIM0#,4# |
3 | ||
| 74610-33160A2 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
3 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-30270A7 |
AWS210,211,GRS210,211..ROY,ROYG ﾑｰﾝﾙｰﾌ−有り,FLAXEN,TRIM0#,4# |
3 | ||
| 74610-33160A2 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
3 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74611-33010A4 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
4 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74611-33010A4 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
4 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74611-33010A4 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
4 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74611-33010A4 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
4 | ||
| 74612D - COVER, ASSIST GRIP | ||||
| 74612-33020A4 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
4 | ||
| 74612D - COVER, ASSIST GRIP | ||||
| 74612-33020A4 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
4 | ||
| 74612D - COVER, ASSIST GRIP | ||||
| 74612-33020A4 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
4 | ||
| 74612D - COVER, ASSIST GRIP | ||||
| 74612-33020A4 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
4 | ||
| 74620C - GRIP ASSY, ASSIST, REAR RH | ||||
| 74610-33180A2 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
1 | ||
| 74610-30270A7 |
AWS210,211,GRS210,211..ROY,ROYG ﾑｰﾝﾙｰﾌ−有り,FLAXEN,TRIM0#,4# |
1 | ||
| 74636A - BEZEL, CARD HOLDER | ||||
| 74636-30010A7 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
1 | ||
| Common parts | ||||
| 93229-15020 | ||||
