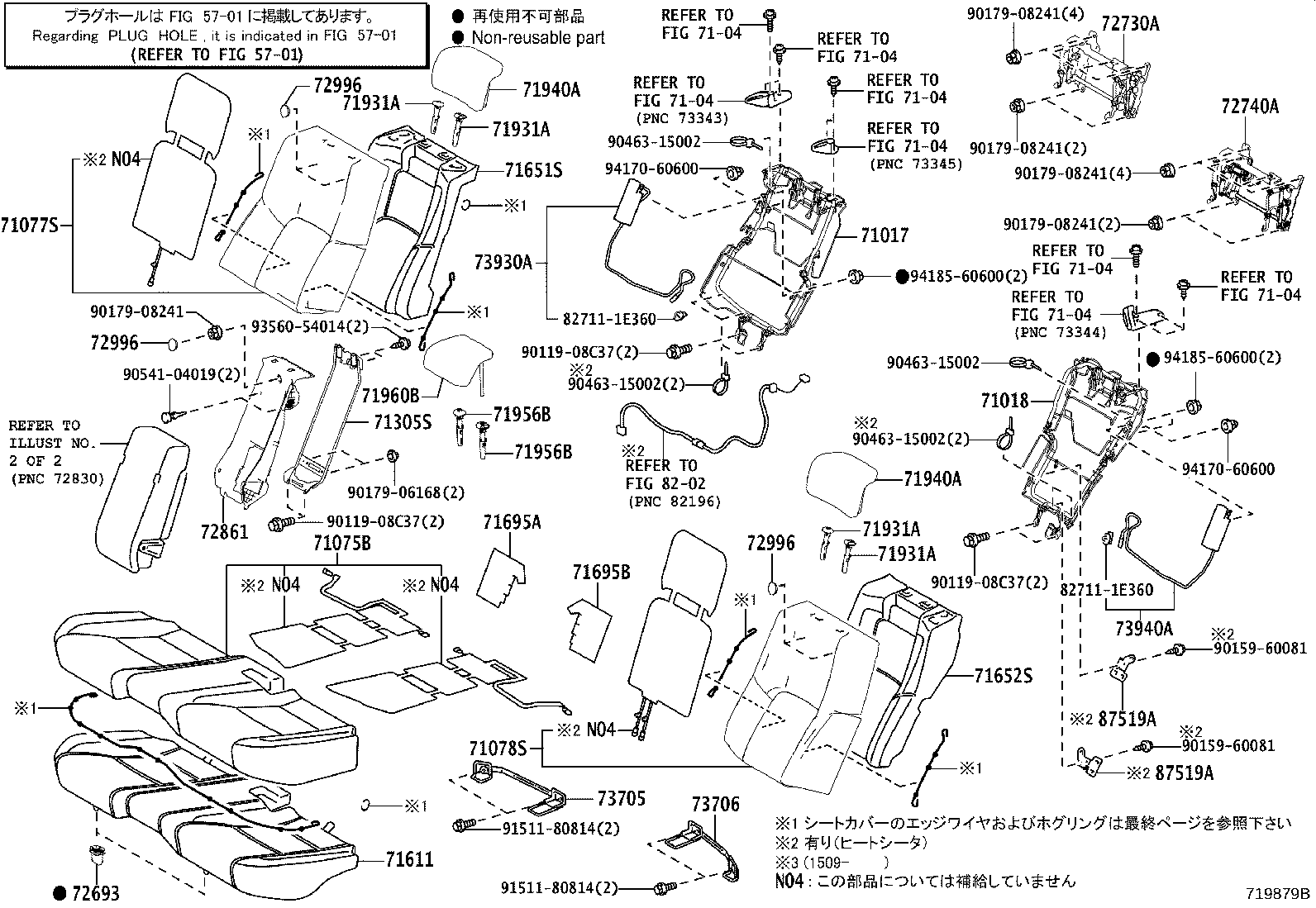

GRS210-AETQH (2012)
Toyota Crown/Hybrid
(1212- )AWS210,211,GRS21#,GWS214..ATH,ATHG,ATHS,MJ,ROY,ROYAL ; (1509- )ARS210
ｺﾃｲｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-30F71A0 |
AWS210,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
1 | ||
| 71075-30F71E0 |
AWS210,GRS210,211..ROY,ROYAL,ROYG DK.BROWN,TRIM4# |
1 | ||
| 71075-30F90A0 |
AWS210,211,GRS210,211..ROY ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 71075-30F70A0 |
AWS210,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0# |
1 | ||
| 71075-30F70E0 |
AWS210,GRS210,211..ROY,ROYAL,ROYG DK.BROWN,TRIM4# |
1 | ||
| 71075-30F72E0 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG DK.BROWN,TRIM4# |
1 | ||
| 71075-30F72A0 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-30J90E2 |
AWS210,GRS210,211..ROY,ROYAL DK.BROWN,TRIM4# |
1 | ||
| 71077-30J91A2 |
AWS210,GRS210,211,GWS214..MJ,ROY,ROYAL FLAXEN,TRIM0# |
1 | ||
| 71077-30J90A2 |
AWS210,GRS210,211..ROY,ROYAL FLAXEN,TRIM0# |
1 | ||
| 71077-30J92E2 |
AWS210,211,GRS210,211..ROY,ROYAL DK.BROWN,TRIM4# |
1 | ||
| 71077-30J92A2 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL FLAXEN,TRIM0# |
1 | ||
| 71077-30J91E2 |
AWS210,GRS210,211..ROY,ROYAL DK.BROWN,TRIM4# |
1 | ||
| 71077-30K10A1 |
AWS210,211,GRS210,211..ROY ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 71266 - GUSSET, REAR SEAT BACK FRAME | ||||
| 71266-30130 |
AWS210,211,GRS21#,GWS214..ATH,ATHG,ATHS,MJ,ROY,ROYAL |
2 | ||
| 71266 - GUSSET, REAR SEAT BACK FRAME | ||||
| 71266-30130 |
AWS210,211,GRS21#,GWS214..ATH,ATHG,ATHS,MJ,ROY,ROYAL |
2 | ||
| 71281A - HINGE, REAR SEAT CENTER ARMREST | ||||
| 71281-30060 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-30270 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71507-30290 |
AWS210,211,GRS21#,GWS214..ATH,ATHG,ATHS,MJ,ROY,ROYAL |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-4701002 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾛｯｸ無,FLAXEN,TRIM0# |
2 | ||
| 71930-44020E3 |
AWS210..ROYAL,ROYG;AWS211,GRS210,211..ROY,ROYAL,ROYG ﾛｯｸ付,DK. BROWN,TRIM4# |
2 | ||
| 71930-44020A7 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾛｯｸ付,FLAXEN,TRIM0# |
2 | ||
| 71931-47010E7 |
AWS210..ROYAL,ROYG;AWS211,GRS210,211..ROY,ROYAL,ROYG ﾛｯｸ無,DK. BROWN,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-4701002 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾛｯｸ無,FLAXEN,TRIM0# |
2 | ||
| 71930-44020E3 |
AWS210..ROYAL,ROYG;AWS211,GRS210,211..ROY,ROYAL,ROYG ﾛｯｸ付,DK. BROWN,TRIM4# |
2 | ||
| 71930-44020A7 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾛｯｸ付,FLAXEN,TRIM0# |
2 | ||
| 71931-47010E7 |
AWS210..ROYAL,ROYG;AWS211,GRS210,211..ROY,ROYAL,ROYG ﾛｯｸ無,DK. BROWN,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-4701002 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾛｯｸ無,FLAXEN,TRIM0# |
2 | ||
| 71930-44020E3 |
AWS210..ROYAL,ROYG;AWS211,GRS210,211..ROY,ROYAL,ROYG ﾛｯｸ付,DK. BROWN,TRIM4# |
2 | ||
| 71930-44020A7 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾛｯｸ付,FLAXEN,TRIM0# |
2 | ||
| 71931-47010E7 |
AWS210..ROYAL,ROYG;AWS211,GRS210,211..ROY,ROYAL,ROYG ﾛｯｸ無,DK. BROWN,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-4701002 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾛｯｸ無,FLAXEN,TRIM0# |
2 | ||
| 71930-44020E3 |
AWS210..ROYAL,ROYG;AWS211,GRS210,211..ROY,ROYAL,ROYG ﾛｯｸ付,DK. BROWN,TRIM4# |
2 | ||
| 71930-44020A7 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾛｯｸ付,FLAXEN,TRIM0# |
2 | ||
| 71931-47010E7 |
AWS210..ROYAL,ROYG;AWS211,GRS210,211..ROY,ROYAL,ROYG ﾛｯｸ無,DK. BROWN,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-30D00A2 |
AWS210,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0# |
2 | ||
| 71940-30D01A2 |
AWS210,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
2 | ||
| 71940-30D01E2 |
AWS210,GRS210,211..ROY,ROYAL,ROYG DK.BROWN,TRIM4# |
2 | ||
| 71940-30D00E2 |
AWS210,GRS210,211..ROY,ROYAL,ROYG DK.BROWN,TRIM4# |
2 | ||
| 71940-30D20A1 |
AWS210,211,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
2 | ||
| 71940-30D02E2 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG DK.BROWN,TRIM4# |
2 | ||
| 71940-30D02A2 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-30D00A2 |
AWS210,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0# |
2 | ||
| 71940-30D01A2 |
AWS210,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
2 | ||
| 71940-30D01E2 |
AWS210,GRS210,211..ROY,ROYAL,ROYG DK.BROWN,TRIM4# |
2 | ||
| 71940-30D00E2 |
AWS210,GRS210,211..ROY,ROYAL,ROYG DK.BROWN,TRIM4# |
2 | ||
| 71940-30D20A1 |
AWS210,211,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
2 | ||
| 71940-30D02E2 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG DK.BROWN,TRIM4# |
2 | ||
| 71940-30D02A2 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71955-30010A1 |
AWS210,211,GRS210,211..ROY ﾛｯｸ付,ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 71930-44020A7 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL ﾛｯｸ付,FLAXEN,TRIM0# |
1 | ||
| 71930-44020E3 |
AWS210..ROYAL;AWS211,GRS210,211..ROY,ROYAL ﾛｯｸ付,DK. BROWN,TRIM4# |
1 | ||
| 71931-47010E7 |
AWS210..ROYAL;AWS211,GRS210,211..ROY,ROYAL ﾛｯｸ無,DK. BROWN,TRIM4# |
1 | ||
| 71931-4701002 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL ﾛｯｸ無,FLAXEN,TRIM0# |
1 | ||
| 71956-30030C0 |
GRS210,211..ROY ﾛｯｸ無,ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM4# |
1 | ||
| 71956-30030A1 |
AWS210,211,GRS210,211..ROY ﾛｯｸ無,ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 71955-30010C0 |
GRS210,211..ROY ﾛｯｸ付,ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM4# |
1 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71955-30010A1 |
AWS210,211,GRS210,211..ROY ﾛｯｸ付,ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 71930-44020A7 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL ﾛｯｸ付,FLAXEN,TRIM0# |
1 | ||
| 71930-44020E3 |
AWS210..ROYAL;AWS211,GRS210,211..ROY,ROYAL ﾛｯｸ付,DK. BROWN,TRIM4# |
1 | ||
| 71931-47010E7 |
AWS210..ROYAL;AWS211,GRS210,211..ROY,ROYAL ﾛｯｸ無,DK. BROWN,TRIM4# |
1 | ||
| 71931-4701002 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL ﾛｯｸ無,FLAXEN,TRIM0# |
1 | ||
| 71956-30030C0 |
GRS210,211..ROY ﾛｯｸ無,ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM4# |
1 | ||
| 71956-30030A1 |
AWS210,211,GRS210,211..ROY ﾛｯｸ無,ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 71955-30010C0 |
GRS210,211..ROY ﾛｯｸ付,ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM4# |
1 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-30500E1 |
AWS210,GRS210,211..ROY,ROYAL DK.BROWN,TRIM4# |
1 | ||
| 71960-30501A1 |
AWS210,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 71960-30500A1 |
AWS210,GRS210,211,GWS214..MJ,ROY,ROYAL FLAXEN,TRIM0# |
1 | ||
| 71960-30501E1 |
AWS210,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,DK.BROWN,TRIM4# |
1 | ||
| 71960-30502A1 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
1 | ||
| 71960-30502E1 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG DK.BROWN,TRIM4# |
1 | ||
| 71960-30520A1 |
AWS210,211,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 72806D - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP | ||||
| 72806-30131A0 |
AWS210,GRS210,211,GWS214..MJ,ROY,ROYAL FLAXEN,TRIM0# |
1 | ||
| 72806-30131C0 |
AWS210,GRS210,211..ROY,ROYAL DK.BROWN,TRIM4# |
1 | ||
| 72806-30130A0 |
AWS210,GRS210,211..ROY,ROYAL FLAXEN,TRIM0# |
1 | ||
| 72806-30132A0 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL FLAXEN,TRIM0# |
1 | ||
| 72806-30130C0 |
AWS210,GRS210,211..ROY,ROYAL DK.BROWN,TRIM4# |
1 | ||
| 72806-30132A1 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL FLAXEN,TRIM0# |
1 | ||
| 72806-30132C0 |
AWS210,211,GRS210,211..ROY,ROYAL DK.BROWN,TRIM4# |
1 | ||
| 72806-30150A1 |
AWS210,211,GRS210,211..ROY ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 72806-30132E0 |
AWS210,211,GRS210,211..ROY,ROYAL DK.BROWN,TRIM4# |
1 | ||
| 72806-30150A0 |
AWS210,211,GRS210,211..ROY ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-30J40E0 |
AWS210,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,DK.BROWN,TRIM4# |
1 | ||
| 72830-30J40A1 |
AWS210,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 72830-30J01E1 |
AWS210,GRS210,211..ROY,ROYAL DK.BROWN,TRIM4# |
1 | ||
| 72830-30J00E1 |
AWS210,GRS210,211..ROY,ROYAL DK.BROWN,TRIM4# |
1 | ||
| 72830-30J01A1 |
AWS210,GRS210,211,GWS214..MJ,ROY,ROYAL FLAXEN,TRIM0# |
1 | ||
| 72830-30J00A1 |
AWS210,GRS210,211..ROY,ROYAL FLAXEN,TRIM0# |
1 | ||
| 72830-30J41A1 |
AWS210,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 72830-30J41E0 |
AWS210,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,DK.BROWN,TRIM4# |
1 | ||
| 72830-30J02A1 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL FLAXEN,TRIM0# |
1 | ||
| 72830-30J42E0 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,DK.BROWN,TRIM4# |
1 | ||
| 72830-30J02E1 |
AWS210,211,GRS210,211..ROY,ROYAL DK.BROWN,TRIM4# |
1 | ||
| 72830-30J42A1 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 72830-30J20A1 |
AWS210,211,GRS210,211..ROY ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 72868 - COVER, CENTER ARMREST HINGE, RH | ||||
| 72868-30140A4 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL FLAXEN,TRIM0# |
1 | ||
| 72868-30140E1 |
AWS210,211,GRS210,211..ROY,ROYAL DK. BROWN,TRIM4# |
1 | ||
| 72869 - COVER, CENTER ARMREST HINGE, LH | ||||
| 72869-30110A4 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL FLAXEN,TRIM0# |
1 | ||
| 72869-30110E1 |
AWS210,211,GRS210,211..ROY,ROYAL DK. BROWN,TRIM4# |
1 | ||
| 72987 - COVER, REAR SEAT CENTER ARMREST | ||||
| 72987-22010A5 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL FLAXEN,TRIM0# |
1 | ||
| 72987-22010A4 |
AWS210,211,GRS210,211..ROY ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 72987-22010E2 |
AWS210,211,GRS210,211..ROY,ROYAL DK.BROWN,TRIM4# |
1 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-50100C0 |
AWS210,211..ROYAL;GRS210,211..ROY,ROYAL BLACK,TRIM4# |
2 | ||
| 72996-50100A6 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL FLAXEN,TRIM0# |
2 | ||
| 72996-50100C0 |
GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM4# |
5 | ||
| 72996-50100A6 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
5 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-30030 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-30030 |
AWS21#,GRS21#,GWS214 |
1 | ||
| Common parts | ||||
| 72702-35010 | ||||
| 72839-12010 | ||||
| 90119-08C37 | ||||
| 90179-06168 | ||||
| 90179-08241 | ||||
| 91511-80814 | ||||
| 93530-55012 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 7104 | ||||
ILLUST NO. 2 OF 2(1212- )ROY,ROYG
ﾊﾟﾜｰｼｰﾄ(ｱｰﾑﾚｽﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71281A - HINGE, REAR SEAT CENTER ARMREST | ||||
| 71281-30060 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 72802A - HINGE SUB-ASSY, ARMREST CONSOLE | ||||
| 72802-30040 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 72803D - PANEL SUB-ASSY, REAR SEAT CENTER ARMREST | ||||
| 72803-30240E0 |
GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,BROWN,TRIM0#,4# |
1 | ||
| 72805B - DOOR SUB-ASSY, REAR SEAT CENTER ARMREST | ||||
| 72805-30560E0 |
AWS210,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,DK.BROWN,TRIM4# |
1 | ||
| 72805-30560A1 |
AWS210,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 72805-30561A1 |
AWS210,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 72805-30562E0 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,DK.BROWN,TRIM4# |
1 | ||
| 72805-30562A1 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 72805-30561E0 |
AWS210,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,DK.BROWN,TRIM4# |
1 | ||
| 72806B - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP | ||||
| 72806-30090A2 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 72806-30090C0 |
GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM4# |
1 | ||
| 72809 - LOCK SUB-ASSY, CENTER ARMREST | ||||
| 72809-30030A5 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 72809-30030C0 |
GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM4# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-30J40E0 |
AWS210,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,DK.BROWN,TRIM4# |
1 | ||
| 72830-30J40A1 |
AWS210,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 72830-30J01E1 |
AWS210,GRS210,211..ROY,ROYAL DK.BROWN,TRIM4# |
1 | ||
| 72830-30J00E1 |
AWS210,GRS210,211..ROY,ROYAL DK.BROWN,TRIM4# |
1 | ||
| 72830-30J01A1 |
AWS210,GRS210,211,GWS214..MJ,ROY,ROYAL FLAXEN,TRIM0# |
1 | ||
| 72830-30J00A1 |
AWS210,GRS210,211..ROY,ROYAL FLAXEN,TRIM0# |
1 | ||
| 72830-30J41A1 |
AWS210,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 72830-30J41E0 |
AWS210,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,DK.BROWN,TRIM4# |
1 | ||
| 72830-30J02A1 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL FLAXEN,TRIM0# |
1 | ||
| 72830-30J42E0 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,DK.BROWN,TRIM4# |
1 | ||
| 72830-30J02E1 |
AWS210,211,GRS210,211..ROY,ROYAL DK.BROWN,TRIM4# |
1 | ||
| 72830-30J42A1 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 72830-30J20A1 |
AWS210,211,GRS210,211..ROY ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 72830C - CLIP, REAR SEAT CENTER ARMREST | ||||
| 90467-05161C0 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,BLACK |
2 | ||
| 72860 - BOX ASSY, REAR SEAT CENTER ARMREST | ||||
| 72860-30830A1 |
AWS210,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 72860-30830E0 |
AWS210,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,DK.BROWN,TRIM4# |
1 | ||
| 72860-30831A1 |
AWS210,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 72860-30831E0 |
AWS210,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,DK.BROWN,TRIM4# |
1 | ||
| 72860-30832A1 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 72860-30832E0 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,DK.BROWN,TRIM4# |
1 | ||
| 72863 - BOX, REAR SEAT CENTER ARMREST | ||||
| 72863-30070 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| Common parts | ||||
| 72702-35010 | ||||
| 72839-12010 | ||||
| 90161-26007 | ||||
| 90168-40059 | ||||
| 90168-40108 | ||||
| 93530-54014 | ||||
| 93560-54010 | ||||
| 93560-54014 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
(1212- )AWS21#,GRS21#,GWS214 ; (1509- )ARS210
ｼｰﾄｶﾊﾞｰｴｯｼﾞﾜｲﾔ & ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 71227-30090 | ||||
| 71292-30010 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
ILLUST NO. 1 OF 2(1212- )MJ,ROY,ROYG
ﾊﾟﾜｰｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-30830 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-30260 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-30F71A0 |
AWS210,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
1 | ||
| 71075-30F71E0 |
AWS210,GRS210,211..ROY,ROYAL,ROYG DK.BROWN,TRIM4# |
1 | ||
| 71075-30F90A0 |
AWS210,211,GRS210,211..ROY ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 71075-30F70A0 |
AWS210,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0# |
1 | ||
| 71075-30F70E0 |
AWS210,GRS210,211..ROY,ROYAL,ROYG DK.BROWN,TRIM4# |
1 | ||
| 71075-30F72E0 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG DK.BROWN,TRIM4# |
1 | ||
| 71075-30F72A0 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-30770A2 |
AWS210,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 71078-30771A2 |
AWS210,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 71078-30771E2 |
AWS210,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,DK.BROWN,TRIM4# |
1 | ||
| 71078-30770E2 |
AWS210,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,DK.BROWN,TRIM4# |
1 | ||
| 71078-30772A2 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 71078-30772E2 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,DK.BROWN,TRIM4# |
1 | ||
| 71305S - FRAME SUB-ASSY, CENTER SEAT BACK | ||||
| 71360-30030 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-30270 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-30A60 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-30560 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 71695A - PROTECTOR, REAR SEAT, NO.1 RH | ||||
| 71695-30040 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 71695B - PROTECTOR, REAR SEAT, NO.1 LH | ||||
| 71695-30050 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-4701002 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾛｯｸ無,FLAXEN,TRIM0# |
2 | ||
| 71930-44020E3 |
AWS210..ROYAL,ROYG;AWS211,GRS210,211..ROY,ROYAL,ROYG ﾛｯｸ付,DK. BROWN,TRIM4# |
2 | ||
| 71930-44020A7 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾛｯｸ付,FLAXEN,TRIM0# |
2 | ||
| 71931-47010E7 |
AWS210..ROYAL,ROYG;AWS211,GRS210,211..ROY,ROYAL,ROYG ﾛｯｸ無,DK. BROWN,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-4701002 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾛｯｸ無,FLAXEN,TRIM0# |
2 | ||
| 71930-44020E3 |
AWS210..ROYAL,ROYG;AWS211,GRS210,211..ROY,ROYAL,ROYG ﾛｯｸ付,DK. BROWN,TRIM4# |
2 | ||
| 71930-44020A7 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾛｯｸ付,FLAXEN,TRIM0# |
2 | ||
| 71931-47010E7 |
AWS210..ROYAL,ROYG;AWS211,GRS210,211..ROY,ROYAL,ROYG ﾛｯｸ無,DK. BROWN,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-4701002 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾛｯｸ無,FLAXEN,TRIM0# |
2 | ||
| 71930-44020E3 |
AWS210..ROYAL,ROYG;AWS211,GRS210,211..ROY,ROYAL,ROYG ﾛｯｸ付,DK. BROWN,TRIM4# |
2 | ||
| 71930-44020A7 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾛｯｸ付,FLAXEN,TRIM0# |
2 | ||
| 71931-47010E7 |
AWS210..ROYAL,ROYG;AWS211,GRS210,211..ROY,ROYAL,ROYG ﾛｯｸ無,DK. BROWN,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-4701002 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾛｯｸ無,FLAXEN,TRIM0# |
2 | ||
| 71930-44020E3 |
AWS210..ROYAL,ROYG;AWS211,GRS210,211..ROY,ROYAL,ROYG ﾛｯｸ付,DK. BROWN,TRIM4# |
2 | ||
| 71930-44020A7 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾛｯｸ付,FLAXEN,TRIM0# |
2 | ||
| 71931-47010E7 |
AWS210..ROYAL,ROYG;AWS211,GRS210,211..ROY,ROYAL,ROYG ﾛｯｸ無,DK. BROWN,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-30D00A2 |
AWS210,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0# |
2 | ||
| 71940-30D01A2 |
AWS210,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
2 | ||
| 71940-30D01E2 |
AWS210,GRS210,211..ROY,ROYAL,ROYG DK.BROWN,TRIM4# |
2 | ||
| 71940-30D00E2 |
AWS210,GRS210,211..ROY,ROYAL,ROYG DK.BROWN,TRIM4# |
2 | ||
| 71940-30D20A1 |
AWS210,211,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
2 | ||
| 71940-30D02E2 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG DK.BROWN,TRIM4# |
2 | ||
| 71940-30D02A2 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-30D00A2 |
AWS210,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0# |
2 | ||
| 71940-30D01A2 |
AWS210,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
2 | ||
| 71940-30D01E2 |
AWS210,GRS210,211..ROY,ROYAL,ROYG DK.BROWN,TRIM4# |
2 | ||
| 71940-30D00E2 |
AWS210,GRS210,211..ROY,ROYAL,ROYG DK.BROWN,TRIM4# |
2 | ||
| 71940-30D20A1 |
AWS210,211,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
2 | ||
| 71940-30D02E2 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG DK.BROWN,TRIM4# |
2 | ||
| 71940-30D02A2 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71955-30010A1 |
AWS210,211,GRS210,211..ROY ﾛｯｸ付,ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 71930-44020A7 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL ﾛｯｸ付,FLAXEN,TRIM0# |
1 | ||
| 71930-44020E3 |
AWS210..ROYAL;AWS211,GRS210,211..ROY,ROYAL ﾛｯｸ付,DK. BROWN,TRIM4# |
1 | ||
| 71931-47010E7 |
AWS210..ROYAL;AWS211,GRS210,211..ROY,ROYAL ﾛｯｸ無,DK. BROWN,TRIM4# |
1 | ||
| 71931-4701002 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL ﾛｯｸ無,FLAXEN,TRIM0# |
1 | ||
| 71956-30030C0 |
GRS210,211..ROY ﾛｯｸ無,ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM4# |
1 | ||
| 71956-30030A1 |
AWS210,211,GRS210,211..ROY ﾛｯｸ無,ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 71955-30010C0 |
GRS210,211..ROY ﾛｯｸ付,ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM4# |
1 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71955-30010A1 |
AWS210,211,GRS210,211..ROY ﾛｯｸ付,ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 71930-44020A7 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL ﾛｯｸ付,FLAXEN,TRIM0# |
1 | ||
| 71930-44020E3 |
AWS210..ROYAL;AWS211,GRS210,211..ROY,ROYAL ﾛｯｸ付,DK. BROWN,TRIM4# |
1 | ||
| 71931-47010E7 |
AWS210..ROYAL;AWS211,GRS210,211..ROY,ROYAL ﾛｯｸ無,DK. BROWN,TRIM4# |
1 | ||
| 71931-4701002 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL ﾛｯｸ無,FLAXEN,TRIM0# |
1 | ||
| 71956-30030C0 |
GRS210,211..ROY ﾛｯｸ無,ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM4# |
1 | ||
| 71956-30030A1 |
AWS210,211,GRS210,211..ROY ﾛｯｸ無,ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 71955-30010C0 |
GRS210,211..ROY ﾛｯｸ付,ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM4# |
1 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-30500E1 |
AWS210,GRS210,211..ROY,ROYAL DK.BROWN,TRIM4# |
1 | ||
| 71960-30501A1 |
AWS210,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 71960-30500A1 |
AWS210,GRS210,211,GWS214..MJ,ROY,ROYAL FLAXEN,TRIM0# |
1 | ||
| 71960-30501E1 |
AWS210,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,DK.BROWN,TRIM4# |
1 | ||
| 71960-30502A1 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
1 | ||
| 71960-30502E1 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG DK.BROWN,TRIM4# |
1 | ||
| 71960-30520A1 |
AWS210,211,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-30070 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-30070 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 72861 - TRIM, CENTER ARMREST CORNER | ||||
| 72861-30060C0 |
GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM4# |
1 | ||
| 72861-30060A0 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-50100C0 |
AWS210,211..ROYAL;GRS210,211..ROY,ROYAL BLACK,TRIM4# |
2 | ||
| 72996-50100A6 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL FLAXEN,TRIM0# |
2 | ||
| 72996-50100C0 |
GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM4# |
5 | ||
| 72996-50100A6 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
5 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-50100C0 |
AWS210,211..ROYAL;GRS210,211..ROY,ROYAL BLACK,TRIM4# |
2 | ||
| 72996-50100A6 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL FLAXEN,TRIM0# |
2 | ||
| 72996-50100C0 |
GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM4# |
5 | ||
| 72996-50100A6 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
5 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-50100C0 |
AWS210,211..ROYAL;GRS210,211..ROY,ROYAL BLACK,TRIM4# |
2 | ||
| 72996-50100A6 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL FLAXEN,TRIM0# |
2 | ||
| 72996-50100C0 |
GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM4# |
5 | ||
| 72996-50100A6 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
5 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-30030 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-30030 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 73930A - AIR BAG ASSY, REAR SEAT, RH | ||||
| 73930-30070 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 73940A - AIR BAG ASSY, REAR SEAT, LH | ||||
| 73940-30070 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90119-08C37 | ||||
| 90159-60081 | ||||
| 90179-06168 | ||||
| 90179-08241 | ||||
| 90463-15002 | ||||
| 90541-04019 | ||||
| 91511-80814 | ||||
| 93560-54014 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 7104 | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
