GRS210-AETQH (2012)
Toyota Crown/Hybrid

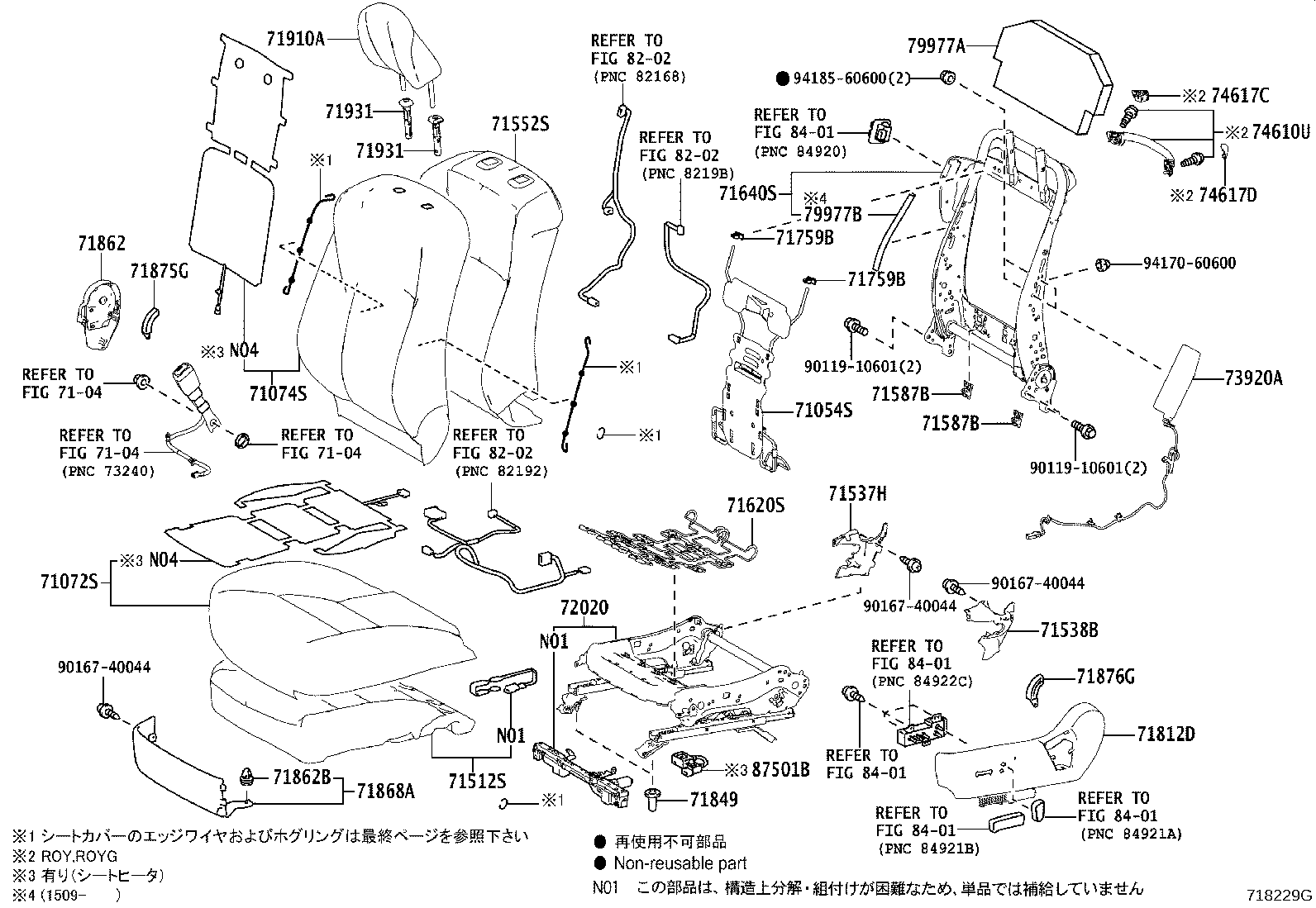

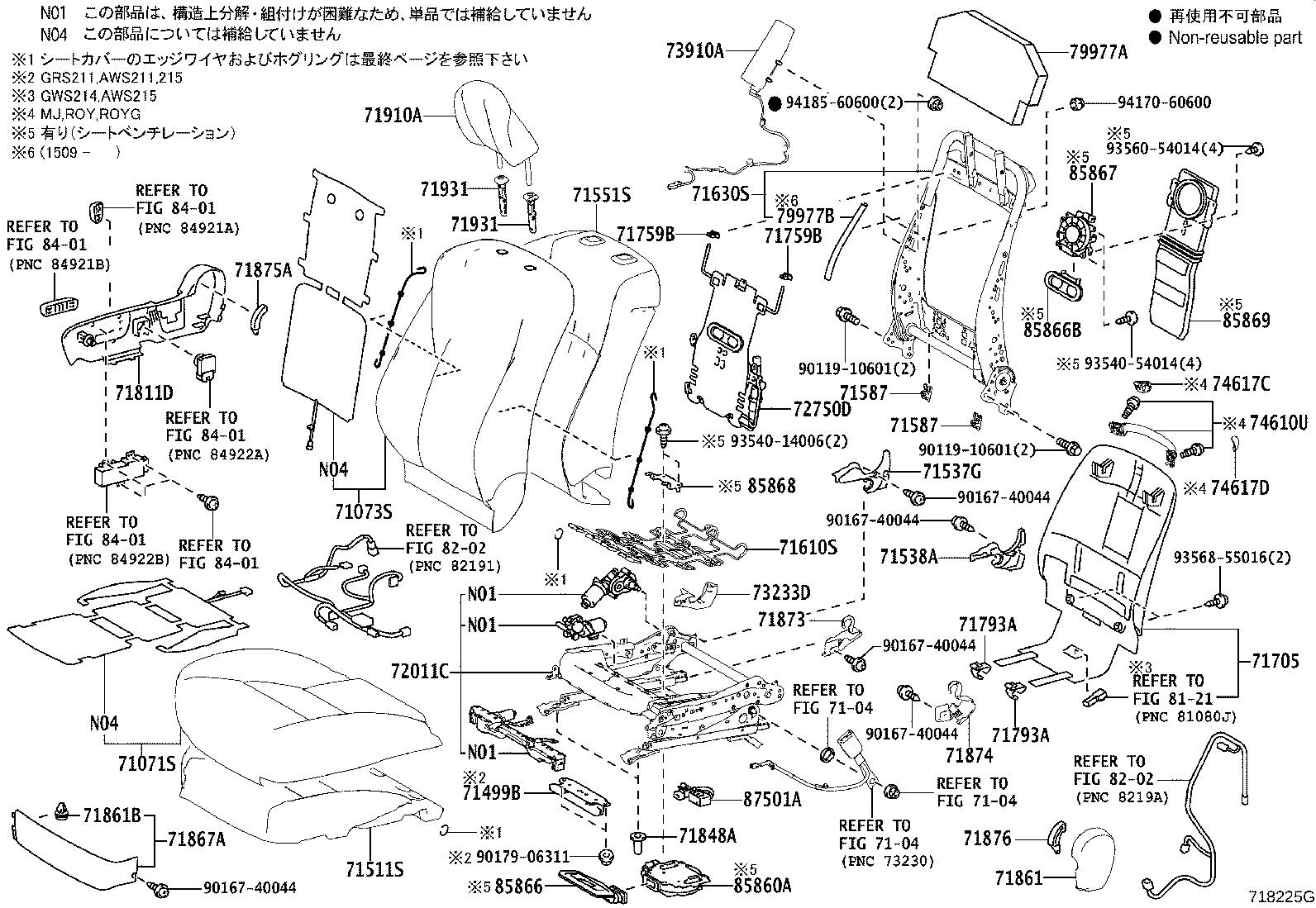

ILLUST NO. 1 OF 4(1212- )AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ; (1509- )ARS210
ｳﾝﾃﾝｾｷ ｱﾘ(ﾊﾟﾜｰｼｰﾄ&ｼｰﾄﾊﾞｯｸﾎﾞｰﾄﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-30G90A0 |
GRS210,211..ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71071-30G90E0 |
GRS210,211..ROY,ROYG DK.BROWN,TRIM4# |
1 | ||
| 71071-30J30A0 |
AWS210,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 71071-30G91E0 |
GRS210,211..ROY,ROYG DK.BROWN,TRIM4# |
1 | ||
| 71071-30G91A0 |
GRS210,211..ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71071-30J31A0 |
AWS210,211,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 71071-30G92E0 |
GRS210,211..ROY,ROYG DK.BROWN,TRIM4# |
1 | ||
| 71071-30G92A0 |
GRS210,211..ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-30J20E1 |
GRS210,211..ROY,ROYG DK.BROWN,TRIM4# |
1 | ||
| 71073-30J21E1 |
GRS210,211..ROY,ROYG DK.BROWN,TRIM4# |
1 | ||
| 71073-30J20A1 |
GRS210,211..ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71073-30J21A1 |
GRS210,211..ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71073-30J60A1 |
AWS210,211,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 71073-30J22A1 |
GRS210,211..ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71073-30J22E1 |
GRS210,211..ROY,ROYG DK.BROWN,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-S0160 |
AWS210,211,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 71511-S0150 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYG |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-47010A4 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
1 | ||
| 71537-47010C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM4# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-47010C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM4# |
1 | ||
| 71538-47010A4 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-S0170 |
AWS210,211,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 71551-S0190 |
AWS210,211,GRS210,211..ROY,ROYG |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71051-30320 |
AWS210,211,GRS21#..ATHS,ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 71051-47060 |
AWS210,211,GRS21#,GWS214..ATH,ATHS,MJ,ROY,ROYAL,ROYG |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71013-30B00 |
AWS210,211,GRS210,211..ROY |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-30A00A1 |
AWS210,211,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 71705-30A00A2 |
AWS210,211,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-47010 |
AWS210,GRS21# |
4 | ||
| 71759-47011 |
AWS21#,GRS21#,GWS214 |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-47010 |
AWS210,GRS21# |
4 | ||
| 71759-47011 |
AWS21#,GRS21#,GWS214 |
4 | ||
| 71793A - CLIP, FRONT SEAT BACK POCKET | ||||
| 71793-58010 |
AWS210,211,GRS21#..ATHS,ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
4 | ||
| 71793A - CLIP, FRONT SEAT BACK POCKET | ||||
| 71793-58010 |
AWS210,211,GRS21#..ATHS,ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
4 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-30520A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71811-30520C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-33010 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-22150A1 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71861-22150C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4# |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 71769-47020 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-42030A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71867-42030C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-60030 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-60110 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60210A3 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71875-60210C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60210C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4# |
1 | ||
| 71876-60210A3 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-30F70A1 |
AWS210,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0# |
2 | ||
| 71910-30F70E1 |
AWS210,GRS210,211..ROY,ROYAL,ROYG DK.BROWN,TRIM4# |
2 | ||
| 71910-30F71A1 |
AWS210,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
2 | ||
| 71910-30F71E1 |
AWS210,GRS210,211..ROY,ROYAL,ROYG DK.BROWN,TRIM4# |
2 | ||
| 71910-30F72E1 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG DK.BROWN,TRIM4# |
2 | ||
| 71910-30F90A1 |
AWS210,211,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
2 | ||
| 71910-30F72A1 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020E1 |
AWS210..ROYAL,ROYG;AWS211,GRS210,211..ROY,ROYAL,ROYG ﾛｯｸ付,DK. BROWN,TRIM4# |
2 | ||
| 71930-47020A7 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾛｯｸ付,FLAXEN,TRIM0# |
2 | ||
| 71931-47020A7 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾛｯｸ無,FLAXEN,TRIM0# |
2 | ||
| 71931-47020E1 |
AWS210..ROYAL,ROYG;AWS211,GRS210,211..ROY,ROYAL,ROYG ﾛｯｸ無,DK. BROWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020E1 |
AWS210..ROYAL,ROYG;AWS211,GRS210,211..ROY,ROYAL,ROYG ﾛｯｸ付,DK. BROWN,TRIM4# |
2 | ||
| 71930-47020A7 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾛｯｸ付,FLAXEN,TRIM0# |
2 | ||
| 71931-47020A7 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾛｯｸ無,FLAXEN,TRIM0# |
2 | ||
| 71931-47020E1 |
AWS210..ROYAL,ROYG;AWS211,GRS210,211..ROY,ROYAL,ROYG ﾛｯｸ無,DK. BROWN,TRIM4# |
2 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-30401 |
GRS210,214..ATHS,ROY ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 72010-30181 |
GRS210,214..ATHS,ROY |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30330 |
AWS210,211,GRS21#,GWS214..ATHS,MJ,ROY,ROYG |
1 | ||
| 72750-33120 |
AWS210,211,GRS21#..ATHS,ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 73233D - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-30030C0 |
AWS210,GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM4# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-30140 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 74610U - GRIP ASSY, ASSIST | ||||
| 74607-30020A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
2 | ||
| 74607-30020E0 |
AWS210,211,GRS210,211..ROY,ROYG DK.BROWN,TRIM4# |
2 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-30080E0 |
AWS210,211,GRS210,211..ROY,ROYG CHESTNUT,TRIM4# |
2 | ||
| 74617-30080A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
2 | ||
| 74617D - PLUG, ASSIST GRIP | ||||
| 74618-30030A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
2 | ||
| 74618-30030E0 |
AWS210,211,GRS210,211..ROY,ROYG CHESTNUT,TRIM4# |
2 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-30020 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 85860A - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH | ||||
| 85860-33020 |
AWS210,211,GRS21#..ATHS,ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 85866 - DUCT, SEAT CUSHION CLIMATE CONTROL, RH | ||||
| 85866-33010 |
AWS210,211,GRS21#..ATHS,ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 85866B - DUCT, SEAT BACK CLIMATE CONTROL, RH | ||||
| 85866-33020 |
AWS210,211,GRS21#..ATHS,ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 85867 - BLOWER, SEAT BACK CLIMATE CONTROL, RH | ||||
| 85867-33020 |
AWS210,211,GRS21#..ATHS,ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 85868 - BRACKET, SEAT CUSHION CLIMATE CONTROL, RH | ||||
| 85868-33010 |
AWS210,211,GRS21#..ATHS,ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
2 | ||
| 85869 - COVER, SEAT BACK CLIMATE CONTROL, RH | ||||
| 85869-33020 |
AWS210,211,GRS21#..ATHS,ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-30040 |
GRS21#..ATHS,ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 87501-30041 |
GRS21#..ATHS,ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90179-06311 | ||||
| 93540-14006 | ||||
| 93540-54014 | ||||
| 93560-54014 | ||||
| 93568-55016 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8121 | ||||
| 8202 | ||||
| 8401 | ||||

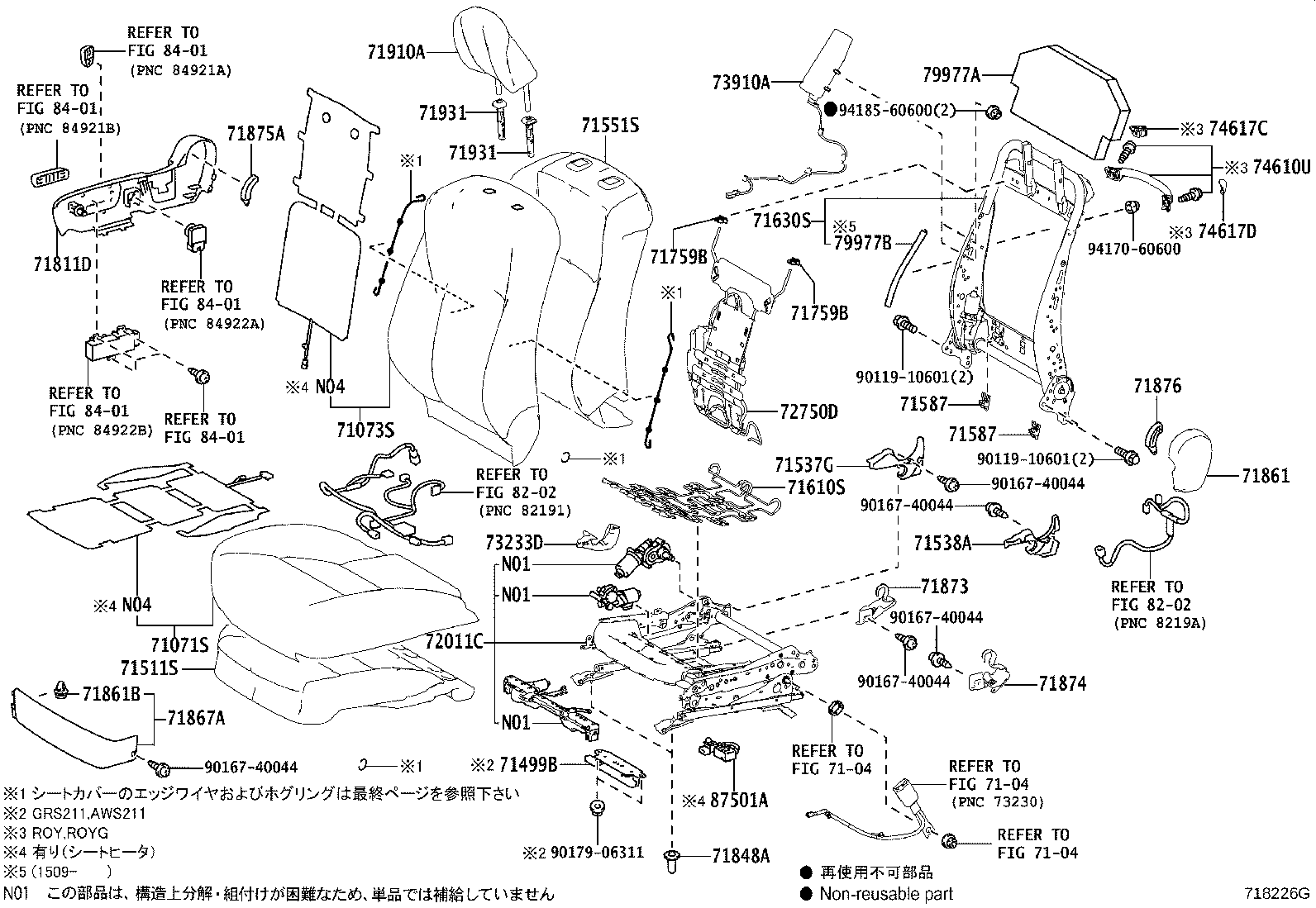

ILLUST NO. 1 OF 4(1212- )AWS210,211,GRS21#..ATHS,ROY,ROYG ; (1509- )ARS210
ｳﾝﾃﾝｾｷ ｱﾘ(ﾊﾟﾜｰｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-30G90A0 |
GRS210,211..ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71071-30G90E0 |
GRS210,211..ROY,ROYG DK.BROWN,TRIM4# |
1 | ||
| 71071-30J30A0 |
AWS210,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 71071-30G91E0 |
GRS210,211..ROY,ROYG DK.BROWN,TRIM4# |
1 | ||
| 71071-30G91A0 |
GRS210,211..ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71071-30J31A0 |
AWS210,211,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 71071-30G92E0 |
GRS210,211..ROY,ROYG DK.BROWN,TRIM4# |
1 | ||
| 71071-30G92A0 |
GRS210,211..ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-30J20E1 |
GRS210,211..ROY,ROYG DK.BROWN,TRIM4# |
1 | ||
| 71073-30J21E1 |
GRS210,211..ROY,ROYG DK.BROWN,TRIM4# |
1 | ||
| 71073-30J20A1 |
GRS210,211..ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71073-30J21A1 |
GRS210,211..ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71073-30J60A1 |
AWS210,211,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 71073-30J22A1 |
GRS210,211..ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71073-30J22E1 |
GRS210,211..ROY,ROYG DK.BROWN,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-S0160 |
AWS210,211,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 71511-S0150 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYG |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-47010A4 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
1 | ||
| 71537-47010C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM4# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-47010C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM4# |
1 | ||
| 71538-47010A4 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-S0170 |
AWS210,211,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 71551-S0190 |
AWS210,211,GRS210,211..ROY,ROYG |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71051-30320 |
AWS210,211,GRS21#..ATHS,ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 71051-47060 |
AWS210,211,GRS21#,GWS214..ATH,ATHS,MJ,ROY,ROYAL,ROYG |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71013-30B00 |
AWS210,211,GRS210,211..ROY |
1 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-47010 |
AWS210,GRS21# |
4 | ||
| 71759-47011 |
AWS21#,GRS21#,GWS214 |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-47010 |
AWS210,GRS21# |
4 | ||
| 71759-47011 |
AWS21#,GRS21#,GWS214 |
4 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-30520A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71811-30520C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-33010 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-22150A1 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71861-22150C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4# |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 71769-47020 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-42030A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71867-42030C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-60030 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-60110 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60210A3 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71875-60210C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60210C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4# |
1 | ||
| 71876-60210A3 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-30F70A1 |
AWS210,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0# |
2 | ||
| 71910-30F70E1 |
AWS210,GRS210,211..ROY,ROYAL,ROYG DK.BROWN,TRIM4# |
2 | ||
| 71910-30F71A1 |
AWS210,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
2 | ||
| 71910-30F71E1 |
AWS210,GRS210,211..ROY,ROYAL,ROYG DK.BROWN,TRIM4# |
2 | ||
| 71910-30F72E1 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG DK.BROWN,TRIM4# |
2 | ||
| 71910-30F90A1 |
AWS210,211,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
2 | ||
| 71910-30F72A1 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020E1 |
AWS210..ROYAL,ROYG;AWS211,GRS210,211..ROY,ROYAL,ROYG ﾛｯｸ付,DK. BROWN,TRIM4# |
2 | ||
| 71930-47020A7 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾛｯｸ付,FLAXEN,TRIM0# |
2 | ||
| 71931-47020A7 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾛｯｸ無,FLAXEN,TRIM0# |
2 | ||
| 71931-47020E1 |
AWS210..ROYAL,ROYG;AWS211,GRS210,211..ROY,ROYAL,ROYG ﾛｯｸ無,DK. BROWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020E1 |
AWS210..ROYAL,ROYG;AWS211,GRS210,211..ROY,ROYAL,ROYG ﾛｯｸ付,DK. BROWN,TRIM4# |
2 | ||
| 71930-47020A7 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾛｯｸ付,FLAXEN,TRIM0# |
2 | ||
| 71931-47020A7 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾛｯｸ無,FLAXEN,TRIM0# |
2 | ||
| 71931-47020E1 |
AWS210..ROYAL,ROYG;AWS211,GRS210,211..ROY,ROYAL,ROYG ﾛｯｸ無,DK. BROWN,TRIM4# |
2 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-30401 |
GRS210,214..ATHS,ROY ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 72010-30181 |
GRS210,214..ATHS,ROY |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30330 |
AWS210,211,GRS21#,GWS214..ATHS,MJ,ROY,ROYG |
1 | ||
| 72750-33120 |
AWS210,211,GRS21#..ATHS,ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 73233D - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-30030C0 |
AWS210,GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM4# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-30140 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 74610U - GRIP ASSY, ASSIST | ||||
| 74607-30020A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
2 | ||
| 74607-30020E0 |
AWS210,211,GRS210,211..ROY,ROYG DK.BROWN,TRIM4# |
2 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-30080E0 |
AWS210,211,GRS210,211..ROY,ROYG CHESTNUT,TRIM4# |
2 | ||
| 74617-30080A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
2 | ||
| 74617D - PLUG, ASSIST GRIP | ||||
| 74618-30030A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
2 | ||
| 74618-30030E0 |
AWS210,211,GRS210,211..ROY,ROYG CHESTNUT,TRIM4# |
2 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-30020 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-30040 |
GRS21#..ATHS,ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 87501-30041 |
GRS21#..ATHS,ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90179-06311 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 4(1212- )AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ; (1509- )ARS210
ｼﾞｮｼｭｾｷ (ﾊﾟﾜｰｼｰﾄ&ｼｰﾄﾊﾞｯｸﾎﾞｰﾄﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-33030 |
AWS210,211,GRS21#,GWS214..ATH,ATHS,MJ,ROY,ROYAL,ROYG |
1 | ||
| 71053-30320 |
AWS210,211,GRS21#..ATHS,ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-30G70A0 |
GRS210,211..ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71072-30G70E0 |
GRS210,211..ROY,ROYG DK.BROWN,TRIM4# |
1 | ||
| 71072-30G71E0 |
GRS210,211..ROY,ROYG DK.BROWN,TRIM4# |
1 | ||
| 71072-30J10A0 |
AWS210,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 71072-30G71A0 |
GRS210,211..ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71072-30G72E0 |
GRS210,211..ROY,ROYG DK.BROWN,TRIM4# |
1 | ||
| 71072-30G72A0 |
GRS210,211..ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71072-30J11A0 |
AWS210,211,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-30K70E1 |
GRS210,211..ROY,ROYG DK.BROWN,TRIM4# |
1 | ||
| 71074-30K71E1 |
GRS210,211..ROY,ROYG DK.BROWN,TRIM4# |
1 | ||
| 71074-30K71A1 |
GRS210,211..ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71074-30L10A1 |
AWS210,211,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 71074-30K70A1 |
GRS210,211..ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71074-30K72E1 |
GRS210,211..ROY,ROYG DK.BROWN,TRIM4# |
1 | ||
| 71074-30K72A1 |
GRS210,211..ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-30150 |
AWS210,211,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 71502-30140 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-30040A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
1 | ||
| 71537-30040C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM4# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-47020C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM4# |
1 | ||
| 71538-47020A2 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-S0100 |
AWS210,211,GRS210,211..ROY,ROYG |
1 | ||
| 71552-S0120 |
AWS210,211,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71051-30320 |
AWS210,211,GRS21#..ATHS,ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 71051-47060 |
AWS210,211,GRS21#,GWS214..ATH,ATHS,MJ,ROY,ROYAL,ROYG |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71014-30B10 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-30A00A1 |
AWS210,211,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 71705-30A00A2 |
AWS210,211,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-47010 |
AWS210,GRS21# |
4 | ||
| 71759-47011 |
AWS21#,GRS21#,GWS214 |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-47010 |
AWS210,GRS21# |
4 | ||
| 71759-47011 |
AWS21#,GRS21#,GWS214 |
4 | ||
| 71793A - CLIP, FRONT SEAT BACK POCKET | ||||
| 71793-58010 |
AWS210,211,GRS21#..ATHS,ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
4 | ||
| 71793A - CLIP, FRONT SEAT BACK POCKET | ||||
| 71793-58010 |
AWS210,211,GRS21#..ATHS,ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
4 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-30420A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71812-30420C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-33010 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-30120A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71862-30120C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4# |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 71769-47020 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-42030A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71868-42030C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-60210A3 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71875-60210C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-60210A3 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71876-60210C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-30F70A1 |
AWS210,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0# |
2 | ||
| 71910-30F70E1 |
AWS210,GRS210,211..ROY,ROYAL,ROYG DK.BROWN,TRIM4# |
2 | ||
| 71910-30F71A1 |
AWS210,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
2 | ||
| 71910-30F71E1 |
AWS210,GRS210,211..ROY,ROYAL,ROYG DK.BROWN,TRIM4# |
2 | ||
| 71910-30F72E1 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG DK.BROWN,TRIM4# |
2 | ||
| 71910-30F90A1 |
AWS210,211,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
2 | ||
| 71910-30F72A1 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020E1 |
AWS210..ROYAL,ROYG;AWS211,GRS210,211..ROY,ROYAL,ROYG ﾛｯｸ付,DK. BROWN,TRIM4# |
2 | ||
| 71930-47020A7 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾛｯｸ付,FLAXEN,TRIM0# |
2 | ||
| 71931-47020A7 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾛｯｸ無,FLAXEN,TRIM0# |
2 | ||
| 71931-47020E1 |
AWS210..ROYAL,ROYG;AWS211,GRS210,211..ROY,ROYAL,ROYG ﾛｯｸ無,DK. BROWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020E1 |
AWS210..ROYAL,ROYG;AWS211,GRS210,211..ROY,ROYAL,ROYG ﾛｯｸ付,DK. BROWN,TRIM4# |
2 | ||
| 71930-47020A7 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾛｯｸ付,FLAXEN,TRIM0# |
2 | ||
| 71931-47020A7 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾛｯｸ無,FLAXEN,TRIM0# |
2 | ||
| 71931-47020E1 |
AWS210..ROYAL,ROYG;AWS211,GRS210,211..ROY,ROYAL,ROYG ﾛｯｸ無,DK. BROWN,TRIM4# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-30361 |
GRS210,214..ATHG,ROY,ROYG;AWS210,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-30140 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 74610U - GRIP ASSY, ASSIST | ||||
| 74607-30020A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
2 | ||
| 74607-30020E0 |
AWS210,211,GRS210,211..ROY,ROYG DK.BROWN,TRIM4# |
2 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-30080E0 |
AWS210,211,GRS210,211..ROY,ROYG CHESTNUT,TRIM4# |
2 | ||
| 74617-30080A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
2 | ||
| 74617D - PLUG, ASSIST GRIP | ||||
| 74618-30030A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
2 | ||
| 74618-30030E0 |
AWS210,211,GRS210,211..ROY,ROYG CHESTNUT,TRIM4# |
2 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-30020 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 85860B - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH | ||||
| 85860-33040 |
AWS210,211,GRS21#..ATHS,ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 85866A - DUCT, SEAT CUSHION CLIMATE CONTROL, LH | ||||
| 85866-33010 |
AWS210,211,GRS21#..ATHS,ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 85866C - DUCT, SEAT BACK CLIMATE CONTROL, LH | ||||
| 85866-33020 |
AWS210,211,GRS21#..ATHS,ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 85867A - BLOWER, SEAT BACK CLIMATE CONTROL, LH | ||||
| 85867-33020 |
AWS210,211,GRS21#..ATHS,ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 85869A - COVER, SEAT BACK CLIMATE CONTROL, LH | ||||
| 85869-33020 |
AWS210,211,GRS21#..ATHS,ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH | ||||
| 87501-30040 |
GRS21#..ATHS,ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 87501-30041 |
GRS21#..ATHS,ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 93540-14006 | ||||
| 93540-54014 | ||||
| 93560-54014 | ||||
| 93568-55016 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8121 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 4(1212- )AWS210,211,GRS21#..ATHS,ROY,ROYG ; (1509- )ARS210
ｼﾞｮｼｭｾｷ ｱﾘ(ﾊﾟﾜｰｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-33030 |
AWS210,211,GRS21#,GWS214..ATH,ATHS,MJ,ROY,ROYAL,ROYG |
1 | ||
| 71053-30320 |
AWS210,211,GRS21#..ATHS,ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-30G70A0 |
GRS210,211..ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71072-30G70E0 |
GRS210,211..ROY,ROYG DK.BROWN,TRIM4# |
1 | ||
| 71072-30G71E0 |
GRS210,211..ROY,ROYG DK.BROWN,TRIM4# |
1 | ||
| 71072-30J10A0 |
AWS210,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 71072-30G71A0 |
GRS210,211..ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71072-30G72E0 |
GRS210,211..ROY,ROYG DK.BROWN,TRIM4# |
1 | ||
| 71072-30G72A0 |
GRS210,211..ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71072-30J11A0 |
AWS210,211,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-30K70E1 |
GRS210,211..ROY,ROYG DK.BROWN,TRIM4# |
1 | ||
| 71074-30K71E1 |
GRS210,211..ROY,ROYG DK.BROWN,TRIM4# |
1 | ||
| 71074-30K71A1 |
GRS210,211..ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71074-30L10A1 |
AWS210,211,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
1 | ||
| 71074-30K70A1 |
GRS210,211..ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71074-30K72E1 |
GRS210,211..ROY,ROYG DK.BROWN,TRIM4# |
1 | ||
| 71074-30K72A1 |
GRS210,211..ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-30150 |
AWS210,211,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 71502-30140 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-30040A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
1 | ||
| 71537-30040C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM4# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-47020C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM4# |
1 | ||
| 71538-47020A2 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-S0100 |
AWS210,211,GRS210,211..ROY,ROYG |
1 | ||
| 71552-S0120 |
AWS210,211,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71051-30320 |
AWS210,211,GRS21#..ATHS,ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 71051-47060 |
AWS210,211,GRS21#,GWS214..ATH,ATHS,MJ,ROY,ROYAL,ROYG |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71014-30B10 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG |
1 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-47010 |
AWS210,GRS21# |
4 | ||
| 71759-47011 |
AWS21#,GRS21#,GWS214 |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-47010 |
AWS210,GRS21# |
4 | ||
| 71759-47011 |
AWS21#,GRS21#,GWS214 |
4 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-30420A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71812-30420C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-33010 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-30120A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71862-30120C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4# |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 71769-47020 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-42030A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71868-42030C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-60210A3 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71875-60210C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-60210A3 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 71876-60210C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-30F70A1 |
AWS210,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0# |
2 | ||
| 71910-30F70E1 |
AWS210,GRS210,211..ROY,ROYAL,ROYG DK.BROWN,TRIM4# |
2 | ||
| 71910-30F71A1 |
AWS210,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
2 | ||
| 71910-30F71E1 |
AWS210,GRS210,211..ROY,ROYAL,ROYG DK.BROWN,TRIM4# |
2 | ||
| 71910-30F72E1 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG DK.BROWN,TRIM4# |
2 | ||
| 71910-30F90A1 |
AWS210,211,GRS210,211..ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,FLAXEN,TRIM0# |
2 | ||
| 71910-30F72A1 |
AWS210,211,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020E1 |
AWS210..ROYAL,ROYG;AWS211,GRS210,211..ROY,ROYAL,ROYG ﾛｯｸ付,DK. BROWN,TRIM4# |
2 | ||
| 71930-47020A7 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾛｯｸ付,FLAXEN,TRIM0# |
2 | ||
| 71931-47020A7 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾛｯｸ無,FLAXEN,TRIM0# |
2 | ||
| 71931-47020E1 |
AWS210..ROYAL,ROYG;AWS211,GRS210,211..ROY,ROYAL,ROYG ﾛｯｸ無,DK. BROWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020E1 |
AWS210..ROYAL,ROYG;AWS211,GRS210,211..ROY,ROYAL,ROYG ﾛｯｸ付,DK. BROWN,TRIM4# |
2 | ||
| 71930-47020A7 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾛｯｸ付,FLAXEN,TRIM0# |
2 | ||
| 71931-47020A7 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾛｯｸ無,FLAXEN,TRIM0# |
2 | ||
| 71931-47020E1 |
AWS210..ROYAL,ROYG;AWS211,GRS210,211..ROY,ROYAL,ROYG ﾛｯｸ無,DK. BROWN,TRIM4# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-30361 |
GRS210,214..ATHG,ROY,ROYG;AWS210,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-30140 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 74610U - GRIP ASSY, ASSIST | ||||
| 74607-30020A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
2 | ||
| 74607-30020E0 |
AWS210,211,GRS210,211..ROY,ROYG DK.BROWN,TRIM4# |
2 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-30080E0 |
AWS210,211,GRS210,211..ROY,ROYG CHESTNUT,TRIM4# |
2 | ||
| 74617-30080A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
2 | ||
| 74617D - PLUG, ASSIST GRIP | ||||
| 74618-30030A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
2 | ||
| 74618-30030E0 |
AWS210,211,GRS210,211..ROY,ROYG CHESTNUT,TRIM4# |
2 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-30020 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH | ||||
| 87501-30040 |
GRS21#..ATHS,ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 87501-30041 |
GRS21#..ATHS,ROY,ROYG ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 3 OF 4(1212- )AWS21#,GRS21#,GWS214 ; (1509- )ARS210

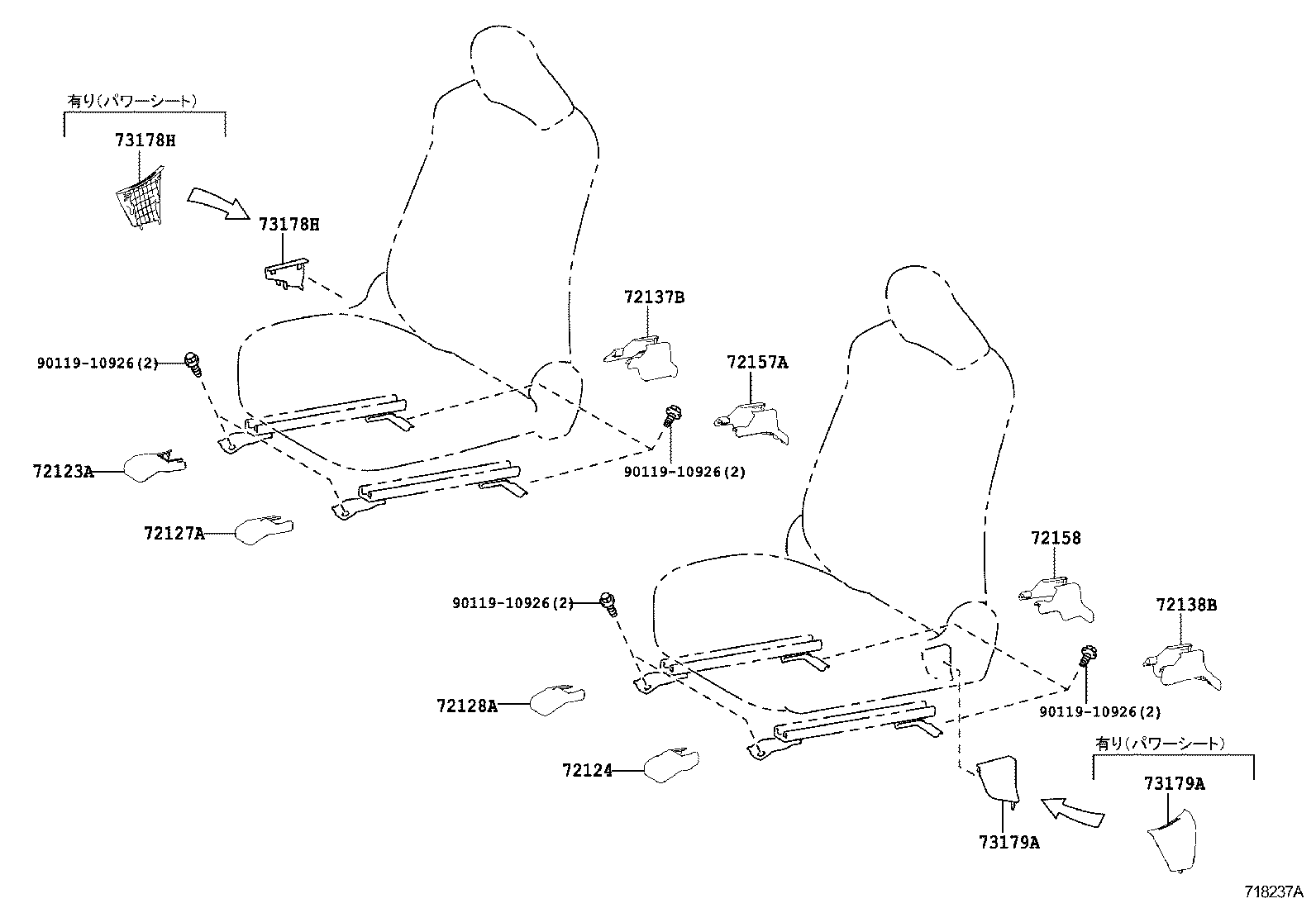

ﾌｨｯﾃｨﾝｸﾞﾊﾟｰﾂ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-30130C1 |
AWS210..ROYAL,ROYG;GRS210..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-30060C1 |
AWS210..ROYAL,ROYG;GRS210..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-30100C1 |
AWS210..ROYAL,ROYG;GRS210..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-30120C1 |
AWS210..ROYAL,ROYG;GRS210..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-30310C1 |
AWS210..ROYAL,ROYG;GRS210..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-30090C1 |
AWS210..ROYAL,ROYG;GRS210..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-22150C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-22110C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 73178H - CAP, SEAT BELT ANCHOR COVER, RH | ||||
| 73178-30080C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4# |
1 | ||
| 73178-30080A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 73178H - CAP, SEAT BELT ANCHOR COVER, RH | ||||
| 73178-30080C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4# |
1 | ||
| 73178-30080A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 73179A - CAP, SEAT BELT ANCHOR COVER, LH | ||||
| 73179-30040A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 73179-30040C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4# |
1 | ||
| 73179A - CAP, SEAT BELT ANCHOR COVER, LH | ||||
| 73179-30040A0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYG FLAXEN,TRIM0# |
1 | ||
| 73179-30040C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-10926 | ||||
ILLUST NO. 4 OF 4(1212- )AWS21#,GRS21#,GWS214 ; (1509- )ARS210

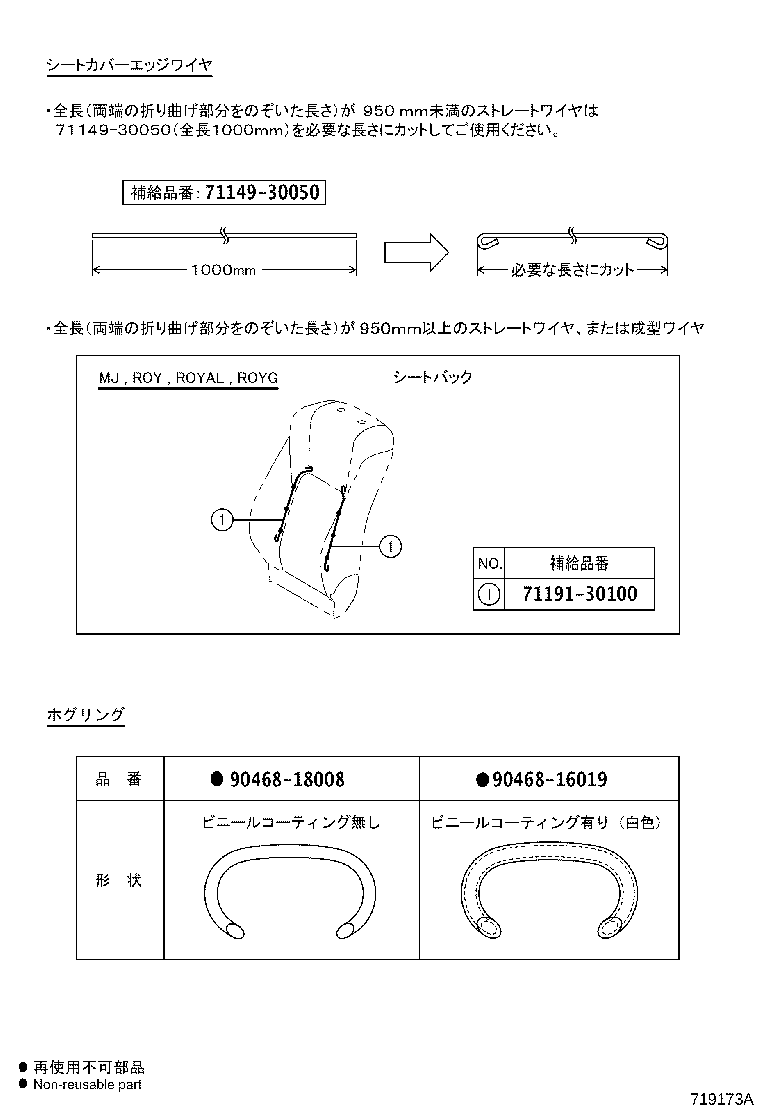

ｼｰﾄｶﾊﾞｰｴｯｼﾞﾜｲﾔ & ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 71191-30100 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
