GRS210-AETQH (2012)

Toyota Crown/Hybrid

Production Dec 2012 - Sep 2015
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )

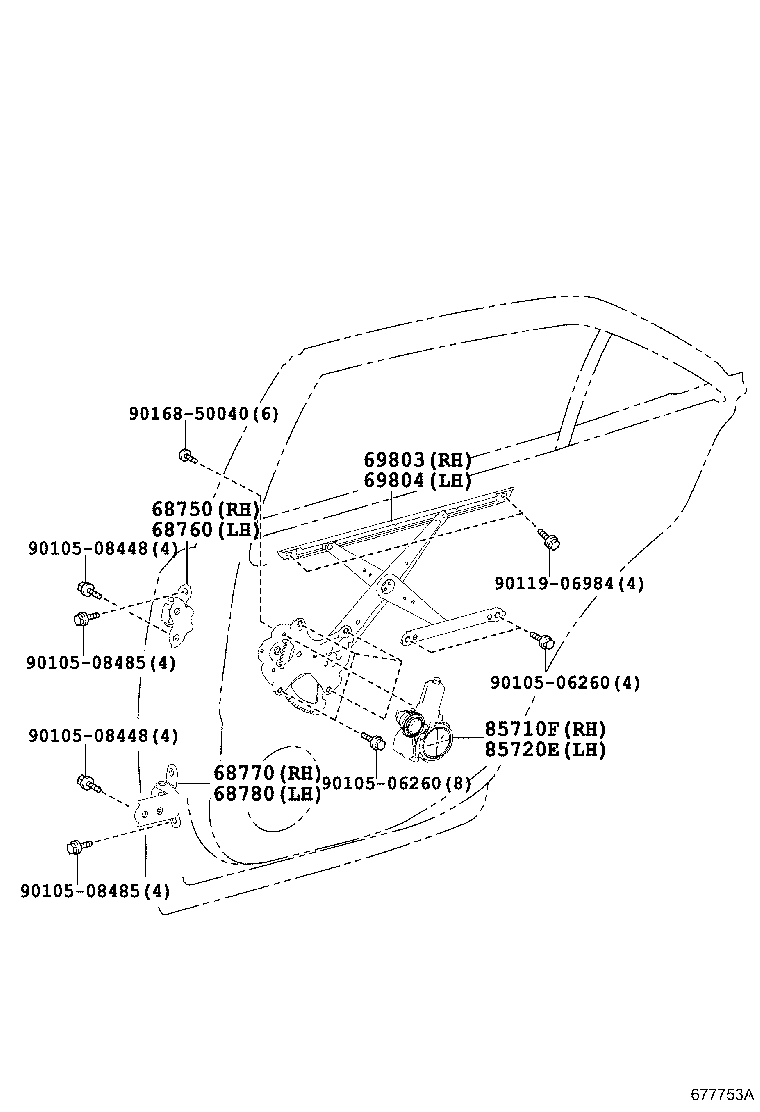

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69803 69804 85710F 85720E 9010506260 9010506260 9010508448 9010508448 9010508485 9010508485 9011906984 9016850040
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-20122

AWS21#,GRS21#,GWS214

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-20122

AWS21#,GRS21#,GWS214

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-33040

AWS21#,GRS21#,GWS214

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-33040

AWS21#,GRS21#,GWS214

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69801-30290

AWS21#,GRS21#,GWS214

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69802-30290

AWS21#,GRS21#,GWS214

 1
85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-30530

AWS210,211,GRS21#

 1
85720E - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-30470

AWS210,211,GRS21#

 1
Common parts
90105-06260
90105-08448
90105-08485
90119-06984
90168-50040
