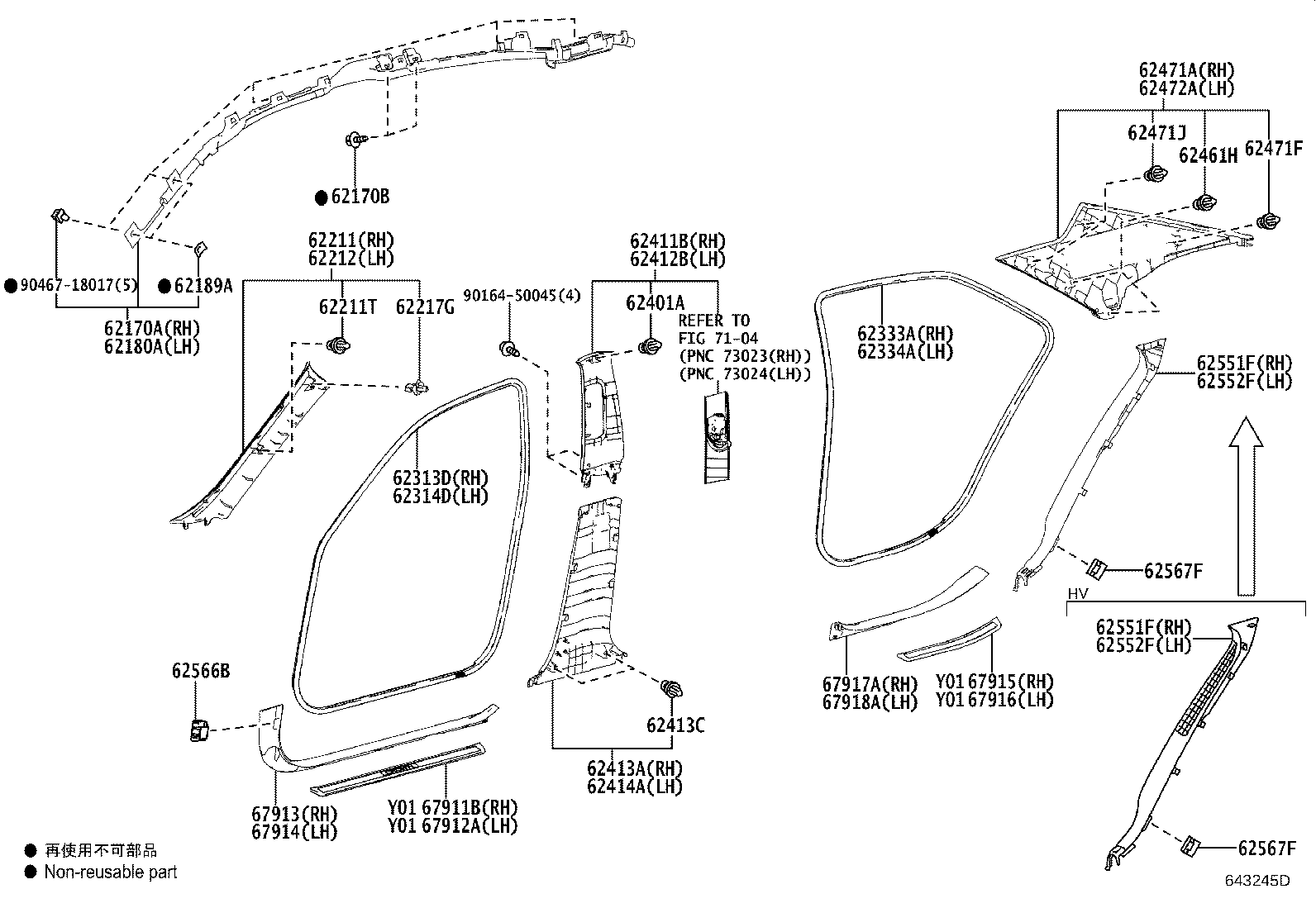

GRS210-AETQH (2012)
Toyota Crown/Hybrid
(1212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-30130 |
AWS210,211,GRS21# |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
AWS21#,GRS21#,GWS214 |
4 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-30130 |
AWS210,211,GRS21# |
1 | ||
| 62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP | ||||
| 62189-42010 |
AWS21#,GRS21#,GWS214 |
4 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-30540A1 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
1 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90467-10161 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-30550A1 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 62217-52120 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-30290 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 62313-30290C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62314-30210 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 62314-30210C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 62333A - TRIM, REAR DOOR OPENING, RH | ||||
| 62333-30261 |
AWS210,211,GRS21# |
1 | ||
| 62333-30261C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 62333-30260 |
AWS210,GRS21# |
1 | ||
| 62334A - TRIM, REAR DOOR OPENING, LH | ||||
| 62334-30200 |
AWS210,GRS21# |
1 | ||
| 62334-30201C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 62334-30201 |
AWS210,211,GRS21# |
1 | ||
| 62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER) | ||||
| 90467-10167 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-30480A2 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-30480A2 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-30240C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10161 |
AWS21#,GRS21#,GWS214 |
4 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-30170C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 62461H - CLIP (FOR ROOF SIDE INNER GARNISH) | ||||
| 90467-10161 |
AWS21#,GRS21#,GWS214 |
4 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-30540A1 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
1 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90467-10167 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-10188 |
AWS21#,GRS21#,GWS214 |
4 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-30540A1 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG FLAXEN,TRIM0#,4# |
1 | ||
| 62551F - GARNISH, REAR SEAT SIDE, RH | ||||
| 62551-30370C0 |
GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 62551F - GARNISH, REAR SEAT SIDE, RH | ||||
| 62551-30370C0 |
GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 62552F - GARNISH, REAR SEAT SIDE, LH | ||||
| 62552-30320C0 |
GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 62552F - GARNISH, REAR SEAT SIDE, LH | ||||
| 62552-30320C0 |
GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 62566B - CLAMP, ROCKER PANEL INNER PROTECTER, NO.1 | ||||
| 62566-30010 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 62567F - CLAMP, ROCKER PANEL INNER PROTECTOR, NO.2 | ||||
| 62566-30010 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 62567F - CLAMP, ROCKER PANEL INNER PROTECTOR, NO.2 | ||||
| 62566-30010 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH | ||||
| 67911-30270 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67912-30280 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-30290C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-30290C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 67915 - PLATE, REAR DOOR SCUFF, OUTSIDE RH | ||||
| 67915-30190 |
AWS210,211,GRS21# |
1 | ||
| 67916 - PLATE, REAR DOOR SCUFF, OUTSIDE LH | ||||
| 67916-30190 |
AWS210,211,GRS21# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-30250C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-30230C0 |
AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4# |
1 | ||
| Common parts | ||||
| 90164-50045 | ||||
| 90467-18017 | ||||
| Linked diagrams | ||||
| 7104 | ||||
