Toyota Crown/hybrid GRS210 HOOD LOCK & HINGE

Part #	Description	Period	Qty
53336 - BRACKET, HOOD STAY, RH
53336-30070	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
53337C - BRACKET, HOOD STAY, LH
53337-30050	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
53410 - HINGE ASSY, HOOD, RH
53410-30480	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
53420 - HINGE ASSY, HOOD, LH
53420-30480	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
53440A - SUPPORT ASSY, HOOD, RH
53440-30190	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
53450A - SUPPORT ASSY, HOOD, LH
53450-30180	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
53497 - PAD, HOOD HINGE, NO.1
53497-50020	AWS21#,GRS21#,GWS214 厚さ=1.0	12/2012 - 09/2015	4
53497 - PAD, HOOD HINGE, NO.1
53497-50020	AWS21#,GRS21#,GWS214 厚さ=1.0	12/2012 - 09/2015	4
53510 - LOCK ASSY, HOOD
53510-30380	AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG	12/2012 - 09/2015	1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09055	AWS21#,GRS21#,GWS214 線径=0.9,ｺｲﾙ巻数=21	12/2012 - 09/2015	1
53510E - SPRING, TENSION(FOR HOOD LOCK)
90506-18067	AWS21#,GRS21#,GWS214 線径=1.8,ｺｲﾙ巻数=13	12/2012 - 09/2015	1
53550 - HOOK ASSY, HOOD AUXILIARY CATCH
53550-30220	AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG	12/2012 - 09/2015	1
53557 - CATCH, HOOD AUXILIARY HOOK
53557-30010	AWS210,211,GRS21#	12/2012 - 08/2015	1
53577 - BOLT, HOOD LOCK
53577-33010	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
53579 - CAP, HOOD LOCK NUT
53579-50010	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-52010C0	AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM0#,4#	12/2012 - 09/2015	1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-30360	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
Common parts
90109-08292
90119-06932
90119-06939
90119-08B07
90959-01369
91551-80820

GRS210-AETQH (2012)

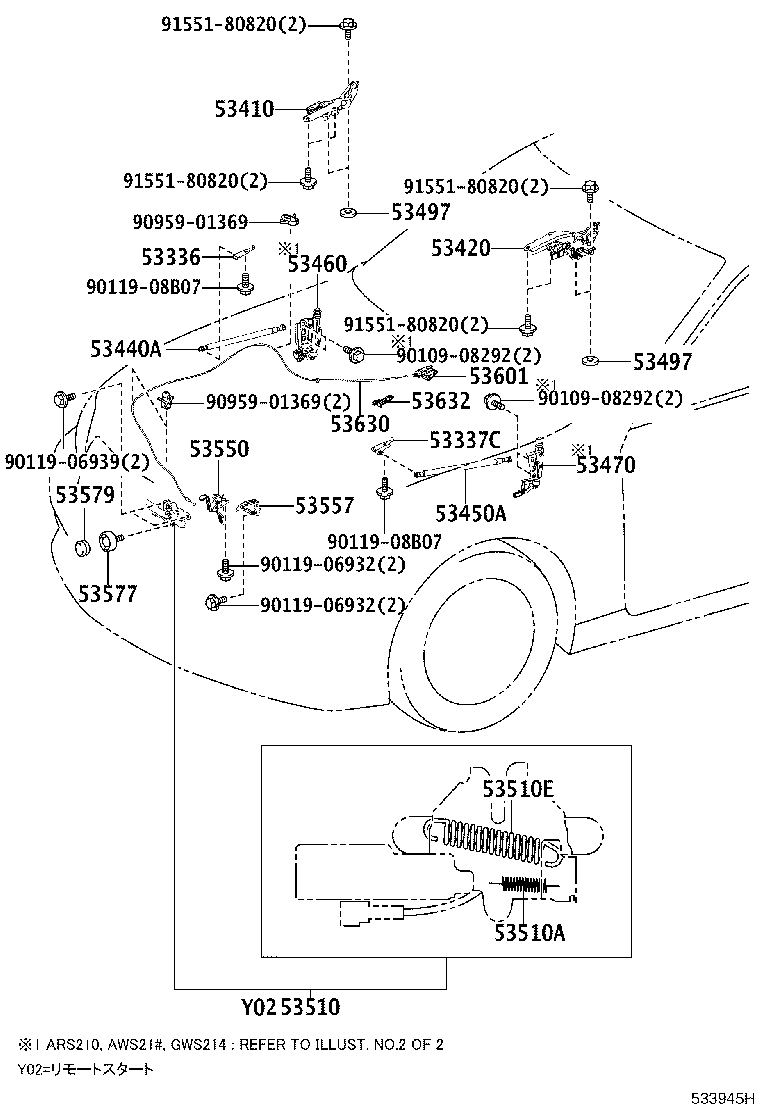

ILLUST NO. 1 OF 2(1212- )AWS21#,GRS21#,GWS214 ; (1509- )ARS210

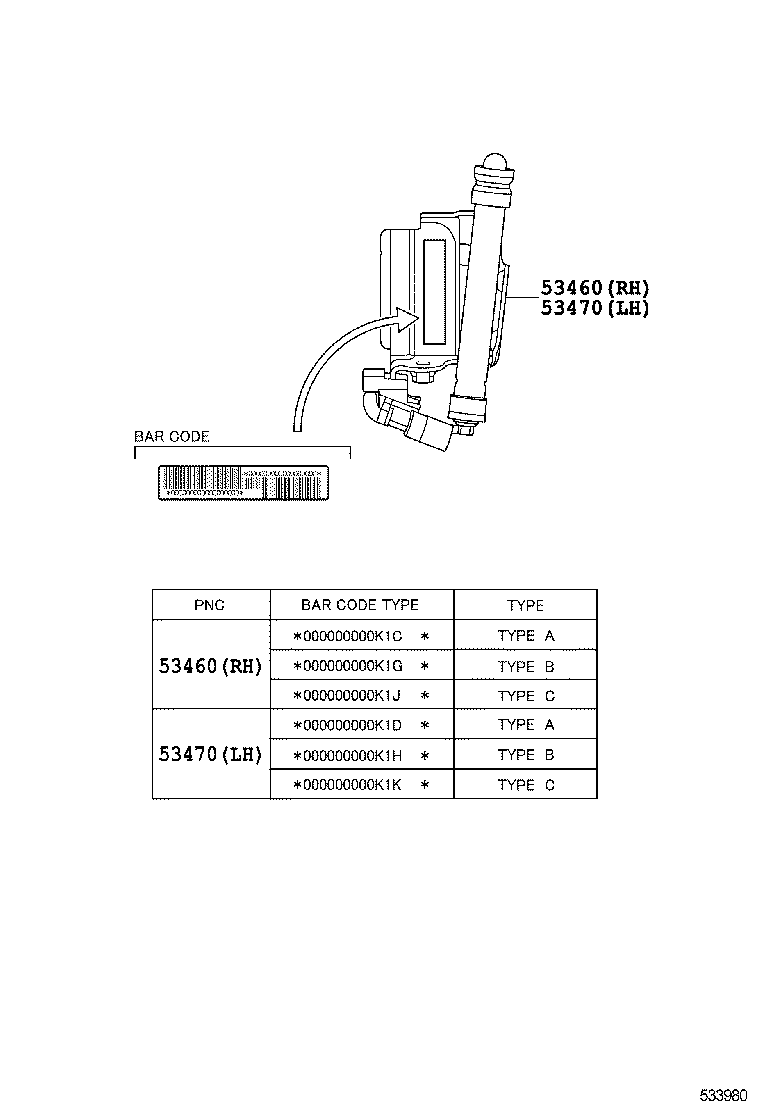

ILLUST NO. 2 OF 2(1212- )AWS21#,GRS21#,GWS214 ; (1509- )ARS210
