GRS210-AETQH (2012)
Toyota Crown/Hybrid

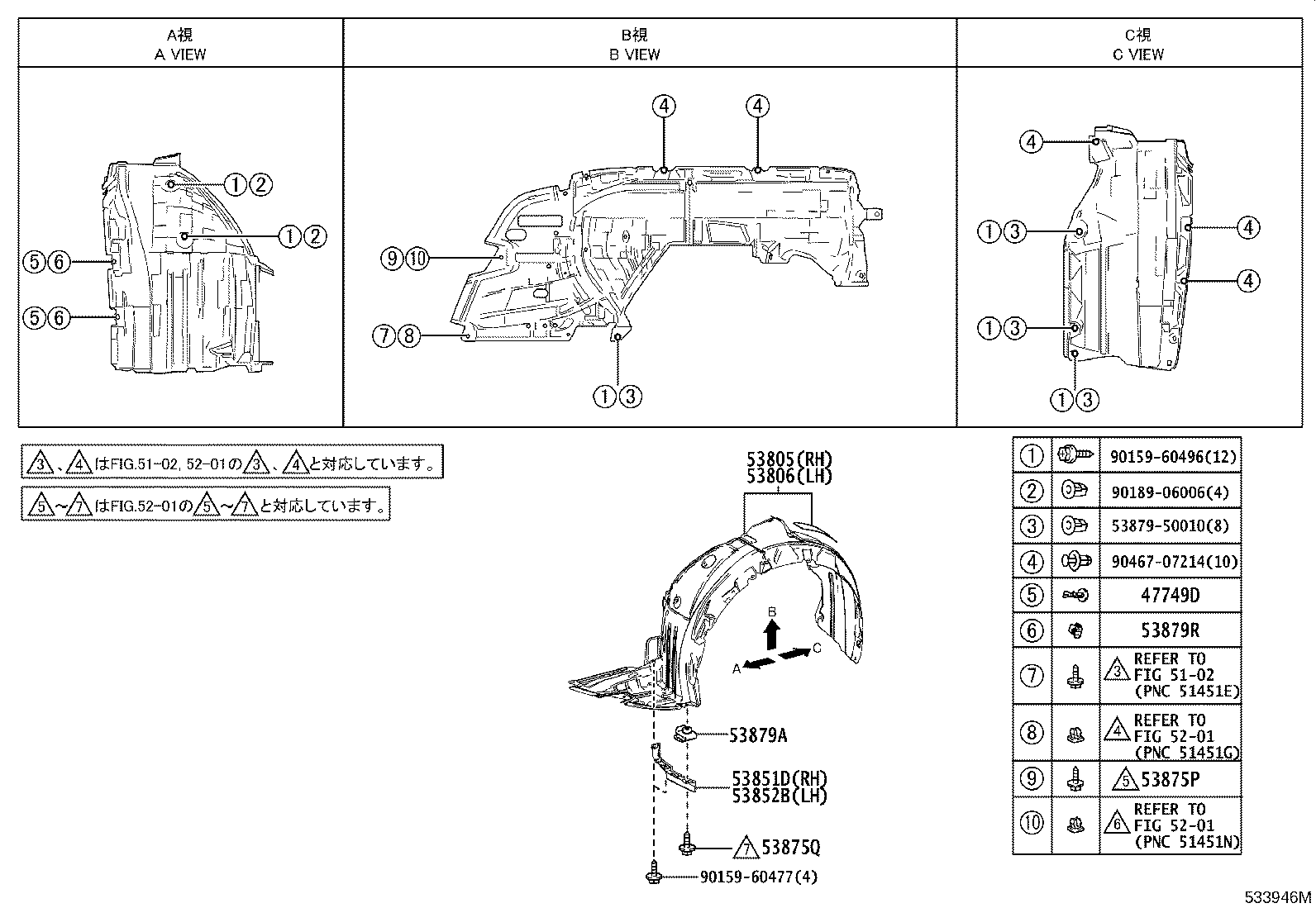

ILLUST NO. 2 OF 2(1212- )AWS210,211,GRS21# ; (1509- )ARS210
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47749D - CLIP, PIN HOLD | ||||
| 47749-50090 |
AWS21#,GRS21#,GWS214 |
4 | ||
| 53805 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH | ||||
| 53805-30270 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG |
1 | ||
| 53806 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH | ||||
| 53806-30280 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG |
1 | ||
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-30120 |
AWS210,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG |
1 | ||
| 53851-30121 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-30120 |
AWS210,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG |
1 | ||
| 53852-30121 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG |
1 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-60477 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 53875Q - SCREW, NO.2 | ||||
| 90159-60477 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-17020 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 53879R - RETAINER, FRONT FENDER LINER | ||||
| 53879-30040 |
AWS21#,GRS21#,GWS214 |
4 | ||
| Common parts | ||||
| 53879-50010 | ||||
| 90159-60477 | ||||
| 90159-60496 | ||||
| 90189-06006 | ||||
| 90467-07214 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5201 | ||||

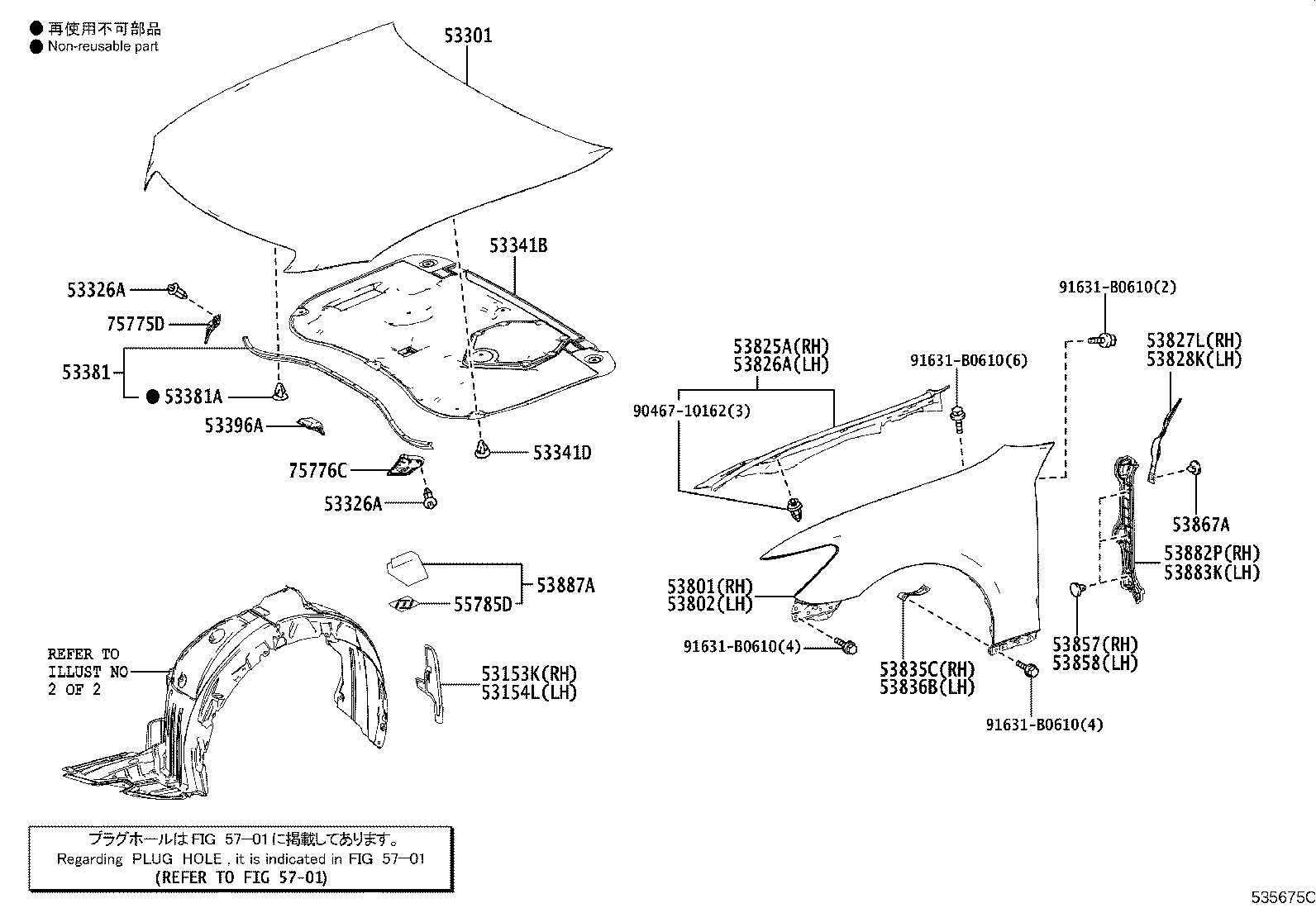

ILLUST NO. 1 OF 2(1212- )ROY,ROYAL,ROYG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53153K - GUIDE, RADIATOR GRILLE SIDE AIR, RH | ||||
| 53153-30250 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 53154L - GUIDE, RADIATOR GRILLE SIDE AIR, LH | ||||
| 53154-30240 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-30500 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG |
1 | ||
| 53326A - CLIP, HOOD MOULDING | ||||
| 90467-07076C0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG BLACK |
2 | ||
| 53326A - CLIP, HOOD MOULDING | ||||
| 90467-07076C0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG BLACK |
2 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-30320 |
GRS21#,GWS214 |
1 | ||
| 53341D - CLIP(FOR HOOD INSULATER) | ||||
| 90467-09050 |
AWS21#,GRS21#,GWS214 |
8 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-30250 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
AWS21#,GRS21#,GWS214 |
10 | ||
| 53396A - SEAL, HOOD TO FRONT END PANEL, NO.2 | ||||
| 53396-30060 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-30A50 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-30A40 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG |
1 | ||
| 53825A - PROTECTOR, FRONT FENDER, UPPER RH | ||||
| 53807-30170 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG |
1 | ||
| 53826A - PROTECTOR, FRONT FENDER, UPPER LH | ||||
| 53808-30130 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-30070 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-30080 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 53835C - BRACKET, FRONT SIDE PANEL, RH | ||||
| 53835-30150 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 53836B - BRACKET, FRONT SIDE PANEL, LH | ||||
| 53836-30100 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-47011 |
AWS21#,GRS21#,GWS214 |
3 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-47011 |
AWS21#,GRS21#,GWS214 |
3 | ||
| 53867A - RETAINER, FRONT FENDER | ||||
| 90467-06205C0 |
AWS21#,GRS21#,GWS214 BLACK |
2 | ||
| 53882P - SEAL, FRONT FENDER, RH | ||||
| 53882-30080 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 53883K - SEAL, FRONT FENDER, LH | ||||
| 53883-30050 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 53887A - SEAL, FRONT FENDER SPLASH SHIELD, NO.1 | ||||
| 53887-30060 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 55785D - PAD, COWL TOP SILENCER, NO.2 | ||||
| 55785-30060 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 75775D - COVER, HOOD FRONT MOULDING END, RH | ||||
| 75775-30060 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG |
1 | ||
| 75776C - COVER, HOOD FRONT MOULDING END, LH | ||||
| 75776-30050 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG |
1 | ||
| Common parts | ||||
| 90467-10162 | ||||
| 91631-B0610 | ||||
| Linked diagrams | ||||
| 5701 | ||||
