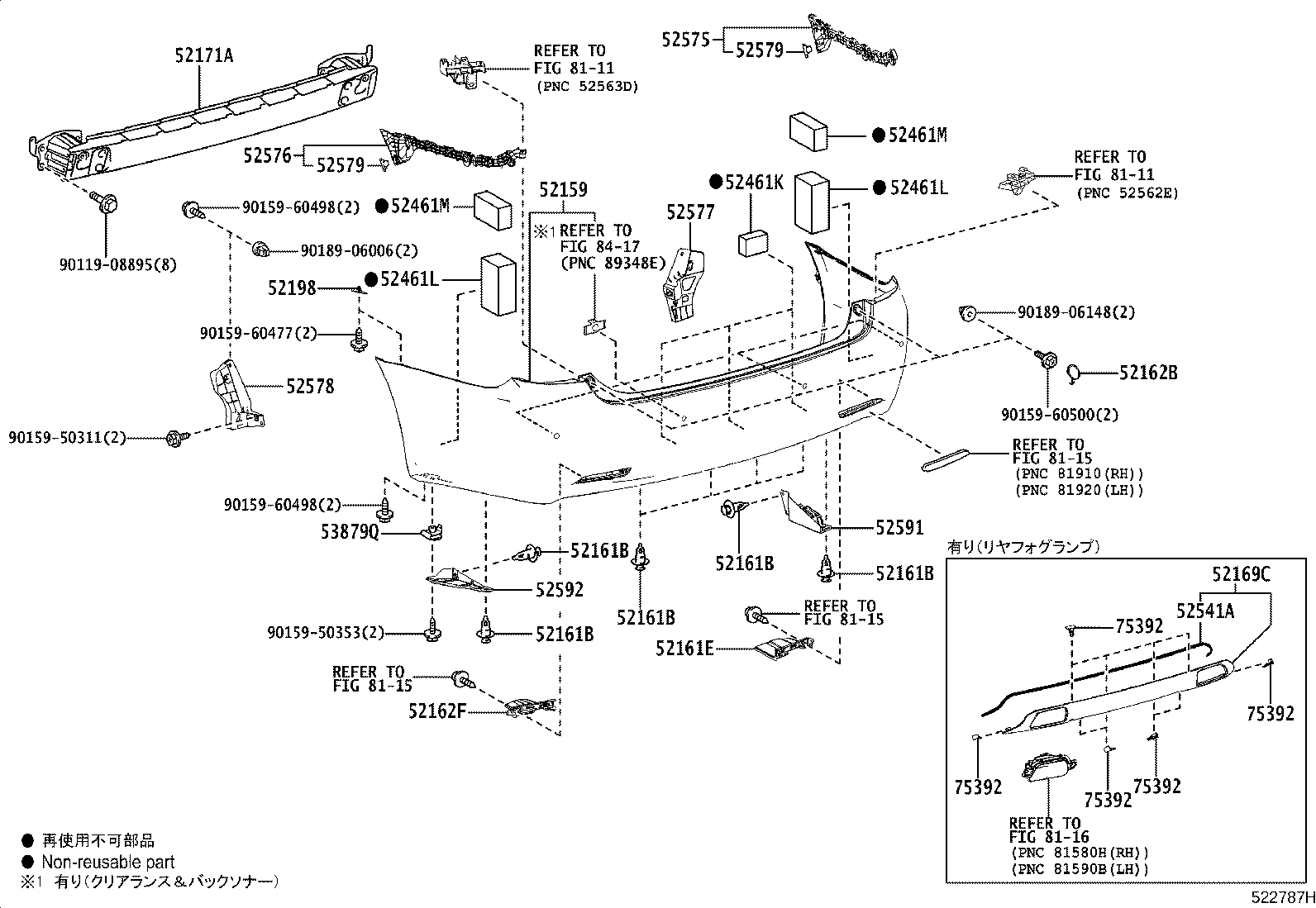

GRS210-AETQH (2012)
Toyota Crown/Hybrid
(1212- )MJ,ROY,ROYAL,ROYG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52159 - COVER, REAR BUMPER | ||||
| 52159-30640C0 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG BLACK,202 |
1 | ||
| 52159-30640D0 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG DK. RED M.M.,3Q3 |
1 | ||
| 52159-30650A0 |
AWS210,211,GRS210,211..ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),WHITE PEARL CS.,062 |
1 | ||
| 52159-30640J0 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG DK.BLUE MC.,8S6 |
1 | ||
| 52159-30650B0 |
AWS210,211,GRS210,211..ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),SILVER ME.,1F7 |
1 | ||
| 52159-30640A0 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG WHITE PEARL CS.,062 |
1 | ||
| 52159-30640B0 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG SILVER ME.,1F7 |
1 | ||
| 52159-30650B1 |
AWS210,211,GRS210,211..ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),PRECIOUS SILVER,1J6 |
1 | ||
| 52159-30660B1 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG 寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り,PRECIOUS SILVER,1J6 |
1 | ||
| 52159-30660A0 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG 寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り,WHITE PEARL CS.,062 |
1 | ||
| 52159-30650D0 |
AWS210,211,GRS210,211..ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),DK. RED M.M.,3Q3 |
1 | ||
| 52159-30650J0 |
AWS210,211,GRS210,211..ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),DK.BLUE MC.,8S6 |
1 | ||
| 52159-30660C0 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG 寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り,BLACK,202 |
1 | ||
| 52159-30650C0 |
AWS210,211,GRS210,211..ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),BLACK,202 |
1 | ||
| 52159-30670A0 |
AWS210,211,GRS210,211..ROY,ROYG 寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),WHITE PEARL CS.,062 |
1 | ||
| 52159-30660J0 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG 寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り,DK.BLUE MC.,8S6 |
1 | ||
| 52159-30670C0 |
AWS210,211,GRS210,211..ROY,ROYG 寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),BLACK,202 |
1 | ||
| 52159-30670D0 |
AWS210,211,GRS210,211..ROY,ROYG 寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),DK. RED M.M.,3Q3 |
1 | ||
| 52159-30660D0 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG 寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り,DK. RED M.M.,3Q3 |
1 | ||
| 52159-30640B1 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG PRECIOUS SILVER,1J6 |
1 | ||
| 52159-30670B1 |
AWS210,211,GRS210,211..ROY,ROYG 寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),PRECIOUS SILVER,1J6 |
1 | ||
| 52159-30670J0 |
AWS210,211,GRS210,211..ROY,ROYG 寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),DK.BLUE MC.,8S6 |
1 | ||
| 52159-30670B0 |
AWS210,211,GRS210,211..ROY,ROYG 寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),SILVER ME.,1F7 |
1 | ||
| 52159-30660B0 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG 寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り,SILVER ME.,1F7 |
1 | ||
| 52159-30660C1 |
AWS211..ROY;AWS210,GRS210,211..ROY,ROYAL,ROYG 寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り,PRECIOUS BLACK,219 |
1 | ||
| 52159-30640C1 |
AWS211..ROY;AWS210,GRS210,211..ROY,ROYAL,ROYG PRECIOUS BLACK,219 |
1 | ||
| 52159-30650C1 |
AWS211..ROY;AWS210,GRS210,211..ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),PRECIOUS BLACK,219 |
1 | ||
| 52159-30670C1 |
AWS211..ROY;AWS210,GRS210,211..ROY,ROYG 寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),PRECIOUS BLACK,219 |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
AWS21#,GRS21#,GWS214 |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
AWS21#,GRS21#,GWS214 |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
AWS21#,GRS21#,GWS214 |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
AWS21#,GRS21#,GWS214 |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
AWS21#,GRS21#,GWS214 |
8 | ||
| 52161E - EXTENSION, REAR BUMPER SIDE, RH | ||||
| 52165-30060 |
AWS21#,GWS214;GRS210,211..ROY,ROYAL,ROYG |
1 | ||
| 52162B - PLATE, REAR BUMPER, NO.1 | ||||
| 52162-30170J0 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG DK.BLUE MC.,8S6 |
2 | ||
| 52162-30170A0 |
AWS21#,GRS21#,GWS214 WHITE PEARL CS.,062 |
2 | ||
| 52162-30170B1 |
AWS21#,GRS21#,GWS214 PRECIOUS SILVER,1J6 |
2 | ||
| 52162-30170C0 |
AWS21#,GRS21#,GWS214 BLACK,202 |
2 | ||
| 52162-30170B0 |
AWS21#,GRS21#,GWS214 SILVER ME.,1F7 |
2 | ||
| 52162-30170D0 |
AWS21#,GRS21#,GWS214 DK. RED M.M.,3Q3 |
2 | ||
| 52162F - EXTENSION, REAR BUMPER SIDE, LH | ||||
| 52166-30070 |
AWS21#,GWS214;GRS210,211..ROY,ROYAL,ROYG |
1 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-30140 |
AWS210,211,GRS210,211..ROY,ROYG 塗装不要,寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8Zﾝｻ) |
1 | ||
| 52169-30140 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG 塗装不要,寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 52169-30140 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG 塗装不要,ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 52171A - REINFORCEMENT, REAR BUMPER, NO.1 | ||||
| 52023-30380 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 52198 - RETAINER, REAR BUMPER SEAL | ||||
| 52197-30050 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 52461K - PAD, REAR BUMPER, NO.1 | ||||
| 52462-12080 |
AWS21#,GRS21#,GWS214 |
3 | ||
| 52461L - PAD, REAR BUMPER, NO.2 | ||||
| 52462-12110 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 52461L - PAD, REAR BUMPER, NO.2 | ||||
| 52462-12110 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 52461M - PAD, REAR BUMPER, NO.3 | ||||
| 52462-30090 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 52461M - PAD, REAR BUMPER, NO.3 | ||||
| 52462-30090 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 52541A - PROTECTOR, REAR BUMPER | ||||
| 76876-30030 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-30200 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-30160 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 52577 - RETAINER, REAR BUMPER SIDE, NO.2 RH | ||||
| 52577-30120 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 52578 - RETAINER, REAR BUMPER SIDE, NO.2 LH | ||||
| 52578-30110 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 52579 - RETAINER, REAR BUMPER SIDE, NO.3 | ||||
| 52579-30100 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 52579 - RETAINER, REAR BUMPER SIDE, NO.3 | ||||
| 52579-30100 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-30040 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-30040 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 53879Q - RETAINER, REAR FENDER LINER | ||||
| 53879-17020 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
10 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
10 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
10 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
10 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
10 | ||
| Common parts | ||||
| 90119-08895 | ||||
| 90159-50311 | ||||
| 90159-50353 | ||||
| 90159-60477 | ||||
| 90159-60498 | ||||
| 90159-60500 | ||||
| 90189-06006 | ||||
| 90189-06148 | ||||
| Linked diagrams | ||||
| 8111 | ||||
| 8115 | ||||
| 8116 | ||||
| 8417 | ||||
