GRS210-AETQH (2012)

Toyota Crown/Hybrid

Production Dec 2012 - Sep 2015
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )ARS210,AWS21#,GRS210,211

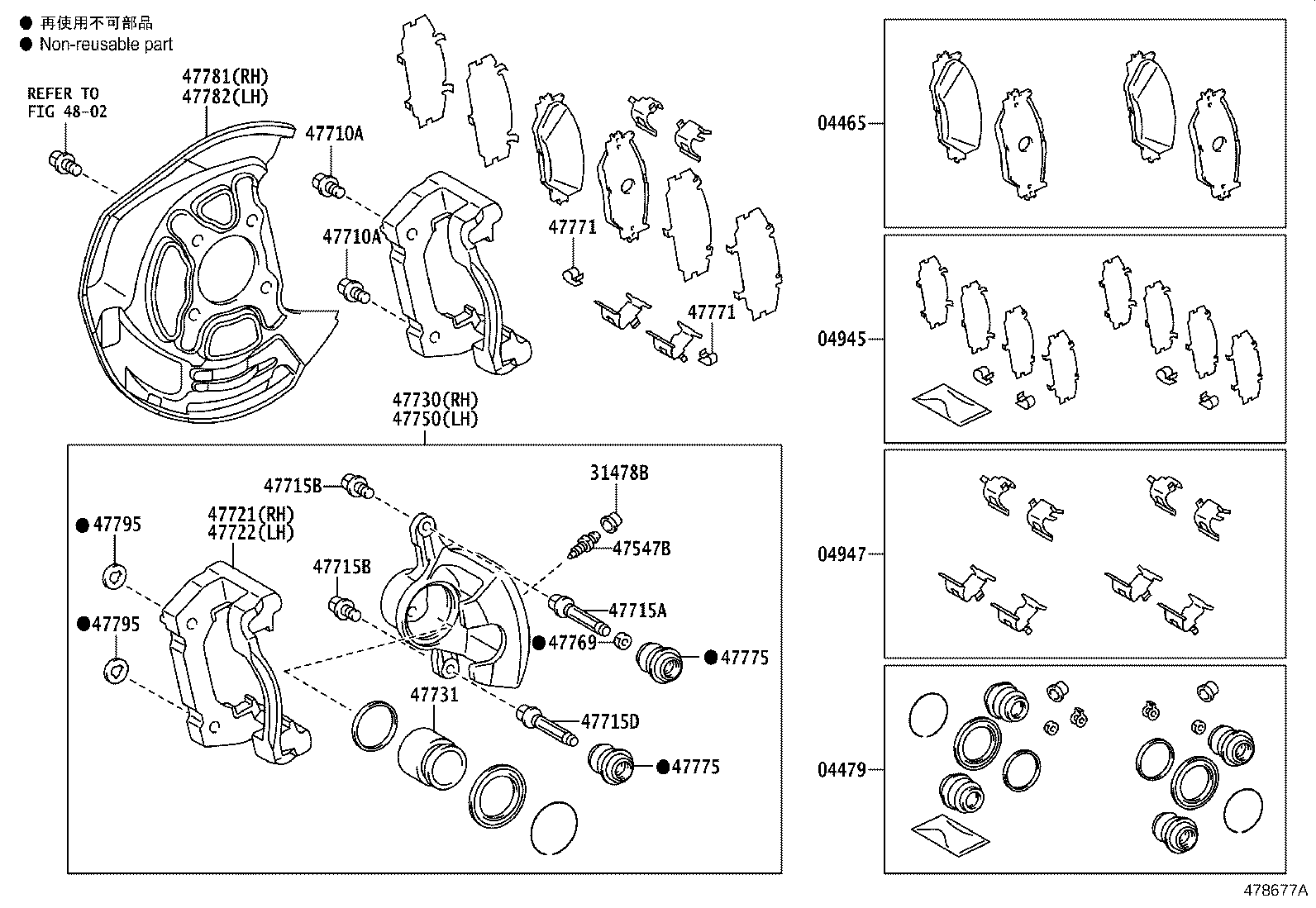

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47710A 47710A 47715A 47715B 47715B 47715D 47721 47722 47730 47731 47750 47769 47771 47771 47775 47775 47781 47782 47795 47795 4802
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-30480

AWS21#,GRS210,211

ﾏｰｸ NBK D6893H

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-30260

AWS21#,GRS210,211

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-30170

AWS21#,GRS210,211

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-30140

AWS21#,GRS210,211

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

AWS21#,GRS210,211

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-27030

AWS21#,GRS210,211

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90119-12415

AWS21#,GRS21#,GWS214

*12−1.25PX45−30

 4
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90119-12415

AWS21#,GRS21#,GWS214

*12−1.25PX45−30

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-22070

AWS21#,GRS210,211

 2
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164

AWS21#,GRS210,211

 4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164

AWS21#,GRS210,211

 4
47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47715-33050

AWS21#,GRS210,211

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-30521

AWS21#,GRS210,211

 1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47721-30521

AWS21#,GRS210,211

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-30521

AWS21#,GRS210,211

 1
47731 - PISTON, FRONT DISC BRAKE
47731-33070

AWS21#,GRS210,211

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-30521

AWS21#,GRS210,211

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-50010

AWS21#,GRS210,211

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-30090

AWS21#,GRS210,211

 4
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-30090

AWS21#,GRS210,211

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-50010

AWS21#,GRS210,211

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-50010

AWS21#,GRS210,211

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-30220

AWS210,GRS210

 1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-30220

AWS210,GRS210

 1
47795 - PLATE, FRONT DISC BRAKE CALIPER, NO.1
47795-30520

AWS21#,GRS210,211

 4
47795 - PLATE, FRONT DISC BRAKE CALIPER, NO.1
47795-30520

AWS21#,GRS210,211

 4
Linked diagrams
4802
