GRS210-AETQH (2012)

Toyota Crown/Hybrid

Production Dec 2012 - Sep 2015
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )

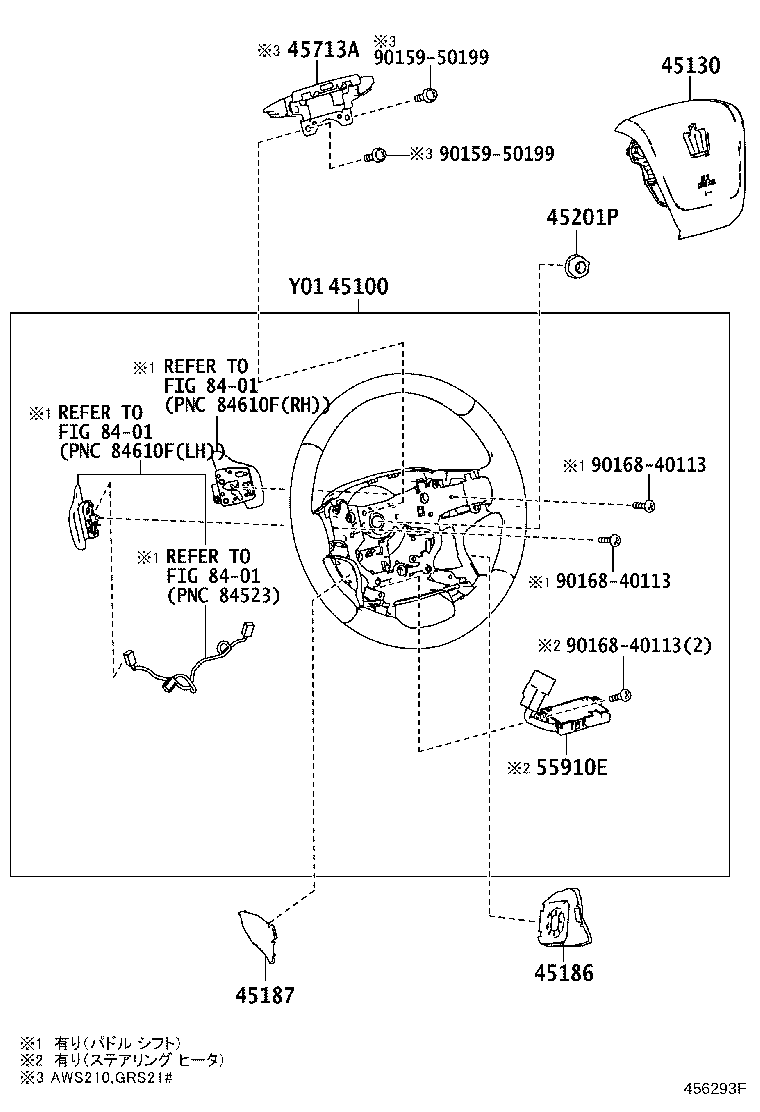

Click highlighted areas on diagram

4ﾎﾝｽﾎﾟｰｸ

diagram 45100 45130 45186 45187 45201P 45713A 55910E 8401 8401 8401 9015950199 9015950199 9016840113 9016840113 9016840113
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-30D00C0

GRS210,211..ROY,ROYG

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK&BLACK,TRIM0#,4#

 1
45100-30D01C0

GRS210,211..ROY,ROYG

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK&BLACK,TRIM0#,4#

 1
45130 - BUTTON ASSY, HORN
45130-30710C0

AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG

BLACK,TRIM0#,4#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-30180C0

AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG

BLACK,TRIM0#,4#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-30100C0

AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG

BLACK,TRIM0#,4#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

AWS21#,GRS21#,GWS214

 1
45713A - DAMPER, STEERING SHAKE
45713-30200

AWS21#,GRS21#

 1
Common parts
90159-50199
90168-40113
Linked diagrams
8401
