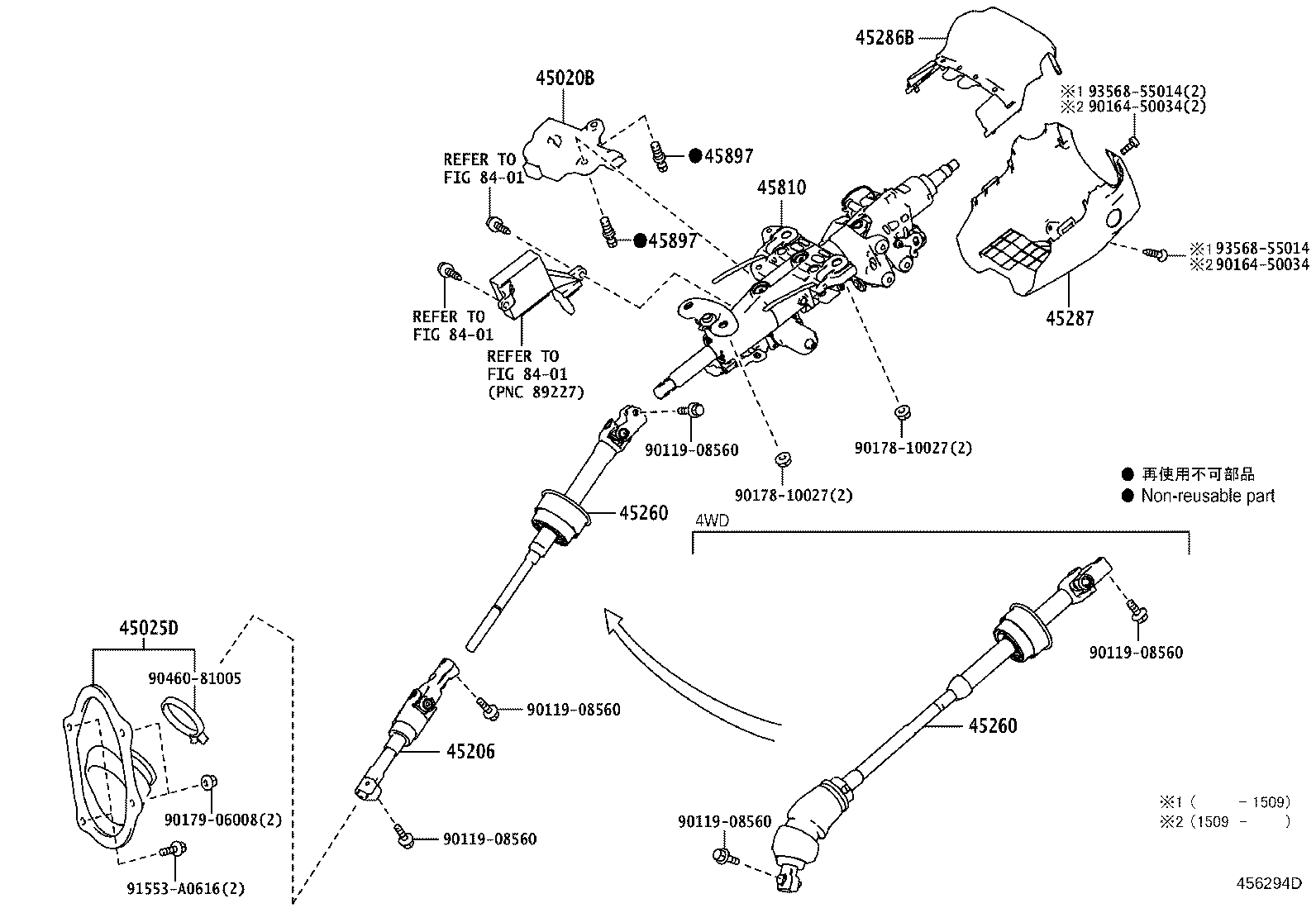

GRS210-AETQH (2012)
Toyota Crown/Hybrid
(1212- )AWS211 ; (1212- )ARS210,AWS210,215,GRS210,211..ATHG,ATHS,MJ,ROY,ROYG
ﾊﾟﾜｰﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK | ||||
| 45020-30B20 |
AWS210,211..ATH,ROYAL;GRS210,211..ATH,ATHS,ROY,ROYAL |
1 | ||
| 45020-30B10 |
GRS210,211..ATHS,ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-30350 |
AWS210,GRS210 |
1 | ||
| 45206 - YOKE SUB-ASSY, STEERING SLIDING W/SHAFT | ||||
| 45206-30210 |
AWS210,GRS210 |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-30250 |
AWS210,GRS210 |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-30250 |
AWS210,GRS210 |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-30A30C0 |
GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM0#,4# |
1 | ||
| 45286-30A50C0 |
AWS210,211..ROYAL;GRS210,211..ROY,ROYAL BLACK,TRIM0#,4# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-30A40C0 |
AWS210,211..ROYAL;GRS210,211..ROY,ROYAL BLACK,TRIM0#,4# |
1 | ||
| 45287-30A50C0 |
GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM0#,4# |
1 | ||
| 45810 - GEAR ASSY, TILT STEERING, W/MOTOR | ||||
| 45810-30250 |
GRS210,211..ATHS,ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AWS210,211..ATH,ROYAL;GRS210,211..ATH,ATHS,ROY,ROYAL |
1 | ||
| 45897-12020 |
GRS210,211..ATHS,ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ |
2 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AWS210,211..ATH,ROYAL;GRS210,211..ATH,ATHS,ROY,ROYAL |
1 | ||
| 45897-12020 |
GRS210,211..ATHS,ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90164-50034 | ||||
| 90178-10027 | ||||
| 90179-06008 | ||||
| 90460-81005 | ||||
| 91553-A0616 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||

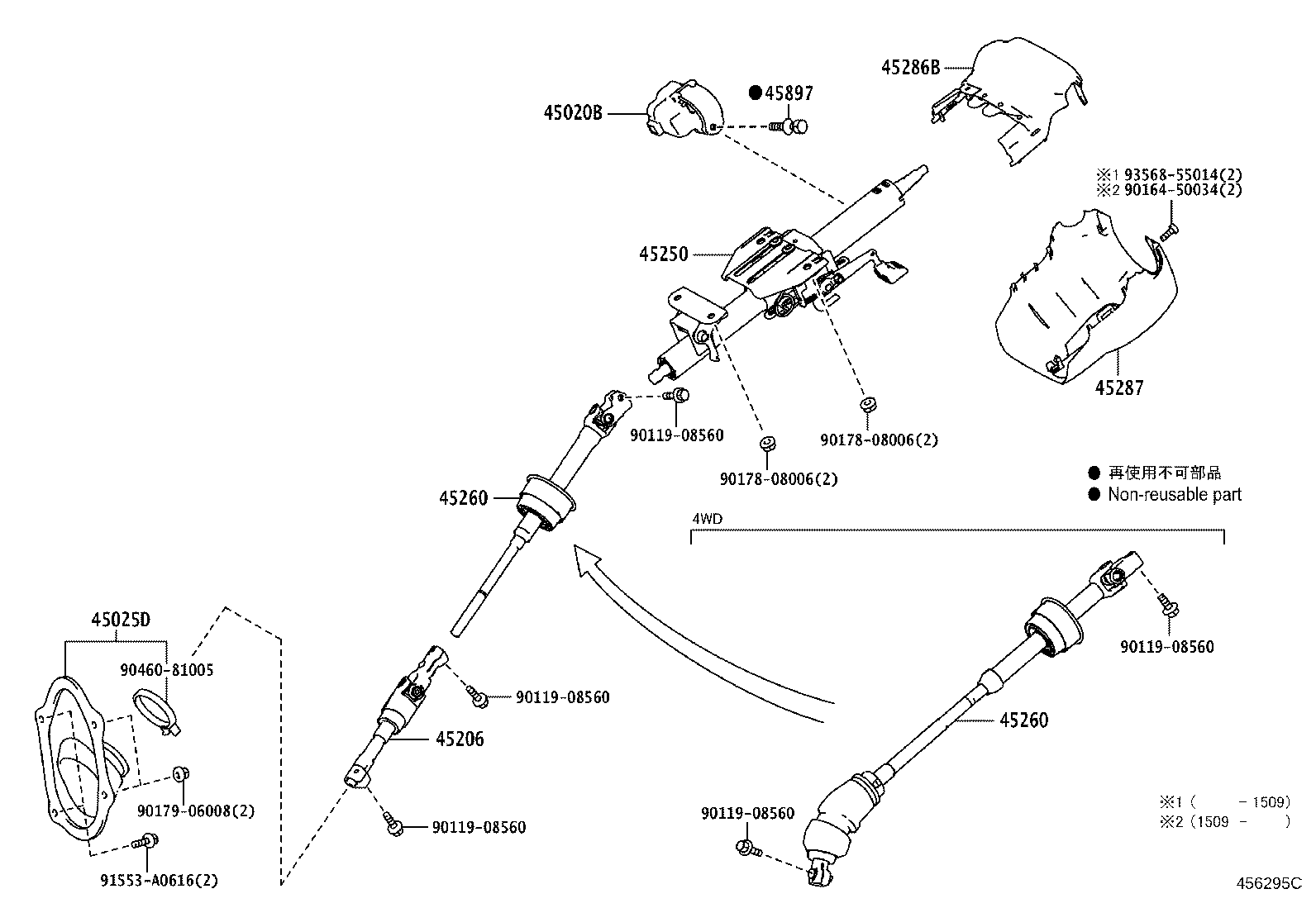

(1212- )AWS211 ; (1212- )ARS210,AWS210,215,GRS210,211..ATH,ATHS,MJ,ROY,ROYAL
ﾏﾆｭｱﾙ ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK | ||||
| 45020-30B20 |
AWS210,211..ATH,ROYAL;GRS210,211..ATH,ATHS,ROY,ROYAL |
1 | ||
| 45020-30B10 |
GRS210,211..ATHS,ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-30350 |
AWS210,GRS210 |
1 | ||
| 45206 - YOKE SUB-ASSY, STEERING SLIDING W/SHAFT | ||||
| 45206-30210 |
AWS210,GRS210 |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-30B90 |
AWS210,211..ATH,ROYAL;GRS210,211..ATH,ATHS,ROY,ROYAL |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-30250 |
AWS210,GRS210 |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-30250 |
AWS210,GRS210 |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-30A30C0 |
GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM0#,4# |
1 | ||
| 45286-30A50C0 |
AWS210,211..ROYAL;GRS210,211..ROY,ROYAL BLACK,TRIM0#,4# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-30A40C0 |
AWS210,211..ROYAL;GRS210,211..ROY,ROYAL BLACK,TRIM0#,4# |
1 | ||
| 45287-30A50C0 |
GRS210,211..ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM0#,4# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AWS210,211..ATH,ROYAL;GRS210,211..ATH,ATHS,ROY,ROYAL |
1 | ||
| 45897-12020 |
GRS210,211..ATHS,ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90164-50034 | ||||
| 90178-08006 | ||||
| 90179-06008 | ||||
| 90460-81005 | ||||
| 91553-A0616 | ||||
| 93568-55014 | ||||
