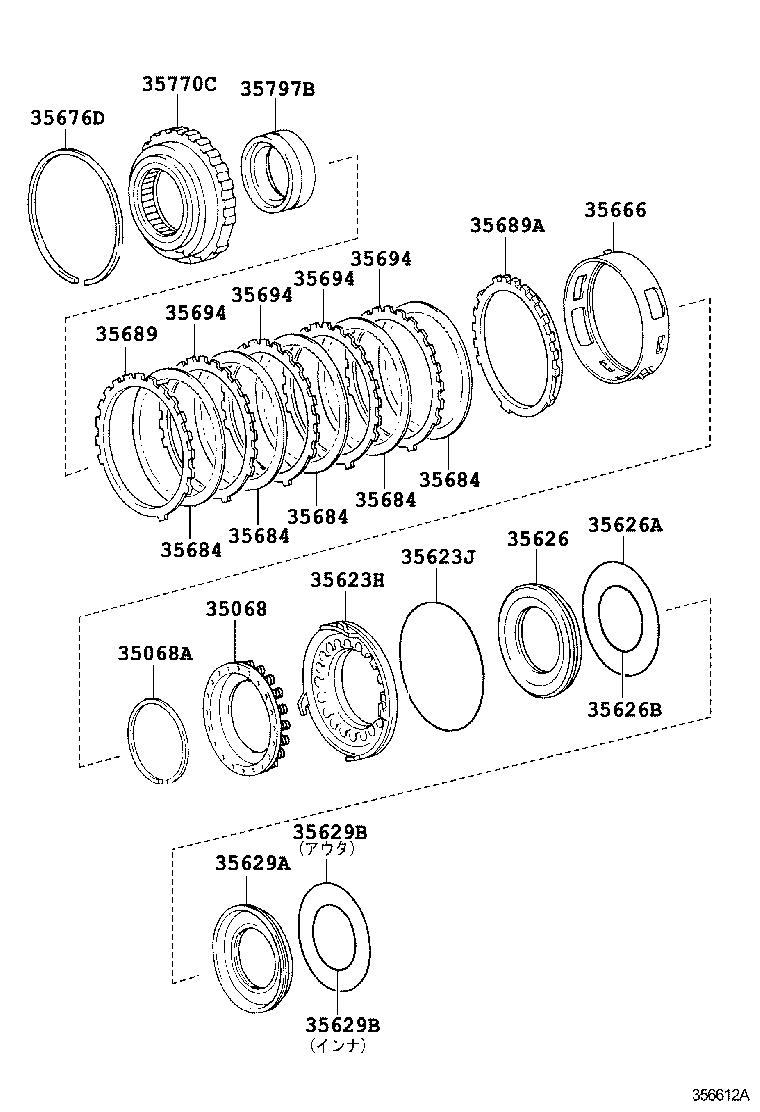

Toyota Crown/hybrid GRS210 BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

Part #	Description	Period	Qty
35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
35068-22010	GRS210	12/2012 - 09/2015	1
35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING
90520-52262	GRS210	12/2012 - 09/2015	1
35623H - PISTON, 1ST & REVERSE BRAKE
35623-22030	GRS210	12/2012 - 09/2015	1
35623J - RING, O (FOR 1ST & REVERSE BRAKE)
90301-99151	GRS210	12/2012 - 09/2015	1
35626 - SLEEVE, BRAKE REACTION
35626-22020	GRS210	12/2012 - 09/2015	1
35626A - RING (FOR BRAKE REACTION SLEEVE OUTER)
90301-99155	GRS210	12/2012 - 09/2015	1
35626B - RING (FOR BRAKE REACTION SLEEVE INNER)
90301-69009	GRS210	12/2012 - 09/2015	1
35629A - PISTON, BRAKE, NO.4
35629-22030	GRS210	12/2012 - 09/2015	1
35629B - RING, O (FOR BRAKE PISTON NO.4)
90301-94004	GRS210 外側	12/2012 - 09/2015	1
90301-56007	GRS210 内側	12/2012 - 09/2015	1
35629B - RING, O (FOR BRAKE PISTON NO.4)
90301-94004	GRS210 外側	12/2012 - 09/2015	1
90301-56007	GRS210 内側	12/2012 - 09/2015	1
35666 - TUBE, BRAKE APPLY
35666-22030	GRS210	12/2012 - 09/2015	1
35676D - RING, HOLE SNAP (FOR 1ST & REVERSE BRAKE FLANGE)
90521-99133	GRS210	12/2012 - 09/2015	1
35684 - DISC, BRAKE, NO.4
35684-30010	GRS210	12/2012 - 09/2015	5
35684 - DISC, BRAKE, NO.4
35684-30010	GRS210	12/2012 - 09/2015	5
35684 - DISC, BRAKE, NO.4
35684-30010	GRS210	12/2012 - 09/2015	5
35684 - DISC, BRAKE, NO.4
35684-30010	GRS210	12/2012 - 09/2015	5
35684 - DISC, BRAKE, NO.4
35684-30010	GRS210	12/2012 - 09/2015	5
35689 - FLANGE, BRAKE, NO.4
35689-22020	GRS210 厚さ=1.8 ﾏｰｸ 0	12/2012 - 03/2014	1
35689-22050	GRS210 厚さ=2.4 ﾏｰｸ 6	12/2012 - 03/2014	1
35689-22040	GRS210 厚さ=2.2 ﾏｰｸ 4	12/2012 - 03/2014	1
35689-22090	GRS210 厚さ=3.2 ﾏｰｸ 14	12/2012 - 03/2014	1
35689-22030	GRS210 厚さ=2.0 ﾏｰｸ 2	12/2012 - 03/2014	1
35689-22060	GRS210 厚さ=2.6 ﾏｰｸ 8	12/2012 - 03/2014	1
35689-22070	GRS210 厚さ=2.8 ﾏｰｸ 10	12/2012 - 03/2014	1
35689-22080	GRS210 厚さ=3.0 ﾏｰｸ 12	12/2012 - 03/2014	1
35689-22180	GRS210 厚さ=2.95,ﾏｰｸ 11	03/2014 - 09/2015	1
35689-22110	GRS210 厚さ=1.97,ﾏｰｸ 1	03/2014 - 09/2015	1
35689-22140	GRS210 厚さ=2.39,ﾏｰｸ 5	03/2014 - 09/2015	1
35689-22160	GRS210 厚さ=2.67,ﾏｰｸ 8	03/2014 - 09/2015	1
35689-22150	GRS210 厚さ=2.53,ﾏｰｸ 7	03/2014 - 09/2015	1
35689-22130	GRS210 厚さ=2.25,ﾏｰｸ 4	03/2014 - 09/2015	1
35689-22100	GRS210 厚さ=1.8 ﾏｰｸ 0	03/2014 - 09/2015	1
35689-22170	GRS210 厚さ=2.81,ﾏｰｸ 10	03/2014 - 09/2015	1
35689-22120	GRS210 厚さ=2.11,ﾏｰｸ 3	03/2014 - 09/2015	1
35689-22190	GRS210 厚さ=3.09,ﾏｰｸ 12	03/2014 - 09/2015	1
35689A - FLANGE, BRAKE, NO.4
35689-22010	GRS210	12/2012 - 09/2015	1
35694 - PLATE, BRAKE, NO.4
35694-22010	GRS210	12/2012 - 09/2015	4
35694 - PLATE, BRAKE, NO.4
35694-22010	GRS210	12/2012 - 09/2015	4
35694 - PLATE, BRAKE, NO.4
35694-22010	GRS210	12/2012 - 09/2015	4
35694 - PLATE, BRAKE, NO.4
35694-22010	GRS210	12/2012 - 09/2015	4
35770C - CLUTCH ASSY, 1WAY NO.3
35770-22070	GRS210	12/2012 - 09/2015	1
35797B - RACE, 1 WAY CLUTCH, INNER
35797-22030	GRS210	12/2012 - 09/2015	1

GRS210-AETQH (2012)

(1212- )GRS210
