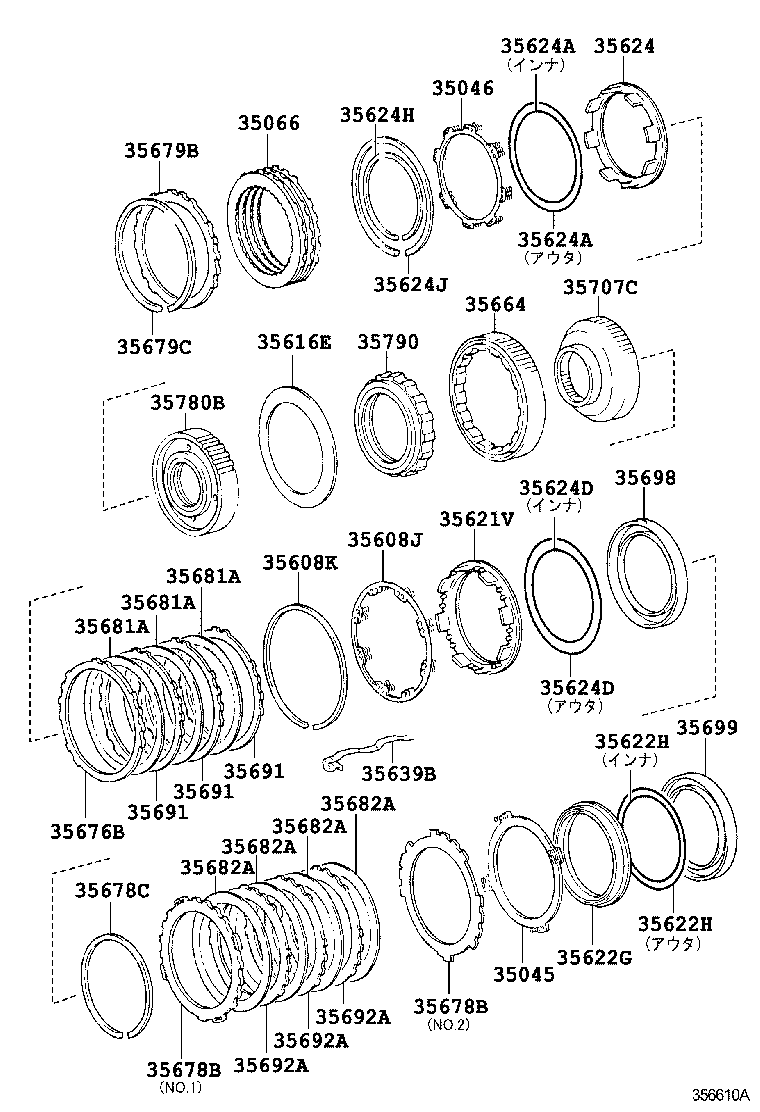

Toyota Crown/hybrid GRS210 CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

Part #	Description	Period	Qty
35045 - SPRING SUB-ASSY, BRAKE PISTON RETURN,NO.2
35045-22020	GRS210	12/2012 - 09/2015	1
35046 - SPRING SUB-ASSY, BRAKE PISTON RETURN, NO.3
35046-22010	GRS210	12/2012 - 09/2015	1
35066 - DISC SET, 2ND BRAKE
35066-22030	GRS210	12/2012 - 09/2015	1
35608J - SPRING SUB-ASSY, BRAKE PISTON RETURN
35608-22020	GRS210	12/2012 - 09/2015	1
35608K - RING, SNAP (FOR BRAKE PISTON RETURN SPRING)
90520-99098	GRS210	12/2012 - 09/2015	1
35616E - WASHER,CLUTCH DRUM THRUST
35616-22010	GRS210	12/2012 - 09/2015	1
35621V - PISTON, BRAKE, NO.1
35621-22020	GRS210	12/2012 - 09/2015	1
35622G - PISTON, BRAKE, NO.2
35622-22030	GRS210	12/2012 - 09/2015	1
35622H - RING, O (FOR BRAKE PISTON NO.2)
90301-99155	GRS210 内側	12/2012 - 09/2015	1
90301-99123	GRS210 外側	12/2012 - 09/2015	1
35622H - RING, O (FOR BRAKE PISTON NO.2)
90301-99155	GRS210 内側	12/2012 - 09/2015	1
90301-99123	GRS210 外側	12/2012 - 09/2015	1
35624 - PISTON, 2ND BRAKE
35624-22030	GRS210	12/2012 - 09/2015	1
35624A - RING, O (FOR 2ND BRAKE PISTON)
90301-99113	GRS210 内側	12/2012 - 09/2015	1
90301-99123	GRS210 外側	12/2012 - 09/2015	1
35624A - RING, O (FOR 2ND BRAKE PISTON)
90301-99113	GRS210 内側	12/2012 - 09/2015	1
90301-99123	GRS210 外側	12/2012 - 09/2015	1
35624D - RING, O (FOR BRAKE PISTON NO.4)
90301-99143	GRS210 外側	12/2012 - 09/2015	1
90301-99085	GRS210 内側	12/2012 - 09/2015	1
35624D - RING, O (FOR BRAKE PISTON NO.4)
90301-99143	GRS210 外側	12/2012 - 09/2015	1
90301-99085	GRS210 内側	12/2012 - 09/2015	1
35624H - RING, SNAP (FOR 2ND BRAKE PISTON)
90520-99098	GRS210	12/2012 - 09/2015	1
35624J - RING, HOLE SNAP (FOR 2ND BRAKE PISTON)
90521-99132	GRS210	12/2012 - 09/2015	1
35639B - SPRING, BRAKE PLATE STOPPER
35639-60010	GRS210,211	12/2012 - 09/2015	1
35664 - CYLINDER, 2ND BRAKE
35664-22010	GRS210	12/2012 - 09/2015	1
35676B - FLANGE, BRAKE, NO.1
35676-22050	GRS210 厚さ=2.2,ﾏｰｸ 1	12/2012 - 09/2015	1
35676-22070	GRS210 厚さ=2.6,ﾏｰｸ 3	12/2012 - 09/2015	1
35676-22040	GRS210 厚さ=2.0,ﾏｰｸ 0	12/2012 - 09/2015	1
35676-22060	GRS210 厚さ=2.4,ﾏｰｸ 2	12/2012 - 09/2015	1
35678B - FLANGE, BRAKE, NO.2
35678-22020	GRS210 厚さ=2.0,NO.2	12/2012 - 09/2015	1
35678-22030	GRS210 厚さ=2.1,NO.2	12/2012 - 09/2015	1
35678-22080	GRS210 厚さ=2.6,NO.2	12/2012 - 09/2015	1
35678-22090	GRS210 厚さ=2.7,NO.2	12/2012 - 09/2015	1
35678-22010	GRS210 厚さ=4.6,NO.1	12/2012 - 09/2015	1
35678-22050	GRS210 厚さ=2.3,NO.2	12/2012 - 09/2015	1
35678-22040	GRS210 厚さ=2.2,NO.2	12/2012 - 09/2015	1
35678-22060	GRS210 厚さ=2.4,NO.2	12/2012 - 09/2015	1
35678-22070	GRS210 厚さ=2.5,NO.2	12/2012 - 09/2015	1
35678B - FLANGE, BRAKE, NO.2
35678-22020	GRS210 厚さ=2.0,NO.2	12/2012 - 09/2015	1
35678-22030	GRS210 厚さ=2.1,NO.2	12/2012 - 09/2015	1
35678-22080	GRS210 厚さ=2.6,NO.2	12/2012 - 09/2015	1
35678-22090	GRS210 厚さ=2.7,NO.2	12/2012 - 09/2015	1
35678-22010	GRS210 厚さ=4.6,NO.1	12/2012 - 09/2015	1
35678-22050	GRS210 厚さ=2.3,NO.2	12/2012 - 09/2015	1
35678-22040	GRS210 厚さ=2.2,NO.2	12/2012 - 09/2015	1
35678-22060	GRS210 厚さ=2.4,NO.2	12/2012 - 09/2015	1
35678-22070	GRS210 厚さ=2.5,NO.2	12/2012 - 09/2015	1
35678C - RING, SNAP (FOR BRAKE NO.2)
90520-99097	GRS210	12/2012 - 09/2015	1
35679B - FLANGE, BRAKE, NO.3
35679-22010	GRS210	12/2012 - 09/2015	1
35679C - RING, SNAP (FOR BRAKE NO.3)
90520-99099	GRS210	12/2012 - 09/2015	1
35681A - DISC, BRAKE, NO.1
35681-30050	GRS210	12/2012 - 09/2015	3
35681A - DISC, BRAKE, NO.1
35681-30050	GRS210	12/2012 - 09/2015	3
35681A - DISC, BRAKE, NO.1
35681-30050	GRS210	12/2012 - 09/2015	3
35682A - DISC, BRAKE, NO.2
35682-22010	GRS210	12/2012 - 09/2015	4
35682A - DISC, BRAKE, NO.2
35682-22010	GRS210	12/2012 - 09/2015	4
35682A - DISC, BRAKE, NO.2
35682-22010	GRS210	12/2012 - 09/2015	4
35682A - DISC, BRAKE, NO.2
35682-22010	GRS210	12/2012 - 09/2015	4
35691 - PLATE, BRAKE, NO.1
35691-22020	GRS210	12/2012 - 09/2015	3
35691 - PLATE, BRAKE, NO.1
35691-22020	GRS210	12/2012 - 09/2015	3
35691 - PLATE, BRAKE, NO.1
35691-22020	GRS210	12/2012 - 09/2015	3
35692A - PLATE, BRAKE, NO.2
35692-22010	GRS210	12/2012 - 09/2015	3
35692A - PLATE, BRAKE, NO.2
35692-22010	GRS210	12/2012 - 09/2015	3
35692A - PLATE, BRAKE, NO.2
35692-22010	GRS210	12/2012 - 09/2015	3
35698 - CYLINDER, BRAKE, NO.1
35698-22010	GRS210	12/2012 - 09/2015	1
35699 - CYLINDER, BRAKE, NO.2
35699-22010	GRS210	12/2012 - 09/2015	1
35707C - RACE SUB-ASSY, 1 WAY CLUTCH, INNER
35707-22020	GRS210	12/2012 - 09/2015	1
35780B - CLUTCH ASSY, 1 WAY N0.2
35780-30020	GRS210	12/2012 - 09/2015	1
35790 - CLUTCH ASSY, 1 WAY
35790-22050	GRS210	12/2012 - 09/2015	1

GRS210-AETQH (2012)

(1212- )GRS210
