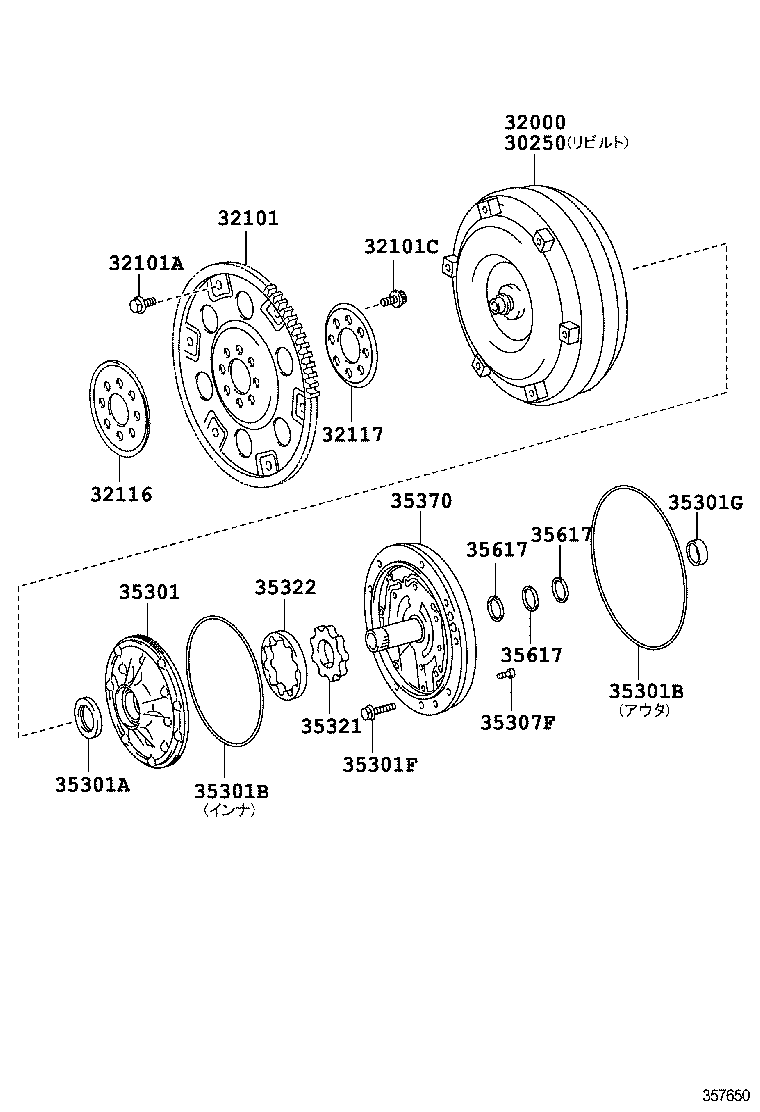

Toyota Crown/hybrid GRS210 TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

Part #	Description	Period	Qty
30250 - CONVERTER ASSY, TORQUE, REBUILT
30250-30400	GRS210,211	12/2012 - 09/2015	1
32000 - CONVERTER ASSY, TORQUE
32000-30400	GRS210,211	12/2012 - 09/2015	1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-30081	GRS21#	12/2012 - 09/2015	1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90105-09006	GRS21# *9−1.25PX11−8.5,ｼﾙﾊﾞ− ﾎﾜｲﾄ	12/2012 - 09/2015	5
90105-09005	GRS21# *9−1.25PX11−8,ﾌﾞﾗｯｸ	12/2012 - 09/2015	1
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10048	GRS21# *10−1.25PX18−13	12/2012 - 09/2015	8
32116 - SPACER, DRIVE PLATE, FRONT
32116-32020	GRS21#	12/2012 - 09/2015	1
32117 - SPACER, DRIVE PLATE, REAR
32117-30030	GRS21#	12/2012 - 09/2015	1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-22030	GRS210	12/2012 - 09/2015	1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38083	GRS210,211	12/2012 - 09/2015	1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99153	GRS210 外側	12/2012 - 09/2015	1
90301-99093	GRS210 内側	12/2012 - 09/2015	1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99153	GRS210 外側	12/2012 - 09/2015	1
90301-99093	GRS210 内側	12/2012 - 09/2015	1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08451	GRS210 *8−1.25PX40−30	12/2012 - 09/2015	9
35301G - BEARING,NEEDLE ROLLER
90364-33013	GRS210	12/2012 - 09/2015	1
35307F - BOLT (FOR STATOR SHAFT)
90148-60079	GRS210,211	12/2012 - 09/2015	14
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-22150	GRS210 厚さ=9.967−9.973	12/2012 - 09/2015	1
35321-22160	GRS210 厚さ=9.974−9.980	12/2012 - 09/2015	1
35321-22170	GRS210 厚さ=9.981−9.987	12/2012 - 09/2015	1
35321-22120	GRS210 厚さ=9.946−9.952	12/2012 - 09/2015	1
35321-22130	GRS210 厚さ=9.953−9.959	12/2012 - 09/2015	1
35321-22180	GRS210 厚さ=9.988−9.994	12/2012 - 09/2015	1
35321-22140	GRS210 厚さ=9.960−9.966	12/2012 - 09/2015	1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-22130	GRS210 厚さ=9.953−9.959	12/2012 - 09/2015	1
35322-22120	GRS210 厚さ=9.946−9.952	12/2012 - 09/2015	1
35322-22180	GRS210 厚さ=9.988−9.994	12/2012 - 09/2015	1
35322-22150	GRS210 厚さ=9.967−9.973	12/2012 - 09/2015	1
35322-22160	GRS210 厚さ=9.974−9.980	12/2012 - 09/2015	1
35322-22140	GRS210 厚さ=9.960−9.966	12/2012 - 09/2015	1
35322-22170	GRS210 厚さ=9.981−9.987	12/2012 - 09/2015	1
35370 - SHAFT ASSY, STATOR
35370-22070	GRS210	12/2012 - 09/2015	1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-50030	GRS210,211	12/2012 - 09/2015	3
35617 - RING, CLUTCH DRUM OIL SEAL
35617-50030	GRS210,211	12/2012 - 09/2015	3
35617 - RING, CLUTCH DRUM OIL SEAL
35617-50030	GRS210,211	12/2012 - 09/2015	3
