GRS210-AETQH (2012)

Toyota Crown/Hybrid

Production Dec 2012 - Sep 2015
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )2GRFSE,4GRFSE

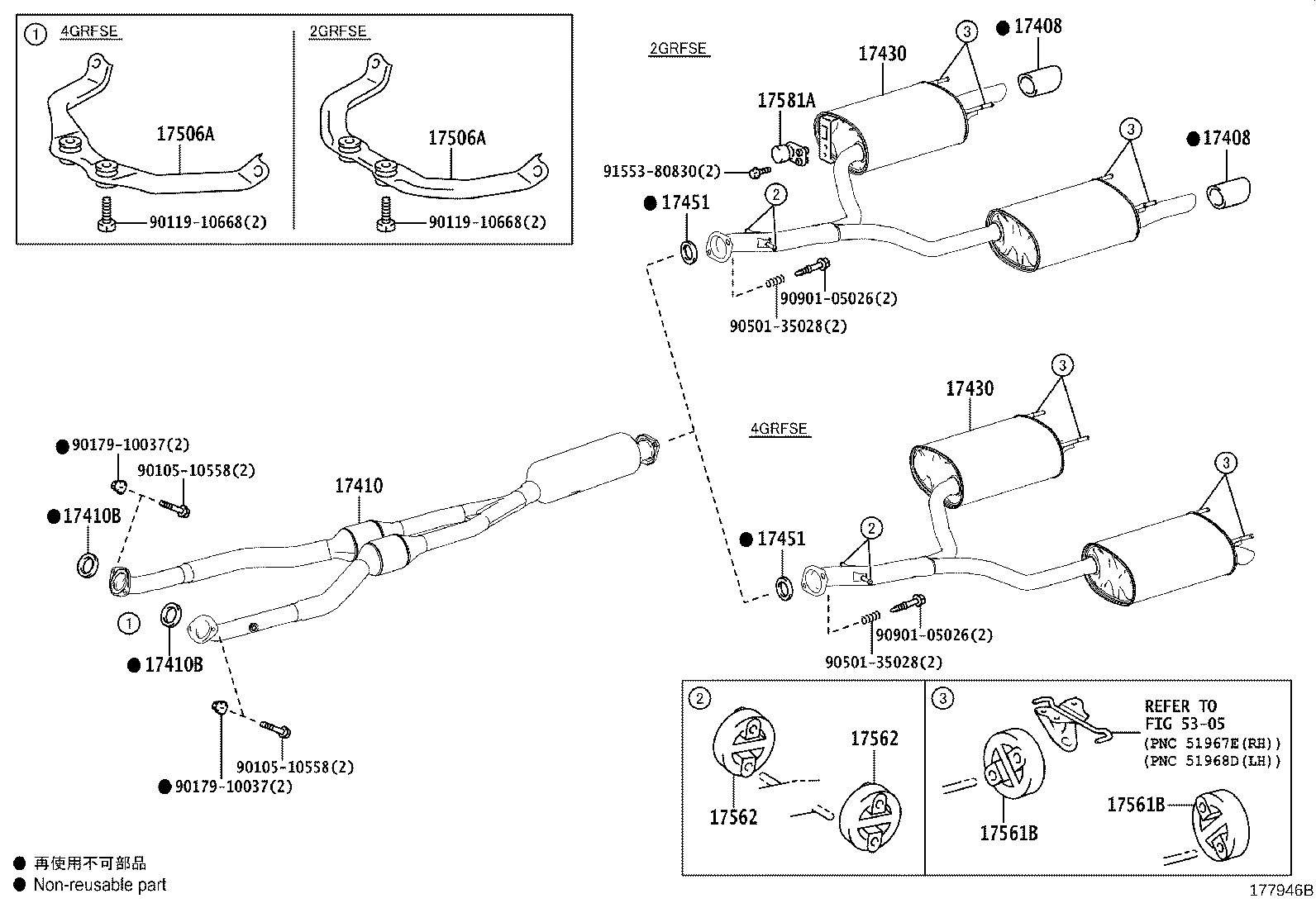

Click highlighted areas on diagram

diagram 17408 17408 17410 17410B 17410B 17430 17430 17451 17451 17506A 17506A 17561B 17561B 17562 17562 17581A 5305 9010510558 9010510558 9011910668 9011910668 9017910037 9017910037 9050135028 9050135028 9090105026 9090105026 9155380830
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-31F30

4GRFSE..GRS210

 1
17410B - GASKET, EXHAUST PIPE
90917-06078

2GR#,4GRFSE..GRS21#,GWS214

 2
17410B - GASKET, EXHAUST PIPE
90917-06078

2GR#,4GRFSE..GRS21#,GWS214

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31C60

4GRFSE..GRS210,211

 1
17430-31C61

4GRFSE..GRS210,211

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31C60

4GRFSE..GRS210,211

 1
17430-31C61

4GRFSE..GRS210,211

 1
17451 - GASKET, EXHAUST PIPE
17451-31012

2ARFSE,2GR#,4GRFSE..AWS21#,GRS21#,GWS214

 1
17451 - GASKET, EXHAUST PIPE
17451-31012

2ARFSE,2GR#,4GRFSE..AWS21#,GRS21#,GWS214

 1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-31030

4GRFSE..GRS210

 1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-31030

4GRFSE..GRS210

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-22030

2ARFSE,2GR#,4GRFSE..AWS21#,GRS21#,GWS214

 4
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-22030

2ARFSE,2GR#,4GRFSE..AWS21#,GRS21#,GWS214

 4
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-22040

2ARFSE,2GR#,4GRFSE..AWS21#,GRS21#,GWS214

 2
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-22040

2ARFSE,2GR#,4GRFSE..AWS21#,GRS21#,GWS214

 2
Common parts
90105-10558
90119-10668
90179-10037
90501-35028
90901-05026
91553-80830
Linked diagrams
5305
