GRS210-AETQH (2012)

Toyota Crown/Hybrid

Production Dec 2012 - Sep 2015
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )2GRFSE,4GRFSE..GRS210,214

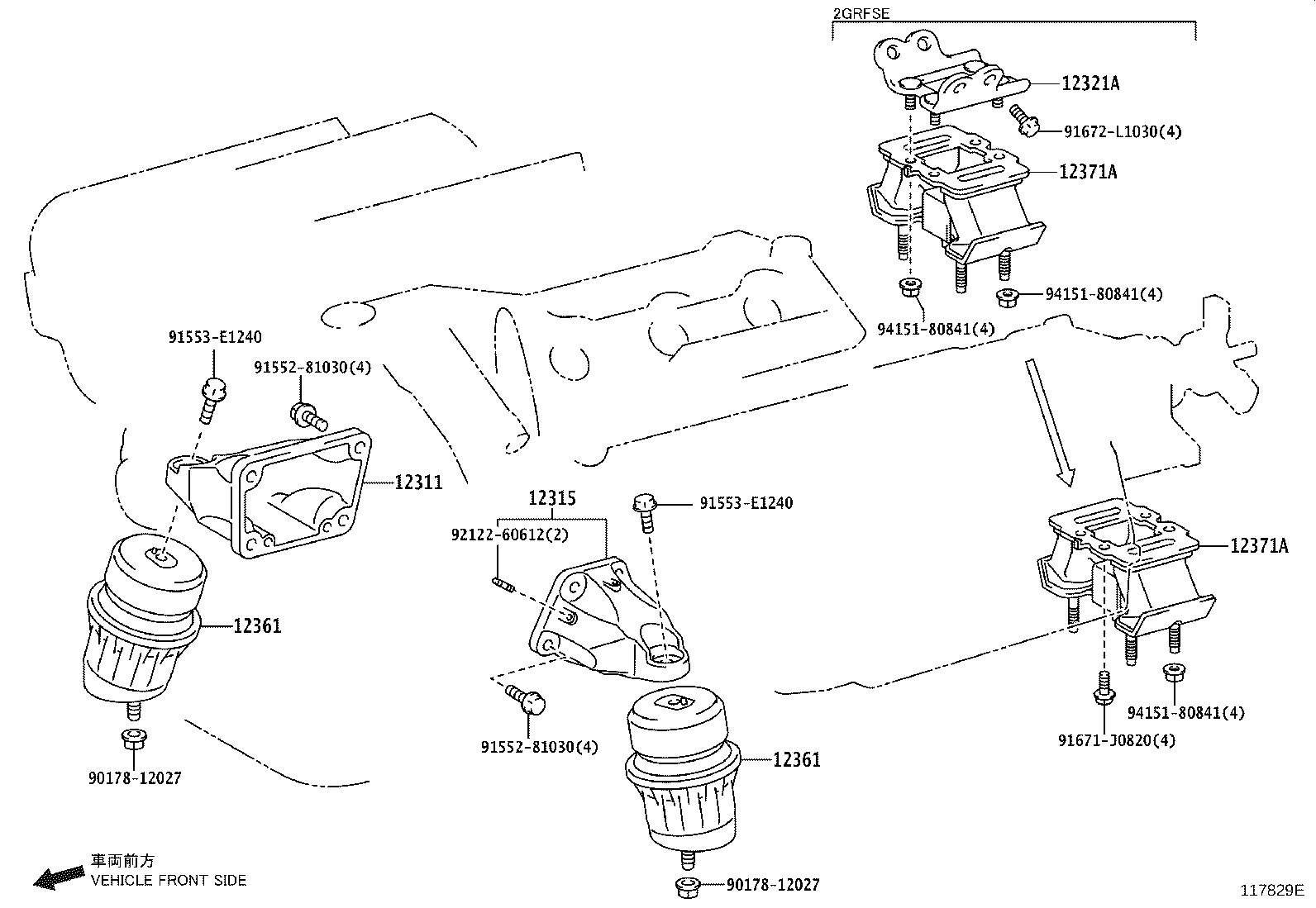

Click highlighted areas on diagram

diagram 12311 12315 12321A 12361 12361 12371A 12371A 9017812027 9017812027 9155281030 9155281030 91553E1240 91553E1240 91671J0820 91672L1030 9212260612 9415180841 9415180841 9415180841
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-31040

2GR#,4GRFSE..GRS210,214,GWS214

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12302-31010

2GR#,4GRFSE..GRS210,214,GWS214

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-31251

2GRFSE,4GRFSE..GRS210,214

 2
12361-31252

2GRFSE,4GRFSE..GRS210,214

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-31251

2GRFSE,4GRFSE..GRS210,214

 2
12361-31252

2GRFSE,4GRFSE..GRS210,214

 2
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-31300

2GRFSE,4GRFSE..GRS210,214

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-31300

2GRFSE,4GRFSE..GRS210,214

 1
Common parts
90178-12027
91552-81030
91553-E1240
91671-J0820
91672-L1030
92122-60612
94151-80841
