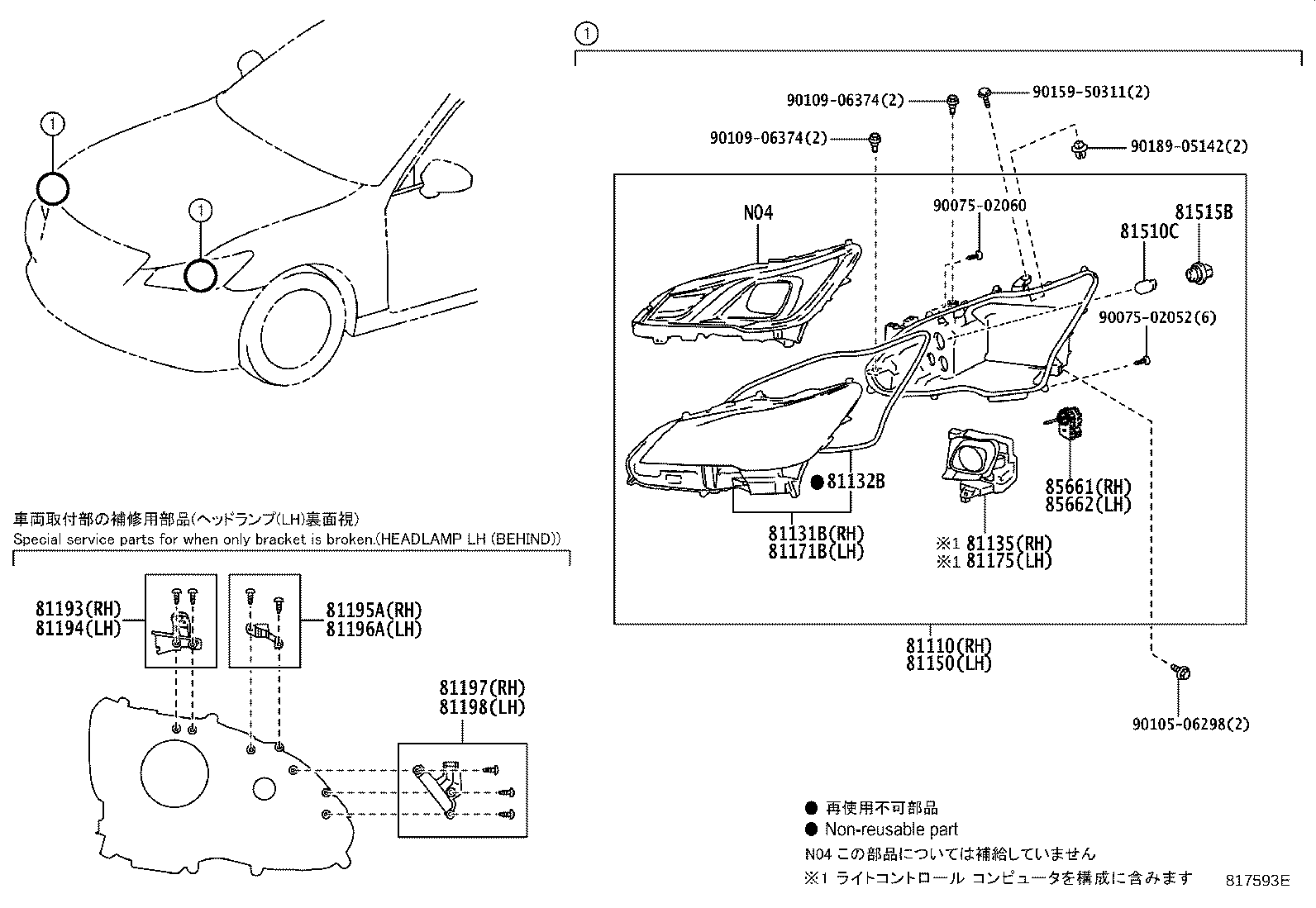

Toyota Crown/hybrid GRS210 HEADLAMP

Part #	Description	Period	Qty
81110 - HEADLAMP ASSY, RH
81110-30E40	AWS210,211,GRS210,211..ROY,ROYAL	12/2012 - 09/2015	1
81110-30L90	AWS210,211,GRS210,211..ROY,ROYAL	09/2015 - 06/2017	1
81110-30L91	AWS210,211,GRS210,211..ROY,ROYAL	07/2017 - 04/2018	1
81131B - HEAD LAMP LENS, RH
81131-30E40	AWS210,211,GRS210,211..ROY,ROYAL	12/2012 - 09/2015	1
81131-30L90	AWS210,211,GRS210,211..ROY,ROYAL	09/2015 - 04/2018	1
81132B - GASKET, HEADLAMP LENS
81132-30E40	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	2
81132-30E40	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-30L90	ARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL	09/2015 - 04/2018	1
81150 - HEADLAMP ASSY, LH
81150-30E40	AWS210,211,GRS210,211..ROY,ROYAL	12/2012 - 09/2015	1
81150-30L90	AWS210,211,GRS210,211..ROY,ROYAL	09/2015 - 06/2017	1
81150-30L91	AWS210,211,GRS210,211..ROY,ROYAL	07/2017 - 04/2018	1
81171B - HEAD LAMP LENS, LH
81171-30E40	AWS210,211,GRS210,211..ROY,ROYAL	12/2012 - 09/2015	1
81171-30L90	AWS210,211,GRS210,211..ROY,ROYAL	09/2015 - 04/2018	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-30L90	ARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL	09/2015 - 04/2018	1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-30100	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
81193-30110	ARS210,AWS210,211,GRS21#	09/2015 - 04/2018	1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-30080	ARS210,AWS210,211,GRS21#	09/2015 - 04/2018	1
81194-30100	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-30080	ARS210,AWS210,211,GRS21#	09/2015 - 04/2018	1
81195-30060	AWS210,211,GRS21#	12/2012 - 09/2015	1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-30060	AWS210,211,GRS21#	12/2012 - 09/2015	1
81196-30080	ARS210,AWS210,211,GRS21#	09/2015 - 04/2018	1
81197 - BRACKET, HEADLAMP, LOWER RH
81197-30060	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
81197-30080	ARS210,AWS210,211,GRS21#	09/2015 - 04/2018	1
81198 - BRACKET, HEADLAMP, LWR LH
81198-30060	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
81198-30080	ARS210,AWS210,211,GRS21#	09/2015 - 04/2018	1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021	ARS210,AWS21#,GRS21#,GWS214 12V 21W,ｱﾝﾊﾞｰ	09/2015 - 04/2018	2
90981-15021	AWS21#,GRS21#,GWS214 12V 21W,ｱﾝﾊﾞｰ	12/2012 - 09/2015	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	2
90075-60028	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	2
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-48050	ARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL	09/2015 - 04/2018	1
85661-12020	AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL	12/2012 - 09/2015	1
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-12020	AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL	12/2012 - 09/2015	1
85661-48050	ARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL	09/2015 - 04/2018	1
Common parts
90075-02052
90075-02060
90105-06298
90109-06374
90159-50311
90189-05142

GRS210-AETLH (2015)

(1509- )ARS210,GRS210,214..ATHS,ROY,ROYAL ; (1509- )AWS210,211,GRS211..ATH,AT
