GRS210-AETLH (2012)
Toyota Crown/Hybrid

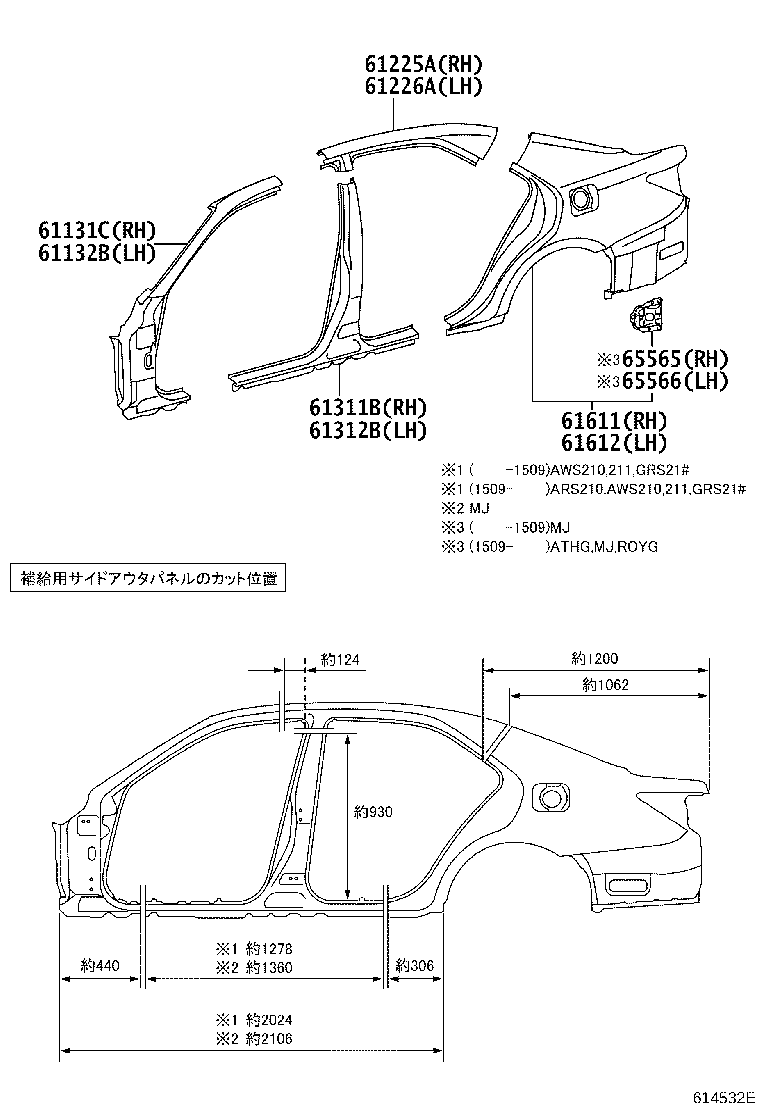

ILLUST NO. 1 OF 2(1212- )
ｱｳﾀﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61131C - PILLAR, FRONT BODY, OUTER RH | ||||
| 61131-30340 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 61132B - PILLAR, FRONT BODY, OUTER LH | ||||
| 61132-30350 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 61225A - RAIL, ROOF SIDE OUTER UPPER NO.1, RH | ||||
| 61225-30070 |
AWS210,211,GRS21# |
1 | ||
| 61226A - RAIL, ROOF SIDE OUTER UPPER NO.1, LH | ||||
| 61226-30070 |
AWS210,211,GRS21# |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-30300 |
AWS210,211,GRS21# |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-30400 |
AWS210,211,GRS21# |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-30A30 |
AWS210,211,GRS21# |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-30A70 |
AWS210,211,GRS21# |
1 | ||

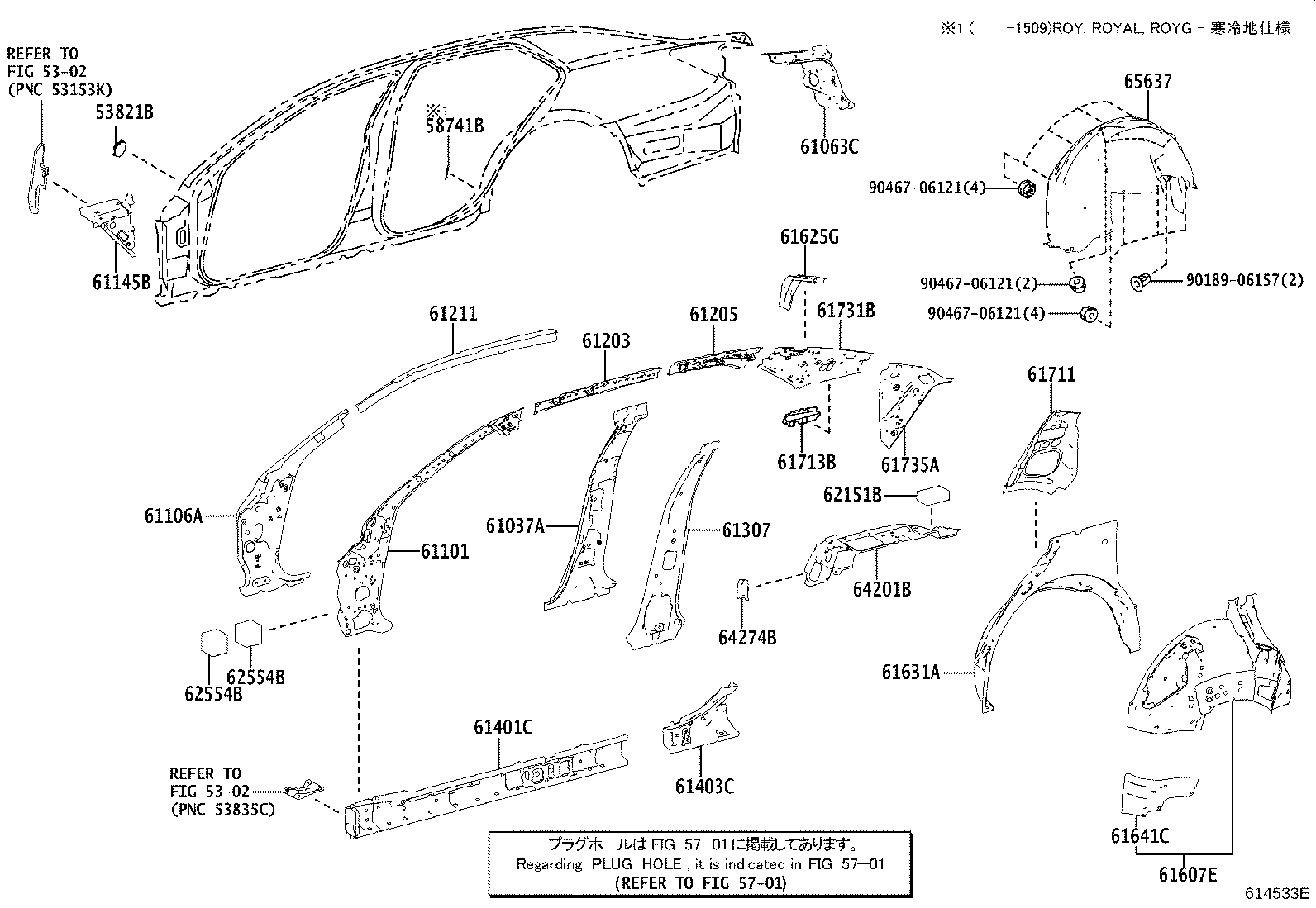

ILLUST NO. 2 OF 2(1212- )
ｲﾝﾅﾊﾟﾈﾙ,RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-30150 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-30030 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG 寒冷地仕様 |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-30130 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 61063C - TROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT RH | ||||
| 61063-30080 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 61101 - PANEL SUB-ASSY, COWL SIDE, RH | ||||
| 61101-30020 |
AWS210,211,GRS21# |
1 | ||
| 61106A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH | ||||
| 61106-30904 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61015-30090 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61203-30110 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 61205 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR RH | ||||
| 61205-30080 |
AWS210,211,GRS21# |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-30320 |
AWS210,211,GRS21# |
1 | ||
| 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||||
| 61307-30060 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 61401C - PANEL SUB-ASSY, ROCKER, OUTER RH | ||||
| 61401-30902 |
AWS210,211,GRS21# |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-30040 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 61607E - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-30280 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 61625G - EXTENSION, QUARTER PANEL, REAR RH | ||||
| 61625-30120 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-30250 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH | ||||
| 61641-30050 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-30190 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 61713B - REINFORCE, ROOF SIDE, OUTER RH | ||||
| 61713-30050 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-30280 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-30140 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-20160 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-30010 |
AWS21#,GRS21#,GWS214 |
4 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-30010 |
AWS21#,GRS21#,GWS214 |
4 | ||
| 64201B - STRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, RH | ||||
| 64201-30260 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 64274B - PAD, ROOM PARTITION, NO.2 | ||||
| 64274-30040 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 65637 - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-30150 |
AWS210,211,GRS21# |
1 | ||
| Common parts | ||||
| 90189-06157 | ||||
| 90467-06121 | ||||
| Linked diagrams | ||||
| 5302 | ||||
| 5701 | ||||

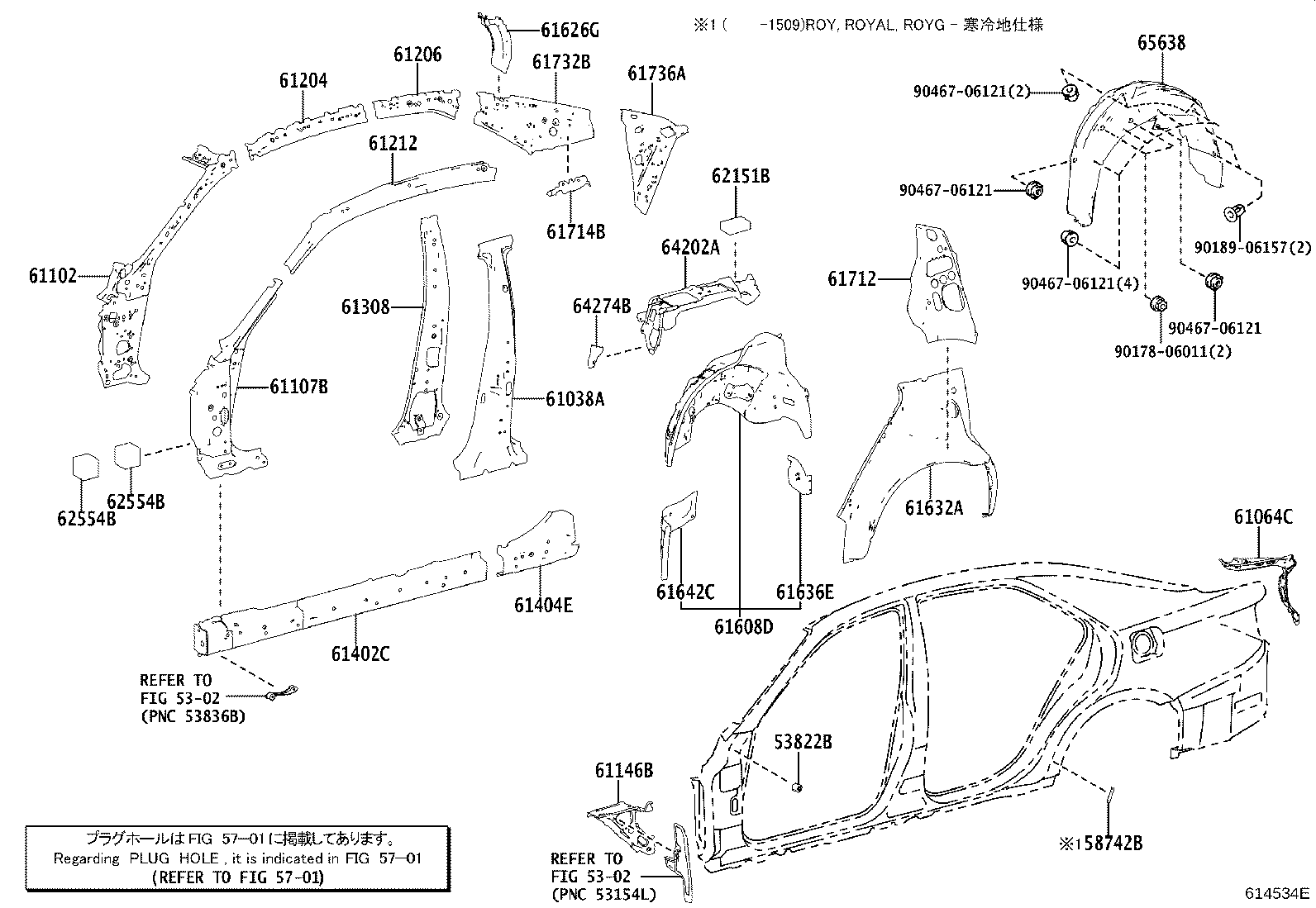

ILLUST NO. 2 OF 2(1212- )
ｲﾝﾅﾊﾟﾈﾙ,LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53821-30150 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-30030 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG 寒冷地仕様 |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-30130 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 61064C - TROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT LH | ||||
| 61064-30070 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 61102 - PANEL SUB-ASSY, COWL SIDE, LH | ||||
| 61102-30020 |
AWS210,211,GRS21# |
1 | ||
| 61107B - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH | ||||
| 61107-30904 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61016-30090 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61204-30130 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 61206 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR LH | ||||
| 61206-30080 |
AWS210,211,GRS21# |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-30320 |
AWS210,211,GRS21# |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-30050 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 61402C - PANEL SUB-ASSY, ROCKER, OUTER LH | ||||
| 61402-30902 |
AWS210,211,GRS21# |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-30040 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 61608D - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-30280 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 61626G - EXTENSION, QUARTER PANEL, REAR LH | ||||
| 61626-30130 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-30250 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 61636E - EXTENSION, QUARTER WHEEL HOUSE, LH | ||||
| 61636-30100 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH | ||||
| 61642-30050 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-30190 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 61714B - REINFORCE, ROOF SIDE, OUTER LH | ||||
| 61714-30050 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-30290 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-30130 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-20160 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-30010 |
AWS21#,GRS21#,GWS214 |
4 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-30010 |
AWS21#,GRS21#,GWS214 |
4 | ||
| 64202A - STRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, LH | ||||
| 64202-30250 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 64274B - PAD, ROOM PARTITION, NO.2 | ||||
| 64274-30040 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 65638 - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-30150 |
AWS210,211,GRS21# |
1 | ||
| Common parts | ||||
| 90178-06011 | ||||
| 90189-06157 | ||||
| 90467-06121 | ||||
| Linked diagrams | ||||
| 5302 | ||||
| 5701 | ||||
