GRS210-AETLH (2012)

Toyota Crown/Hybrid

Production Dec 2012 - Sep 2015
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1212-1509)ROY,ROYAL,ROYG

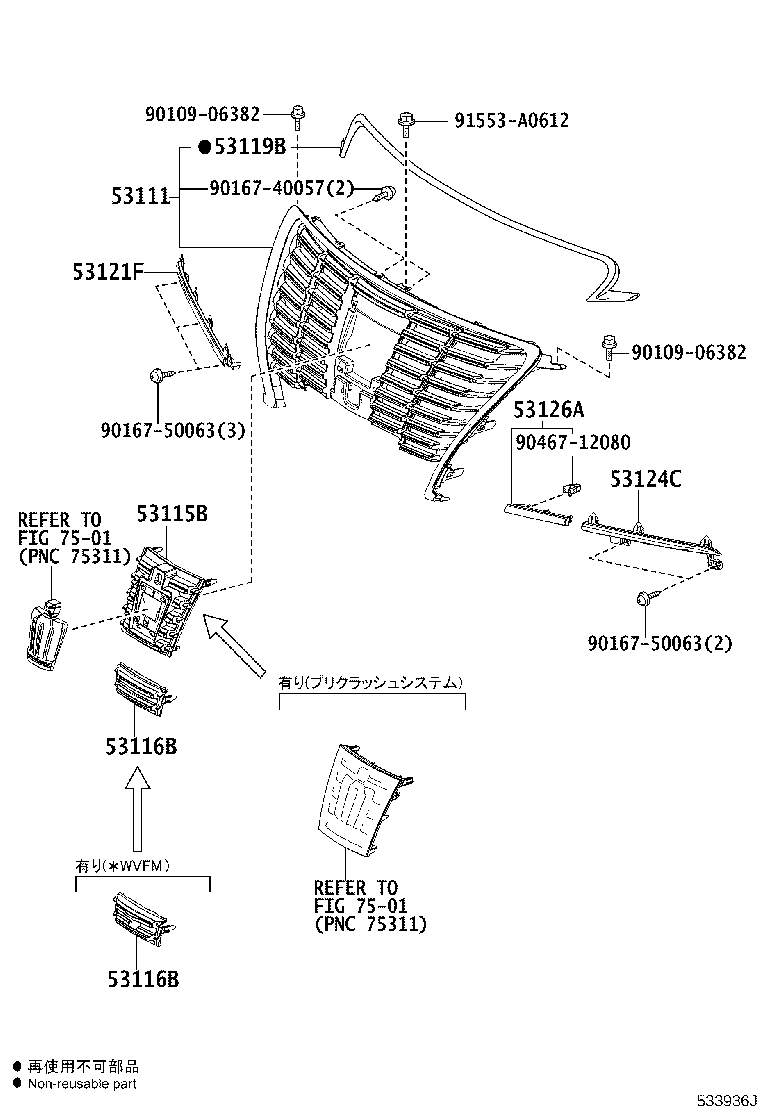

Click highlighted areas on diagram

diagram 53111 53115B 53116B 53116B 53119B 53121F 53124C 53126A 7501 7501 9010906382 9010906382 9016740057 9016750063 9016750063 9046712080 91553A0612
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53105-30060

AWS210,211,GRS210,211..ROY,ROYAL,ROYG

ﾒｯｷ

 1
53115B - BRACKET, RADIATOR GRILLE
53115-30110

AWS210,211,GRS210,211..ROY,ROYAL,ROYG

 1
53116B - BRACKET, RADIATOR GRILLE, NO.2
53116-30150

AWS210,211,GRS210,211..ROY,ROYG

ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM)

 1
53116-30150

AWS210,211,GRS210,211..ROY,ROYG

ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM)

 1
53116-30140

AWS210,211,GRS210,211..ROY,ROYAL,ROYG

 1
53116B - BRACKET, RADIATOR GRILLE, NO.2
53116-30150

AWS210,211,GRS210,211..ROY,ROYG

ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM)

 1
53116-30150

AWS210,211,GRS210,211..ROY,ROYG

ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM)

 1
53116-30140

AWS210,211,GRS210,211..ROY,ROYAL,ROYG

 1
53119B - PROTECTOR, RADIATOR GRILLE
53119-30280

AWS210,211,GRS210,211..ROY,ROYAL,ROYG

 1
53121F - MOULDING, RADIATOR GRILLE, UPPER RH
53121-30220

AWS210,211,GRS210,211..ROY,ROYAL,ROYG

 1
53124C - MOULDING, RADIATOR GRILLE, UPPER LH
53124-30110

AWS210,211,GRS210,211..ROY,ROYAL,ROYG

 1
53126A - MOULDING, RADIATOR GRILLE, CENTER LH
53126-30090

AWS210,211,GRS210,211..ROY,ROYAL,ROYG

 1
Common parts
90109-06382
90167-40057
90167-50063
90467-12080
91553-A0612
Linked diagrams
7501
