AZSH21-AEXSB (2020)

Toyota Crown/Hybrid

Production Nov 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF11(2011- )

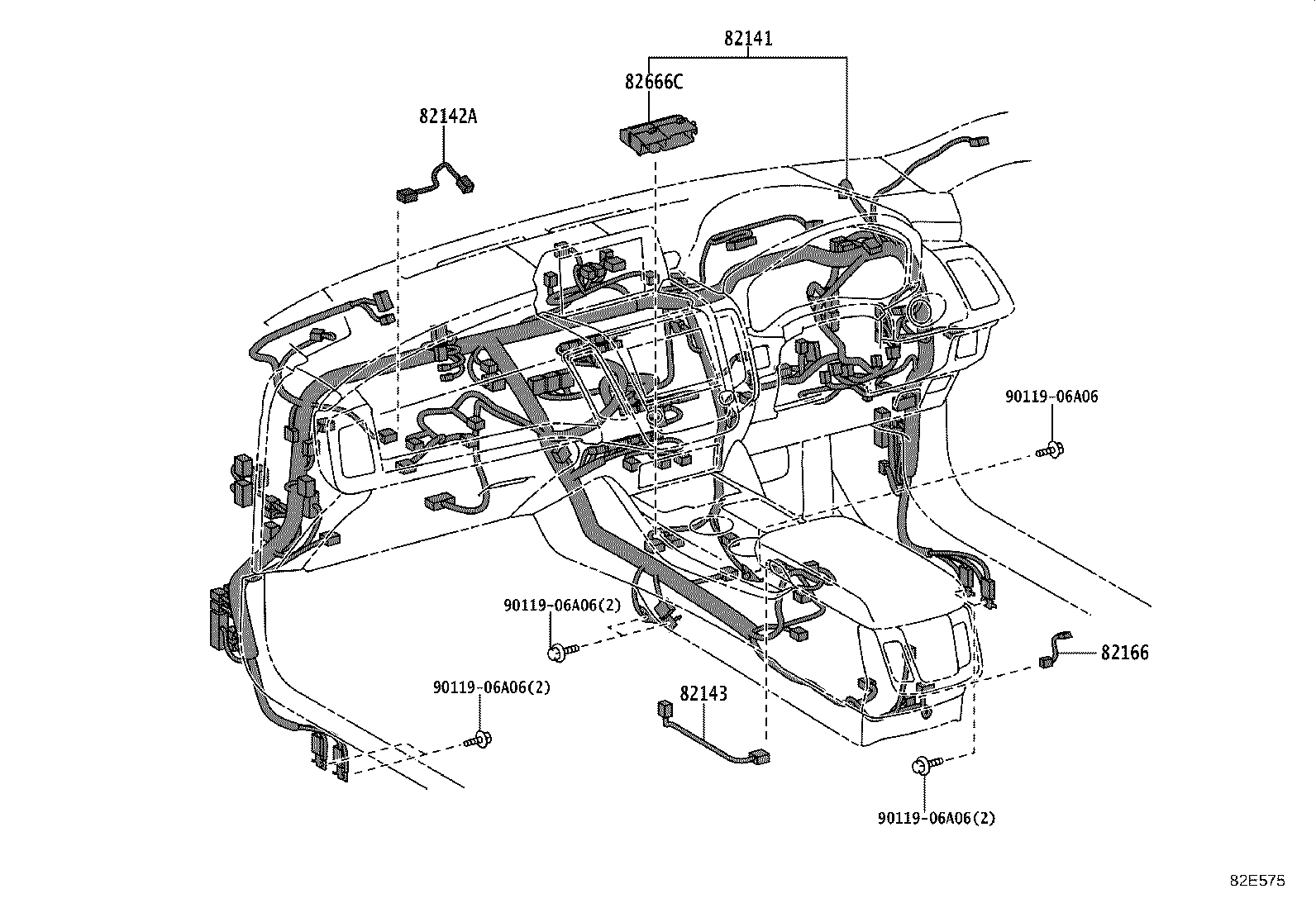

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

diagram 82141 82142A 82143 82166 82666C 9011906A06 9011906A06 9011906A06 9011906A06
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82141-3FG10

AZSH2#..B,RSB

ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−無し

 1
82141-3FF60

AZSH2#..B,RSB

ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−無し

 1
82141-3FE90

AZSH2#..G,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF

 1
82141-3FF30

AZSH2#..G,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF

ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ)

 1
82141-3FJ30

AZSH2#..B,RSB

寒冷地仕様

 1
82141-3FG70

AZSH2#..B,RSB

 1
82141-3FG11

AZSH2#..B,RSB

ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−無し

 1
82141-3FJ50

AZSH2#..B,RSB

寒冷地仕様&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り(*ARFHL)

 1
82141-3FF61

AZSH2#..B,RSB

ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−無し

 1
82141-3FJ10

AZSH2#..B,RSB

ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り(*ARFHL)

 1
82142A - WIRE, INSTRUMENT PANEL, NO.2
82140-30030

ARS220,AZSH2#,GWS224

 1
82143 - WIRE, INSTRUMENT PANEL, NO.3
82143-30110

ARS220,AZSH2#,GWS224

 1
82166 - WIRE, CONSOLE BOX
82166-30310

ARS220,AZSH2#,GWS224

 1
82666C - HOLDER, CONNECTOR NO.4
82666-50A70

ARS220,AZSH2#,GWS224

 1
Common parts
90119-06A06
