AZSH21-AEXRB (2018)

Toyota Crown/Hybrid

Production Jun 2018 - Oct 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

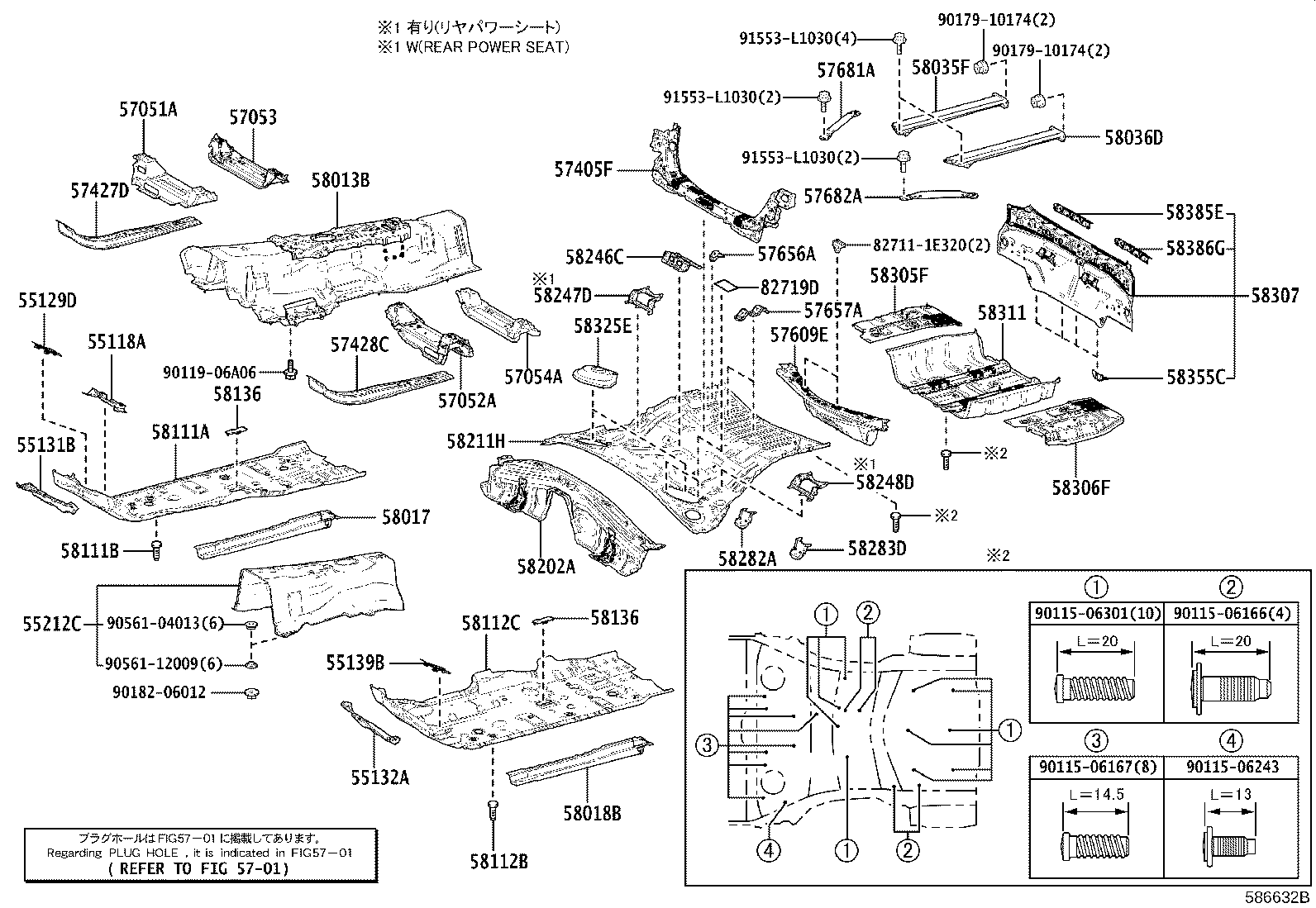

ILLUST NO. 1 OF 2(1806- )AZSH2#

Click highlighted areas on diagram

ﾌﾛｱﾊﾟﾝ&ﾛﾜｰﾊﾞｯｸﾊﾟﾈﾙ

diagram 55118A 55129D 55131B 55132A 55139B 55212C 5701 57051A 57052A 57053 57054A 57405F 57427D 57428C 57609E 57656A 57657A 57681A 57682A 58013B 58017 58018B 58035F 58036D 58111A 58111B 58112B 58112C 58136 58136 58202A 58211H 58246C 58247D 58248D 58282A 58283D 58305F 58306F 58307 58311 58325E 58355C 58385E 58386G 827111E320 82719D 9011506166 9011506167 9011506243 9011506301 9011906A06 9017910174 9017910174 9018206012 9056104013 9056112009 91553L1030 91553L1030 91553L1030
Part # Description Qty Price
55118A - EXTENSION, DASH PANEL, RH
55118-11011

ARS220,AZSH2#,GWS224

 1
55129D - COVER, DASH PANEL HOLE, RH
55129-11010

ARS220,AZSH2#,GWS224

 1
55131B - REINFORCEMENT, TOE BOARD, RH
55131-30120

ARS220,AZSH2#,GWS224

 1
55132A - REINFORCEMENT, TOE BOARD, LH
55132-30050

ARS220,AZSH2#,GWS224

 1
55139B - COVER, DASH PANEL HOLE, LH
55139-11010

ARS220,AZSH2#,GWS224

 1
55212C - SILENCER, FRONT PANEL, LOWER
55212-30240

AZSH21

 1
57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57051-30120

ARS220,AZSH2#,GWS224

 1
57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57052-30130

AZSH21

 1
57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH
57053-30090

ARS220,AZSH2#,GWS224

 1
57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH
57054-30100

AZSH21

 1
57405F - MEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR
57405-30081

ARS220,AZSH2#,GWS224

 1
57427D - REINFORCEMENT, FRONT FLOOR, NO.3 RH
57427-11010

ARS220,AZSH2#,GWS224

 1
57428C - REINFORCEMENT, FRONT FLOOR, NO.3 LH
57428-11010

ARS220,AZSH2#,GWS224

 1
57609E - REINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, LH
57609-30060

AZSH2#

 1
57656A - BRACKET, EXHAUST PIPE MOUNTING, NO.1
57656-30040

AZSH2#

 1
57657A - BRACKET, EXHAUST PIPE MOUNTING, NO.2
57657-30040

AZSH2#

 2
57681A - BRACE, REAR FLOOR NO.2 CROSSMEMBER, OUTER
57681-53010

AZSH20;ARS220,AZSH21,GWS224..GEXEF,GF,RSADF,RSADV,RSF,SF

 1
57682A - BRACE, REAR FLOOR NO.2 CROSSMEMBER, OUTER LH
57681-53010

AZSH20;ARS220,AZSH21,GWS224..GEXEF,GF,RSADF,RSADV,RSF,SF

 1
58013B - PANEL SUB-ASSY, FRONT FLOOR, CENTER
58013-30510

AZSH21

 1
58017 - PANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR RH
58017-30020

ARS220,AZSH2#,GWS224

 1
58018B - PANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR LH
58017-30020

ARS220,AZSH2#,GWS224

 1
58035F - BRACE SUB-ASSY, REAR FLOOR PANEL, RH
58035-30050

AZSH2#

 1
58036D - BRACE SUB-ASSY, REAR FLOOR PANEL, LH
58036-30040

AZSH2#

 1
58111A - PAN, FRONT FLOOR, RH
58111-30916

AZSH21

 1
58111B - BOLT, WELD(FOR FRONT FLOOR PAN)
90115-06166

ARS220,AZSH2#,GWS224

 14
58112B - BOLT, WELD(FOR FRONT FLOOR PAN, LH)
90115-06166

AZSH21

 16
58112C - PAN, FRONT FLOOR, LH
58112-30912

AZSH21

 1
58136 - COVER, FRONT FLOOR HOLE
58136-11010

ARS220,AZSH2#,GWS224

 2
58136 - COVER, FRONT FLOOR HOLE
58136-11010

ARS220,AZSH2#,GWS224

 2
58202A - PAN SUB-ASSY, CENTER FLOOR, FRONT
58202-30140

ARS220,AZSH2#,GWS224

 1
58211H - PAN, CENTER FLOOR
58211-30411

ARS220,AZSH2#,GWS224..B,G,GF,RS,RSADF,RSADV,RSB,RSF,S,SF

 1
58246C - BRACKET, REAR SEAT HINGE, CENTER NO.2
58246-30020

ARS220,AZSH2#,GWS224

 1
58282A - BASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH
58282-30040

ARS220,AZSH2#,GWS224

 1
58283D - BASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH
58283-30030

ARS220,AZSH2#,GWS224

 1
58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH
58305-30250

ARS220,AZSH2#,GWS224

 1
58306F - PANEL SUB-ASSY, REAR FLOOR SIDE, LH
58306-30250

ARS220,AZSH2#,GWS224

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-30850

AZSH2#

 1
58311 - PAN, REAR FLOOR
58311-30911

AZSH2#

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-30060

ARS220,AZSH2#,GWS224

 2
58355C - BRACKET, REAR BUMPER ARM
58355-53030

ARS220,AZSH2#,GWS224

 4
58385E - BRACKET, REAR BUMPER COVER, RH
58385-33060

ARS220,AZSH2#,GWS224

 1
58386G - BRACKET, REAR BUMPER COVER, LH
58385-33060

ARS220,AZSH2#,GWS224

 1
82719D - COVER, WIRE HANRESS SERVICE HOLE
82719-30010

ARS220,AZSH2#,GWS224

 2
Common parts
82711-1E320
90115-06166
90115-06167
90115-06243
90115-06301
90119-06A06
90179-10174
90182-06012
90561-04013
90561-12009
91553-L1030
Linked diagrams
5701

ILLUST NO. 2 OF 2(1806- )

Click highlighted areas on diagram

ﾌﾛｱｱﾝﾀﾞｶﾊﾞｰ

diagram 51495 51495A 57627A 57627E 57628C 57628H 58165B 58165H 58165J 58166 58166E 58166F 58398H 58398P 58398Q 9010906388 9010906388 9010906388 9010906388 9015960496 9015960496 9018906066 9018906066 9048010024 9048010024 9048010024 9048010024 9048010024 9048010024 9048010024 9056110024 9056110024 9056110024 9056110024 9056110024 9056110024 9056110024
Part # Description Qty Price
51495 - COVER, TRANSMISSION UNDER
51495-50020

AZSH21

 1
51495A - CLIP, TRANSMISSION UNDER COVER
90467-07220

AZSH21

 1
57627A - COVER, REAR FLOOR SIDE MEMBER, RH
57627-30070

ARS220,AZSH2#,GWS224

 1
57627E - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.1
90467-07215

ARS220,AZSH2#,GWS224

 3
57628C - COVER, REAR FLOOR SIDE MEMBER, LH
57628-30070

ARS220,AZSH2#,GWS224

 1
57628H - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.1
90467-07215

ARS220,AZSH2#,GWS224

 3
58165B - COVER, FRONT FLOOR, RH
58165-30100

ARS220,AZSH2#,GWS224

 1
58165H - CLIP, FRONT FLOOR COVER, NO.1
90467-17026A0

ARS220,AZSH2#,GWS224

SUPER WHITE 2

 5
58165J - CLIP, FRONT FLOOR COVER, NO.2
90467-17027C0

ARS220,AZSH2#,GWS224

BLACK

 5
58166 - COVER, FRONT FLOOR, LH
58166-30090

ARS220,AZSH2#,GWS224

 1
58166E - CLIP, FRONT FLOOR COVER, NO.1
90467-17026A0

ARS220,AZSH2#,GWS224

SUPER WHITE 2

 6
58166F - CLIP, FRONT FLOOR COVER, NO.2
90467-17027C0

ARS220,AZSH2#,GWS224

BLACK

 6
58398H - COVER, FLOOR UNDER, NO.1
58398-30110

AZSH2#

 1
58398P - CLIP, FLOOR UNDER COVER, NO.1
90467-17026A0

ARS220,AZSH2#,GWS224

SUPER WHITE 2

 3
58398Q - CLIP, FLOOR UNDER COVER, NO.2
90467-17027C0

ARS220,AZSH2#,GWS224

BLACK

 3
Common parts
90109-06388
90159-60496
90189-06066
90480-10024
90561-10024
