AZSH21-AEXMB (2018)

Toyota Crown/Hybrid

Production Jun 2018 - Oct 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

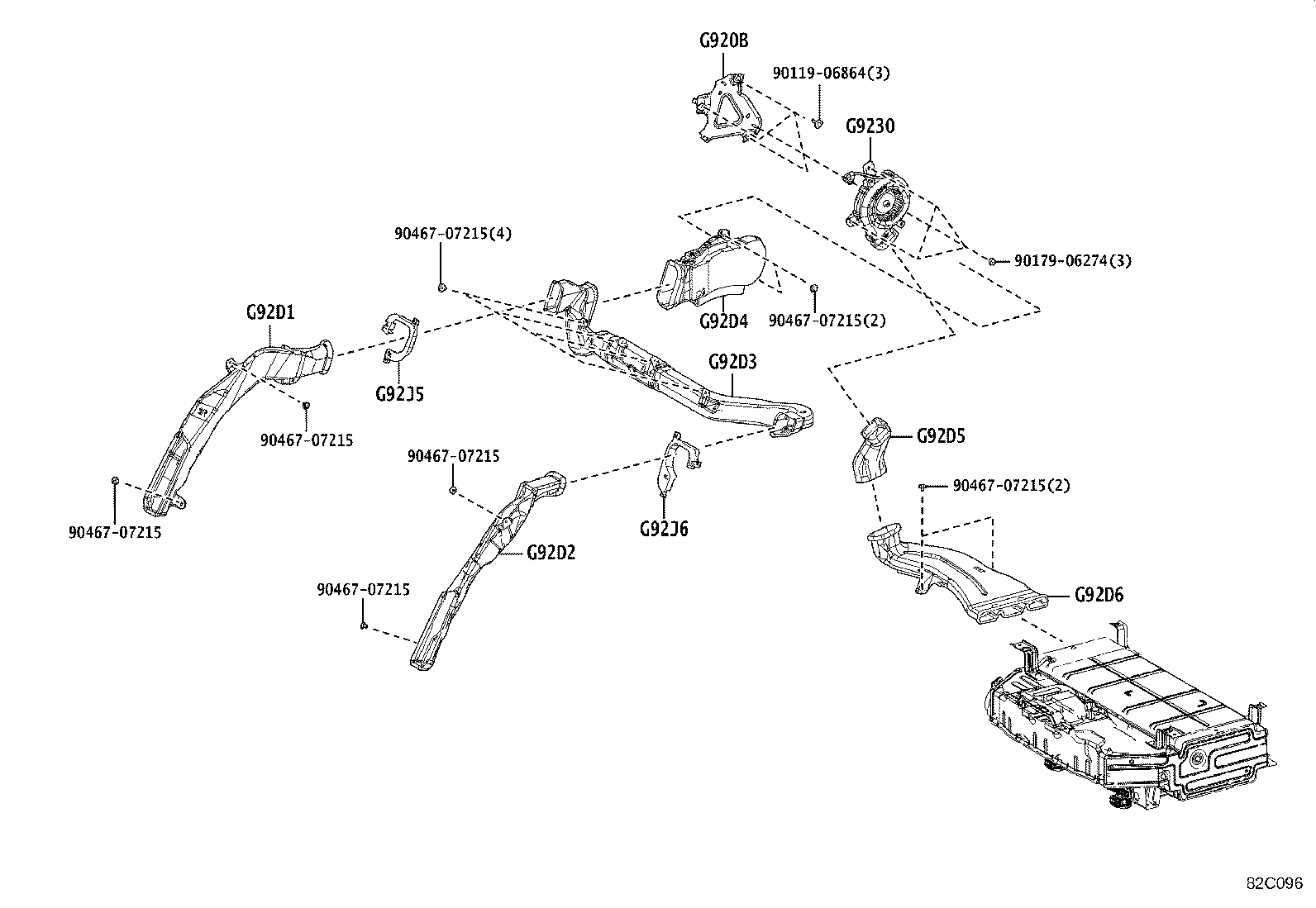

ILLUST NO. 2 OF 4(1806- )AZSH2#

Click highlighted areas on diagram

HV ﾊﾞｯﾃﾘ

diagram 9011906864 9017906274 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 G920B G9230 G92D1 G92D2 G92D3 G92D4 G92D5 G92D6 G92J5 G92J6
Part # Description Qty Price
G920B - BRACKET SUB-ASSY, HV BATTERY CARRIER, NO.1
G920B-30040

AZSH2#

 1
G9230 - BLOWER ASSY, BATTERY COOLING
G9230-11010

AZSH2#,GWS224

 1
G92D1 - DUCT, HYBRID BATTERY INTAKE, NO.1
G92D1-30060

AZSH2#,GWS224

 1
G92D2 - DUCT, HYBRID BATTERY INTAKE, NO.2
G92E1-30040

AZSH2#,GWS224

 1
G92D3 - DUCT, HYBRID BATTERY INTAKE, NO.3
G92D2-30060

AZSH2#

 1
G92D4 - DUCT, HYBRID BATTERY INTAKE, NO.4
G92D3-30060

AZSH2#

 1
G92D5 - DUCT, HYBRID BATTERY INTAKE, NO.5
G92D4-30020

AZSH2#

 1
G92D6 - DUCT, HYBRID BATTERY INTAKE, NO.6
G92D5-30030

AZSH2#

 1
G92J5 - PACKING, HYBRID BATTERY, NO.1
G92J5-30040

AZSH2#,GWS224

 1
G92J6 - PACKING, HYBRID BATTERY, NO.2
G92J6-30030

AZSH2#,GWS224

 1
Common parts
90119-06864
90179-06274
90467-07215

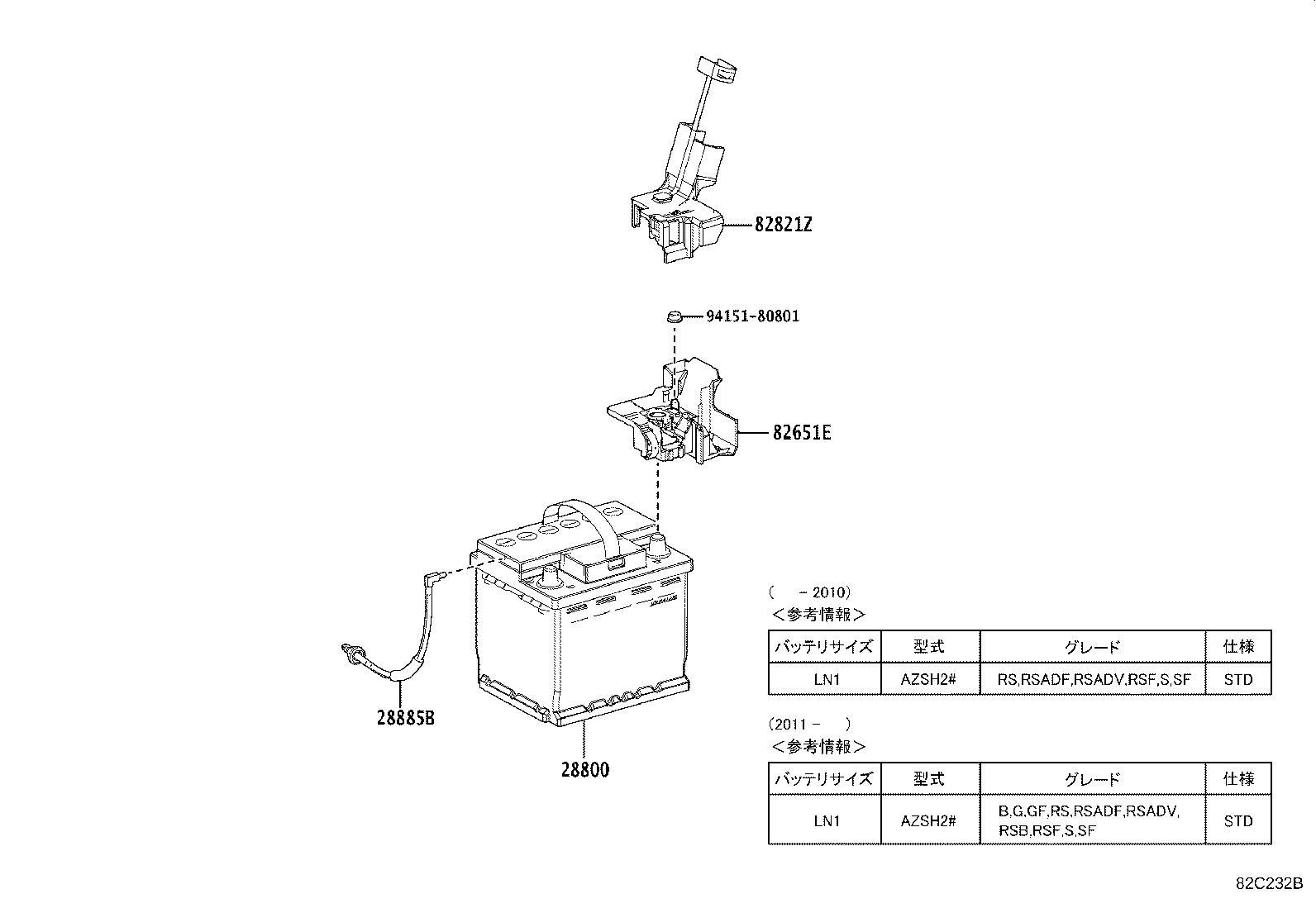

ILLUST NO. 1 OF 4(1806- )AZSH2#..B,RS,RSADF,RSADV,RSB,RSF,S,SF

Click highlighted areas on diagram

12V ﾊﾞｯﾃﾘ

diagram 28800 28885B 82651E 82821Z 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-21220

A25AFXS..AZSH2#..RS,RSADF,RSADV,RSF,S,SF

LN1

 1
28885B - HOSE, BATTERY
28885-31110

A25AFXS,8ARFTS,8GRFXS..ARS220,AZSH2#,GWS224

 1
82651E - BLOCK, TERMINAL
82651-30030

ARS220,AZSH2#,GWS224

 1
82821Z - COVER, CONNECTOR
82821-30B60

ARS220,AZSH2#,GWS224

 1
Common parts
94151-80801

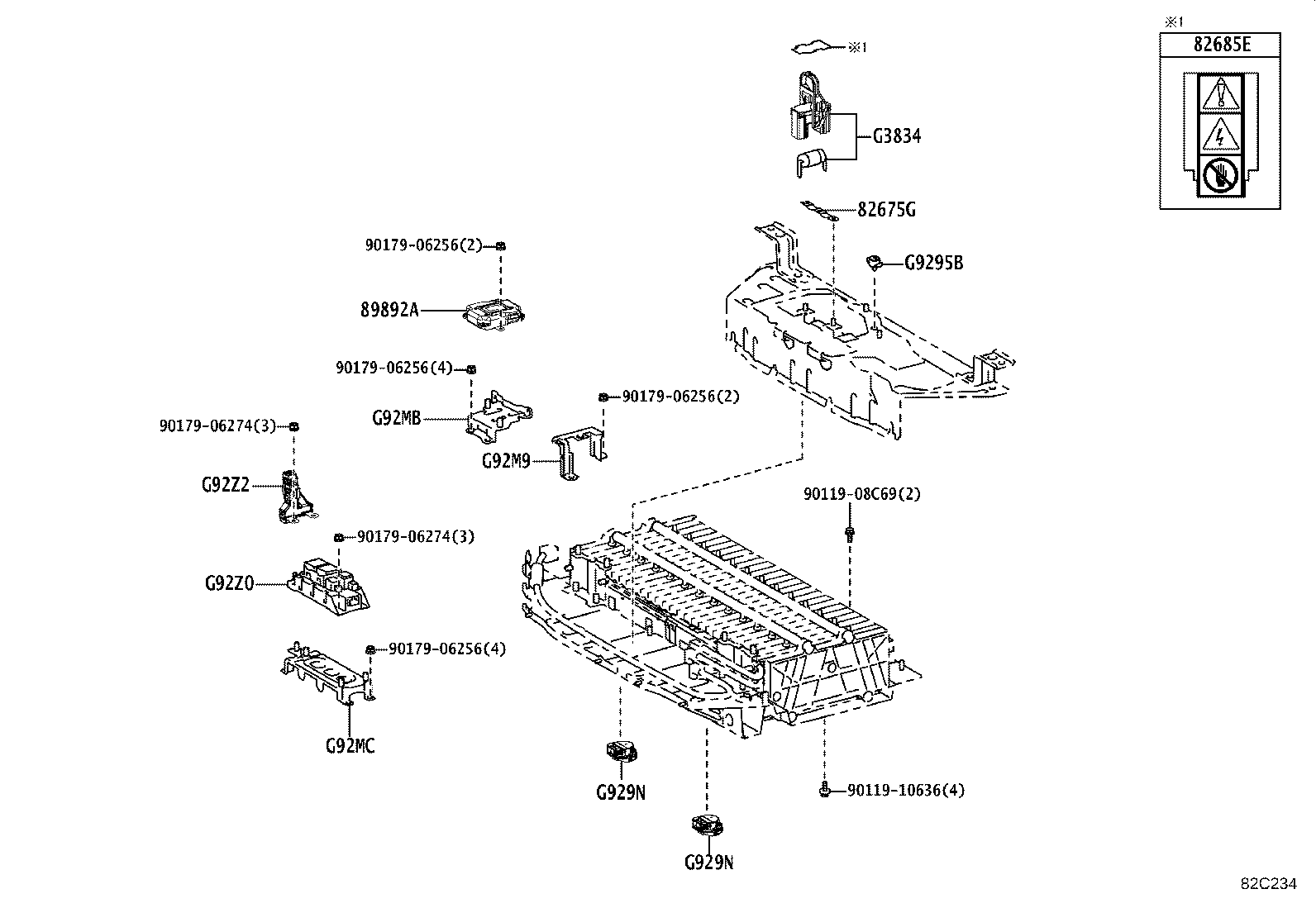

ILLUST NO. 3 OF 4(1806- )AZSH2#

Click highlighted areas on diagram

HV ﾊﾞｯﾃﾘ

diagram 82675G 82685E 89892A 9011908C69 9011910636 9017906256 9017906256 9017906256 9017906256 9017906274 9017906274 G3834 G9295B G929N G929N G92M9 G92MB G92MC G92Z0 G92Z2
Part # Description Qty Price
82675G - TERMINAL, EARTH
82675-33070

AZSH2#

 1
82685E - PLATE, SERVICE PLUG CAUTION
82685-76020

AZSH2#

 1
89892A - SENSOR, BATTERY VOLTAGE
89892-30040

AZSH2#

 1
G3834 - GRIP, SERVICE PLUG
G3834-48010

AZSH2#

 1
G9295B - STRIKER, BATTERY COVER LOCK
G9295-30020

AZSH2#,GWS224

 1
G929N - PLUG, BATTERY DRAIN
G929N-53010

AZSH2#

 2
G929N - PLUG, BATTERY DRAIN
G929N-53010

AZSH2#

 2
G92M9 - BRACKET, HV BATTERY UPPER CARRIER, NO.3
G92M9-53010

AZSH2#

 1
G92MB - BRACKET, HV BATTERY UPPER CARRIER, NO.5
G92MB-53010

AZSH2#

 1
G92MC - BRACKET, HV BATTERY UPPER CARRIER, NO.6
G92MC-53010

AZSH2#

 1
G92Z0 - BLOCK ASSY, HV BATTERY JUNCTION
G92Z0-53010

AZSH2#

 1
G92Z2 - BLOCK, HYBRID BATTERY TERMINAL
G92Z2-53010

AZSH2#

 1
Common parts
90119-08C69
90119-10636
90179-06256
90179-06274

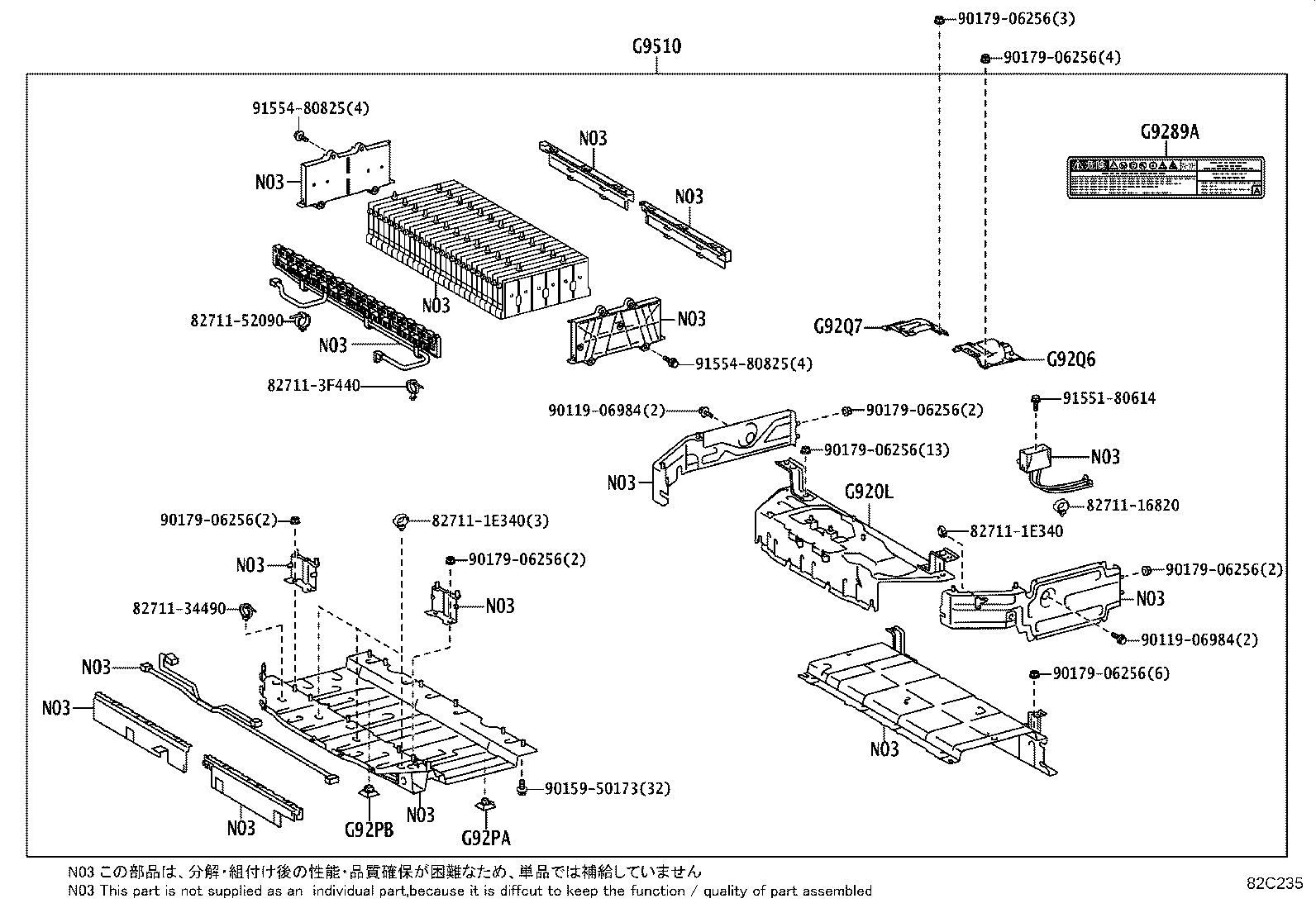

ILLUST NO. 4 OF 4(1806- )AZSH2#

Click highlighted areas on diagram

HV ﾊﾞｯﾃﾘ

diagram 8271116820 827111E340 827111E340 8271134490 827113F440 8271152090 9011906984 9011906984 9015950173 9017906256 9017906256 9017906256 9017906256 9017906256 9017906256 9017906256 9017906256 9155180614 9155480825 9155480825 G920L G9289A G92PA G92PB G92Q6 G92Q7 G9510
Part # Description Qty Price
G920L - COVER SUB-ASSY, HYBRID BATTERY, UPPER NO.1
G920L-53010

AZSH2#

 1
G9289A - LABEL, BATTERY CAUTION
G9288-50010

AZSH2#

 1
G92PA - GUIDE, HYBRID BATTERY, FRONT
G92PA-47010

AZSH2#

 1
G92PB - GUIDE, HYBRID BATTERY, REAR
G92PB-47010

AZSH2#

 1
G92Q6 - PANEL, HV BATTERY SHIELD, NO.4
G92Q6-53010

AZSH2#

 1
G92Q7 - PANEL, HV BATTERY SHIELD, NO.5
G92Q7-53010

AZSH2#

 1
G9510 - BATTERY ASSY, HV SUPPLY
G9510-53010

AZSH2#

 1
Common parts
82711-16820
82711-1E340
82711-34490
82711-3F440
82711-52090
90119-06984
90159-50173
90179-06256
91551-80614
91554-80825
