AZSH21-AEXMB (2018)

Toyota Crown/Hybrid

Production Jun 2018 - Oct 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )

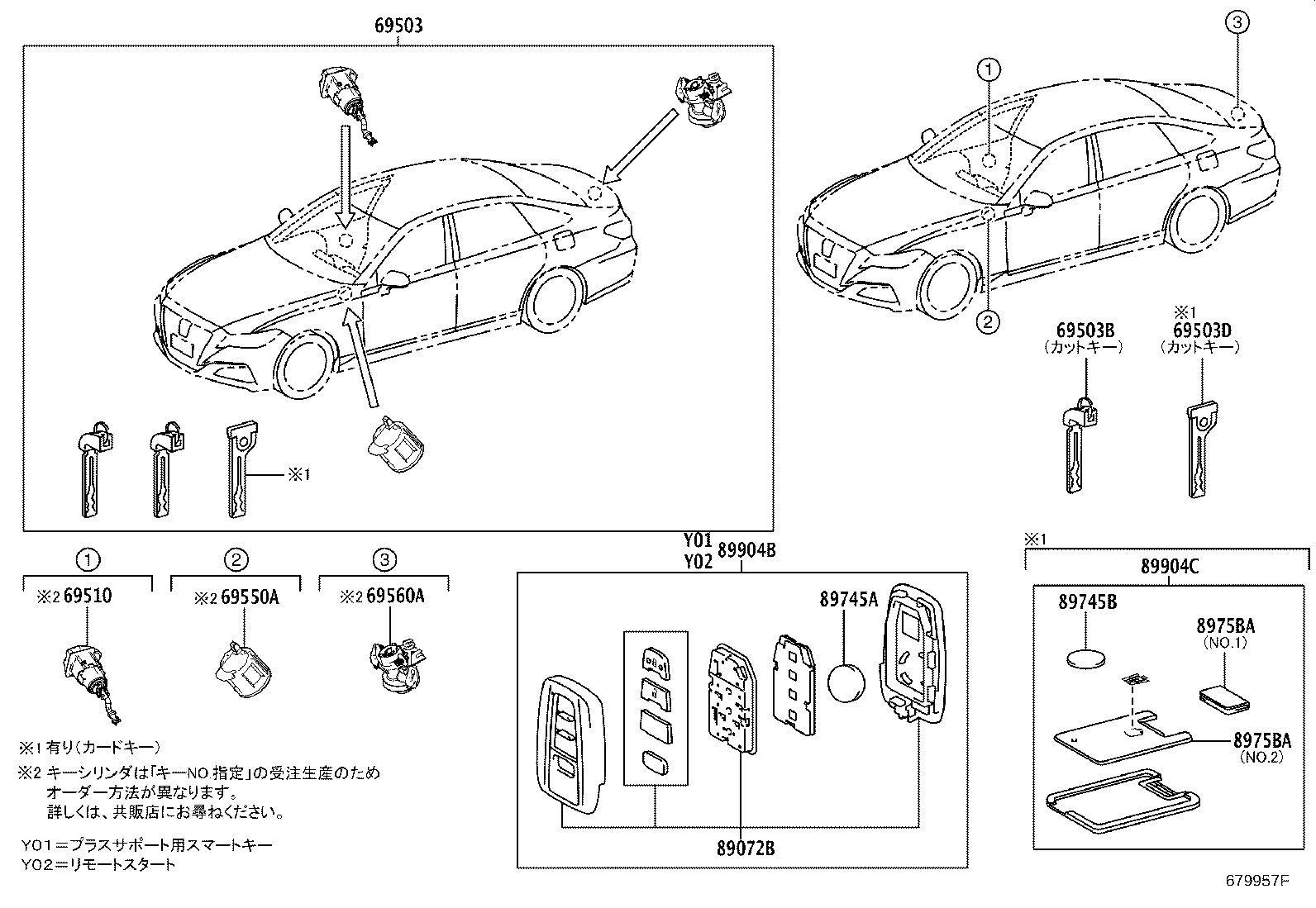

Click highlighted areas on diagram

diagram 69503 69503B 69503D 69510 69550A 69560A 89072B 89745A 89745B 8975BA 8975BA 89904B 89904C
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-30E80

ARS220,AZSH2#,GWS224..B,RS,RSB,RSF,S,SF

 1
69503B - KEY, CUT
69515-16100

ARS220,AZSH2#,GWS224

ﾏｽﾀｰｷｰ,W(*68)

 2
69515-47020

ARS220,AZSH2#,GWS224

ﾏｽﾀｰｷｰ,W(*68)

 2
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-30360

ARS220,AZSH2#,GWS224

 1
69550A - CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK
69550-50040

ARS220,AZSH2#,GWS224

 1
69560A - CYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK
69560-30370

ARS220,AZSH2#,GWS224

 1
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-30890

ARS220,AZSH2#..S,SF

“Elegance Style”*(E)or*(F)

 2
89072-30570

ARS220,AZSH2#,GWS224..B,RS,RSB,RSF,S,SF

 2
89072-30770

ARS220,AZSH2#..S,SF

“Sport Style”*(S)or*(T)

 2
89745A - BATTERY, TRANSMITTER
89745-50020

ARS220,AZSH2#..S,SF

CR2032,“Sport Style”*(S)or*(T)

 1
89745-45010

ARS220,AZSH2#,GWS224

CR2032

 1
89745-50020

ARS220,AZSH2#,GWS224

CR2032

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
8990H-30070

ARS220,AZSH2#..S,SF

“Sport Style”*(S)or*(T)

 1
8990H-30010

ARS220,AZSH2#,GWS224..B,RS,RSB,RSF,S,SF

 1
8990H-30080

ARS220,AZSH2#..S,SF

“Elegance Style”*(E)or*(F)

 1
8990H-30050

ARS220,AZSH2#,GWS224..B,RS,RSB,RSF,S,SF

 1
8990H-30040

ARS220,AZSH2#..S,SF

“Sport Style”*(S)or*(T)

 1
