AZSH21-AEXMB (2018)

Toyota Crown/Hybrid

Production Jun 2018 - Oct 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

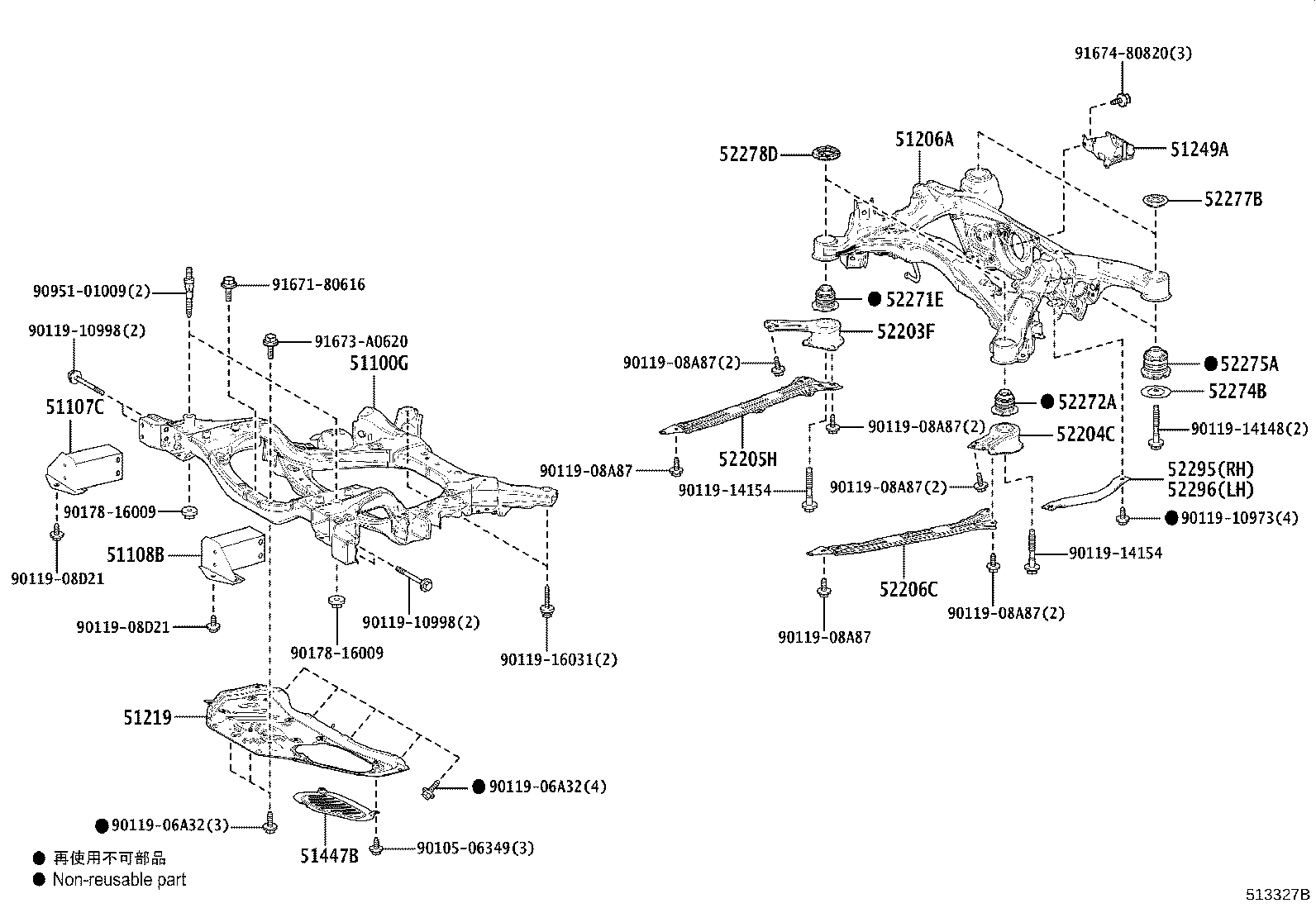

ILLUST NO. 1 OF 2(1806- )AZSH21

Click highlighted areas on diagram

ｻｽﾍﾟﾝｼｮﾝｸﾛｽﾒﾝﾊﾞ

diagram 51100G 51107C 51108B 51206A 51219 51249A 51447B 52203F 52204C 52205H 52206C 52271E 52272A 52274B 52275A 52277B 52278D 52295 52296 9010506349 9011906A32 9011906A32 9011908A87 9011908A87 9011908A87 9011908A87 9011908A87 9011908A87 9011908D21 9011908D21 9011910973 9011910998 9011910998 9011914148 9011914154 9011914154 9011916031 9017816009 9017816009 9095101009 9167180616 91673A0620 9167480820
Part # Description Qty Price
51100G - FRAME ASSY, FRONT
51100-30852

AZSH21

 1
51100-30850

AZSH21

 1
51100-30851

AZSH21

 1
51107C - RAIL SUB-ASSY, REAR FRAME, RH
51107-30040

ARS220,AZSH2#,GWS224

 1
51108B - RAIL SUB-ASSY, REAR FRAME, LH
51108-30030

ARS220,AZSH2#,GWS224

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-30142

ARS220,AZSH2#,GWS224

 1
51219 - PROTECTOR, FRONT SUSPENSION MEMBER, LWR
51219-50040

AZSH21

 1
51249A - DAMPER, REAR SUSPENSION MEMBER
51249-30040

ARS220,AZSH2#

 1
51447B - PROTECTOR, OIL PAN
51447-50020

AZSH21

 1
52203F - STOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER RH
52203-30080

ARS220,AZSH2#,GWS224

 1
52204C - STOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER LH
52204-30060

ARS220,AZSH2#,GWS224

 1
52205H - CUSHION SUB-ASSY, BODY MOUNTING, REAR RH
52205-30270

ARS220,AZSH2#,GWS224

 1
52206C - CUSHION SUB-ASSY, BODY MOUNTING, REAR LH
52206-30090

ARS220,AZSH2#,GWS224

 1
52271E - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH
52271-30170

ARS220,AZSH2#,GWS224

 1
52272A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH
52272-30030

ARS220,AZSH2#,GWS224

 1
52274B - STOPPER, REAR SUSPENSION MEMBER, REAR LOWER
52274-30010

AZSH20,GWS224;ARS220,AZSH21..B,G,GEXEF,GF,RSADF,RSF,S,SF

 2
52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52275-30180

ARS220,AZSH2#,GWS224

 2
52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER
52277-30100

ARS220,AZSH2#,GWS224

 2
52278D - STOPPER, REAR SUSPENSION MEMBER, FRONT UPPER
52278-30110

ARS220,AZSH2#,GWS224

 2
52295 - BRACE, REAR SUSPENSION MEMBER, RH
52295-30041

ARS220,AZSH2#,GWS224

 1
52296 - BRACE, REAR SUSPENSION MEMBER, LH
52295-30041

ARS220,AZSH2#,GWS224

 1
Common parts
90105-06349
90119-06A32
90119-08A87
90119-08D21
90119-10973
90119-10998
90119-14148
90119-14154
90119-16031
90178-16009
90951-01009
91671-80616
91673-A0620
91674-80820

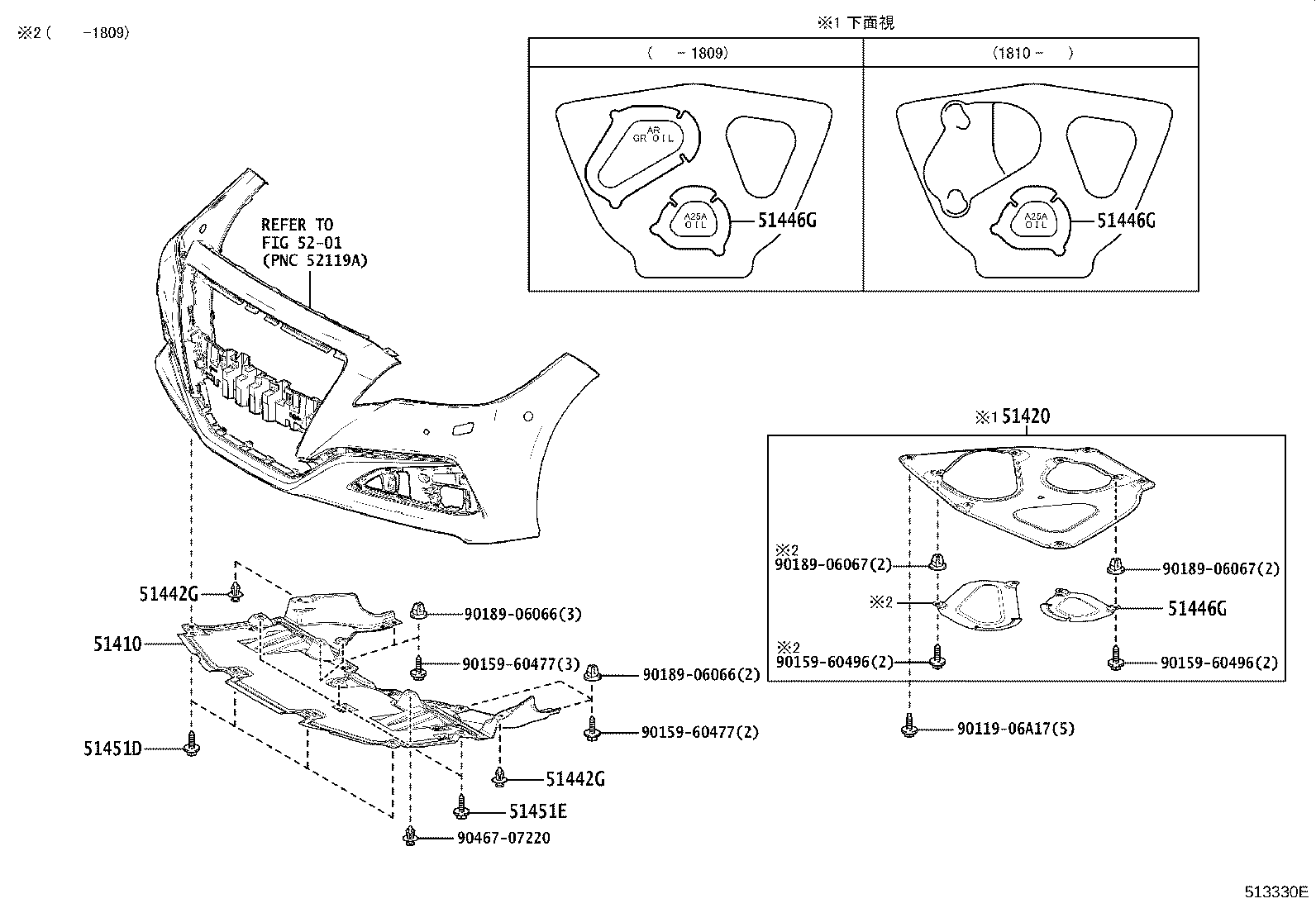

ILLUST NO. 2 OF 2(1806- )AZSH21

Click highlighted areas on diagram

ｱﾝﾀﾞｶﾊﾞｰ

diagram 51410 51420 51442G 51442G 51446G 51446G 51446G 51451D 51451E 5201 9011906A17 9015960477 9015960477 9015960496 9015960496 9018906066 9018906066 9018906067 9018906067 9046707220
Part # Description Qty Price
51410 - COVER ASSY, ENGINE UNDER, NO.1
51410-30250

AZSH21

 1
51420 - COVER ASSY, ENGINE UNDER, NO.2
51420-30051

AZSH21

 1
51420-30050

AZSH21

 1
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07220

ARS220,AZSH2#,GWS224

 2
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07220

ARS220,AZSH2#,GWS224

 2
51446G - PATCH, ENGINE UNDER COVER, REAR LH
51446-30040

AZSH21

 1
51446G - PATCH, ENGINE UNDER COVER, REAR LH
51446-30040

AZSH21

 1
51446G - PATCH, ENGINE UNDER COVER, REAR LH
51446-30040

AZSH21

 1
51451D - SCREW, NO.1
90159-60477

ARS220,AZSH2#,GWS224

 4
51451E - SCREW, NO.2
90159-60477

ARS220,AZSH2#,GWS224

 3
Common parts
90119-06A17
90159-60477
90159-60496
90189-06066
90189-06067
90467-07220
Linked diagrams
5201
