AZSH21-AEXGB (2018)

Toyota Crown/Hybrid

Production Jun 2018 - Oct 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )

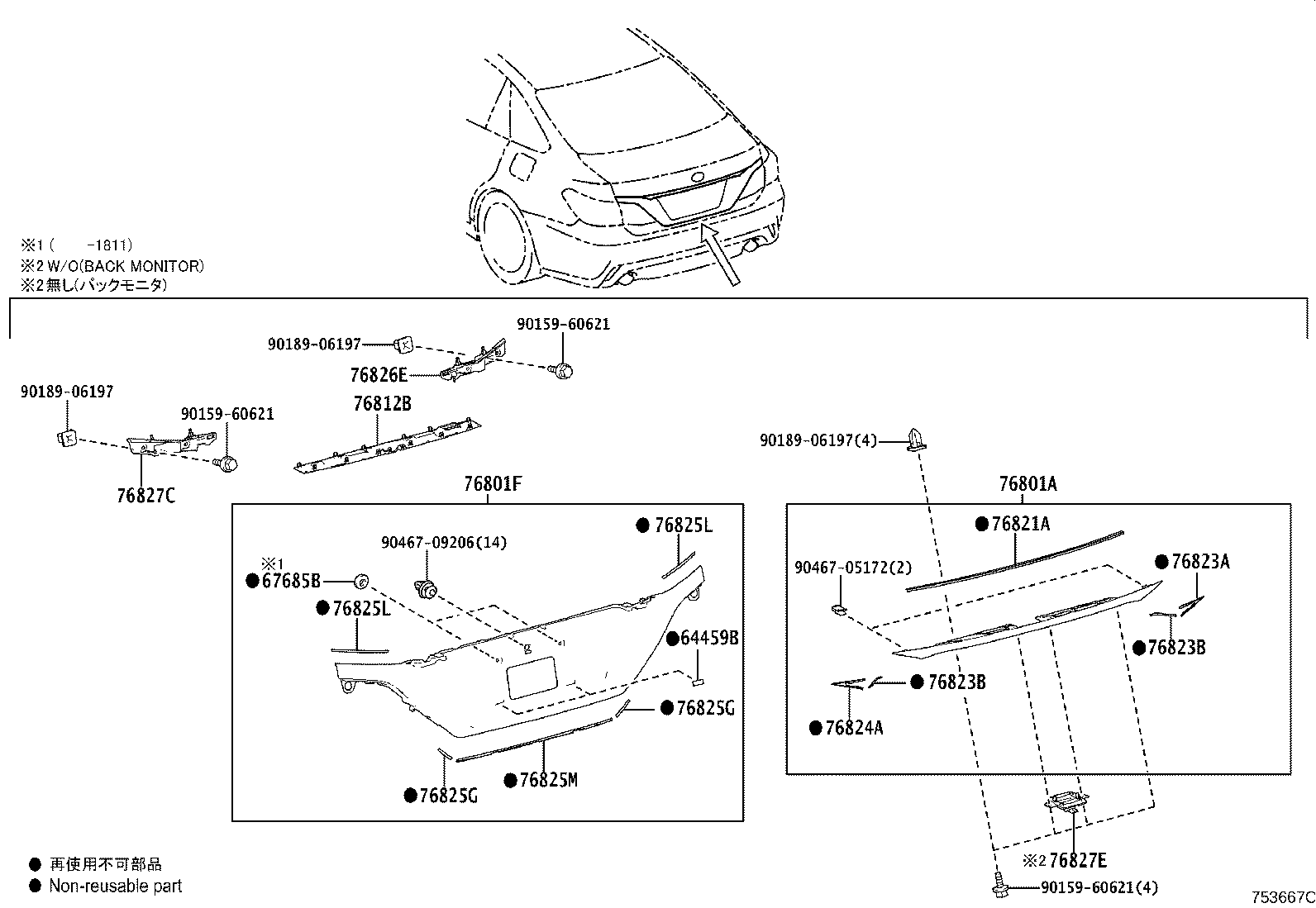

Click highlighted areas on diagram

diagram 64459B 67685B 76801A 76801F 76812B 76821A 76823A 76823B 76823B 76824A 76825G 76825G 76825L 76825L 76825M 76826E 76827C 76827E 9015960621 9015960621 9015960621 9018906197 9018906197 9018906197 9046705172 9046709206
Part # Description Qty Price
64459B - CUSHION, LUGGAGE COMPARTMENT DOOR
64459-30040

ARS220,AZSH2#,GWS224

 2
67685B - PACKING, LUGGAGE COMPARTMENT DOOR SERVICE HOLE, NO.1
67685-30010

ARS220,AZSH2#,GWS224

 2
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-30300

ARS220,AZSH2#,GWS224

ﾒｯｷ

 1
76801-30320

ARS220,AZSH2#..S,SF

ﾒｯｷ,“Sport Style”*(S)or*(T)

 1
76801F - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE, NO
76801-30310G0

ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF

ALUMINA JADE ME.,6W4

 1
76801-30310C0

ARS220,AZSH2#,GWS224

BLACK,202

 1
76801-30310B1

ARS220,AZSH2#,GWS224

PRECIOUS SILVER,1J6

 1
76801-30310D0

ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF

DEEP RED M.M.,3R9

 1
76801-30310D1

ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF

RICH RED CS. GF.,3U2

 1
76801-30310C1

ARS220,AZSH2#,GWS224

PRECIOUS BLACK,219

 1
76801-30310E0

ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF

ORANGE ME.,4R8

 1
76801-30310J0

ARS220,AZSH2#,GWS224

DK.BLUE MC.,8S6

 1
76801-30310B2

ARS220,AZSH2#,GWS224

PRECIOUS GALENA,1K5

 1
76801-30310J2

ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF

PURE BLUE ME.,8Y1

 1
76801-30310A0

ARS220,AZSH2#,GWS224

WHITE PEARL CS.,062

 1
76801-30310B0

ARS220,AZSH2#,GWS224

SILVER ME.,1F7

 1
76801-30310J1

ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF

DK.BLUE M.M.,8W7

 1
76812B - GARNISH, LUGGAGE COMPARTMENT DOOR, OUTSIDE NO.2
76812-30070

ARS220,AZSH2#,GWS224..B,G,GF,RS,RSADF,RSADV,RSB,RSF,S,SF

 1
76812-30080

ARS220,AZSH2#,GWS224..G,GF,RSADF,RSADV

ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ

 1
76821A - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76821-30060

ARS220,AZSH2#,GWS224

 1
76823A - PROTECTOR, LUGGAGE COMPARTMENT DOOR GARNISH, OUTSIDE RH
76823-30040

ARS220,AZSH2#,GWS224

 1
76823B - PROTECTOR, LUGGAGE COMPARTMENT DOOR GARNISH, OUTSIDE
76823-30050

ARS220,AZSH2#,GWS224

 2
76823B - PROTECTOR, LUGGAGE COMPARTMENT DOOR GARNISH, OUTSIDE
76823-30050

ARS220,AZSH2#,GWS224

 2
76824A - PROTECTOR, LUGGAGE COMPT DOOR GARNISH, OUTSIDE LH
76824-30040

ARS220,AZSH2#,GWS224

 1
76825G - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH, NO
76825-30020

ARS220,AZSH2#,GWS224

 2
76825G - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH, NO
76825-30020

ARS220,AZSH2#,GWS224

 2
76825L - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH, NO
76825-30010

ARS220,AZSH2#,GWS224

 2
76825L - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH, NO
76825-30010

ARS220,AZSH2#,GWS224

 2
76825M - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH, NO
76825-30030

ARS220,AZSH2#,GWS224

 1
76826E - RETAINER, LUGGAGE COMPARTMENT DOOR GARNISH, NO.1
76826-30020

ARS220,AZSH2#,GWS224

 1
76827C - RETAINER, LUGGAGE COMPARTMENT DOOR GARNISH, NO.2
76827-30020

ARS220,AZSH2#,GWS224

 1
Common parts
90159-60621
90189-06197
90467-05172
90467-09206
