AZSH21-AEXEB (2018)

Toyota Crown/Hybrid

Production Jun 2018 - Oct 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )

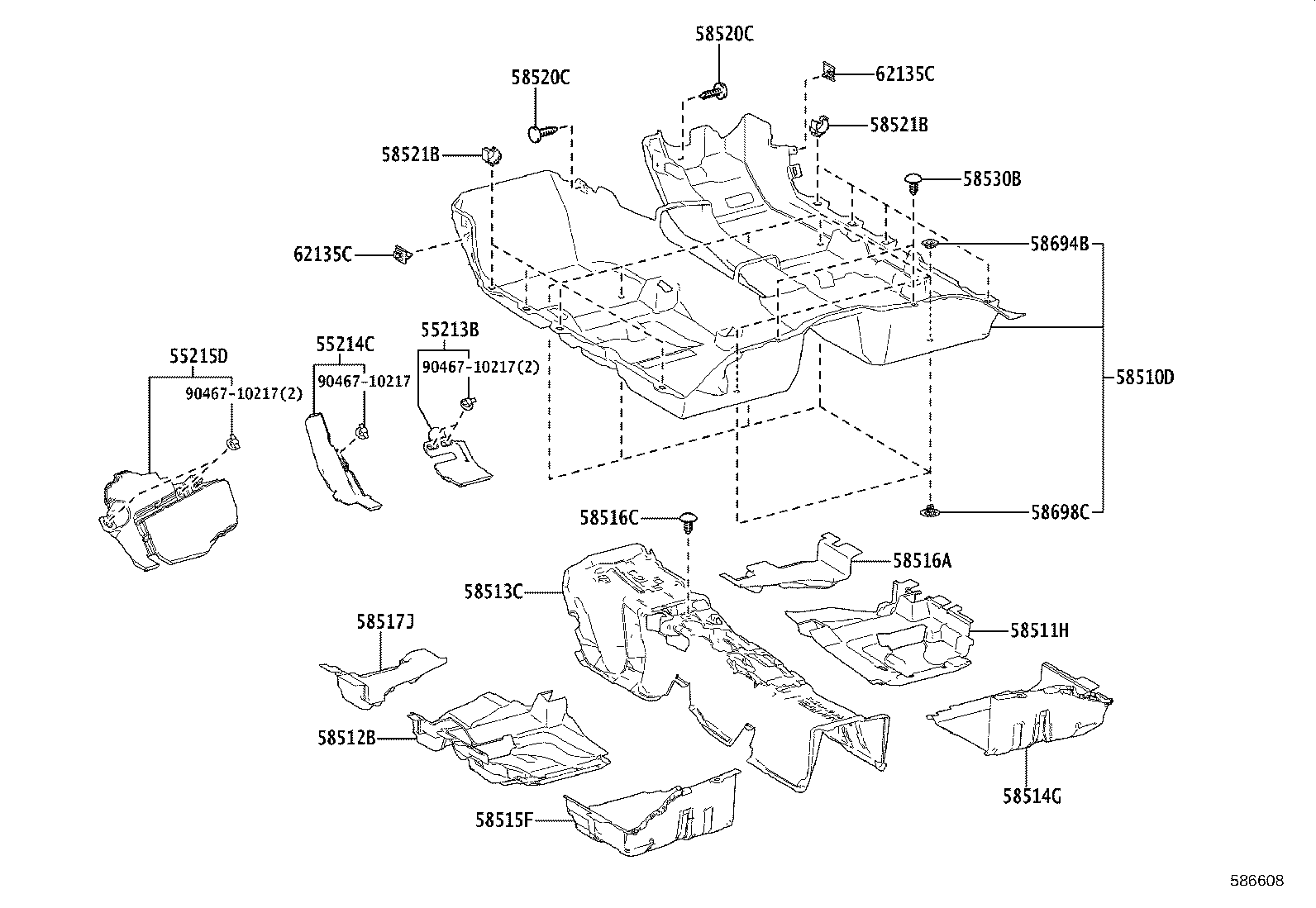

Click highlighted areas on diagram

diagram 55213B 55214C 55215D 58510D 58511H 58512B 58513C 58514G 58515F 58516A 58516C 58517J 58520C 58520C 58521B 58521B 58530B 58694B 58698C 62135C 62135C 9046710217 9046710217 9046710217
Part # Description Qty Price
55213B - PAD, DASH PANEL INSULATOR, NO.1
55213-50130

ARS220,AZSH2#,GWS224

 1
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-50120

ARS220,AZSH2#,GWS224

 1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-50090

AZSH21

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-30E90C0

AZSH21..GEXEF

BLACK,TRIM2#,4#

 1
58510-30F10C0

AZSH21..GEXEF

BLACK,TRIM2#,4#

 1
58511H - MAT, FLOOR, FRONT RH
58511-30490

ARS220,AZSH2#,GWS224

 1
58512B - MAT, FLOOR, FRONT LH
58512-30A10

AZSH21

 1
58513C - MAT, FLOOR, FRONT CENTER
58513-30310

AZSH21

 1
58514G - MAT, FLOOR, REAR RH
58514-30470

ARS220,AZSH2#,GWS224

 1
58515F - MAT, FLOOR, REAR LH
58515-30010

ARS220,AZSH2#,GWS224

 1
58516A - MAT, FLOOR, NO.6
58516-30020

ARS220,AZSH2#,GWS224

 1
58516C - CLIP(FOR FLOOR MAT)
90467-07042C0

ARS220,AZSH2#,GWS224

BLACK

 1
58517J - MAT, FLOOR, NO.7
58517-30080

AZSH21

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-0704923

ARS220,AZSH2#,GWS224

BLACK

 2
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-0704923

ARS220,AZSH2#,GWS224

BLACK

 2
58521B - HOOK, FLOOR CARPET
58521-30150

ARS220,AZSH2#,GWS224

 8
58521B - HOOK, FLOOR CARPET
58521-30150

ARS220,AZSH2#,GWS224

 8
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-05164B8

ARS220,AZSH2#,GWS224

LT.GRAY

 2
58694B - PLATE, MAT SET, UPPER
58694-33010

ARS220,AZSH2#,GWS224

 6
58698C - PLATE, MAT SET, LOWER
58698-33010

ARS220,AZSH2#,GWS224

 6
62135C - RETAINER, COWL SIDE CARPET
62135-30030

ARS220,AZSH2#,GWS224

 2
62135C - RETAINER, COWL SIDE CARPET
62135-30030

ARS220,AZSH2#,GWS224

 2
Common parts
90467-10217
