AZSH21-AEXEB (2018)
Toyota Crown/Hybrid
Production
Jun 2018
-
Oct 2020
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1806- )AZSH21

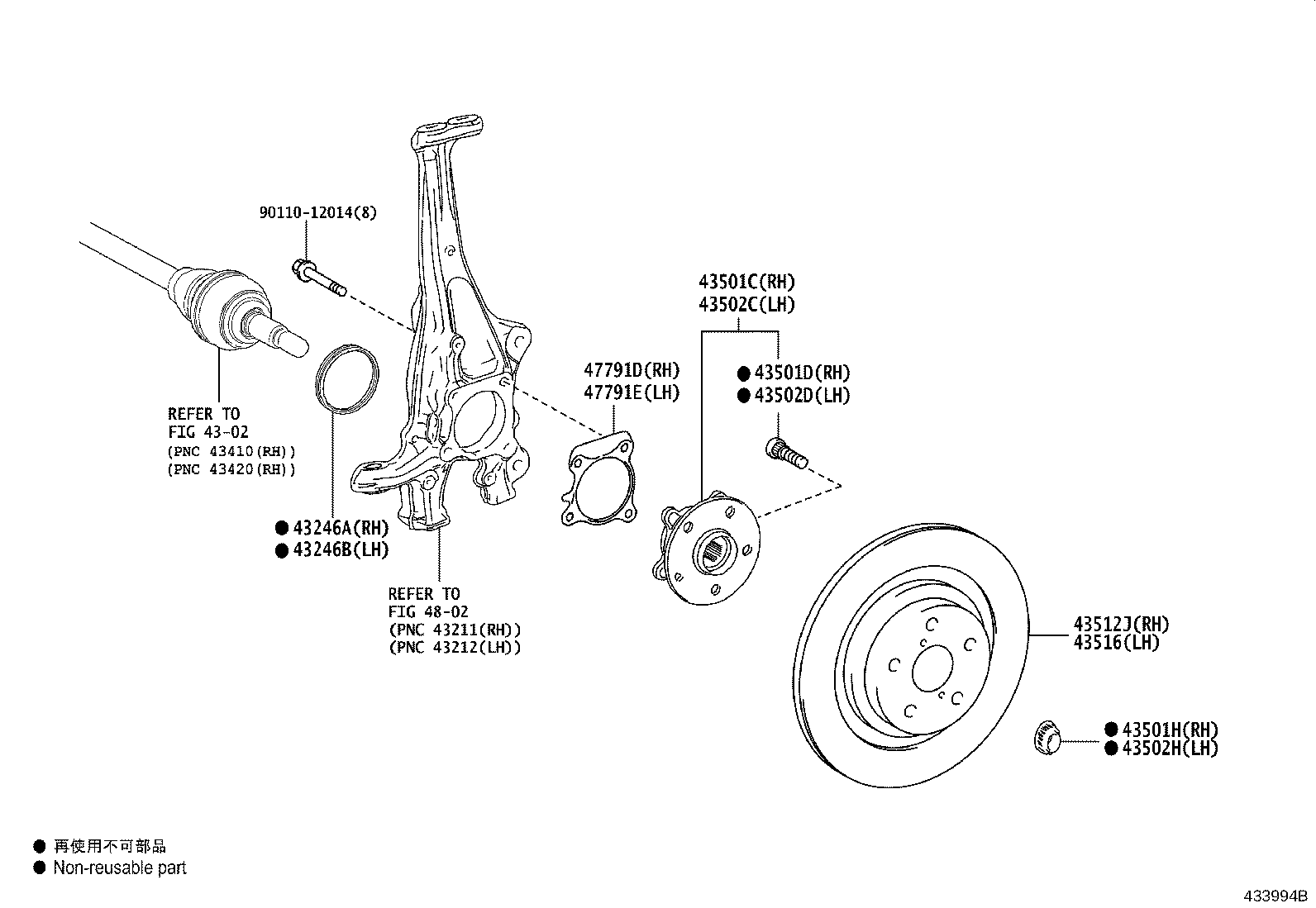

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43246A - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH | ||||
| 43246-30020 |
AZSH21 |
1 | ||
| 43246B - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH | ||||
| 43246-30020 |
AZSH21 |
1 | ||
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43550-30090 |
AZSH21 |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02049 |
ARS220,AZSH2#,GWS224 |
5 | ||
| 43501H - NUT (FOR FRONT AXLE SHAFT RH) | ||||
| 90177-22001 |
AZSH21 |
1 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43550-30090 |
AZSH21 |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02049 |
ARS220,AZSH2#,GWS224 |
5 | ||
| 43502H - NUT (FOR FRONT AXLE SHAFT LH) | ||||
| 90177-22001 |
AZSH21 |
1 | ||
| 43512J - DISC, FRONT RH | ||||
| 43512-33150 |
ARS220,AZSH2# |
1 | ||
| 43516 - DISC, FRONT LH | ||||
| 43512-33150 |
ARS220,AZSH2# |
1 | ||
| 47791D - PLATE, DISC BRAKE AIR GUIDE, RH | ||||
| 47791-30030 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 47791E - PLATE, DISC BRAKE AIR GUIDE, LH | ||||
| 47791-30030 |
ARS220,AZSH2#,GWS224 |
1 | ||
| Common parts | ||||
| 90110-12014 | ||||
| Linked diagrams | ||||
| 4302 | ||||
| 4802 | ||||
