AZSH21-AEXAB (2018)

Toyota Crown/Hybrid

Production Jun 2018 - Oct 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )AZSH2#,GWS224

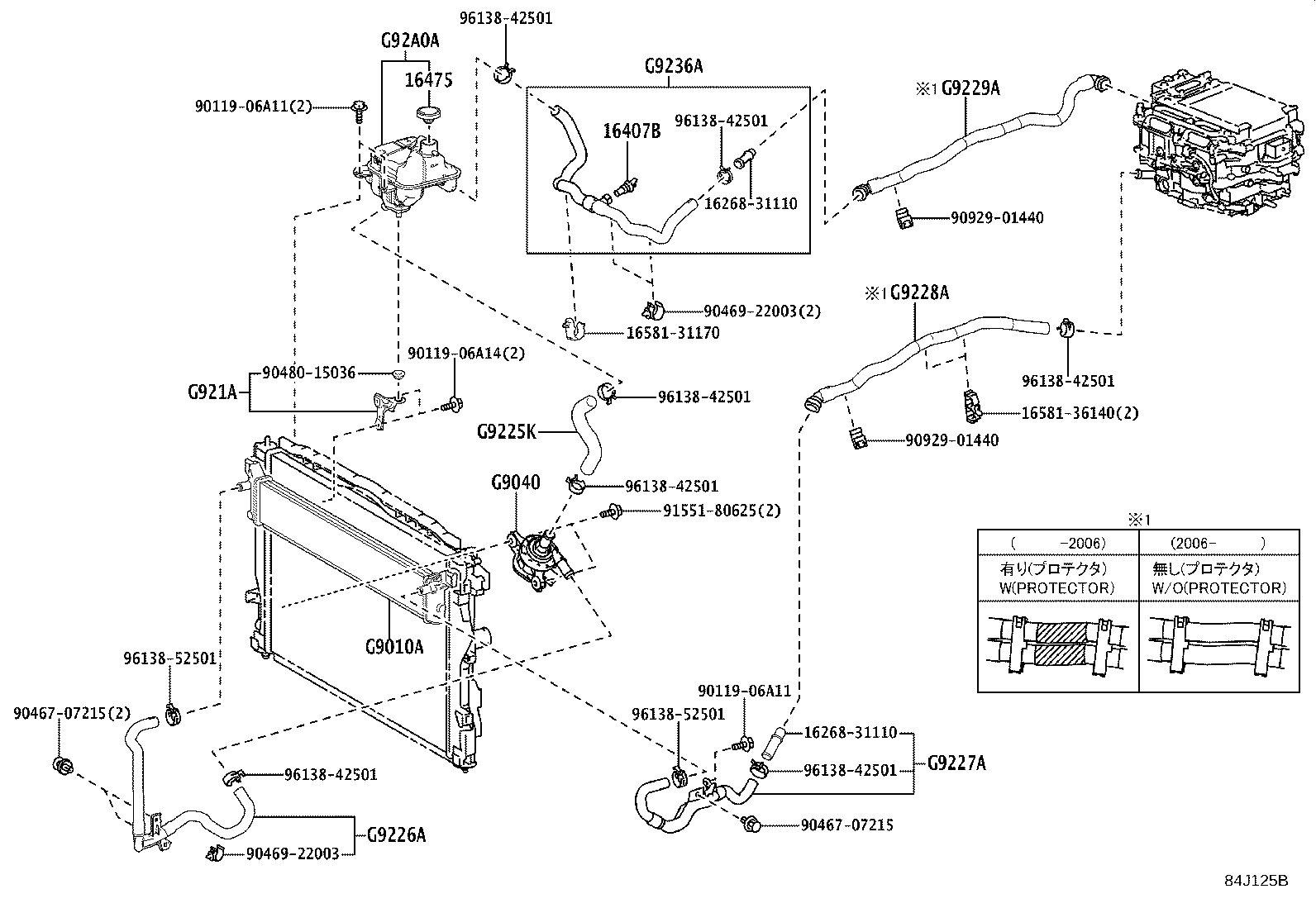

Click highlighted areas on diagram

diagram 1626831110 1626831110 16407B 16475 1658131170 1658136140 9011906A11 9011906A11 9011906A14 9046707215 9046707215 9046922003 9046922003 9048015036 9092901440 9092901440 9155180625 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613852501 9613852501 G9010A G9040 G921A G9225K G9226A G9227A G9228A G9229A G9236A G92A0A
Part # Description Qty Price
16407B - COCK SUB-ASSY, RADIATOR DRAIN
16407-64010

A25AFXS,8GRFXS..AZSH2#,GWS224

 1
16475 - CAP, RESERVE TANK
16475-28140

A25AFXS,8GRFXS..AZSH2#,GWS224

 1
G9010A - RADIATOR ASSY
G9010-30070

AZSH2#,GWS224

 1
G9040 - INVERTER WATER PUMP ASSY(W/MOTOR)
G9040-33050

AZSH2#,GWS224

 1
G921A - BRACKET, INVERTER RESERVE TANK, NO.1
G91H2-30020

AZSH2#,GWS224

 1
G9225K - HOSE, INVERTER COOLING, NO.1
G9225-30220

AZSH2#,GWS224

 1
G9226A - HOSE, INVERTER COOLING, NO.2
G9226-11010

AZSH2#,GWS224

 1
G9227A - HOSE, INVERTER COOLING, NO.3
G9227-30040

AZSH2#,GWS224

 1
G9228A - HOSE, INVERTER COOLING, NO.4
G9228-11040

AZSH2#,GWS224

 1
G9228-11041

AZSH2#,GWS224

 1
G9229A - HOSE, INVERTER COOLING, NO.5
G9229-11041

AZSH2#,GWS224

 1
G9229-11040

AZSH2#,GWS224

 1
G9236A - HOSE, INVERTER COOLING, NO.6
G9236-30020

AZSH2#,GWS224

 1
G92A0A - TANK ASSY, INVERTER RESERVE
G91H0-30020

AZSH2#,GWS224

 1
Common parts
16268-31110
16581-31170
16581-36140
90119-06A11
90119-06A14
90467-07215
90469-22003
90480-15036
90929-01440
91551-80625
96138-42501
96138-52501
