AZSH21-AEXAB (2018)
Toyota Crown/Hybrid
Production
Jun 2018
-
Oct 2020
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

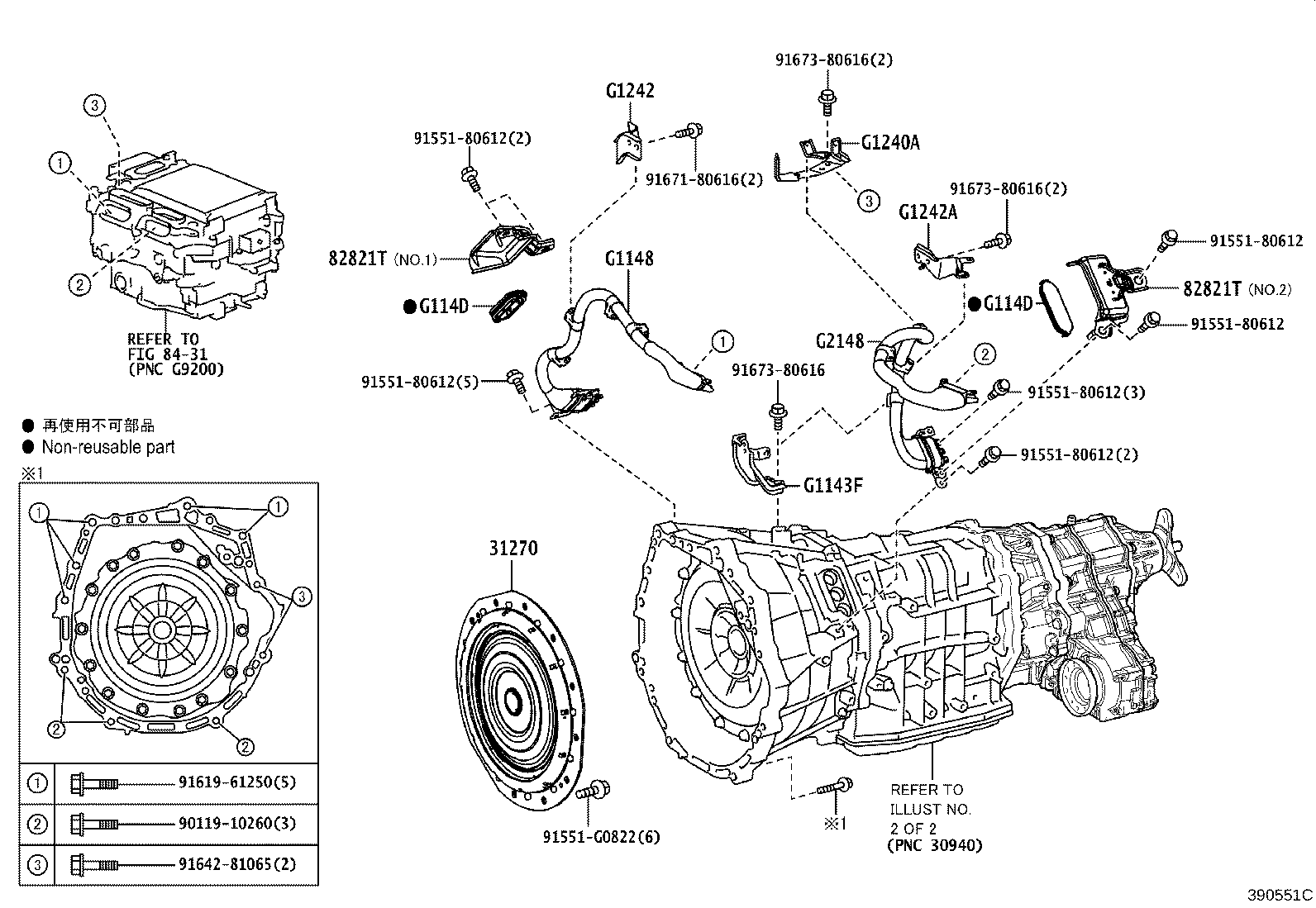

ILLUST NO. 1 OF 2(1806- )AZSH21
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31270 - DAMPER ASSY, TRANSMISSION INPUT | ||||
| 31270-30010 |
AZSH2# |
1 | ||
| 82821T - COVER, CONNECTOR | ||||
| 82821-30A50 |
AZSH2# NO.2 |
1 | ||
| 82821-30A40 |
AZSH2# NO.1 |
1 | ||
| 82821T - COVER, CONNECTOR | ||||
| 82821-30A50 |
AZSH2# NO.2 |
1 | ||
| 82821-30A40 |
AZSH2# NO.1 |
1 | ||
| G1143F - BRACKET, MOTOR CABLE, NO.2 | ||||
| G1143-30020 |
AZSH2# |
1 | ||
| G1148 - CABLE, MOTOR | ||||
| G1148-30030 |
AZSH2# |
1 | ||
| G114D - CAP, MOTOR CABLE TERMINAL | ||||
| G114D-30010 |
AZSH2#,GWS224 |
2 | ||
| G114D - CAP, MOTOR CABLE TERMINAL | ||||
| G114D-30010 |
AZSH2#,GWS224 |
2 | ||
| G1240A - BRACKET ASSY, INVERTER MOTOR CABLE | ||||
| G1240-30060 |
AZSH2# |
1 | ||
| G1242 - BRACKET, ENGINE MOTOR CABLE CLAMP | ||||
| G1242-30120 |
AZSH2# |
1 | ||
| G1242A - BRACKET, ENGINE MOTOR CABLE CLAMP | ||||
| G1242-30130 |
AZSH2# |
1 | ||
| G2148 - CABLE, GENERATOR | ||||
| G2148-30030 |
AZSH2# |
1 | ||
| Common parts | ||||
| 90119-10260 | ||||
| 91551-80612 | ||||
| 91551-G0822 | ||||
| 91619-61250 | ||||
| 91642-81065 | ||||
| 91671-80616 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8431 | ||||

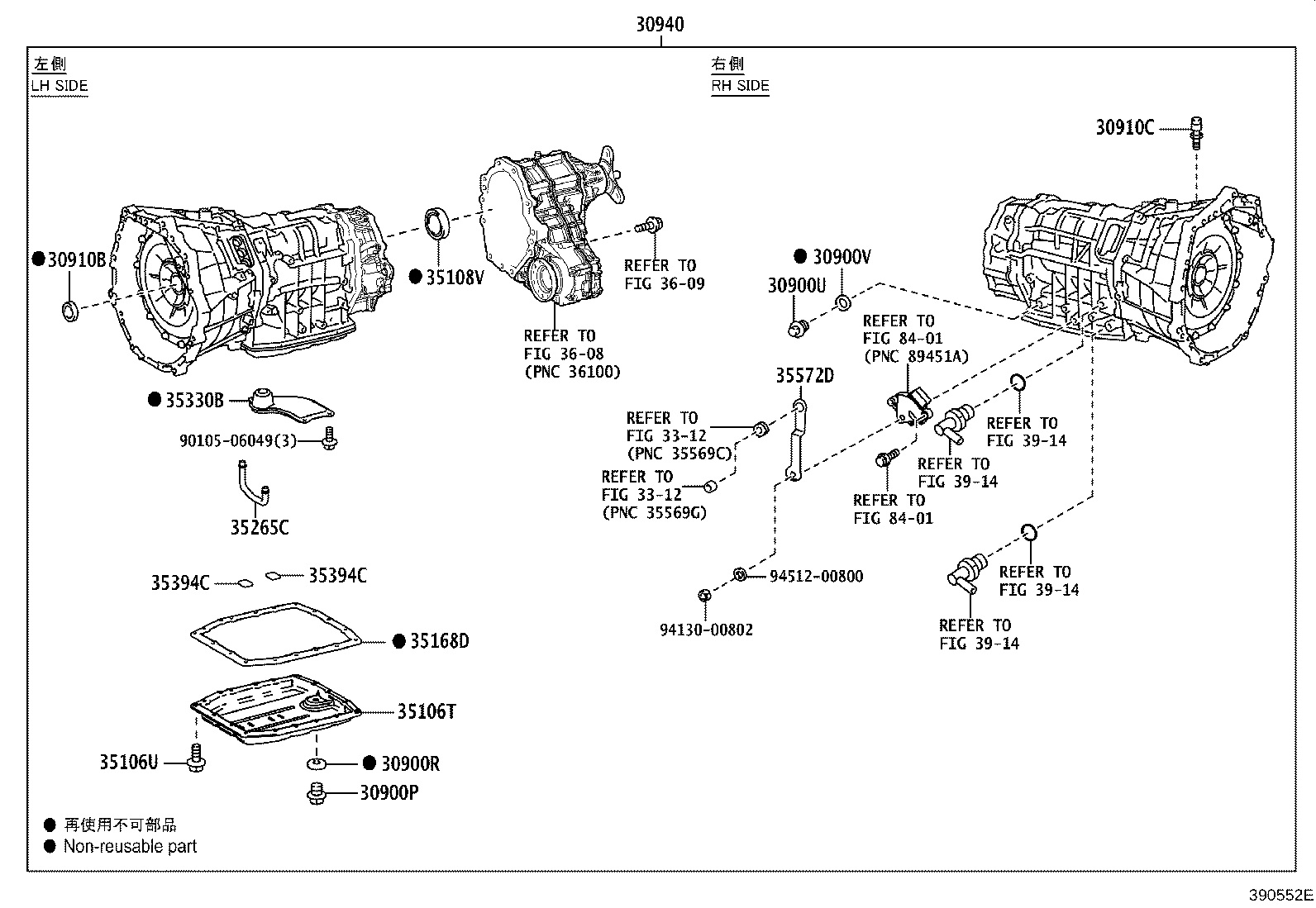

ILLUST NO. 2 OF 2(1806- )AZSH21
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30900P - PLUG, DRAIN(HV) | ||||
| 90341-10011 |
AZSH2#,GWS224 |
1 | ||
| 30900R - GASKET, DRAIN PLUG(HV) | ||||
| 35178-30010 |
AZSH2# |
1 | ||
| 30900U - PLUG, REFILL(HV) | ||||
| 90341-18060 |
AZSH2# |
1 | ||
| 30900V - GASKET, REFILL PLUG(HV) | ||||
| 90430-18008 |
AZSH2# |
1 | ||
| 30910B - SEAL, TYPE T OIL(FOR HYBRID VEHICLE TRANSMISSION ASSY) | ||||
| 90311-25027 |
AZSH2# |
1 | ||
| 30910C - PLUG SUB-ASSY, BREATHER(FOR TRANSMISSION) | ||||
| 90930-03201 |
AZSH2# |
1 | ||
| 30940 - TRANSMISSION ASSY, HYBRID VEHICLE W/TRANSFER | ||||
| 30940-30030 |
AZSH21 |
1 | ||
| 30940-30020 |
AZSH21 |
1 | ||
| 35106T - PAN SUB-ASSY, TRANSMISSION OIL | ||||
| 35106-30290 |
AZSH2# |
1 | ||
| 35106U - BOLT (FOR TRANSMISSION OIL PAN) | ||||
| 90119-06173 |
AZSH2# |
18 | ||
| 35108V - SEAL, TYPE T OIL (FOR EXTENSION HOUSING) | ||||
| 90311-48028 |
AZSH21 |
1 | ||
| 35168D - GASKET, TRANSMISSION OIL PAN | ||||
| 35168-30030 |
AZSH2# |
1 | ||
| 35265C - TUBE, OIL COOLER RETURN | ||||
| 35265-30010 |
AZSH2# |
1 | ||
| 35330B - STRAINER ASSY, OIL | ||||
| 35330-30110 |
AZSH2# |
1 | ||
| 35394C - MAGNET, OIL CLEANER | ||||
| 35394-48010 |
AZSH2# |
2 | ||
| 35394C - MAGNET, OIL CLEANER | ||||
| 35394-48010 |
AZSH2# |
2 | ||
| 35572D - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-30130 |
AZSH21 |
1 | ||
| Common parts | ||||
| 90105-06049 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 3608 | ||||
| 3609 | ||||
| 3914 | ||||
| 8401 | ||||
