AZSH21-AEXAB (2018)

Toyota Crown/Hybrid

Production Jun 2018 - Oct 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )A25AFXS

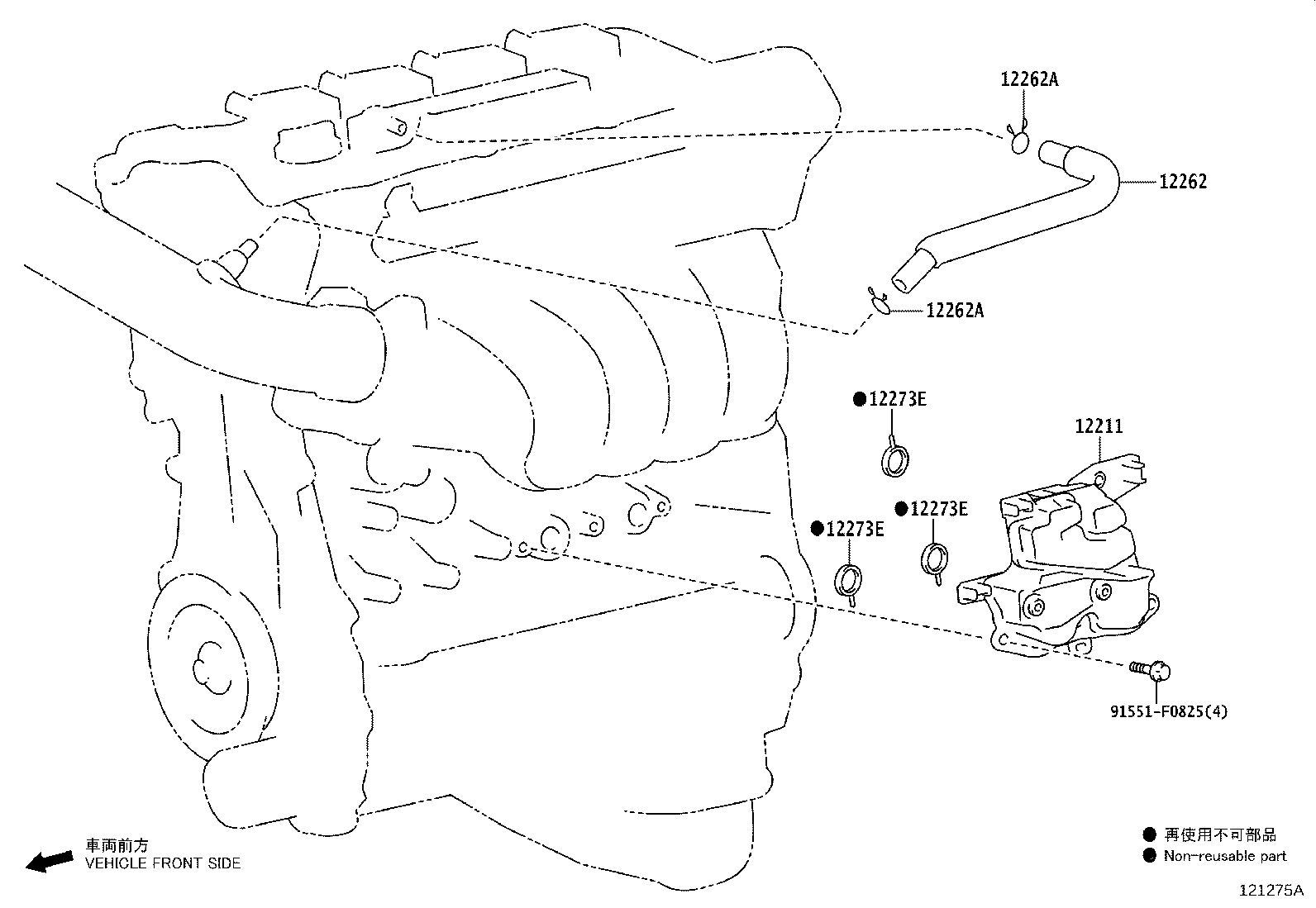

Click highlighted areas on diagram

diagram 12211 12262 12262A 12262A 12273E 12273E 12273E 91551F0825
Part # Description Qty Price
12211 - CASE, VENTILATION, NO.1
12211-25010

A25AFXS..AZSH2#

 1
12211-25011

A25AFXS..AZSH2#

 1
12262 - HOSE, VENTILATION, NO.2
12262-25050

A25AFXS..AZSH2#

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004

A25AFXS..AZSH2#

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004

A25AFXS..AZSH2#

 2
12273E - GASKET(FOR VENTILATION CASE)
12273-24010

A25AFXS..AZSH2#

 3
12273E - GASKET(FOR VENTILATION CASE)
12273-24010

A25AFXS..AZSH2#

 3
12273E - GASKET(FOR VENTILATION CASE)
12273-24010

A25AFXS..AZSH2#

 3
Common parts
91551-F0825
