AZSH20-AEXSB (2020)

Toyota Crown/Hybrid

Production Nov 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )

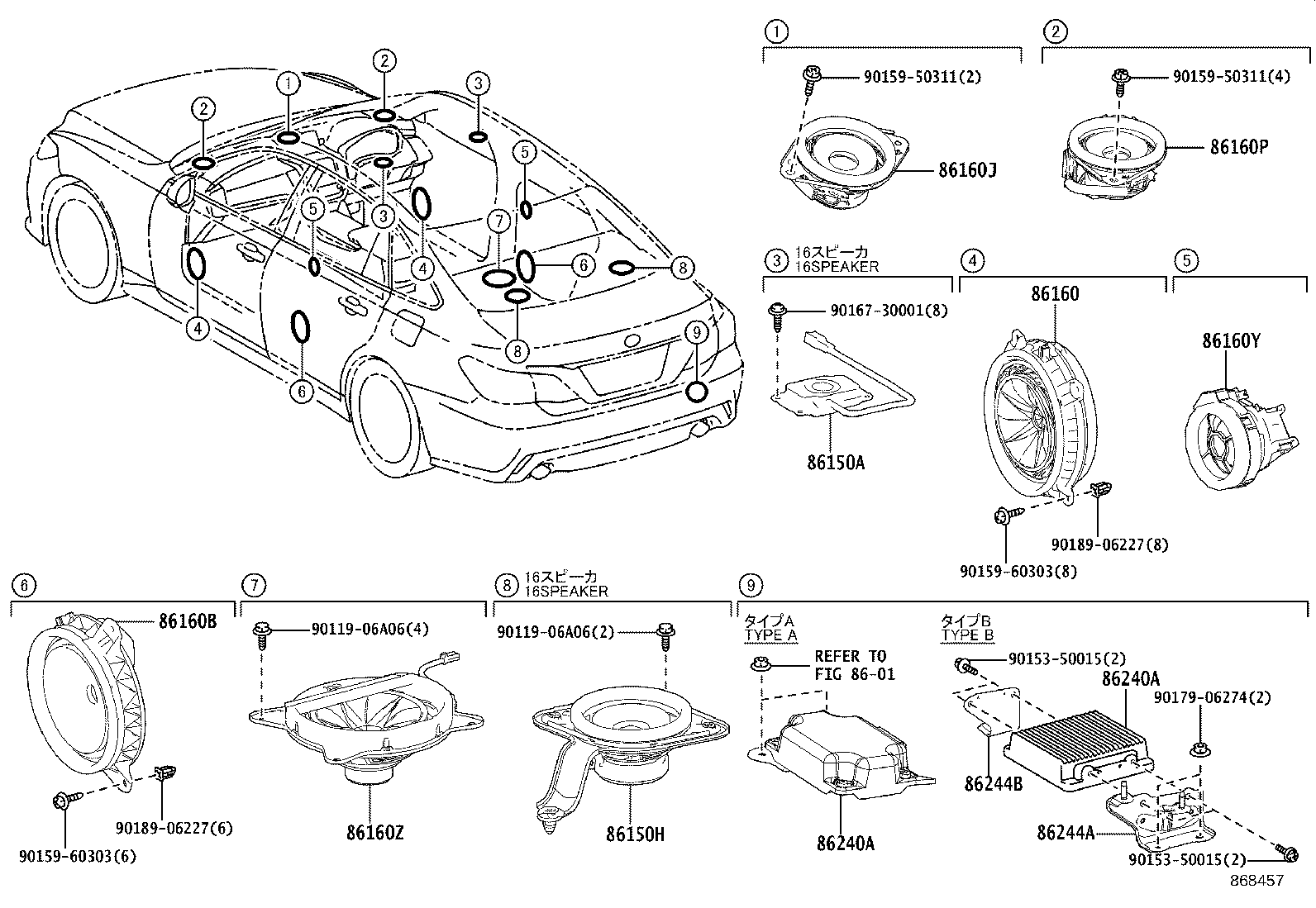

Click highlighted areas on diagram

diagram 8601 86150A 86150H 86160 86160B 86160J 86160P 86160Y 86160Z 86240A 86240A 86244A 86244B 9011906A06 9011906A06 9015350015 9015350015 9015950311 9015950311 9015960303 9015960303 9016730001 9017906274 9018906227 9018906227
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-33A20

AZSH2#..B,RSB

ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ

 2
86160-30E70

ARS220,AZSH2#,GWS224

 2
86160B - SPEAKER ASSY, REAR
86160-30E00

ARS220,AZSH2#,GWS224

 2
86160J - SPEAKER ASSY, FRONT NO.3
86160-30E80

ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF

 1
86160P - SPEAKER ASSY, FRONT NO.2
86160-30E80

ARS220,AZSH2#,GWS224

 2
86160-76120

AZSH2#..B,RSB

ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ

 2
86160Y - SPEAKER ASSY, REAR NO.2
86160-30F00

ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF

 2
86160Z - SPEAKER ASSY, REAR NO.3
86150-30600

ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF

 1
86240A - EQUALIZER ASSY,STEREO COMPONENT
86240-30040

AZSH2#..B,RSB

ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ,ﾀｲﾌﾟ B

 1
86240-30050

AZSH2#..B,RSB

ﾀｲﾌﾟ A

 1
86240-30100

ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF

ﾀｲﾌﾟ A

 1
86240A - EQUALIZER ASSY,STEREO COMPONENT
86240-30040

AZSH2#..B,RSB

ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ,ﾀｲﾌﾟ B

 1
86240-30050

AZSH2#..B,RSB

ﾀｲﾌﾟ A

 1
86240-30100

ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF

ﾀｲﾌﾟ A

 1
86244A - BRACKET, EQUALIZER STEREO COMPONENT, NO.1
86244-30050

AZSH2#..B,RSB

ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ

 1
86244B - BRACKET, EQUALIZER STEREO COMPONENT, NO.2
86244-30060

AZSH2#..B,RSB

ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ

 1
Common parts
90119-06A06
90153-50015
90159-50311
90159-60303
90167-30001
90179-06274
90189-06227
Linked diagrams
8601
